EV1020-EV1220-EV1520 Plunger/Rail Assembly

Drawing Number

Parts Description

15 Available Parts

7/8-9 x 3 1/2 Socket Head Cap Screw

$23.12

2 x 68 Hydraulic Ram Cylinder (EV1020/EV1220)

$1,764.87

2.5 x 68 Hydraulic Cylinder (EV1520)

$2,733.34

Cylinder Sleeve (EV1020/EV1220)

$257.96

Unnamed part

—

Unavailable online – please call for availability.

Cylinder Capture Plate (EV1520)

$361.94

3/8" External Tooth Lock Washer

$0.31

3/8-16 x 3/4 Hex Head Capscrew

$0.36

Straight Thread Connector #6 JIC

$13.86

Unnamed part

—

Unavailable online – please call for availability.

Shop specialized parts breakdowns for the Challenger EV1020, EV1220, and EV1520 series 2-post lift Plunger / Rail Assembly. This category includes plunger assemblies, rail components, mounting hardware, bearings, and all related parts for the plunger and rail mechanism.

Organized by the factory diagrams for these EV-series models, these replacements ensure smooth plunger and rail operation. Ideal for servicing or replacing plunger/rail assembly components on your Challenger EV1020/EV1220/EV1520 lift.

Don’t See What You Need?

Give us a call: 866-902-6060

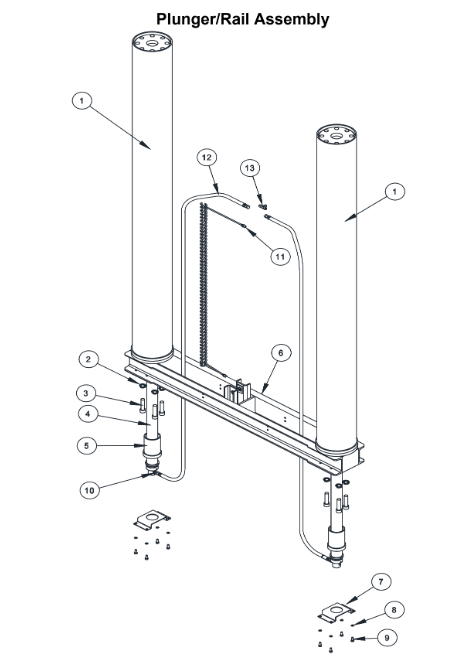

EV1020-EV1220-EV1520 Plunger/Rail Assembly

Drawing Number

Parts Description

Chrome Plunger

7/8" Split Lock Washer

7/8-9 x 3 1/2 Socket Head Cap Screw

2 x 68 Hydraulic Ram Cylinder (EV1020/EV1220)

2.5 x 68 Hydraulic Cylinder (EV1520)

Cylinder Sleeve (EV1020/EV1220)

Synch. Rail Assembly

Unnamed part

Cylinder Capture Plate (EV1520)

3/8" External Tooth Lock Washer

3/8-16 x 3/4 Hex Head Capscrew

Straight Thread Connector #6 JIC

Coiled Air Line

Unnamed part

#6 JIC Union Tee
