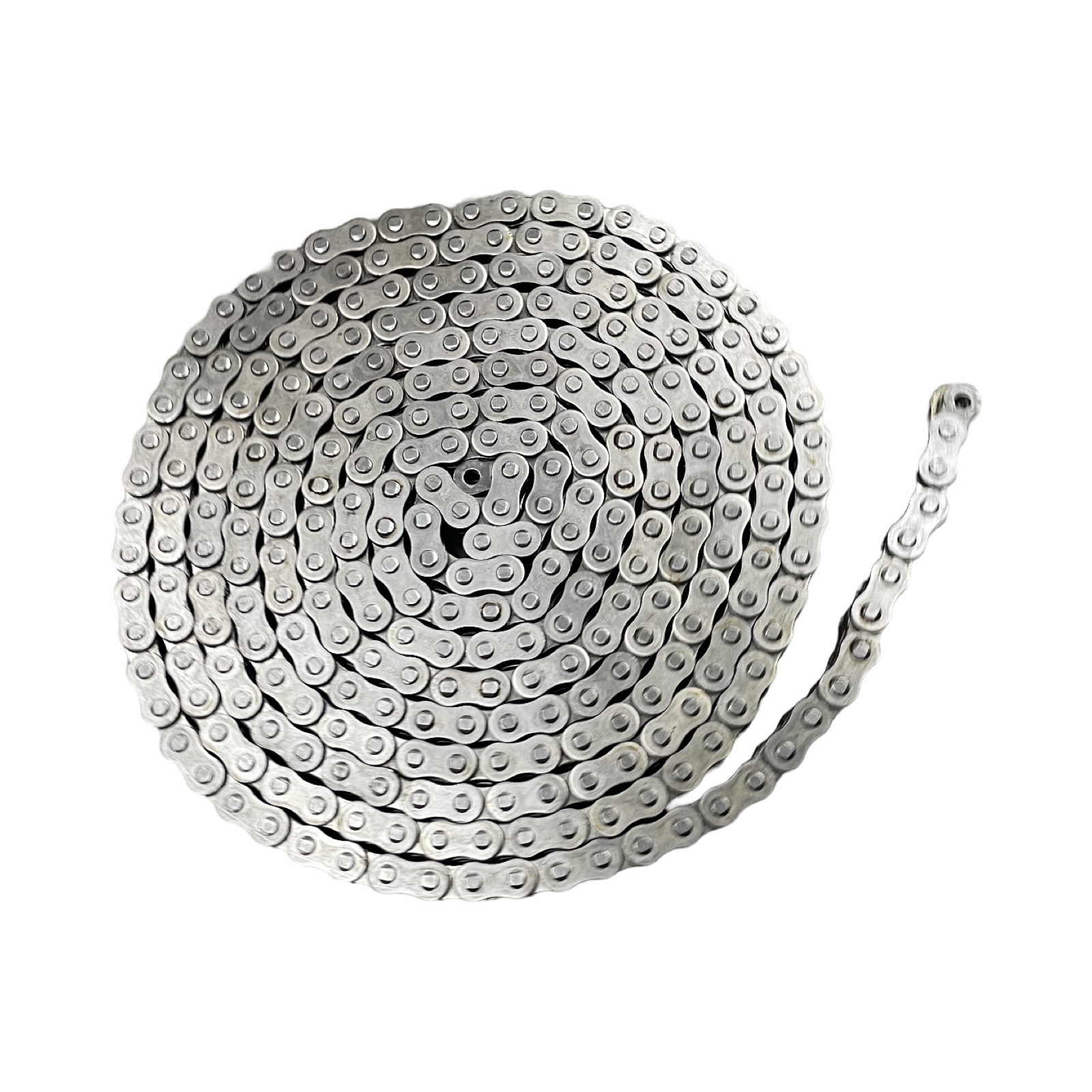

Forward Lift 992612 Cross Rail Chain – 4-Post 12K, Built Before 06/07, Models 12K, 12EWT, 12SAR, 12SWT, 12LA, 12SA, 12LR, 12LAR
The cross rail lifting chain on a Forward 4-post hoist runs from a stud on top of the off-side column, makes a 90-degree turn through the cross rail, reaches the cylinder-side column, makes another 90-degree turn, and anchors at the bottom of that column. Pins can loosen over time, links can break, and a failed roller will accelerate chain wear. Always replace the entire chain end-to-end and inspect all rollers for free rotation and no center wear before installing.
Product Information
- Brand / Equipment: Forward Lift 4-Post Chain Hoist
- Manufacturer / Reference Part Number: 992612
- Alternate Part Number: FOD2612
- Store SKU: FOD2612-1
- Component: Cross rail (side-to-side) lifting chain
- Chain Specs: 7 links thick, 3/4″ from pin to pin
- Lift Footprint (Side to Side): 11’3-1/2″ outside column baseplate to outside column baseplate
- Listed Application: Forward 4-post hoists built before 06/07 – models 12K, 12EWT, 12SAR, 12SWT, 12LA, 12SA, 12LR, 12LAR
Fitment and Ordering Notes
This is the cross rail chain running side to side; see separate listings for the overhead (front-to-rear) chains. This chain may need to be cut down depending on how level your floor is. Measure the lift side to side (outside baseplate to outside baseplate) and confirm the measurement matches 11’3-1/2″ before ordering. Verify the chain is 7 links thick with 3/4″ pin-to-pin spacing before purchase. Confirm your lift was built before 06/07 and verify specifications against your lift’s parts manual.
