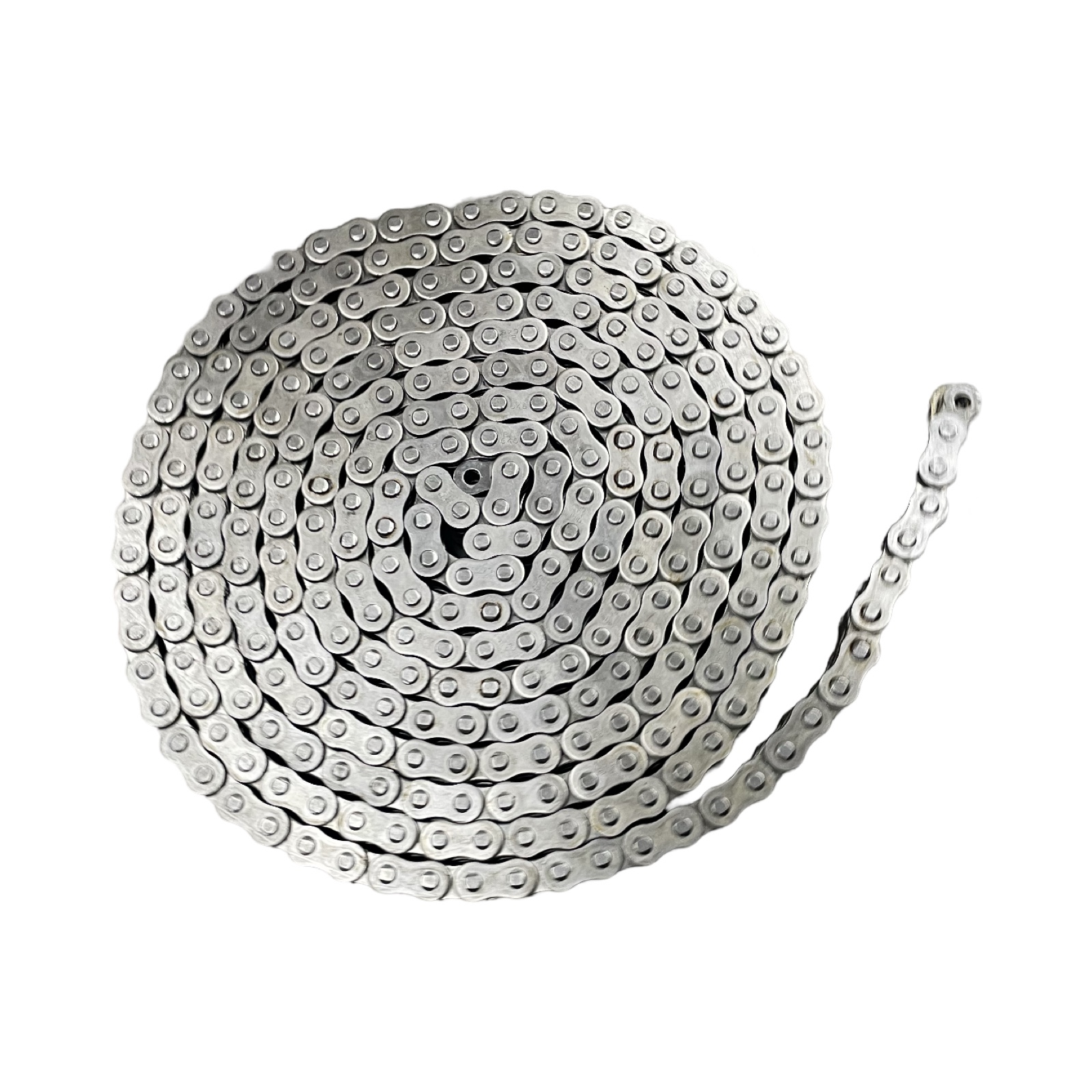

Forward Lift 992690 Cross Rail Chain – 4-Post 12K Super Mezz, Built 2003-2006 (12’3-1/2″ Side to Side)
The cross rail lifting chain on a Forward 4-post Super Mezz hoist runs from a stud on top of the off-side column, makes a 90-degree turn through the cross rail, reaches the cylinder-side column, makes another 90-degree turn, and anchors at the bottom of that column. The chain attaches at the bottom of the power-side column and at the top of the off-side column. Pins can loosen over time, links can break, and a failed roller will accelerate chain wear. Always replace the entire chain end-to-end and inspect all rollers for free rotation and no center wear before installing.
Product Information
- Brand / Equipment: Forward Lift 4-Post Chain Hoist – Super Mezz Series
- Manufacturer / Reference Part Number: 992690
- Alternate Part Number: FOD2690
- Store SKU: FOD2690
- Component: Cross rail (side-to-side) lifting chain
- Chain Specs: 7 links thick, 3/4″ from pin to pin
- Lift Footprint (Side to Side): 12’3-1/2″ outside column baseplate to outside column baseplate
- Listed Application: Forward hoist 12K Super Mezz, built 2003-2006
Fitment and Ordering Notes
This is the cross rail chain running side to side; see separate listings for the overhead (front-to-rear) chains. This chain may need to be cut down depending on how level your floor is. Measure the lift side to side (outside baseplate to outside baseplate) and confirm the measurement matches 12’3-1/2″ before ordering. Verify the chain is 7 links thick with 3/4″ pin-to-pin spacing before purchase. Confirm your lift is the 2003-2006 Super Mezz build and verify specifications against your lift’s parts manual.
