Description

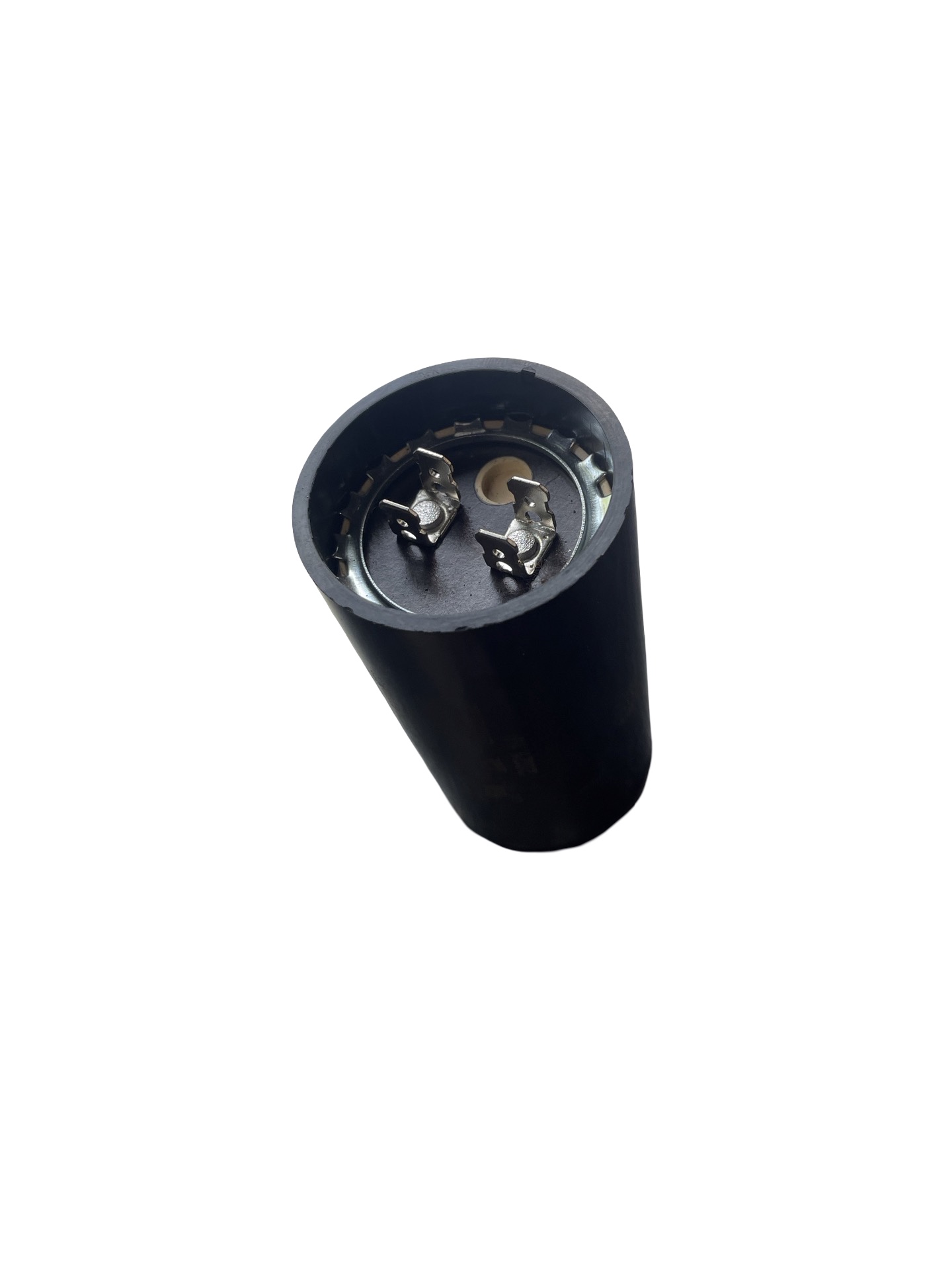

Duro 110v Power Unit Start Capacitor – 300uF 250VAC 50/60Hz
If your 2-post or 4-post lift motor hums but will not lift, fails to start under load, or trips the breaker on startup, the start capacitor is one of the first components to suspect. This black CAPACA motor starting capacitor (300uF 250VAC 50/60Hz) is the OEM-style replacement for Duro 110v power units. Before ordering, verify the rating on your existing capacitor matches exactly: 300uF, 250VAC, 50/60Hz. Substituting a capacitor with a different rating can damage the motor or prevent the lift from operating correctly.
Product Information
- Brand: Duro (power unit) / CAPACA (capacitor)
- Manufacturer Reference: CAPACA Motor Starting Capacitor 300uF 250VAC 50/60Hz
- Store SKU: TUO1110V
- Component: Start Capacitor
- Capacitance: 300uF
- Voltage Rating: 250VAC
- Frequency: 50/60Hz
- Dimensions: 3.5″ tall x 1.78″ wide
- Listed Application: Duro 110v power unit motors and hydraulic pump
Compatible Makes / Verified Fitment Models
This capacitor fits lifts equipped with Duro 110v power units from the following manufacturers:
- Eagle Lifts, Prokar, Tuxedo, Auto Lift, Iron Horse, Strong Arm, Pro Line
- North American Auto Equipment, Kernel
Verified Tuxedo models: TP7, TP9-KAC, TP9-KAF, TP11-KAC, TP11KAC-D, FP7K, FP8K, FP9K, PK9, PK11, FP14K
Fitment & Ordering Notes
- Verify your existing capacitor rating matches exactly: 300uF, 250VAC, 50/60Hz before ordering.
- This is the start capacitor, NOT the run capacitor. The run capacitor for Duro 110v power units is a separate part rated 80uF 300VAC (SKU TUO0110V).
- Applies to Duro 110v power units only. The 220v Duro power unit uses a different start capacitor.
- It is recommended to replace the run capacitor at the same time when replacing this start capacitor.
