Description

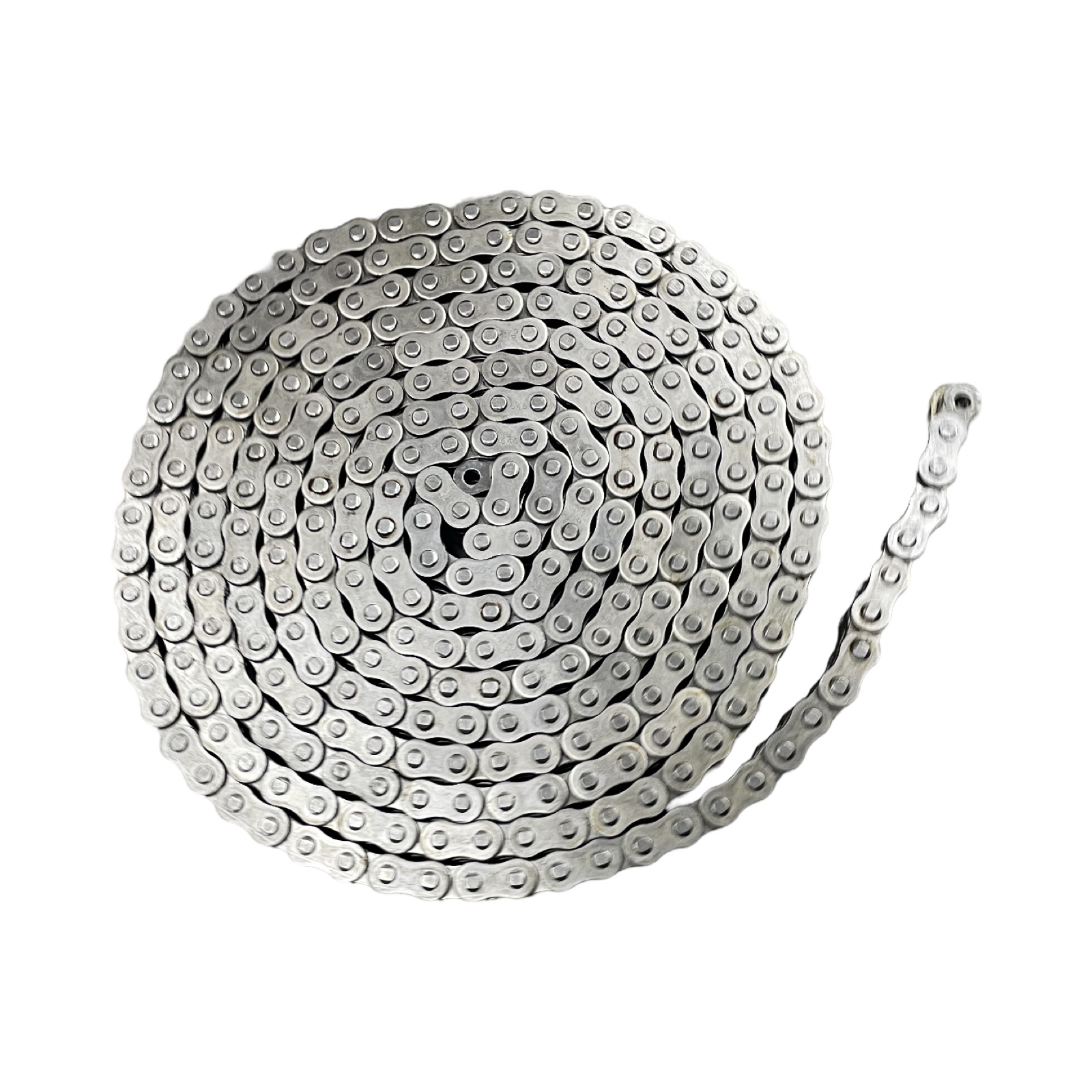

Forward Lift 992611 Long Top Rail Overhead Chain – 4-Post Hoist, 12K Super Mezz Lube Rack (17’6″ Front to Rear)
The upper main beam long chain on a Forward 4-post chain-drive hoist attaches to the hydraulic cylinder on top of the beam, makes a 180-degree turn over a roller at the end of the top beam, runs back through the top beam, and connects down to the crossbeam inside the column. Pins can loosen over time, links can break, and a failed roller will rapidly accelerate chain wear. Replace the entire chain end-to-end when servicing, and inspect every roller to confirm it turns freely with no center wear before installing.
Product Information
- Brand / Equipment: Forward Lift 4-Post Chain Hoist – Super Mezz Lube Rack
- Manufacturer / Reference Part Number: 992611
- Alternate Part Number: FOD2611-1
- Store SKU: FOD2611-1
- Component: Long top rail overhead lifting chain
- Lift Footprint (Front to Rear): 17’6″ outside column baseplate to outside column baseplate
- Listed Application: Forward hoist models 12K, SUPER MEZZ LUBE RACK
Fitment and Ordering Notes
Forward 4-post chain-drive hoists use a long and a short top rail chain; part 992611 is the long chain of the pair that connects to the cylinder. This store SKU (FOD2611-1) covers the Super Mezz Lube Rack configuration measuring 17’6″ front to rear – note this differs from the standard FOD2611 variant that measures 17’2″. See separate listings for the short overhead chain. This chain may need to be cut down depending on floor levelness. Measure the lift front to rear (outside baseplate to outside baseplate) and confirm the measurement matches 17’6″ before ordering.
