Tuxedo / Duro 2-Post Lift Octagon Pad Weldment Foot Kit – TP9-1001

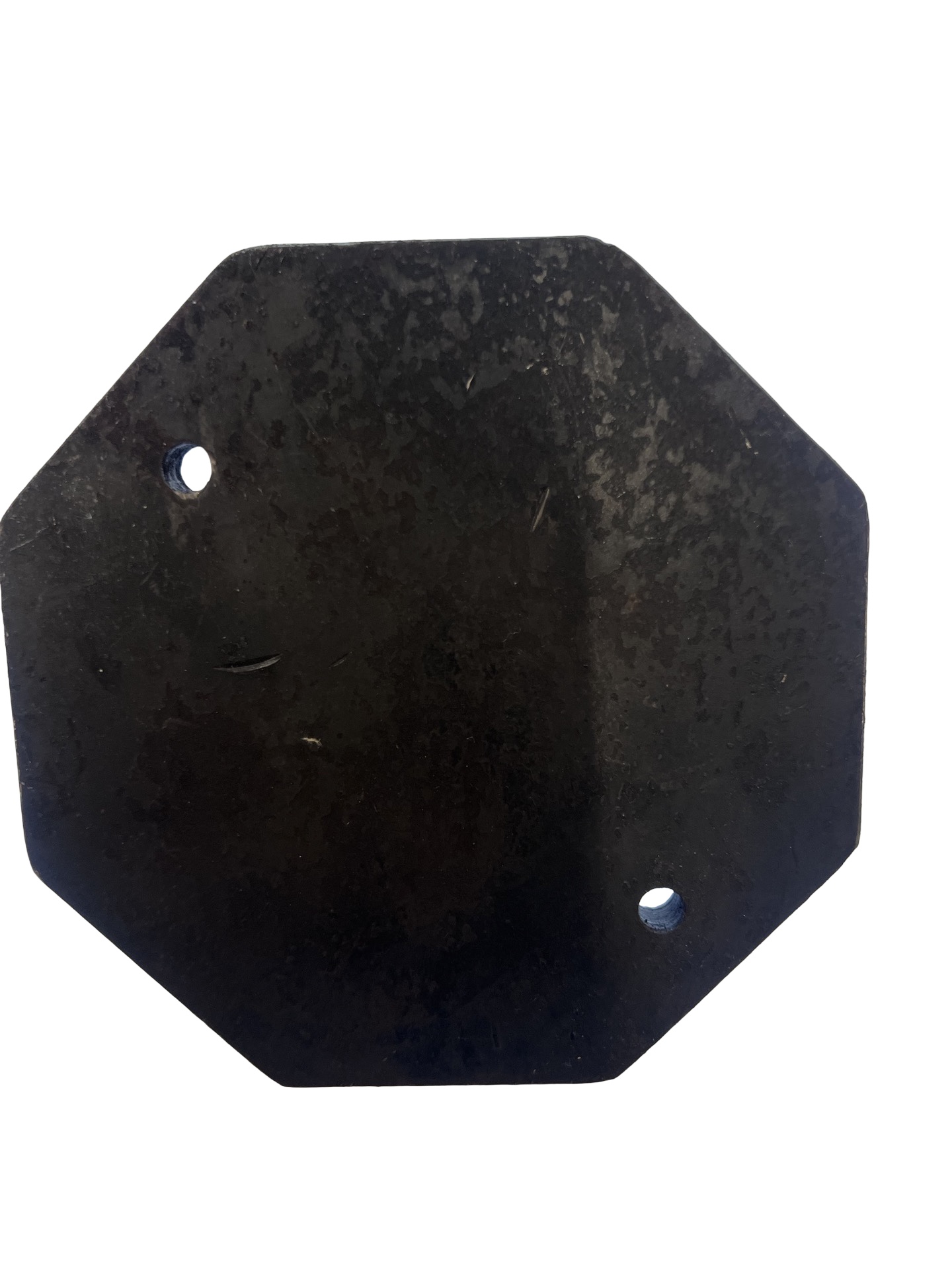

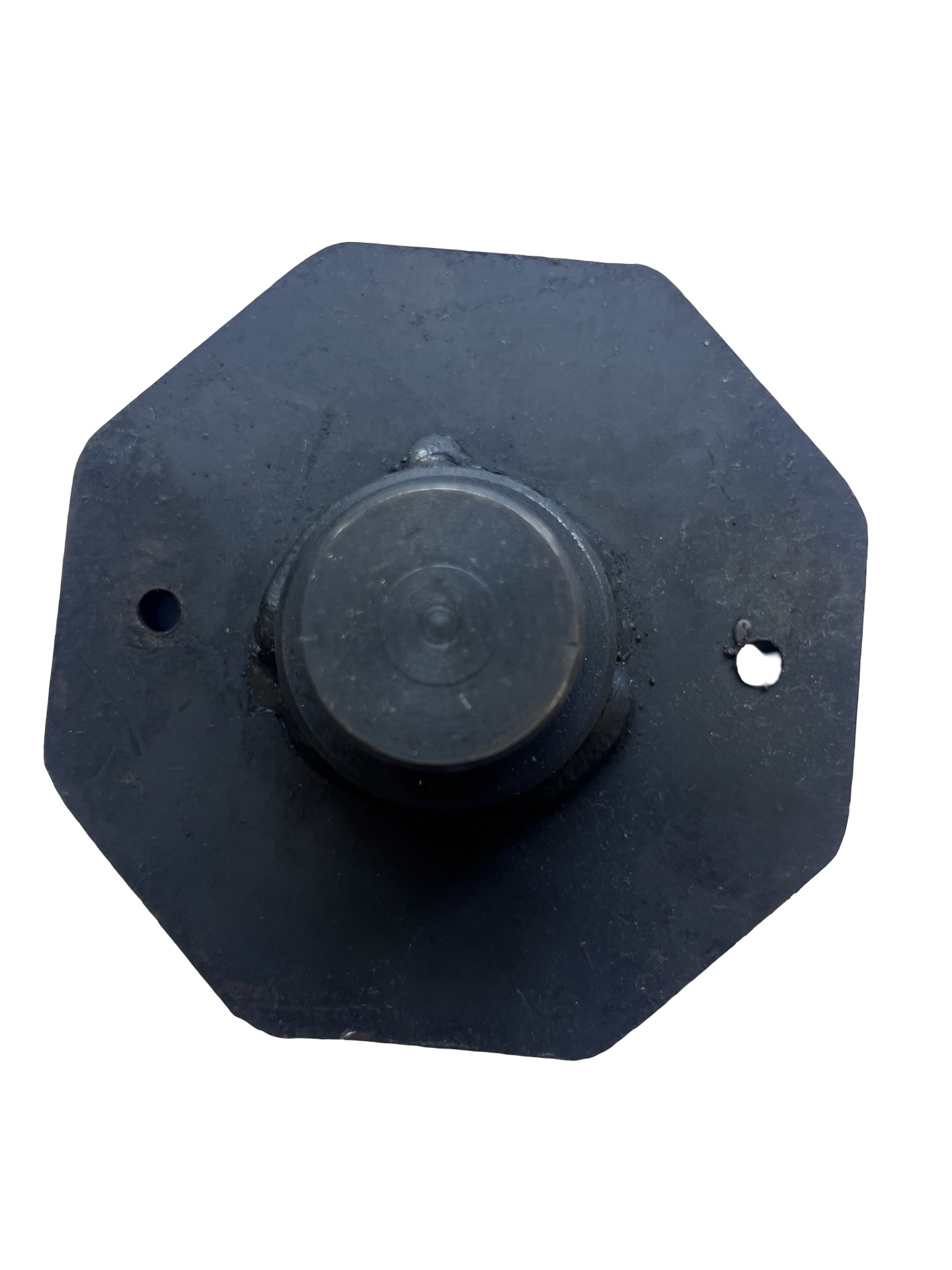

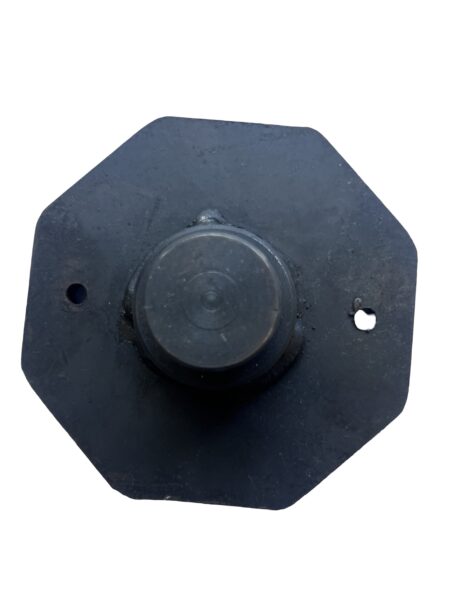

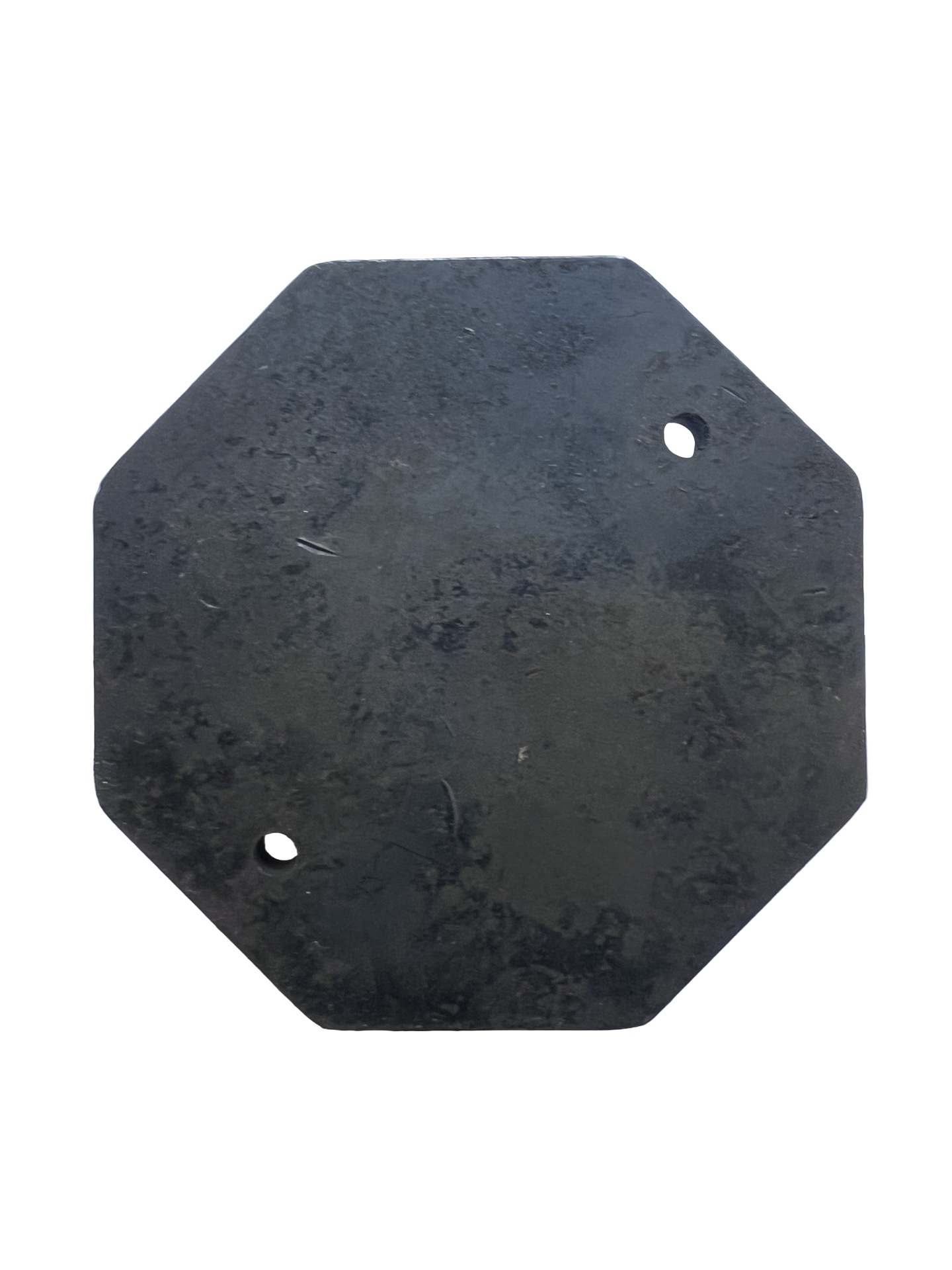

This kit supplies one complete octagon-shaped drop-in foot weldment assembly for Tuxedo and Duro 2-post car lifts. The steel pad weldment features a 1-3/8″ diameter drop-in pin on the bottom that seats into the solid-sleeved holes in the lift arms. The 5″ x 5″ octagon top provides a stable contact surface for the rubber pad. Replace these feet when the steel weldment is bent or cracked, or when the rubber pad is worn flat. Note: not recommended for BendPak lifts or any lift that does not have solid-sleeved arm holes.
Product Information
- Brand / Equipment: Tuxedo Lift / Duro Lift (and compatible private-label brands)
- Manufacturer / Reference Part Number: TP9-1001
- Store SKU: TUO1001
- Component: Octagon Pad Weldment / Drop-In Foot Kit
- Key Specs: 5″ x 5″ octagon top; 1-3/8″ diameter drop-in pin
- Kit Contents: (1) steel pad weldment / foot; (1) heavy-duty rubber pad with hardware
- Listed Application: Tuxedo and Duro 2-post lifts with drop-in style feet accepting a 1-3/8″ peg; compatible with Tuxedo rolling jacks with 1-3/8″ holes and all Tuxedo height extensions
Compatible Makes / Verified Fitment Models
Found in TP9kac, TP9kaf, and TP7kac models made by Ideal Lift, Kernal Lift, Tuxedo Lift, Duro Lift, Eagle Lift, Auto Lift, Prokar Lift, North American Auto Equipment, and other private-label brands.
Replacement / Cross-Reference Numbers
- Tuxedo Lift Part Number: TP9-1001
- Duro Car Lift Part Number: TP9-1001
Fitment & Ordering Notes
This weldment is designed for Tuxedo and Duro 2-post lifts that use drop-in style feet with a 1-3/8″ pin diameter. It may also fit other manufacturers that share the 1-3/8″ pin diameter specification, provided the lift arms have solid-sleeved holes. It is not compatible with BendPak lifts or lifts without solid-sleeved arm holes. Please verify your lift model and arm-hole specification before ordering. A heavy-duty pad set is available separately for this style of weldment.
Additional Product Information
These contact pads are also compatible with Tuxedo rolling jacks that have 1-3/8″ holes, and with all Tuxedo height extensions. Feet are frequently lost when rubber pads adhere to car or truck frames during service and leave with the vehicle. This kit is a cost-effective way to restore a full set of drop-in feet to your 2-post lift.
