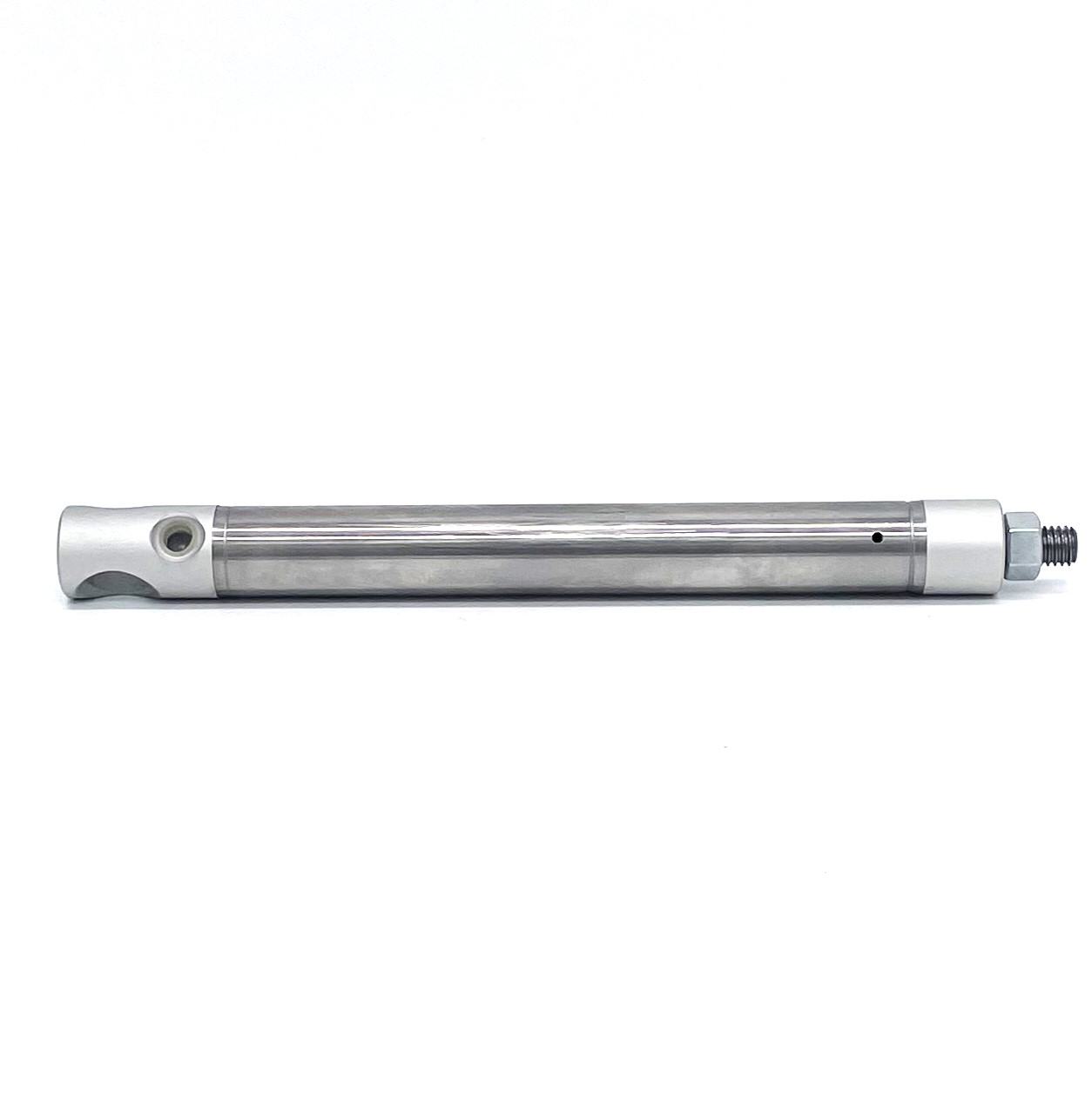

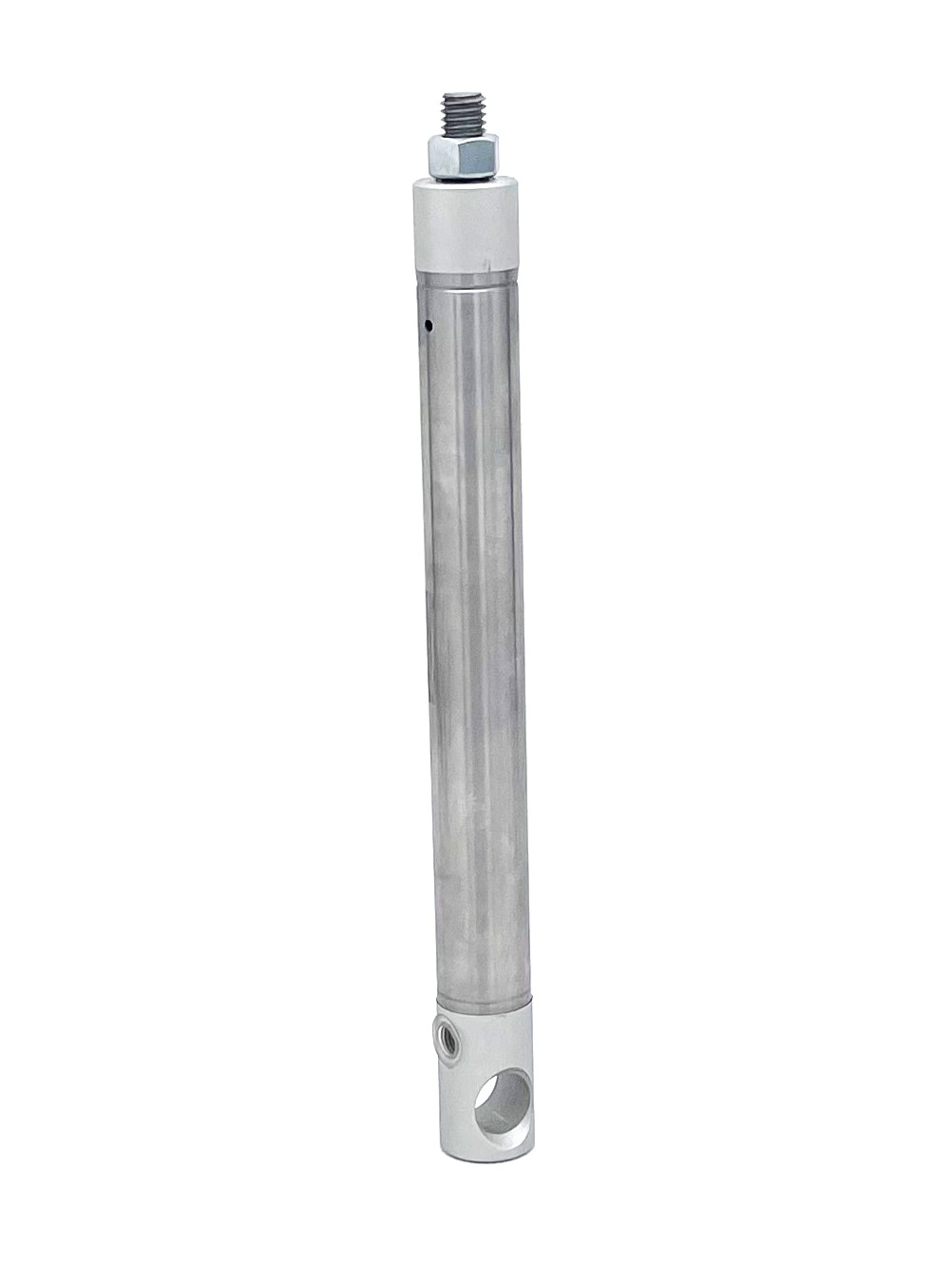

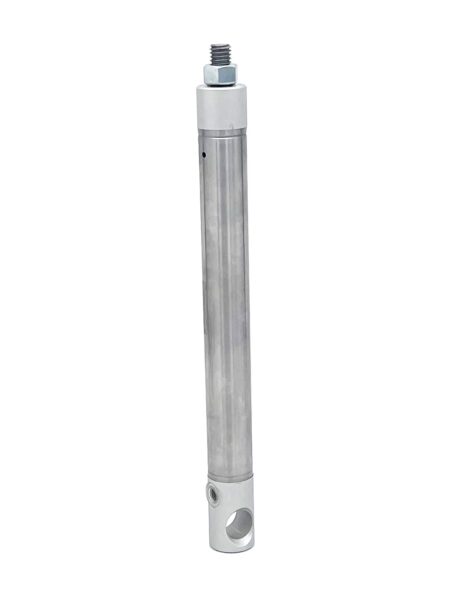

Bendpak 5502335 Air Lock Cylinder for Chain-Driven 4 Post Lifts – Outside Crossbeam Mount
This air cylinder mounts on the outside of the crossbeam on chain-driven Bendpak and Magnum 4-post lifts. It pulls the safety locks open when air pressure is applied, allowing the lift to lower. When the cylinder fails or develops a slow leak, the locks will not release properly. Note: some older models had a fixed (non-removable) square block on the shaft end. If that is your configuration, purchase the 5701110 angle bracket along with this cylinder.
Product Information
- Brand / Equipment: Bendpak / Magnum
- Manufacturer / Reference Part Number: 5502335
- Store SKU: BEK2335
- Component: Air lock cylinder (lock pull actuator)
- Port: Single threaded port on anchor side
- Shaft End: Metal angle bracket (removable, attaches to lock)
- Mounting Location: Outside of the crossbeam
- Listed Application: Chain-driven Bendpak 4-post lifts – BP-12 (BP12), BP-25 (BP25), BP-27 (BP27); also Magnum BP-12, BP-25, BP-27
Replacement / Cross-Reference Numbers
- Replaces Bendpak 5502335
Fitment and Ordering Notes
Confirm your lift uses chains to lift (chain-driven configuration) and that your model is listed above. If your older cylinder has a fixed square block on the shaft end (not removable), also order the 5701110 angle bracket. If your cylinder already has a removable metal bracket, this cylinder alone is sufficient. For questions call 866-902-6060.
