Description

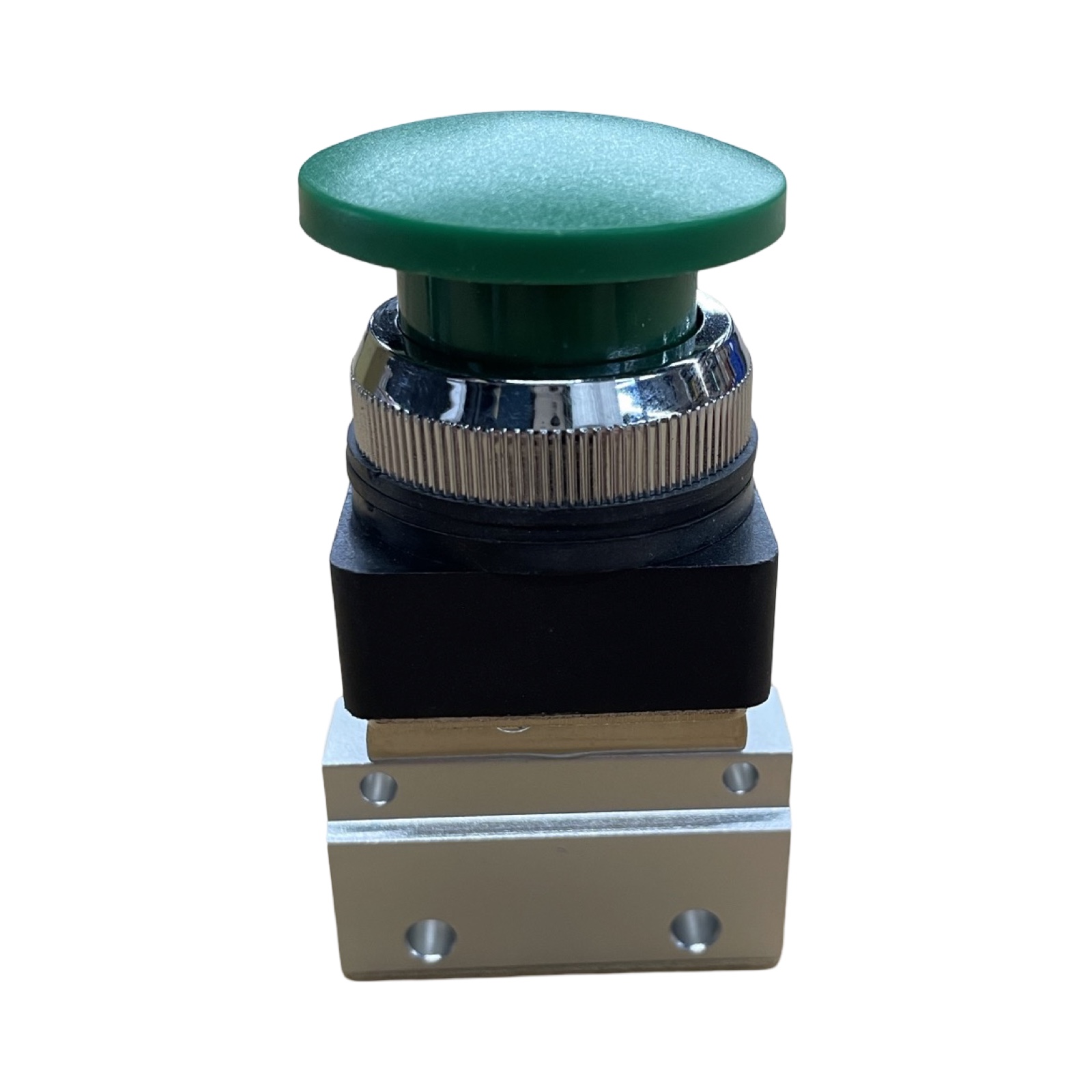

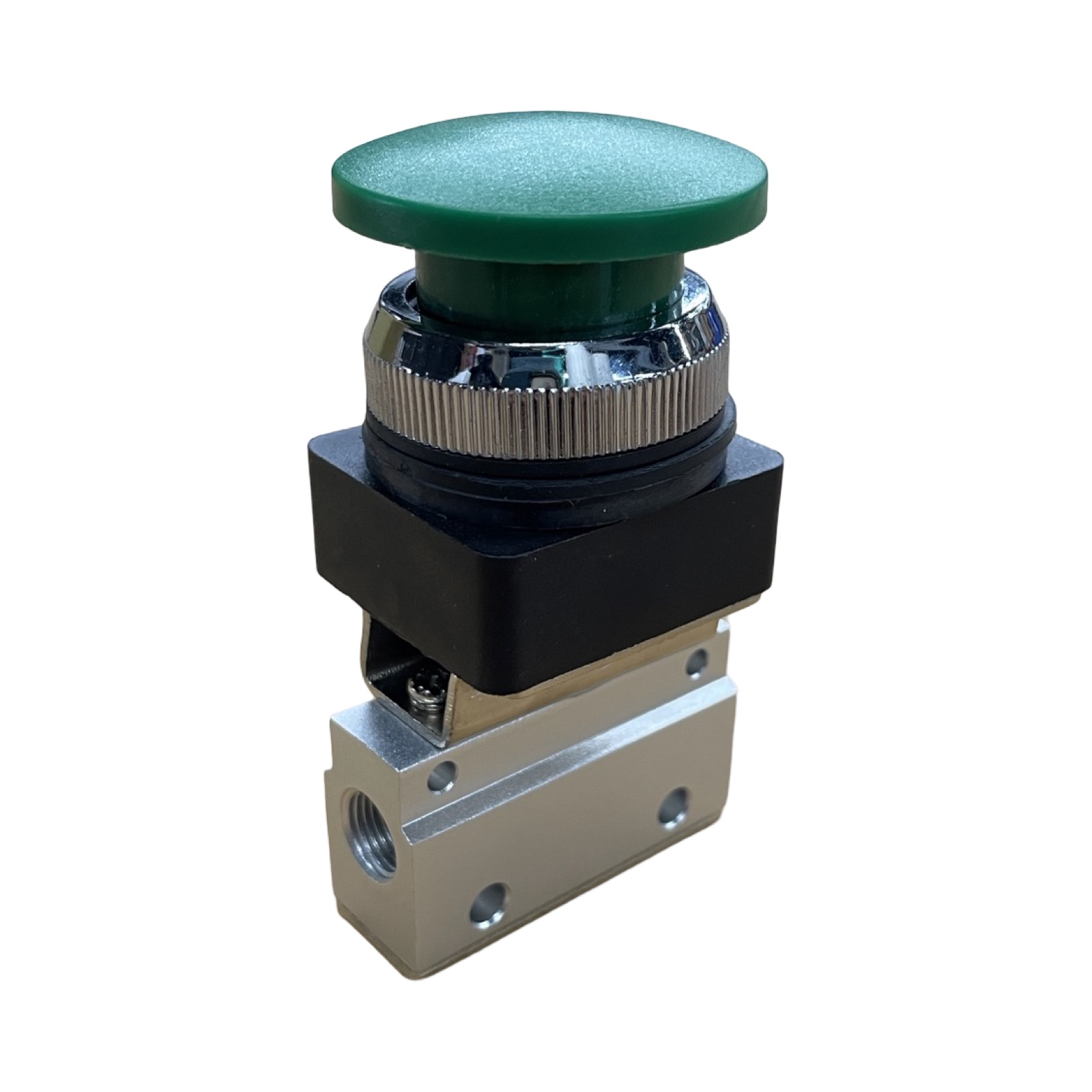

ALM x00096x Air Lock Release Push Button Valve for ALM 4-Post Car Lifts
This is the green push button air-operated lock release valve that activates the mechanical lock release system on many ALM and Atlas 4-post car lifts. When pressed, the valve sends an air signal that simultaneously releases the safety locks at each corner of the lift, allowing the runway to be lowered. This is a critical safety component: if the locks fail to release, or if the button feels sticky, unresponsive, or requires excessive force, the valve should be inspected and replaced before continued use.
Common reasons to replace this valve include a stuck or unresponsive push button, air leaking at the valve body, locks that release inconsistently, or a cracked or damaged valve housing. Before ordering, confirm the location of the 4-bolt mounting bracket on your lift (typically near the power unit) and verify that there is sufficient clearance behind the mounting surface to accommodate the white valve body.
Product Information
- Brand / Equipment: ALM (American Lifts Manufacturing)
- Manufacturer / Reference Part Number: x00096x (also listed as x00096)
- Store SKU: ALM0096
- Component: Air Lock Release Push Button Valve
- Key Specs: Green push button actuator, white valve body, 4-bolt panel mount, mounts near power unit
- Listed Application: ALM 4-post cable lifts and larger chain lifts; also fits select Atlas 4-post lifts
Compatible Makes / Verified Fitment Models
- ALM: 12000A, 12000, 12000S, 12000wt, 12000wts
- Atlas 4-Post: 414
Replacement / Cross-Reference Numbers
- x00096
- x00096x
Fitment and Ordering Notes
Note: Please verify you have sufficient clearance behind the 4-bolt mounting surface on your lift before ordering, as the valve body requires room to mount.
If you have questions about fitment or need help identifying the correct part for your ALM 4-post lift, call us at 866-902-6060.
