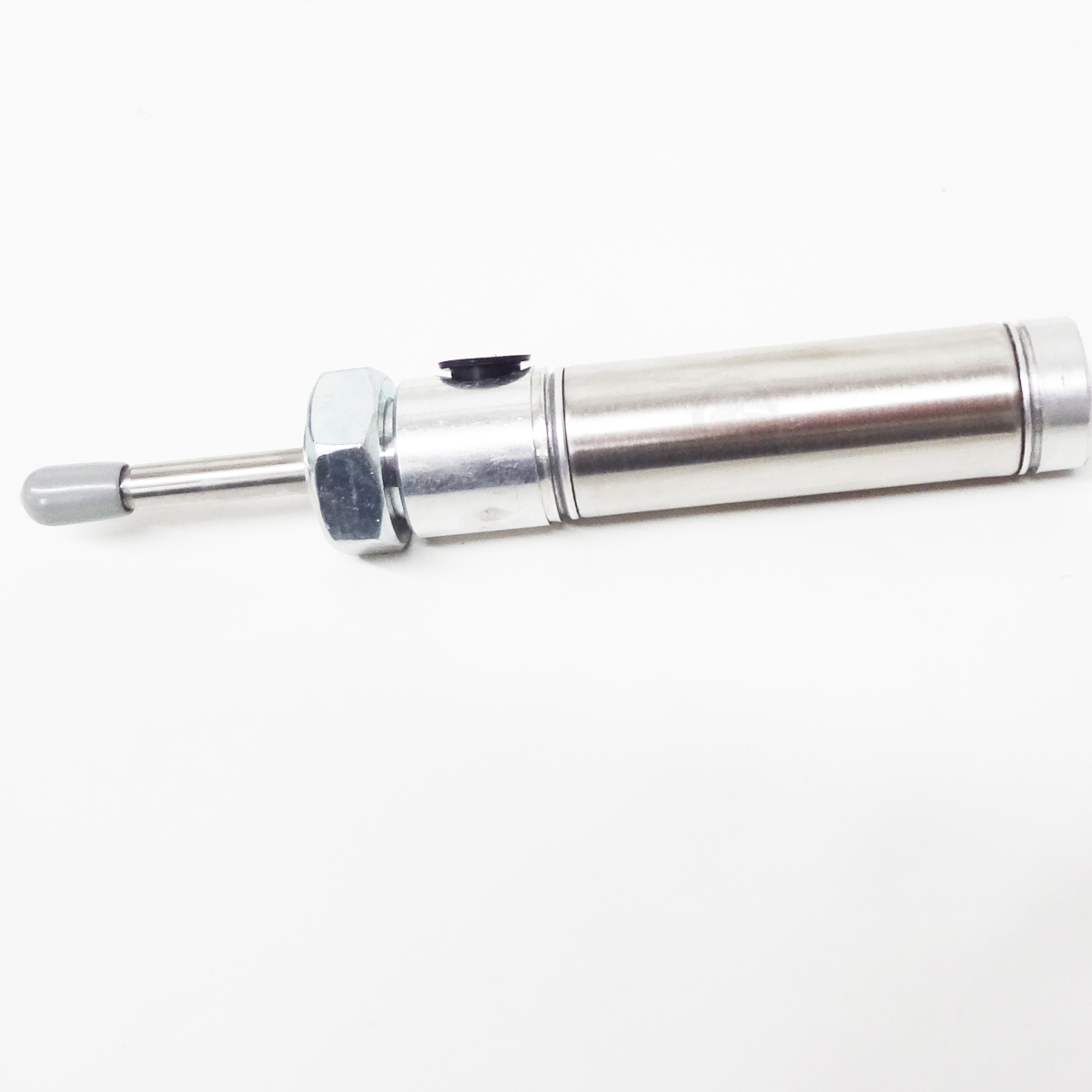

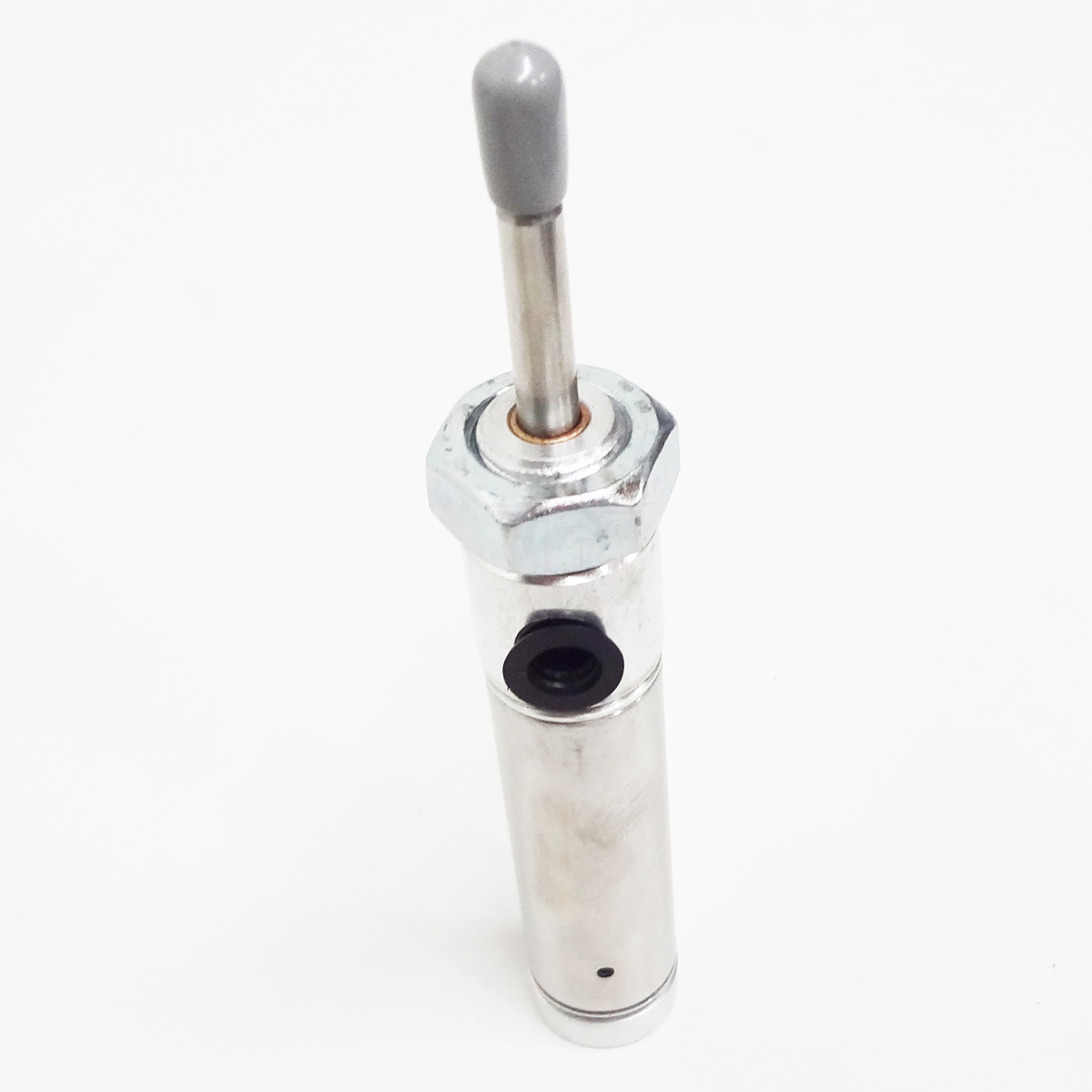

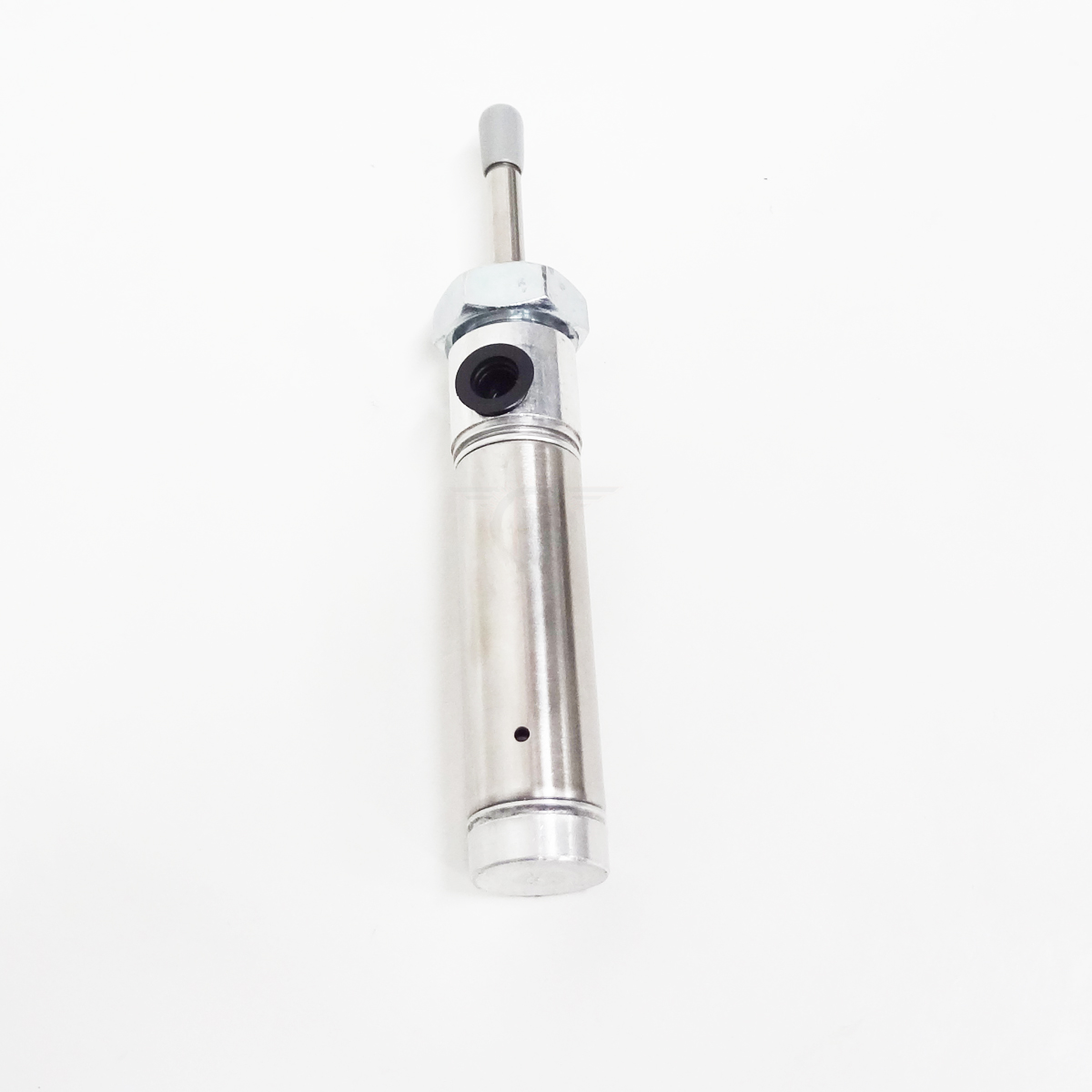

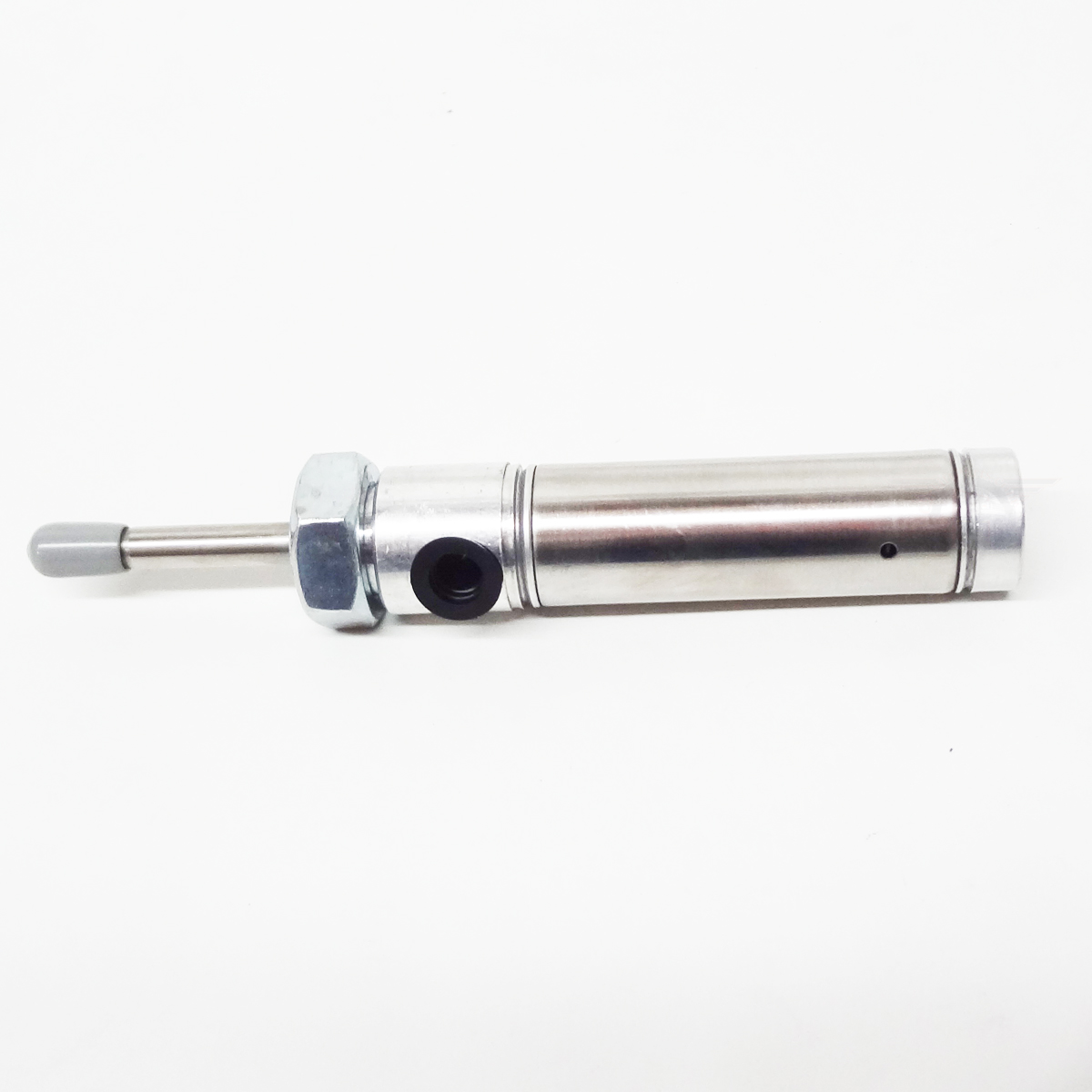

ALM A00095 Air Lock Release Cylinder – ALM 2-Post 15K and 12000 4-Post Hoists
This pneumatic cylinder releases the safety locks on ALM automotive hoists, allowing the lift to be lowered. On ALM 12000 4-post hoists, one cylinder is located in each corner of the lift and retracts the lock latch when air is applied. On ALM and Wheeltronic 15K 2-post hoists, the cylinder performs the same lock-release function. When a cylinder fails, the locks may not release properly, preventing safe lowering of the lift. The cylinder features a single side port.
Product Information
- Brand / Equipment: ALM Automotive Lift, Wheeltronic 15K
- Manufacturer / Reference Part Number: A00095
- Store SKU: ALM0095
- Component: Air lock release cylinder
- Listed Application: ALM 2-post 15K; ALM 12000 4-post hoists; Wheeltronic 15K 2-post
Compatible Makes / Verified Fitment Models
- ALM 4-Post Lifts: 12000, 12000A, 12000S, 12000WT, 12000WTS
- ALM 2-Post Lifts: 7001, 7001A, 7002A, 9001, 9002A, 9003, 9003A, 10001, 12001, 15001
- Wheeltronic: 15K 2-post
Replacement / Cross-Reference Numbers
- ALM OEM: A00095
Fitment and Ordering Notes
Verify your ALM lift model before ordering. On 4-post models, one cylinder is used per corner – order the correct quantity for your application. Match the port location and overall dimensions of your existing cylinder to confirm fitment. Consult your lift’s parts manual before purchase.
