BENDPAK 7-9K 2 POST Lift Hydraulic Cylinder Chain Roller and Yoke 5210117

BENDPAK 7-9K 2 POST Lift Hydraulic Cylinder Chain Roller and Yoke 5210117 - Image 3

BENDPAK 7-9K 2 POST Lift Hydraulic Cylinder Chain Roller and Yoke 5210117 - Image 4

$219.00

Availability: In Stock

SKU: BEK0117

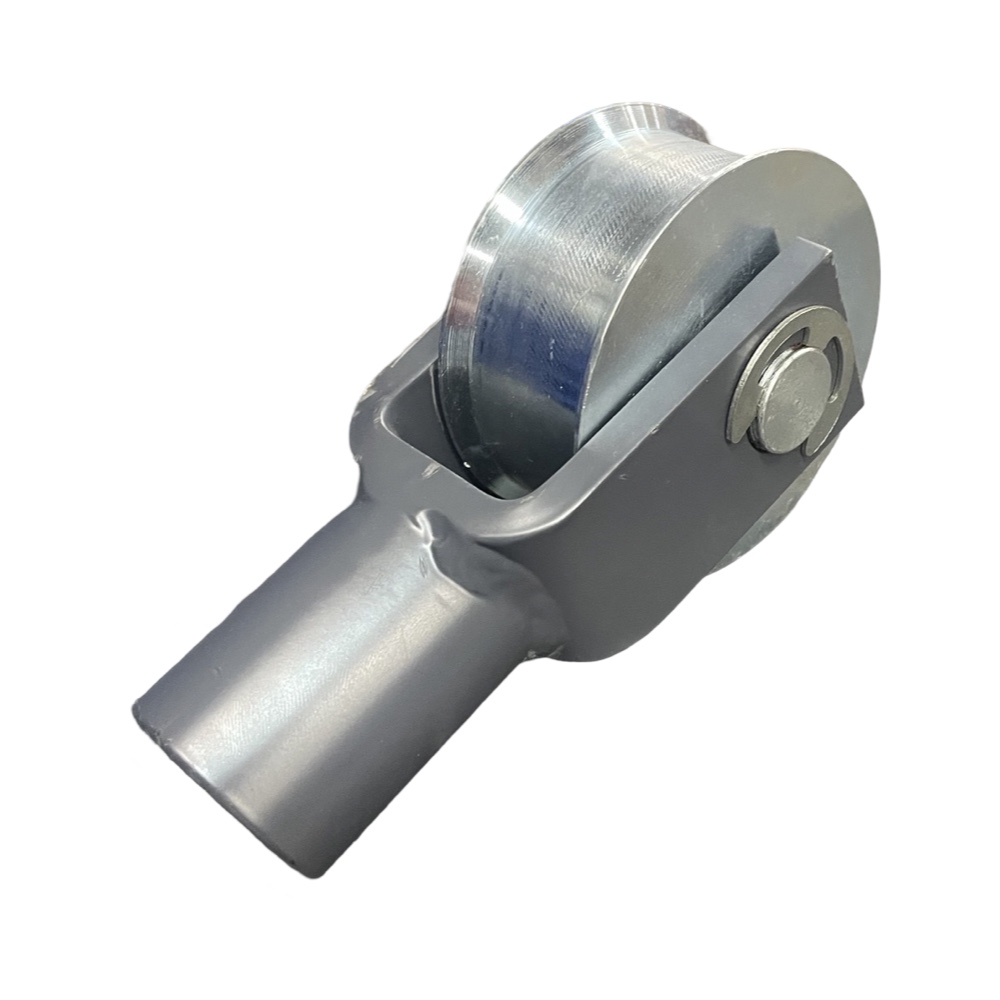

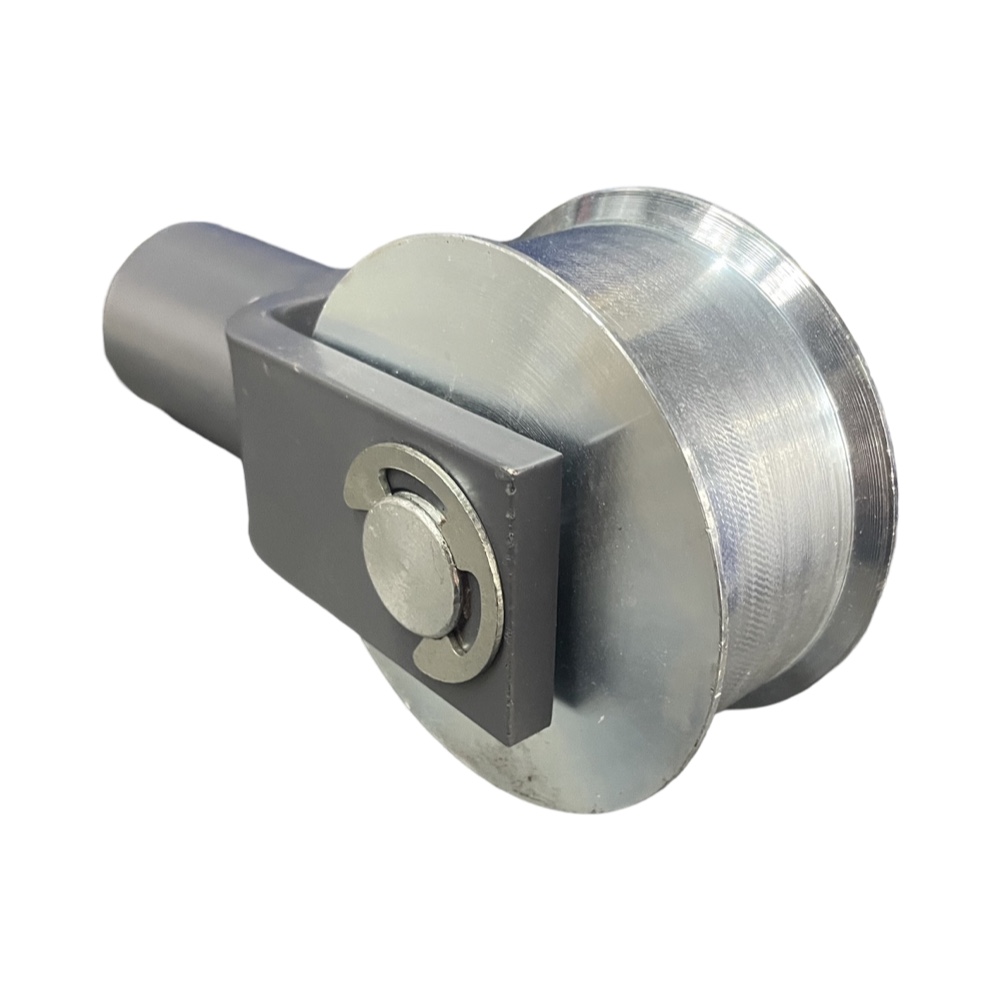

BendPak 5210117 chain roller and yoke assembly for 2-post chain-over style hydraulic cylinders. Slip-on style yoke fits 1.5" diameter chrome cylinder rod. Includes yoke weldment, chain roller, pin, and snap ring. Fits BendPak BP Series, PR Series, SR Series, and XL Series 7,000-9,000 lb 2-post hoists.

Availability may vary depending on vendor stock.

Description

BendPak 5210117 Chain Roller and Yoke Assembly – 2-Post Lift Hydraulic Cylinder

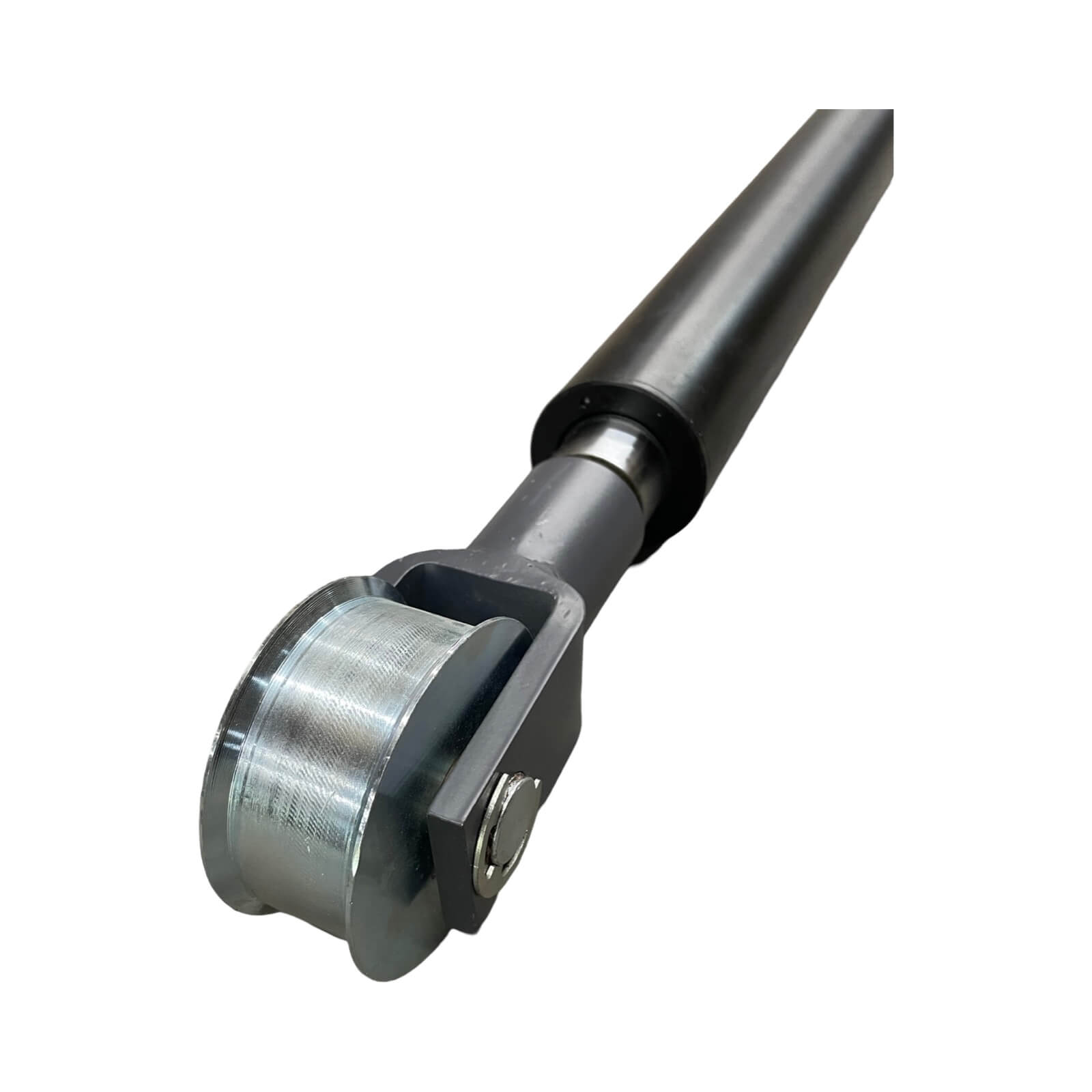

Replace the chain roller and yoke assembly when the roller is worn, cracked, or the chain no longer tracks correctly over the top of the hydraulic cylinder. This assembly is designed for chain-over style BendPak 2-post lifts built through the 1990s and early 2000s where the chain passes over a roller at the top of the cylinder. The cylinder sits on a metal pedestal with a male locating peg; the cylinder bottom has a female locating hole. The yoke slip-fits onto the 1.5″ chrome cylinder rod.

Product Information

Brand / Equipment: BendPak / Magnum / Danmar 2-Post Car Hoist (chain-over style)
Manufacturer / Reference Part Number: 5210117
Store SKU: BEK0117
Component: Hydraulic Cylinder Chain Roller and Yoke Assembly
Cylinder Shaft Diameter: 1.5″ (fits cylinders with 1.5″ chrome shaft only)
Assembly Overall Height: 7-3/8″
Chain Roller Diameter: 4″
Chain Area Width: 1-3/8″
Listed Application: BendPak BP Series, PR Series, SR Series, XL Series – 7,000-9,000 lb 2-post hoists

Compatible Makes / Verified Fitment Models

BendPak: XL-9, PR-9, XPR-9 series
Dannmar: Admiral 9000, Admiral 9000X

Fitment & Ordering Notes

Fits cylinders with 1.5″ chrome shaft only. Measure your cylinder shaft before ordering – some BendPak cylinders have larger piston rods. This listing includes the yoke housing weldment, chain roller assembly, chain roller pin, and snap ring. Model examples: SR8-ac, XL9AC, pr9acx, PR9cx, PR7C, XPR-9, XL9X. Contact us at 866-902-6060 for fitment assistance.
