Challenger Lift A1132 Lock Release Spring for CL9

Description

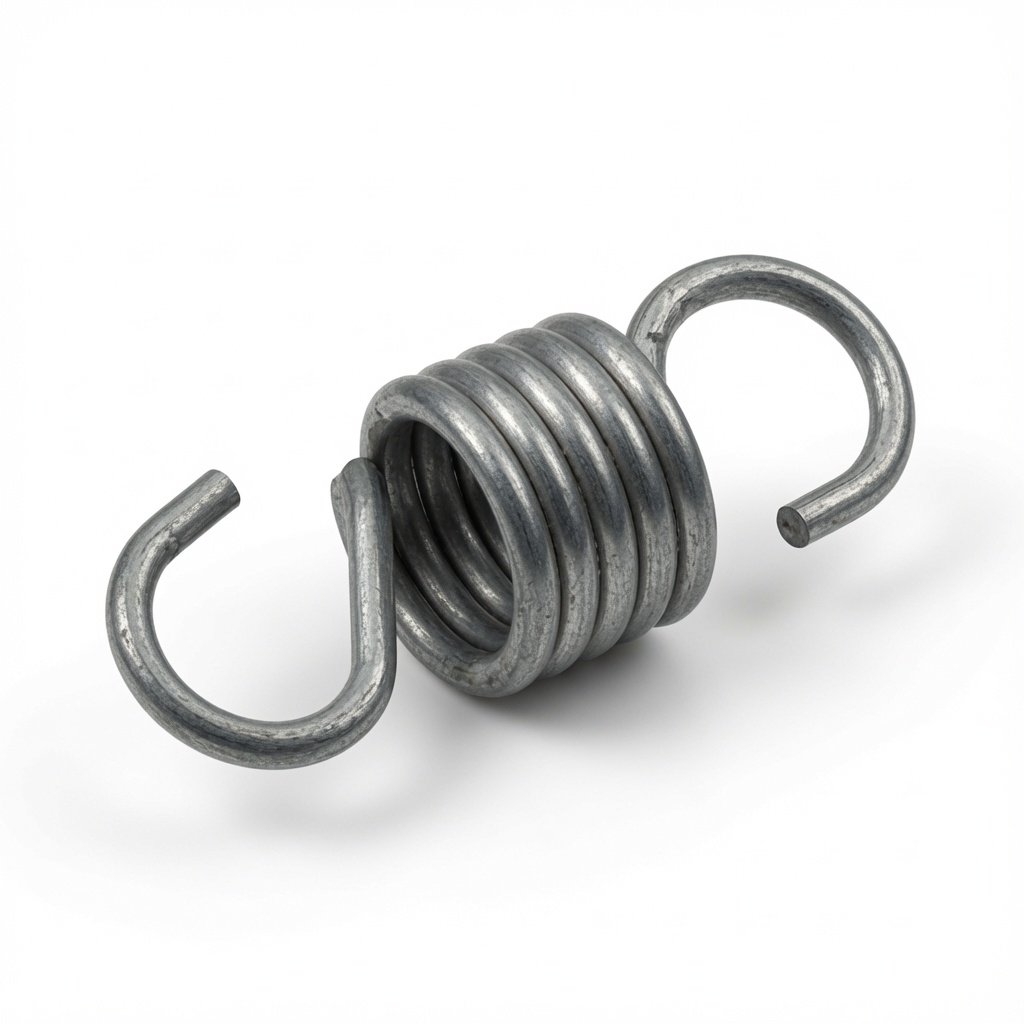

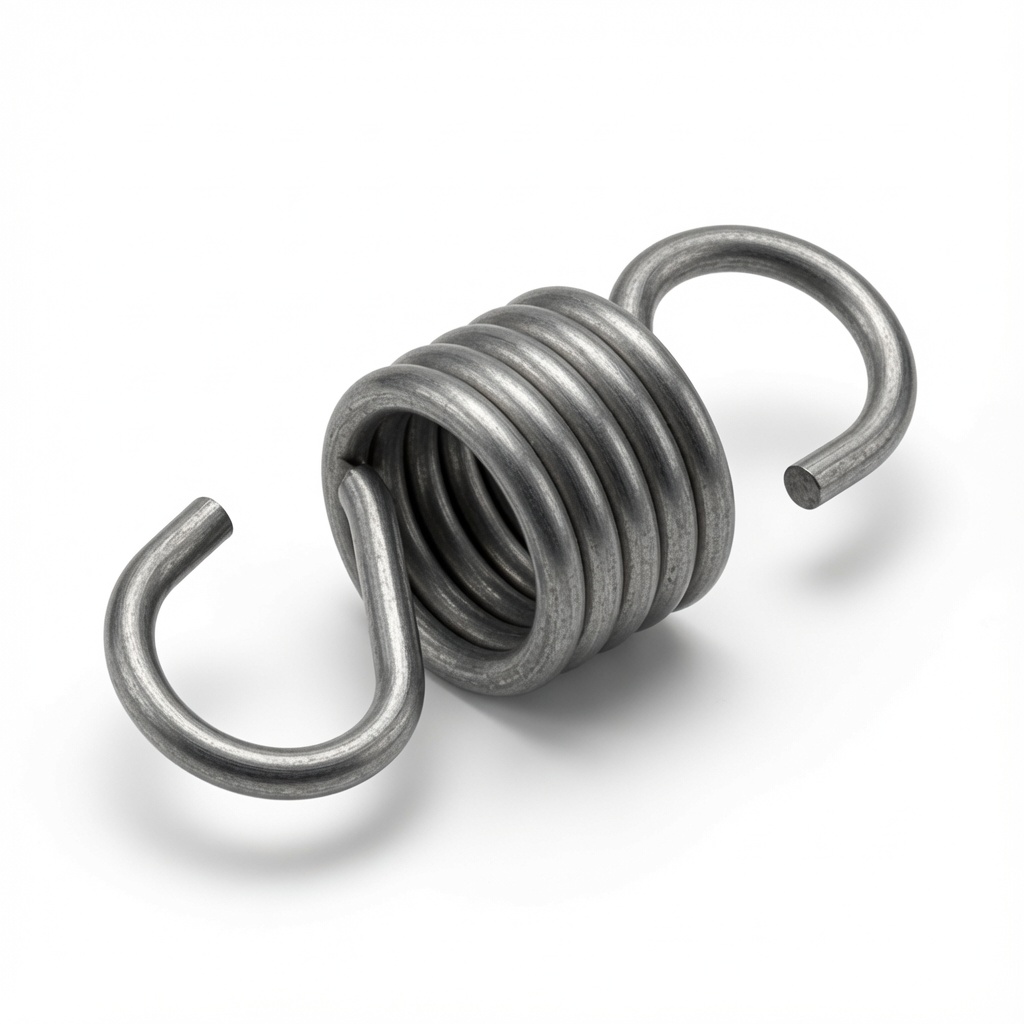

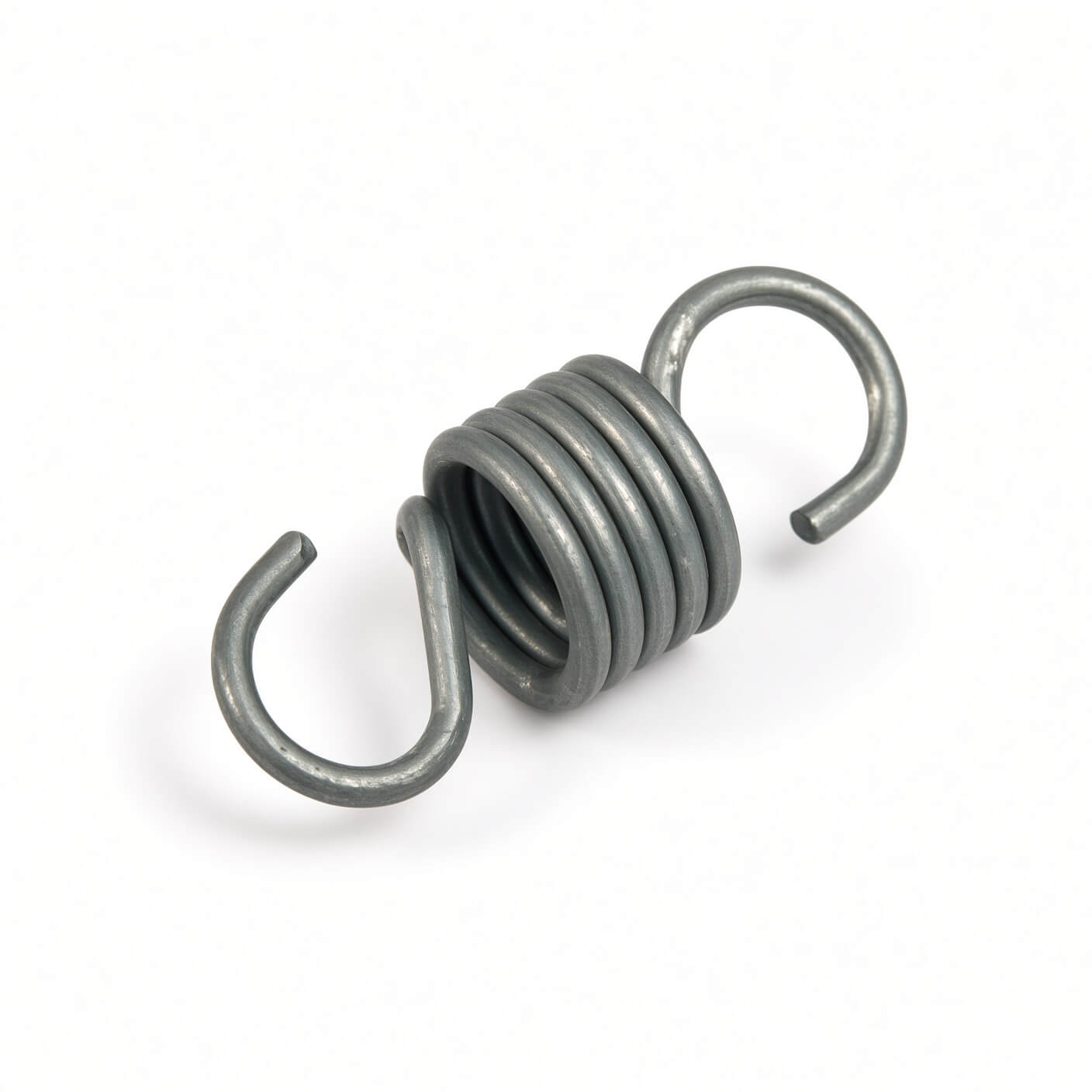

Challenger Lift A1132 Lock Release Spring for CL9

Replace a broken, stretched, weak, corroded, or missing spring with the A1132 Lock Release Spring. Match the exact part number and original mounting location. Listed applications include CL9, CL10, CL10A, CL12A, CL12A-DPC.

Product Details

• Brand / Equipment: Challenger Lift
• Manufacturer / Reference Part Number: A1132
• Store SKU: CHRA1132
• Component: Lock Release Spring

Compatible / Referenced Equipment Models

• CL9: 9,000 lb two-post lift series
• CL10: 10,000 lb Versymmetric two-post lift
• CL10A: 10,000 lb adjustable-width Versymmetric two-post lift
• CL12A: 12,000 lb adjustable-width two-post lift
• CL12A-DPC: 12,000 lb dual-pendant-control two-post lift

Parts Diagram & Manual Reference

• Official Challenger CL10 parts breakdown (Fig B. Lock) identifies this as Item #27 with the description CABLE SPRING (1/2″ O.D.) – Idler side ONLY on page 15.
• Official Challenger CL10A parts breakdown (PARTS BREAKDOWN (continued)) identifies this as Item #27 with the description CABLE SPRING (1/2″ O.D.) – Idler side ONLY on page 16.
• Official Challenger CL12A parts breakdown (Fig B. Lock-Power/Idler) identifies this as Item #40 with the description 1/2″ O.D. SHORT EXTENSION SPRING on page 19.
• Official Challenger CL12A-DPC parts breakdown (Fig B. Lock-Power/Idler) identifies this as Item #40 with the description 1/2″ O.D. SHORT EXTENSION SPRING on page 21.

Original Product & Fitment Information

Challenger Lift, A1132 Lock Release Spring For CL9 and More

Note: Product ship times may vary when product is drop shipped from Vendor

Challenger Lift, A1132 lock Spring CL9

Verified Part-Number Fitment

The exact part number A1132 appears in verified Challenger parts documentation for the applications below:

• CL10 — Item #27, page 16: CABLE SPRING (1/2″ O.D.) – Idler side ONLY
• CL10A — Item #27, page 16: CABLE SPRING (1/2″ O.D.) – Idler side ONLY
• CL12A — Item #40, page 19: 1/2″ O.D. SHORT EXTENSION SPRING
• CL12ADPC — Item #40, page 21: 1/2″ O.D. SHORT EXTENSION SPRING
• LE12 — Item #33, page 15: LOCK SPRING, ½” O.D.
• VLE10 — Item #41, page 15: Lock Spring, 1/2” O.D.

Compatible Makes & Models

Compatible makes / equipment brands:

• Challenger

Verified fitment models include:

• CL9
• CL10
• CL10A
• CL12A
• CL12A-DPC
• CL12-LC
• LE12
• VLE10

Fitment can vary by production date, serial range, lift configuration, and equipment revision. Match the manufacturer/reference part number and your specific model before ordering.

Fitment & Ordering Notes

Challenger Lift components can vary by model, serial-number range, production date, lift height, side or orientation, color, power-unit configuration, and equipment revision. Before ordering, compare the manufacturer part number, specifications, diagram callout, model information, and original component. A similar appearance alone does not confirm interchangeability.
