Challenger JSJ5-08-15 Solid Carriage Guide Block for E-10, E-12, LE-10, VLE-10 - Replaces X10-084

Description

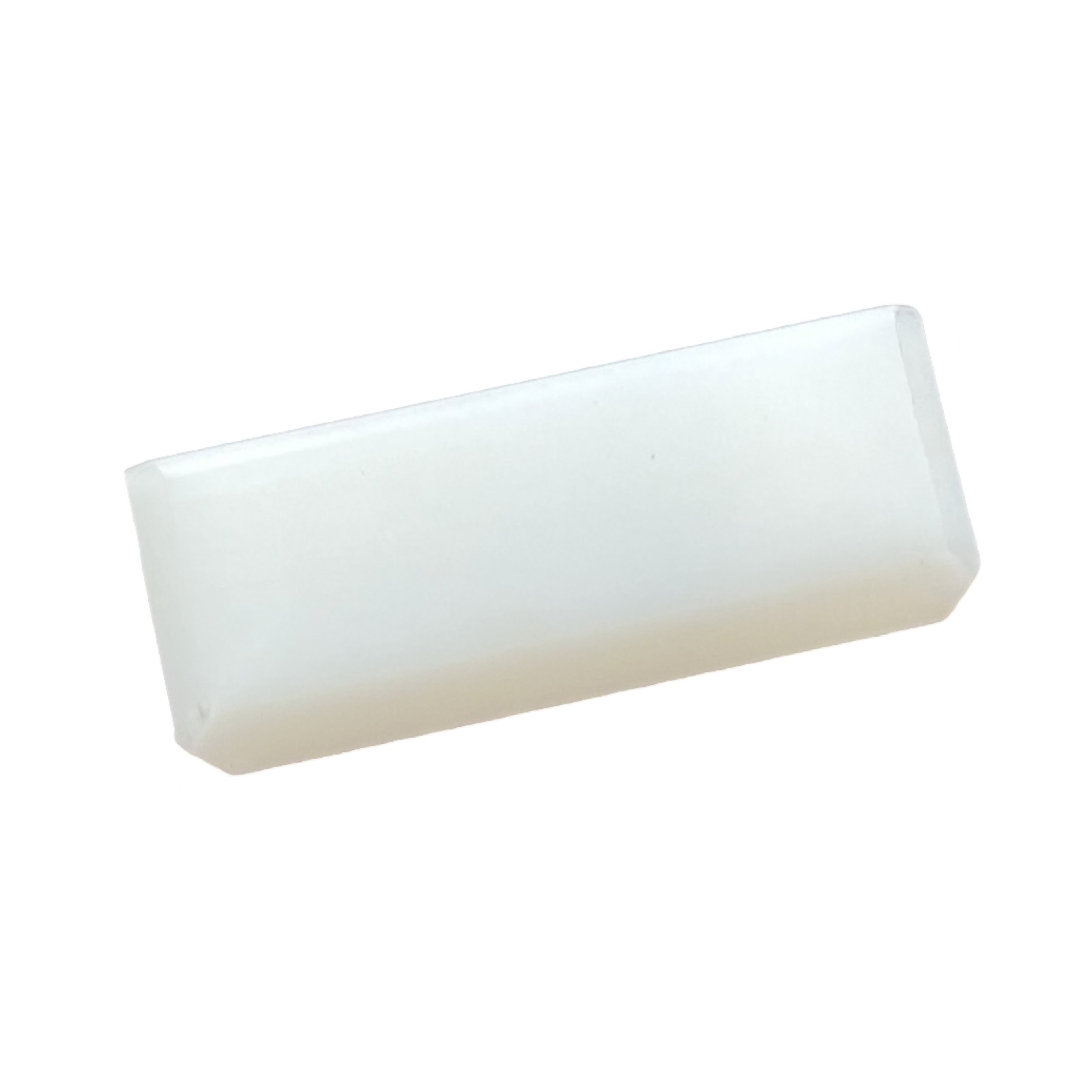

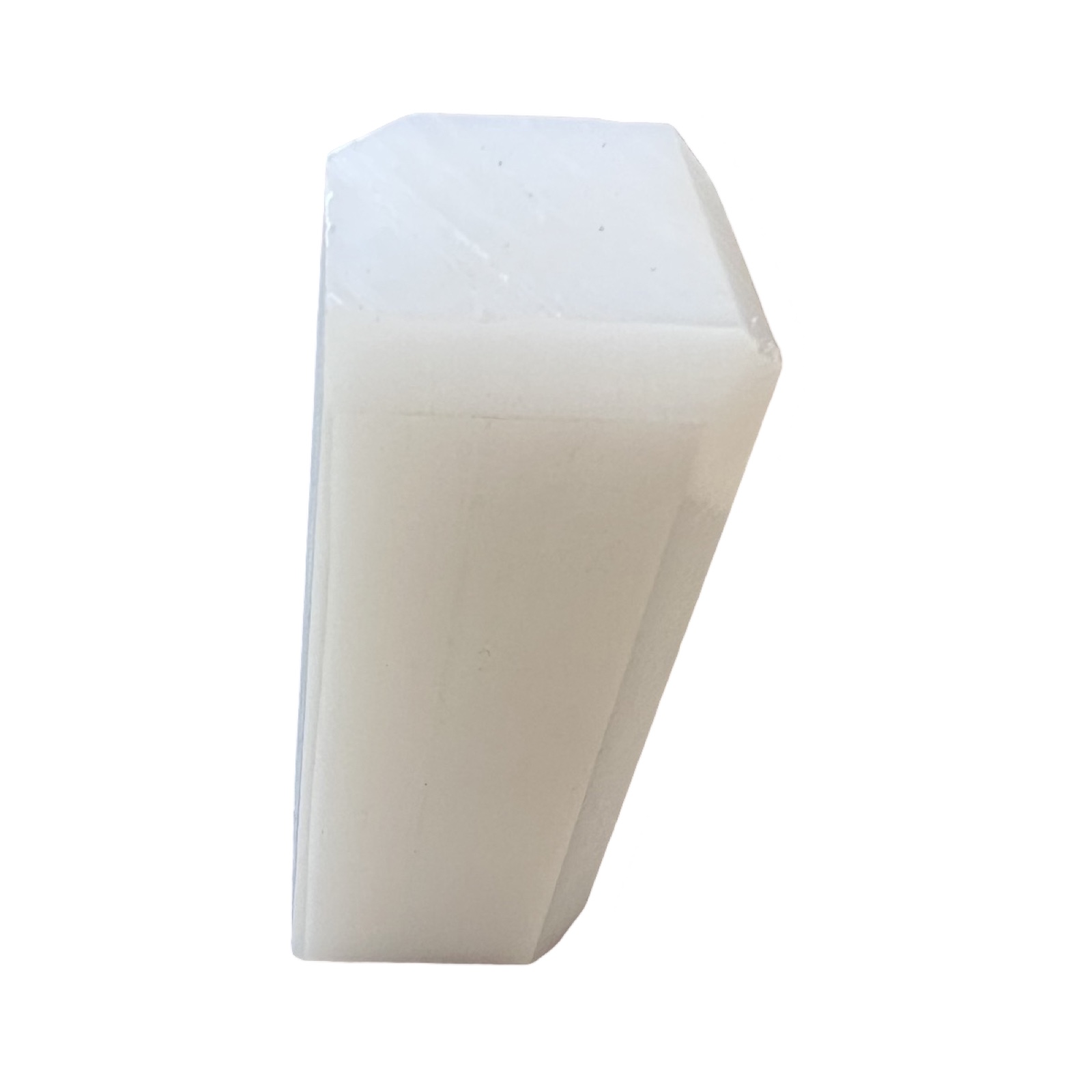

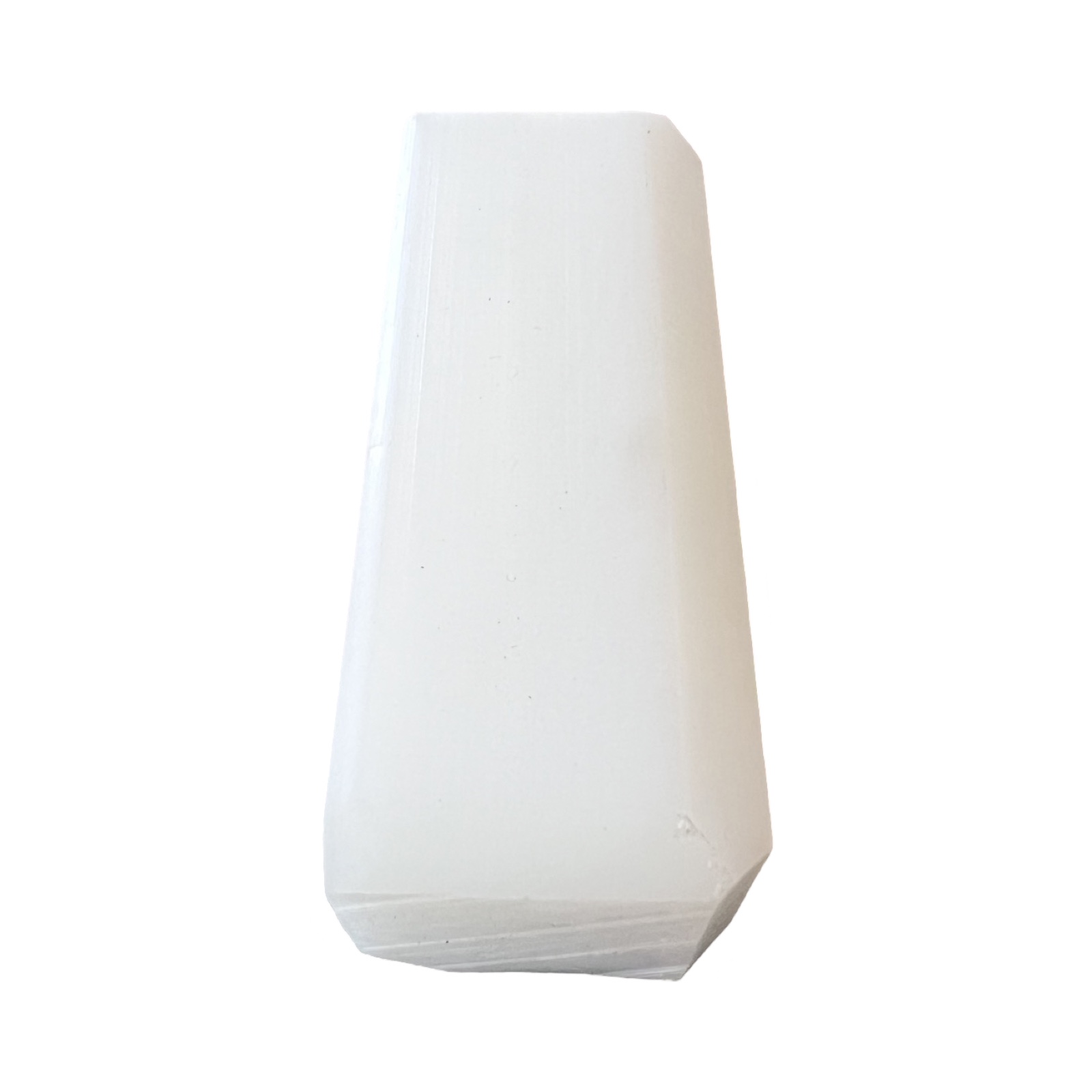

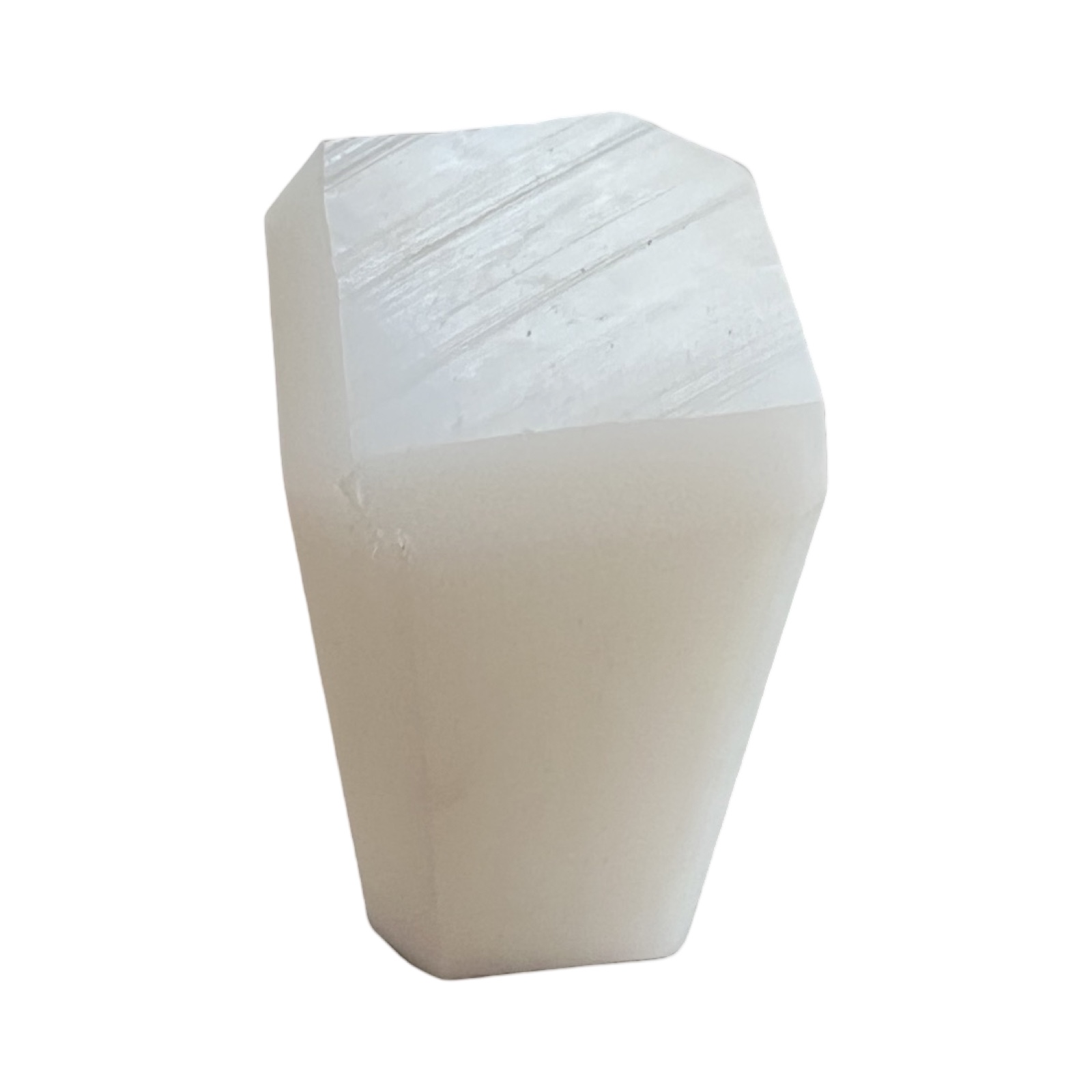

Solid Carriage Guide Block for Challenger E-10, E-12, LE-10 and VLE-10 Two-Post Lifts

This is a SOLID white rectangle carriage guide block (rub block / slider block) for newer Challenger 2-post lifts. This style does NOT have a slot – it is a fully solid block. These blocks ride inside the column and keep the carriage weldment square as it travels up and down. Replace them when the carriage feels sloppy, loose, or leans to one side. Each lift requires 16 blocks total – 8 per carriage/side.

Product Information

• Brand / Equipment: Challenger Lifts
• Manufacturer / Reference PN: JSJ5-08-15 (also referenced as X10-084 and TJSJ5-08-15)
• Store SKU: CHR0815
• Component: Solid Carriage Guide Block (Rub Block / Slider Block)
• Key Specs: SOLID construction – does NOT have a slot; 16 per lift; 8 per carriage/side
• Listed Application: Challenger E-10, E-12, LE-10, VLE-10

Compatible Makes / Verified Fitment Models

• Challenger: E-10, E-12, LE-10, VLE-10, X10
• Ammco: ACD210S, ACD210D, AC212SE
• John Bean: EELR532A, EELR537A, EELR731A
• Quality Lifts: Q10 (2008-2014 and 2015+ variants) – Note: not compatible with Q10,000 model

Replacement / Cross-Reference Numbers

• Challenger OEM PN: JSJ5-08-15
• Older Challenger PN: X10-084
• Also referenced as: TJSJ5-08-15

Fitment and Ordering Notes

CRITICAL: You must confirm that your lift uses SOLID (not slotted) guide blocks before ordering. There are two versions of these lifts – one uses solid blocks and one uses slotted blocks. Look at your existing blocks: a solid block has no slot or channel, while a slotted block has a U-shaped slot down the center. Order only if your current blocks are solid.

Each full lift requires 16 blocks (8 per side/carriage). If purchasing for both columns, plan accordingly. Replace when carriage movement becomes sloppy, loose, or the carriage leans during operation.

Additional Product Information

In addition to Challenger-branded lifts, these solid guide blocks are also compatible with lifts sold under the Accuturn, Ammco, Snap-on, John Bean, and Magnum brand names that share the same column design as the Challenger E-series lifts. If your lift is privately labeled under one of these brands, verify the column and block style match before ordering.
