Direct Lift 1WB-05 Hydraulic Hose A, Wire Braided (Long) - 7K / 8K / 9K 4-Post Parking Lifts

Description

Direct Lift 1WB-05 Hydraulic Hose A, Wire Braided (Long) – 7K / 8K / 9K 4-Post Parking Lifts

The 1WB-05 Hydraulic Hose A, Wire Braided (Long) – 7K / 8K / 9K 4-Post Parking Lifts is listed for use on compatible equipment and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 1WB-05
• Store SKU: DITWB-05
• Component: Hydraulic Hose A, Wire Braided (Long) – 7K / 8K / 9K 4-Post Parking Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

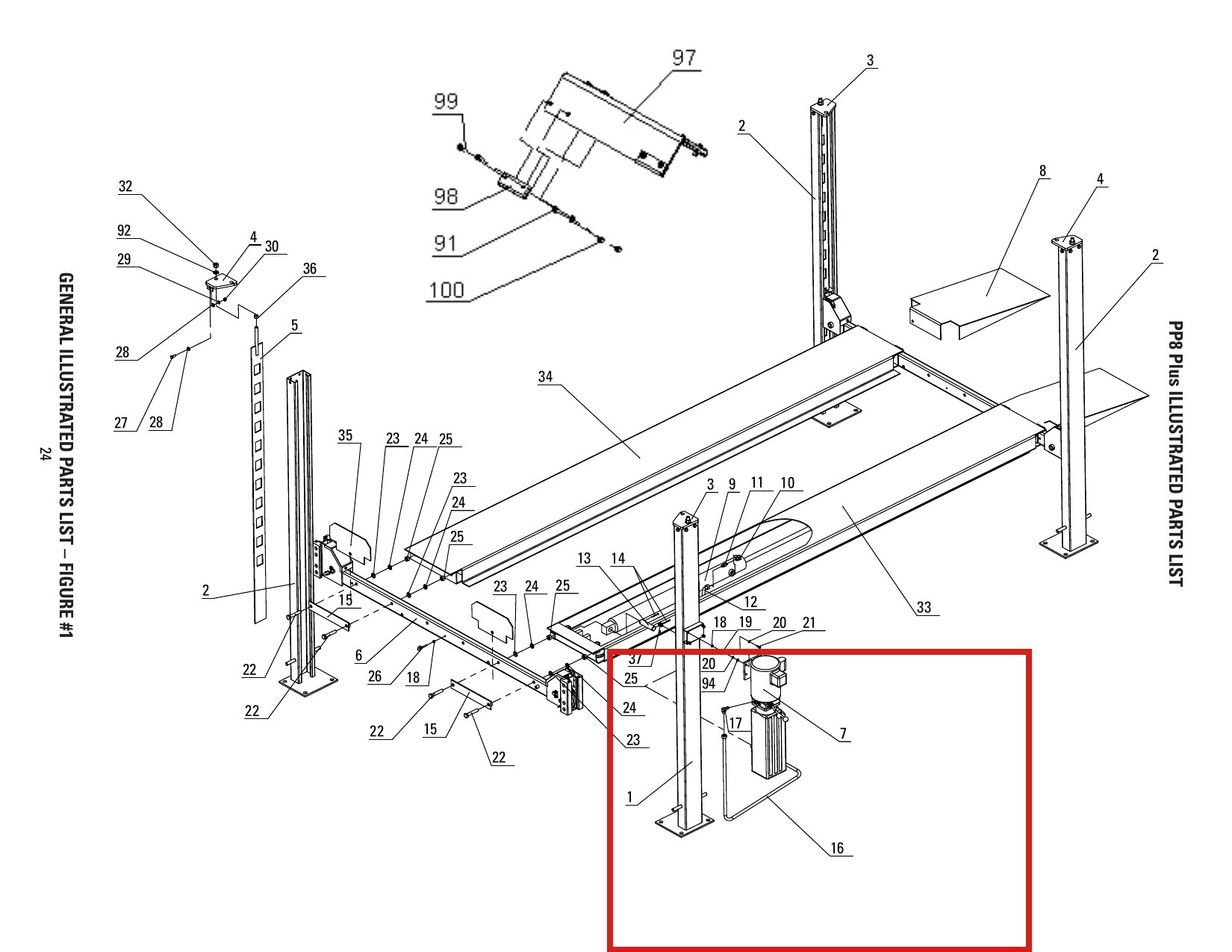

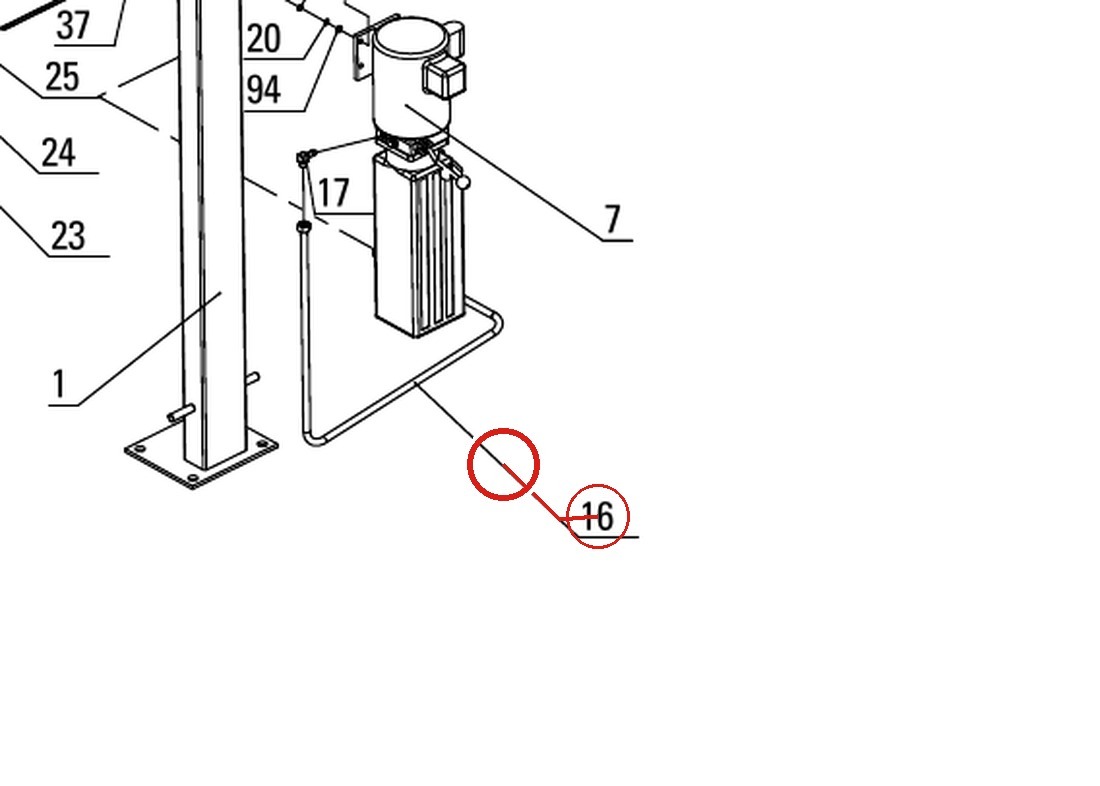

In the drawing images above this is part number 16 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing and part number 16 in the PARTS BREAKDOWN 8K 4-POST PARKING drawing and part number 74 in the PARTS BREAKDOWN 9K PARKING WIDER V drawing.

Fits the following lift models — part number 1WB-05 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

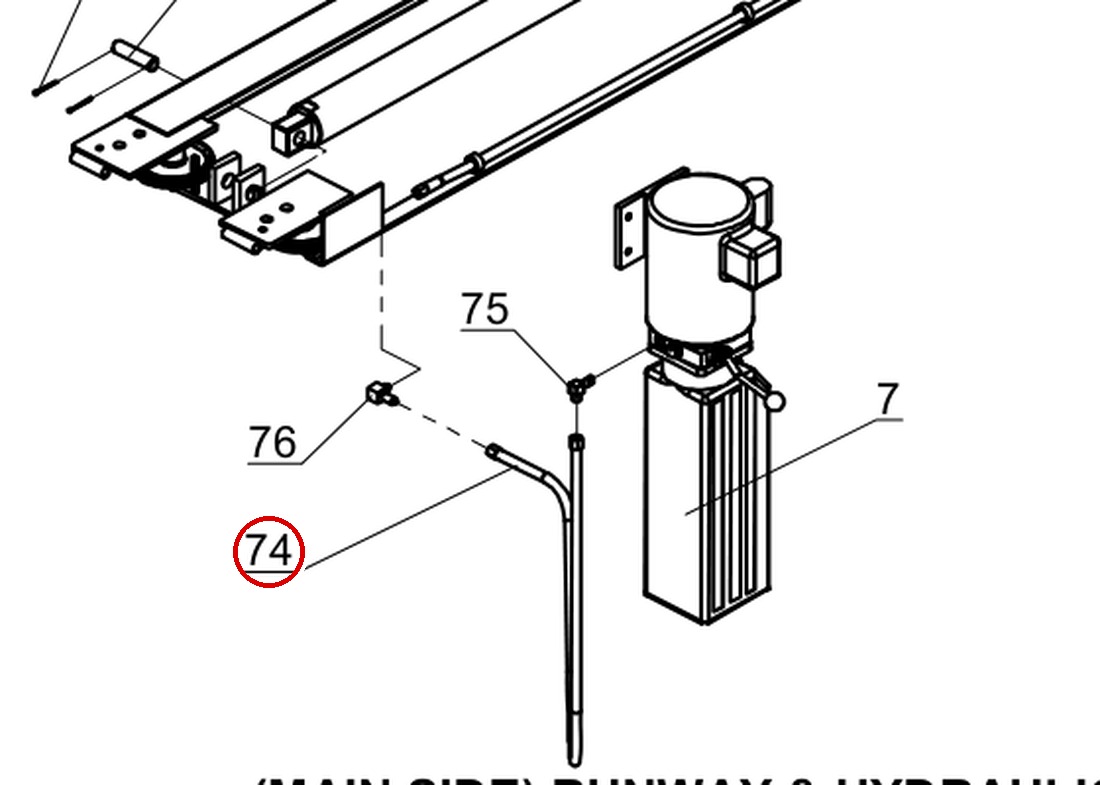

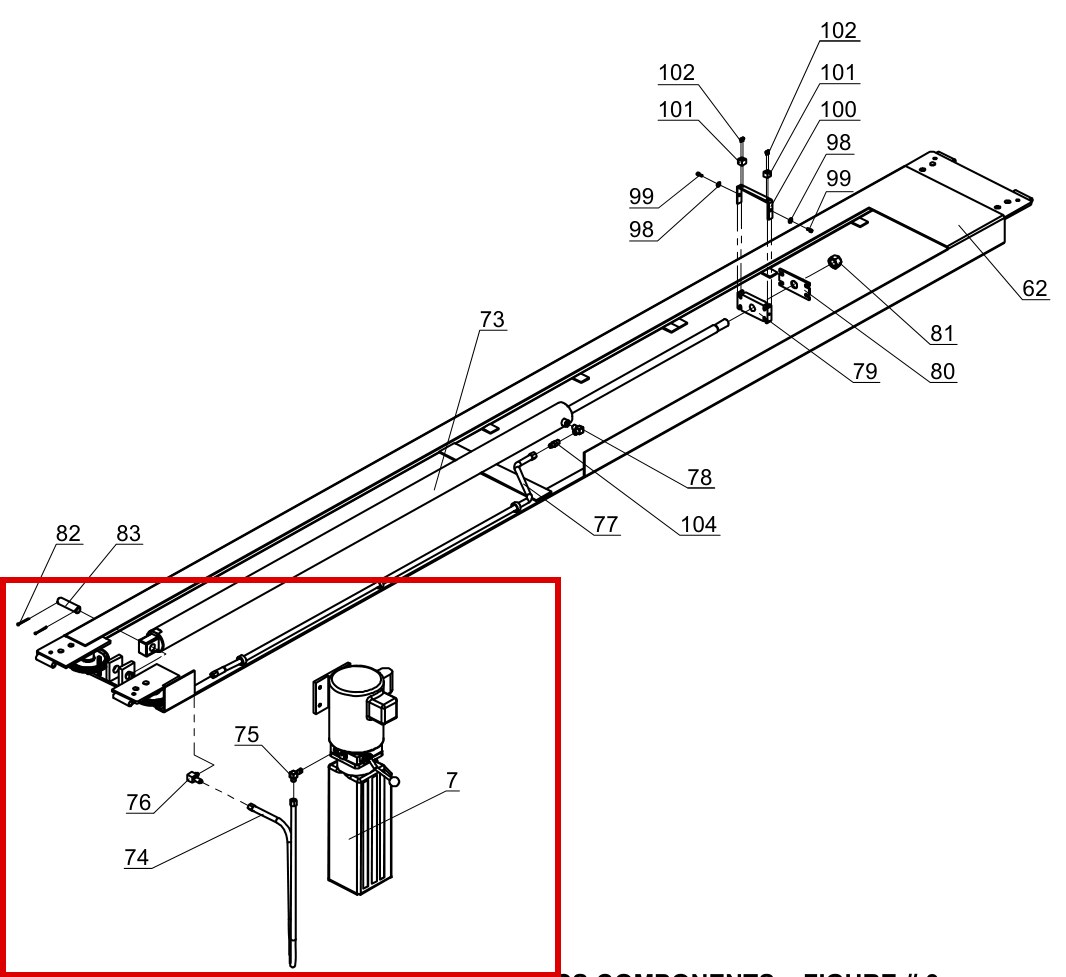

This wire-braided long hydraulic hose is shown in the Main Side Runway & Hydraulics Components diagram (Figure 3) of the parking lift parts breakdowns, and is also referenced with the caster kit. It carries pressurized fluid along the main-side runway to the lift cylinder, with wire-braid reinforcement for durability under working pressure.

OEM replacement for Direct Lift parking lifts. Replace any hose showing cover cracks, exposed braid, or weeping fittings. Verify against Figure 3 for your lift model before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
