Description
Direct Lift 30400-5000 Carriage for 2-Column 8K, HR8000 & OH8000 Lifts
Repair or service the applicable lift assembly with the 30400-5000 Carriage, listed for use on 2-Column 8K, HR8000 & OH8000 Lifts. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.
Product Information
- Brand / Equipment: Direct Lift
- Manufacturer / Reference Part Number: 30400-5000
- Store SKU: DIT05000
- Component: Carriage
- Listed Application: 2-Column 8K, HR8000 & OH8000 Lifts
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

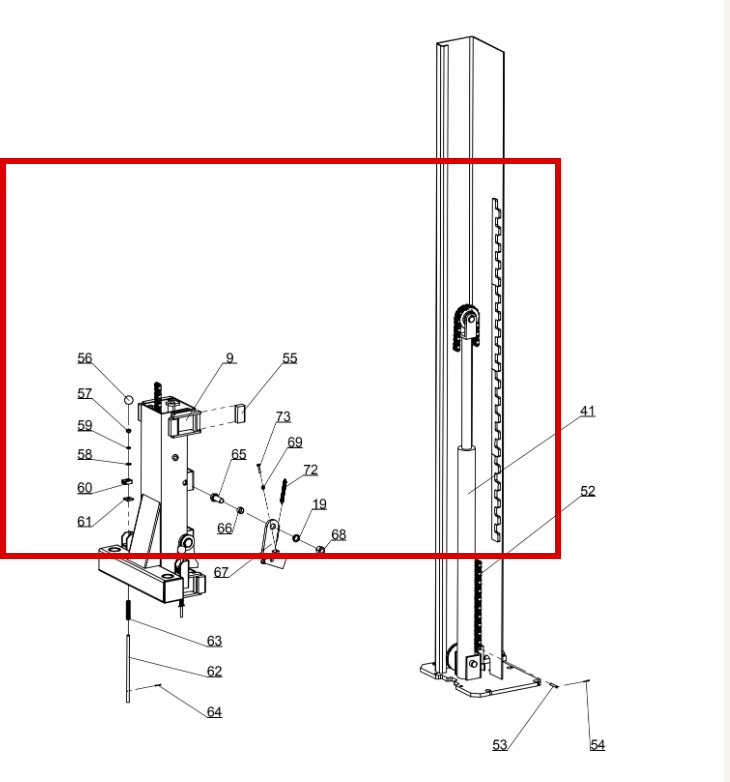

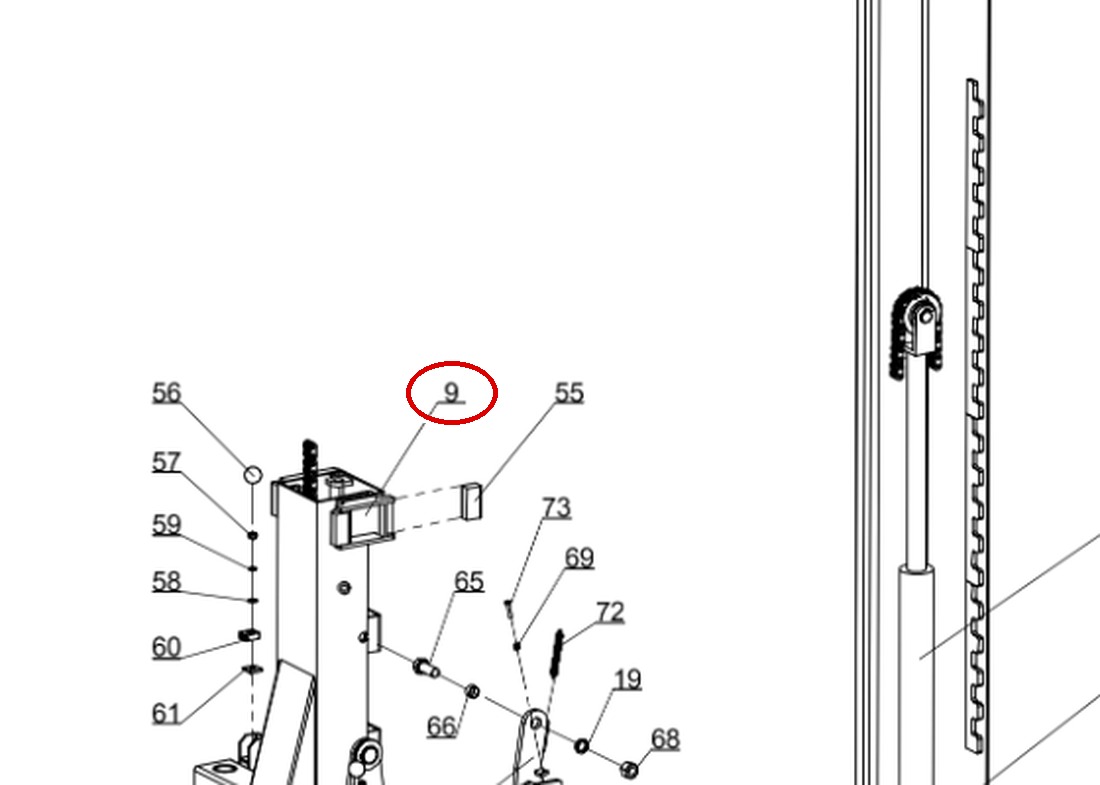

This is part number 9 in the drawing image above.
Fits the following lift models — part number 30400-5000 appears in the parts breakdown of each of these lifts: Direct Lift 8K Two-Column Automotive, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PRO-9 / PRO-9F 9K Two-Column.
The carriage is the moving assembly that travels up and down the lift column, carrying the swing arms and engaging the safety lock system. This part appears in the carriage/safety block detail and column drawings of the 2-Column 8K, HR8000 and OH8000 parts breakdowns (Drawing 1 and Drawing 2, pages 24-26).
Direct replacement for the factory carriage. Because this is a primary load-bearing component, verify your exact lift model and the drawing callout in your parts breakdown before ordering.
Cross-check part number: Direct Lift 30400-5000. This is a Direct Lift replacement part.
