Direct Lift 30400-5006-3 Safety Latch Spring for 2-Column 8K, HR8000 & OH8000 Lifts

Description

Direct Lift 30400-5006-3 Safety Latch Spring for 2-Column 8K, HR8000 & OH8000 Lifts

Replace missing, worn, or damaged lift hardware with the 30400-5006-3 Safety Latch Spring, listed for use on 2-Column 8K, HR8000 & OH8000 Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30400-5006-3
• Store SKU: DIT0063
• Component: Safety Latch Spring
• Listed Application: 2-Column 8K, HR8000 & OH8000 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

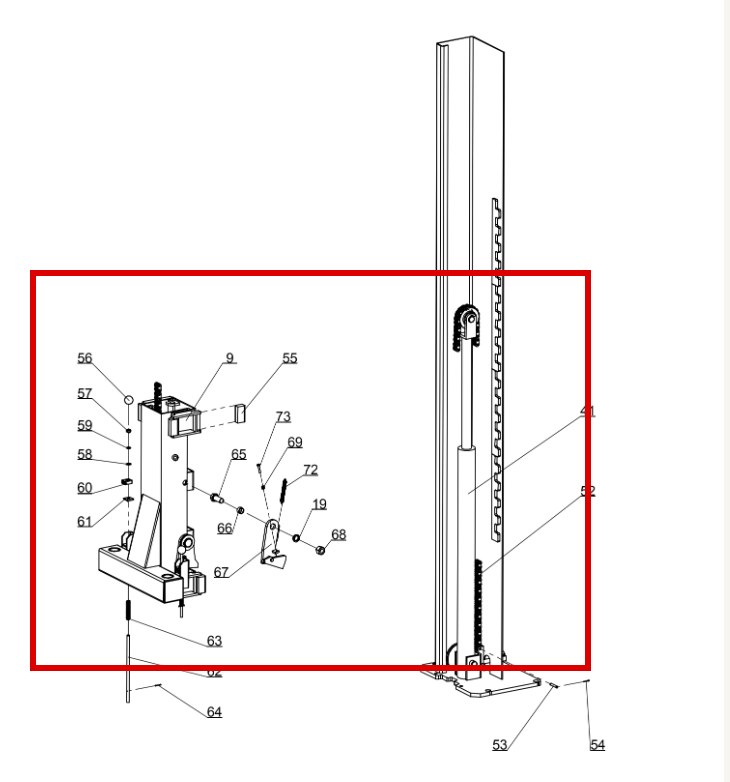

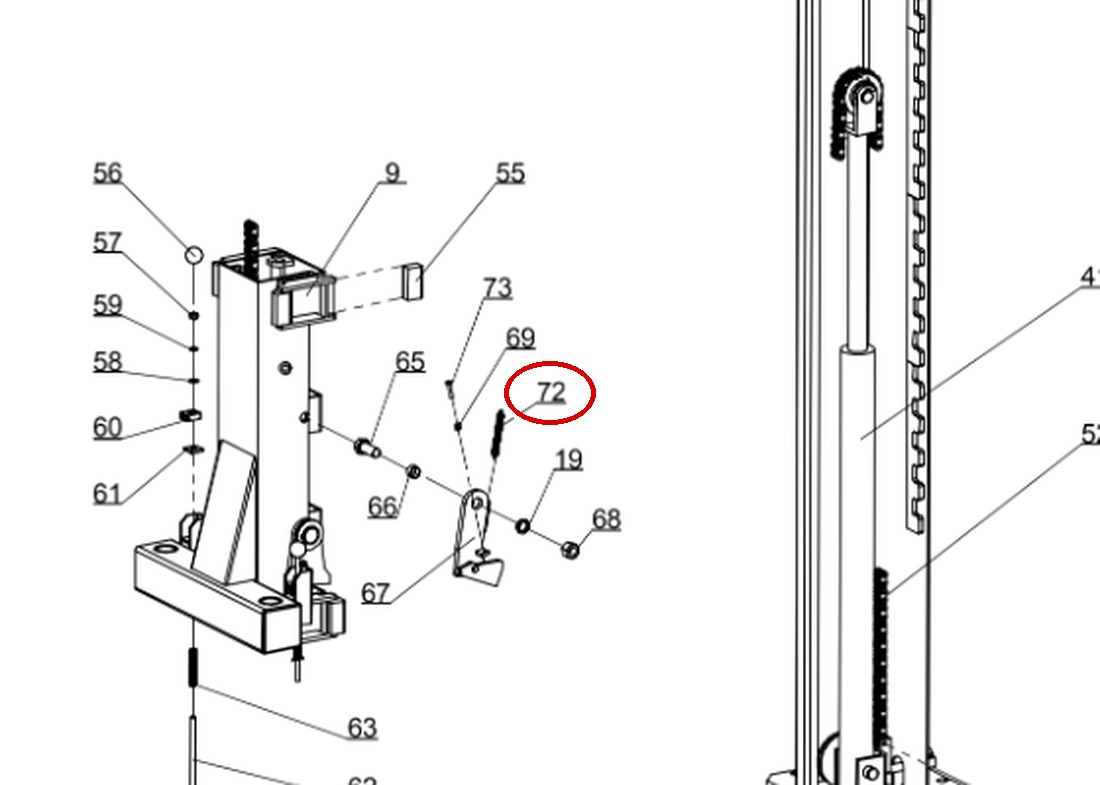

In the drawing images above this is part number 72 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing and part number 72 in the PARTS BREAKDOWN HR8000 8K FLOOR PL drawing and part number 72 in the PARTS BREAKDOWN OH8000 8K OVERHEAD drawing.

Fits the following lift models — part number 30400-5006-3 appears in the parts breakdown of each of these lifts: Direct Lift 8K Two-Column Automotive, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PRO-9 / PRO-9F 9K Two-Column, PRO-9F 9K Floor Plate, HR-8000, PRO-9F.

This safety latch spring returns and holds the safety latch against the column locks, ensuring the mechanical load-holding locks engage as the carriage rises. It appears in the carriage/safety block detail drawings (Drawing 1 and Drawing 2, pages 24-26) of the 2-Column 8K, HR8000 and OH8000 parts breakdowns.

Genuine OEM replacement part for Direct Lift equipment. As a safety system component, replace a stretched or broken latch spring immediately. Confirm the callout in your parts breakdown before ordering.
