Direct Lift 30400-5015 Pull Handle / Gear Rack Shaft for DL9, 2-Column 8K & HR8000 Lifts

Description

Direct Lift 30400-5015 Pull Handle / Gear Rack Shaft for DL9, 2-Column 8K & HR8000 Lifts

The 30400-5015 Pull Handle / Gear Rack Shaft is listed for use on DL9, 2-Column 8K & HR8000 Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30400-5015
• Store SKU: DIT5015
• Component: Pull Handle / Gear Rack Shaft
• Listed Application: DL9, 2-Column 8K & HR8000 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

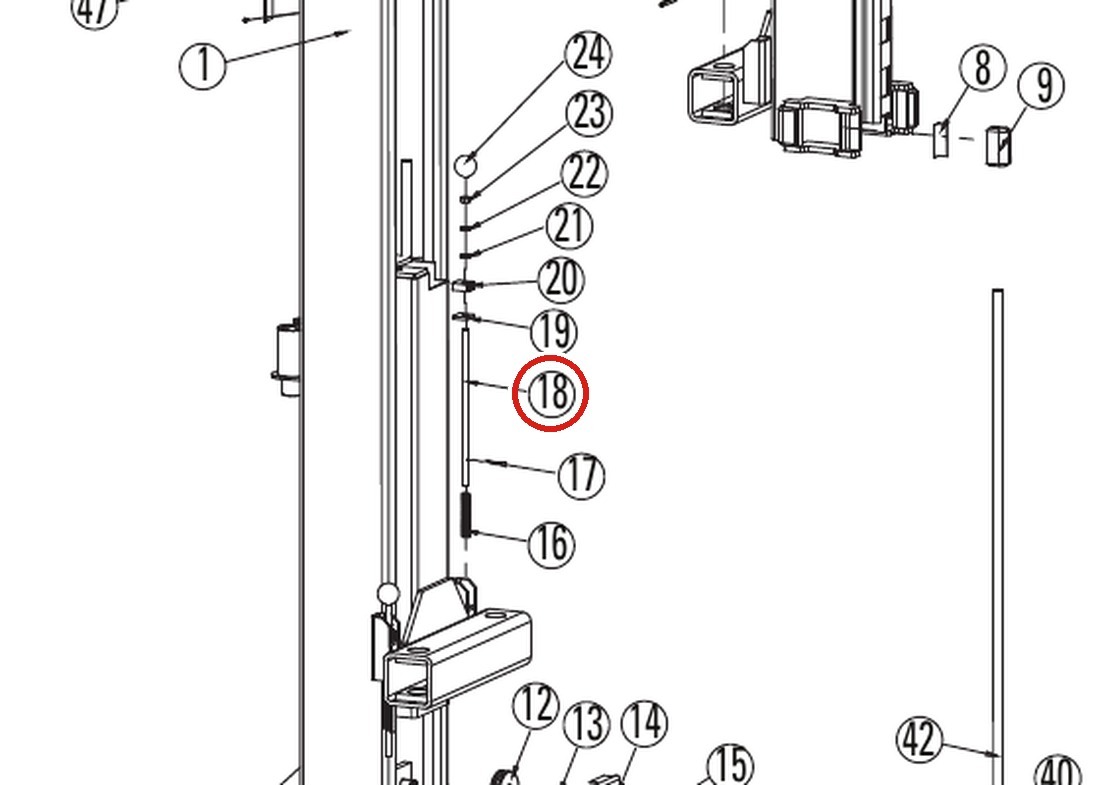

In the drawing images above this is part number 18 in the DL9 parts drawing and part number 62 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing and part number 62 in the PARTS BREAKDOWN HR8000 8K FLOOR PL drawing.

Fits the following lift models — part number 30400-5015 appears in the parts breakdown of each of these lifts: Rotary Lift DL9; Direct Lift 8K Two-Column Automotive, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PRO-9 / PRO-9F 9K Two-Column, PRO-9D 9K Two-Column, HR-8000; PRO-9D.

This part serves as the pull handle/shaft that actuates the gear rack in the carriage and arm restraint assembly. It appears in Drawing 1 (carriage/safety block detail, page 26) of the 2-Column 8K breakdown, the Main Lift Assembly (Drawing 1, page 3) of the DL9 breakdown, and Drawing 3 of the HR8000 breakdown.

Genuine OEM replacement part for Direct Lift equipment. Verify the item callout in your parts breakdown drawing before ordering to confirm fitment.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); HR8000 (8,000 lb floor-plate two-post)
• Hanmecson (VSG) — DL9
