Direct Lift 30400-9053YZ 90 Degree Elbow Fitting with O-Ring for CR14, 8K 2-Column & 6K Mid-Rise Lifts

Description

Direct Lift 30400-9053YZ 90 Degree Elbow Fitting with O-Ring for CR14, 8K 2-Column & 6K Mid-Rise Lifts

Service leaks or worn sealing components with the 30400-9053YZ 90 Degree Elbow Fitting with O-Ring, listed for use on CR14, 8K 2-Column & 6K Mid-Rise Lifts. Confirm the reference part number and application against the original Direct Lift component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30400-9053YZ
• Store SKU: DIT53YZ
• Component: 90 Degree Elbow Fitting with O-Ring
• Listed Application: CR14, 8K 2-Column & 6K Mid-Rise Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

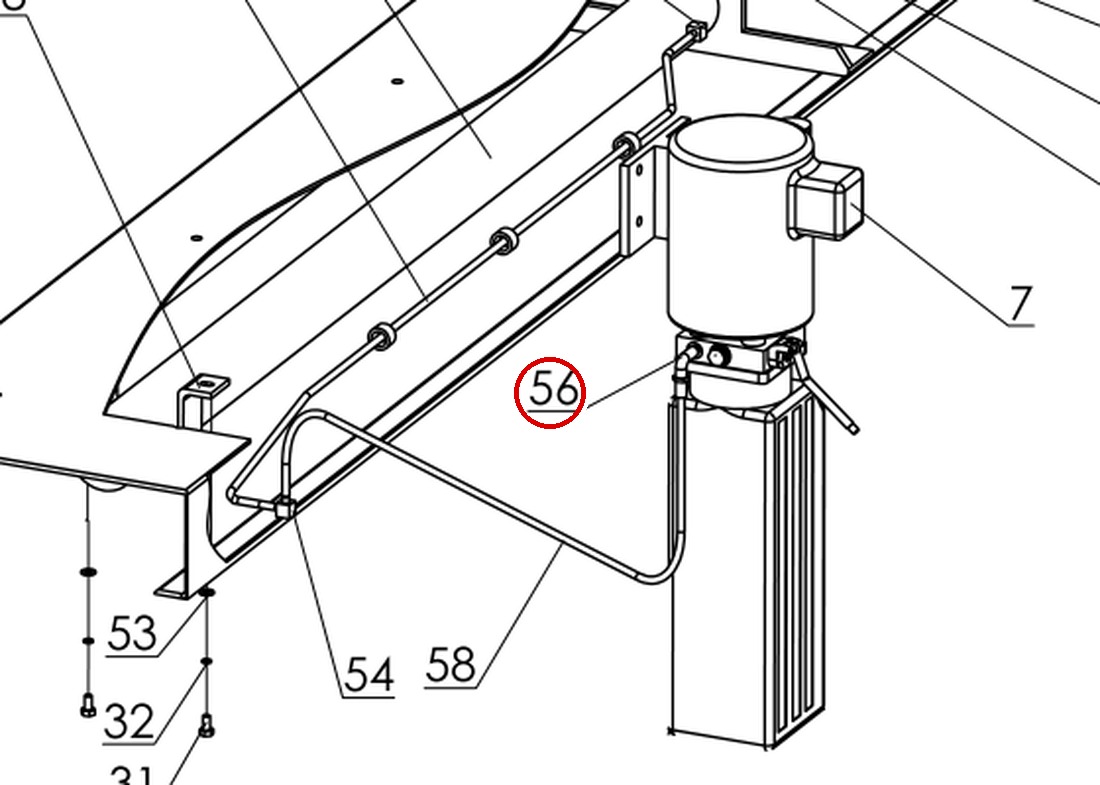

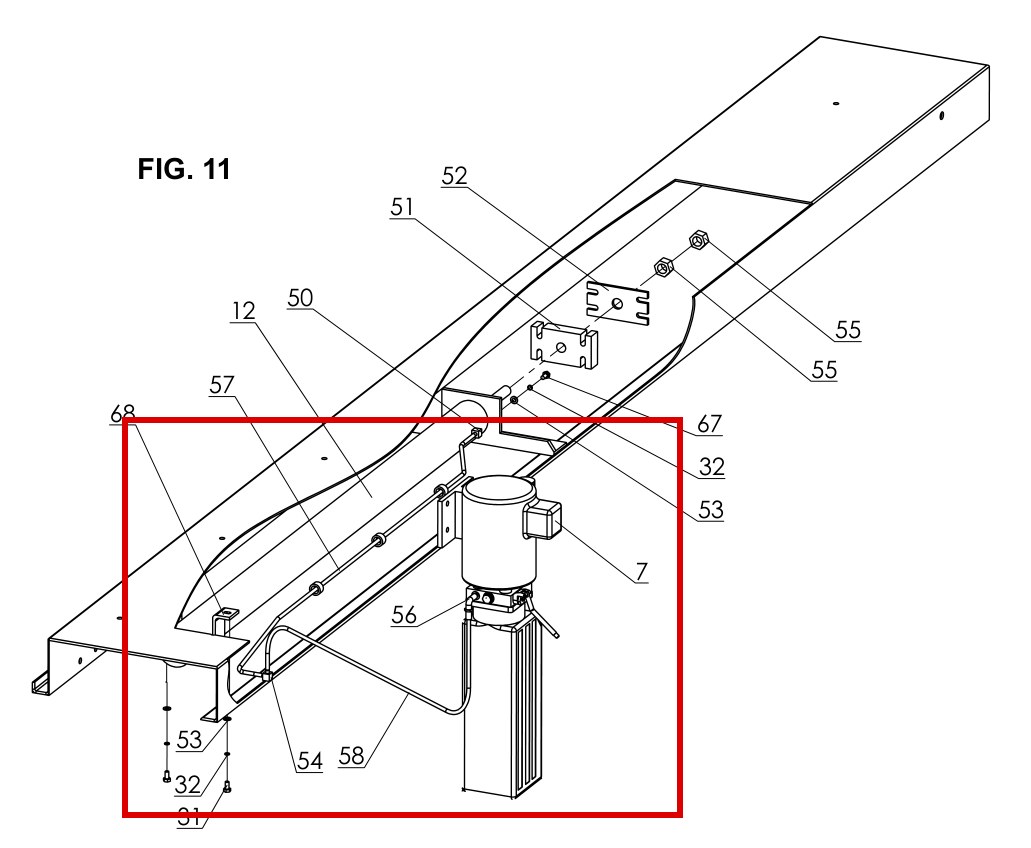

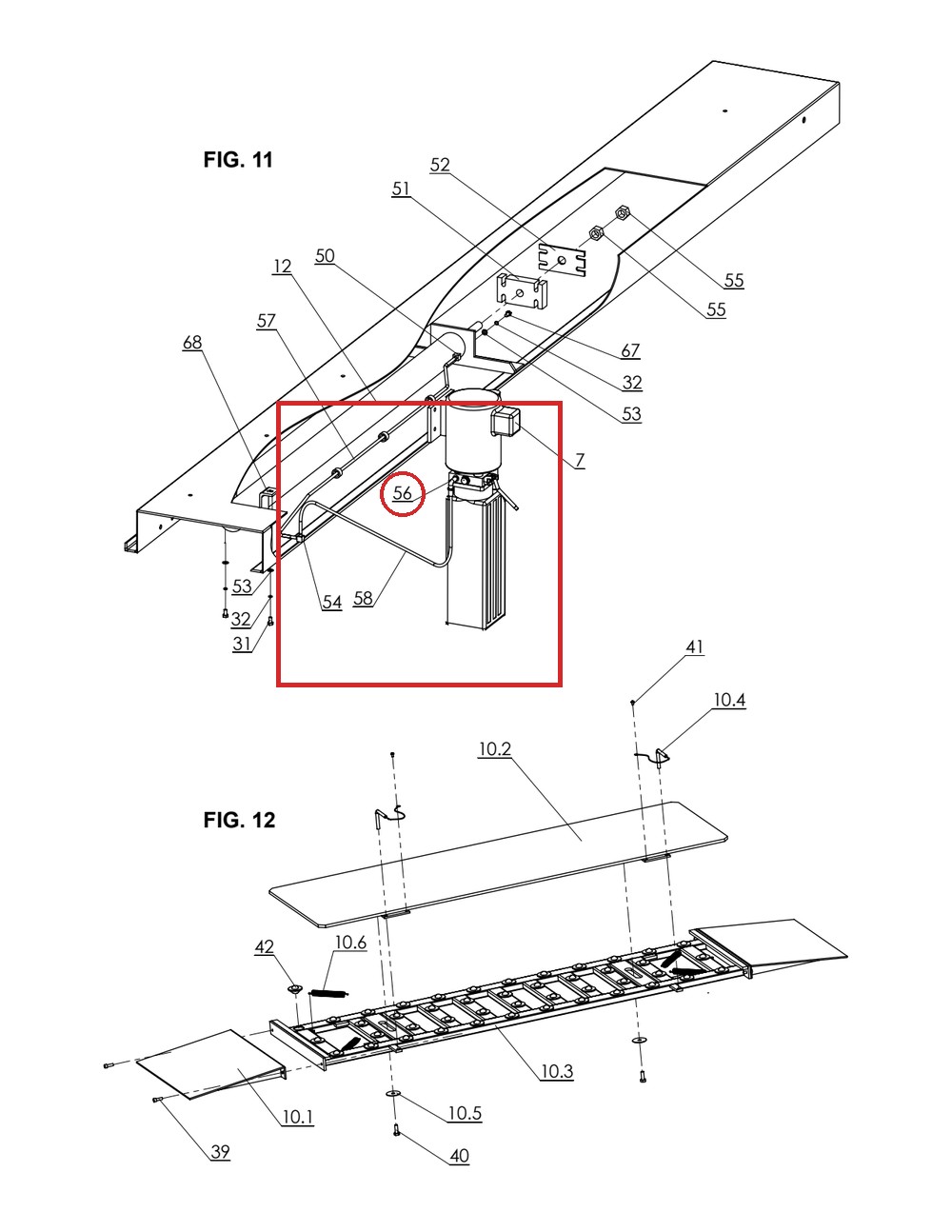

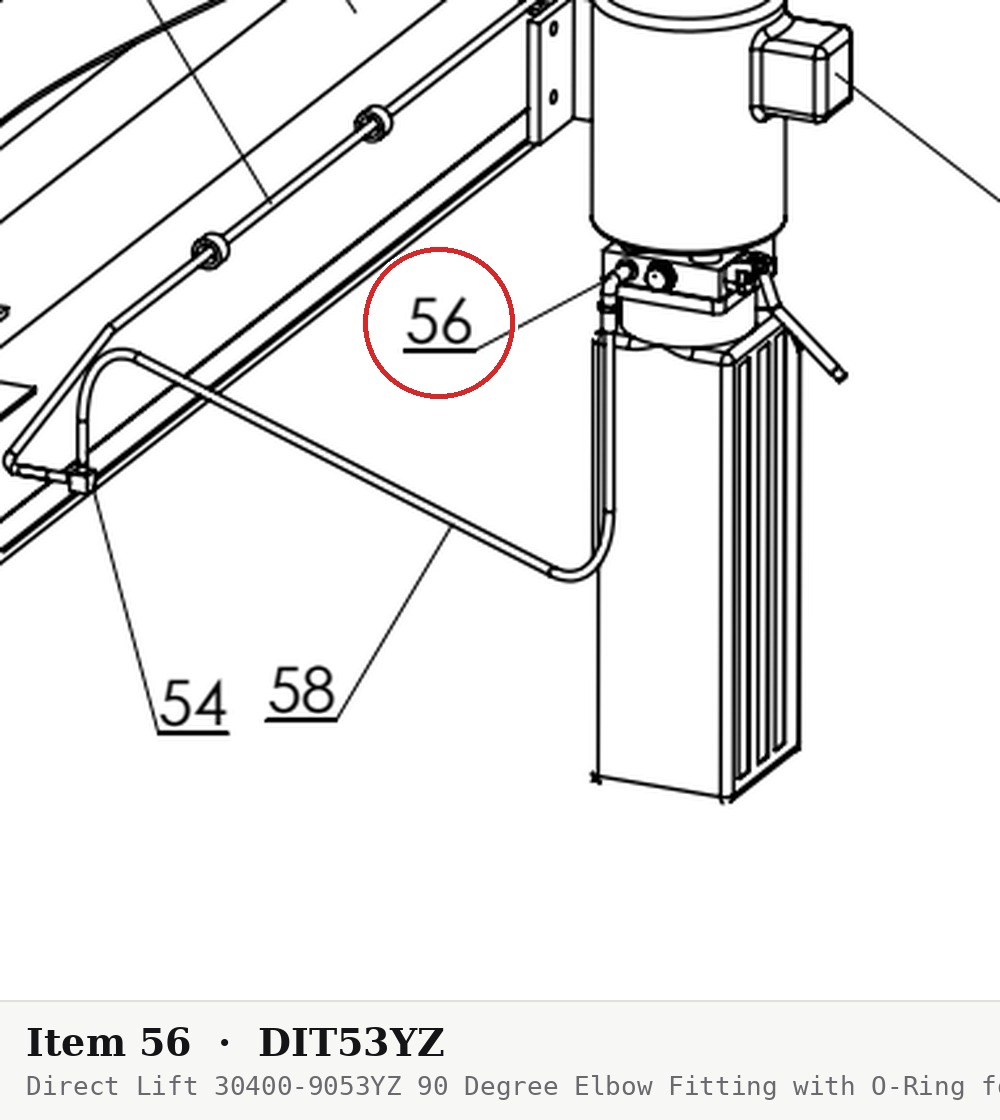

In the drawing images above this is part number 56 in the CR14 (14000EWT) 994359 -9-20071 drawing and part number 56 in the CR14114000 SER# 00N drawing and part number 49 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing.

Fits the following lift models — part number 30400-9053YZ appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), CR14 14000 (serial 00N), 8K Two-Column Automotive, 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), DP-7 Four-Post Parking, HR-8000 8K Floor Plate, Mid-Rise 6K (2005), PRO-9D 9K Two-Column, PRO-14F (newer, 3-bolt lock), HR-8000, PRO-14F 14K; PRO-9D.

90 Degree Fitting with O-Ring | Fits Direct Lift CR14 (14000EWT) 4-post, 2-column 8K automotive, and 6K mid-rise lifts (main side runway and hydraulics components Figure 3, 6K mid-rise parts list, and Drawing 3 power unit / cross beam hydraulics).

This 90 degree elbow fitting with O-ring seal connects hydraulic lines at tight-clearance points in the power unit and cylinder circuit. The O-ring provides the seal, so a weeping fitting often just needs the fitting replaced complete rather than re-torqued.

Genuine Direct Lift catalog part (HI Parts family). Used across several lift families, confirm the item location in your model’s hydraulic parts figure before ordering.
