Direct Lift B40-12 12mm Lock Washer for I12, 2-Post 8K & 10K Lifts

Description

Direct Lift B40-12 12mm Lock Washer for I12, 2-Post 8K & 10K Lifts

Replace missing, worn, or damaged lift hardware with the B40-12 12mm Lock Washer, listed for use on I12, 2-Post 8K & 10K Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B40-12
• Store SKU: DIT4012
• Component: 12mm Lock Washer
• Listed Application: I12, 2-Post 8K & 10K Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

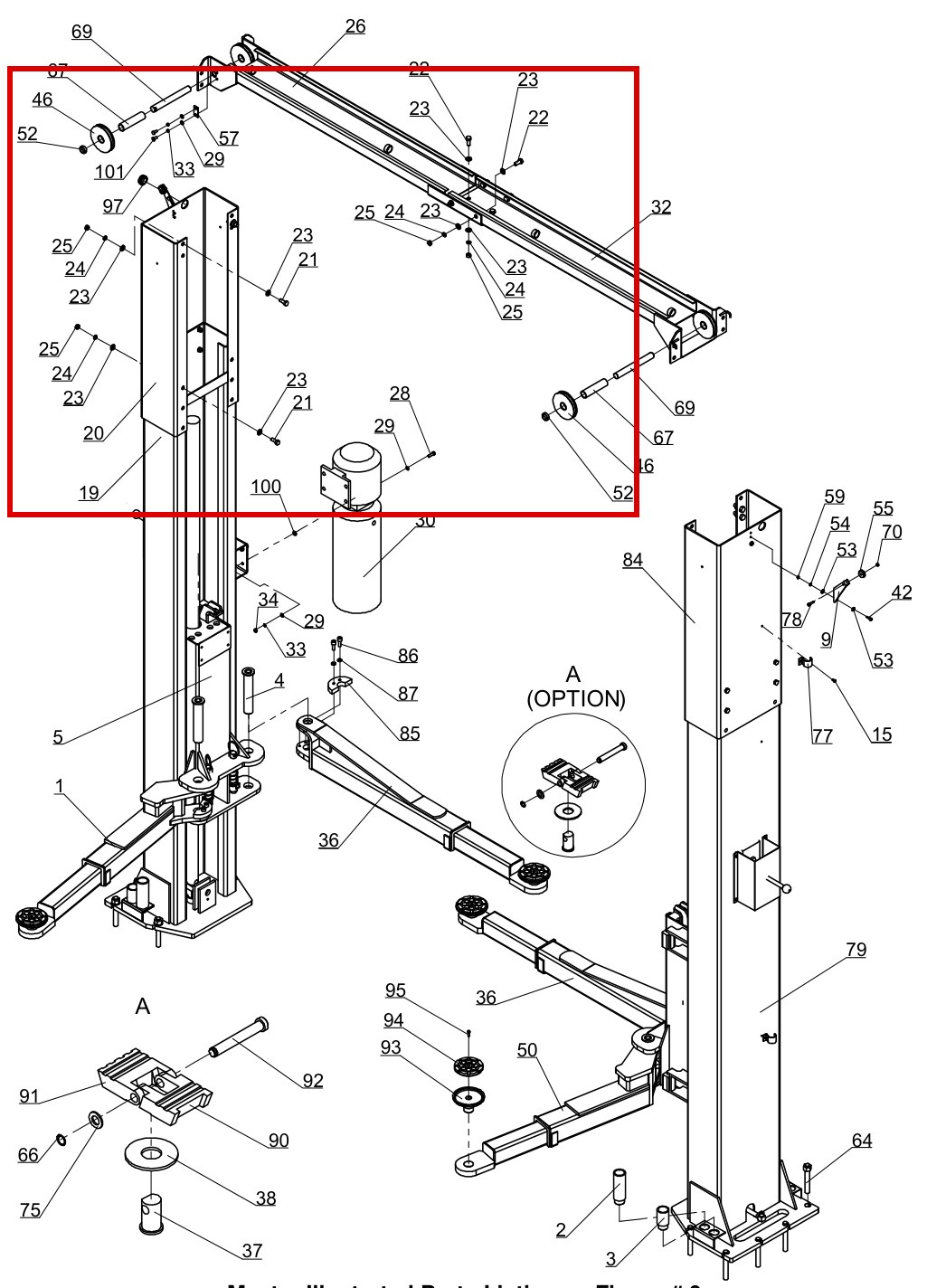

In the drawing images above this is part number 12 in the I12-Parts drawing and part number 24 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 23 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing.

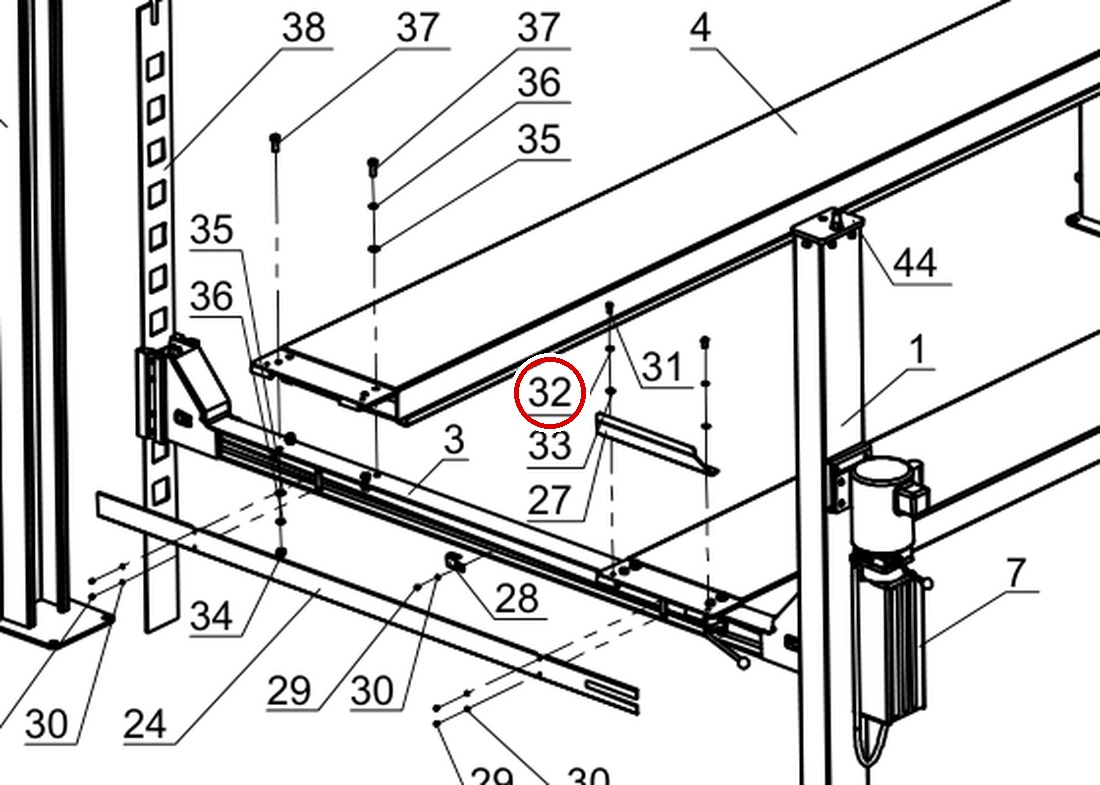

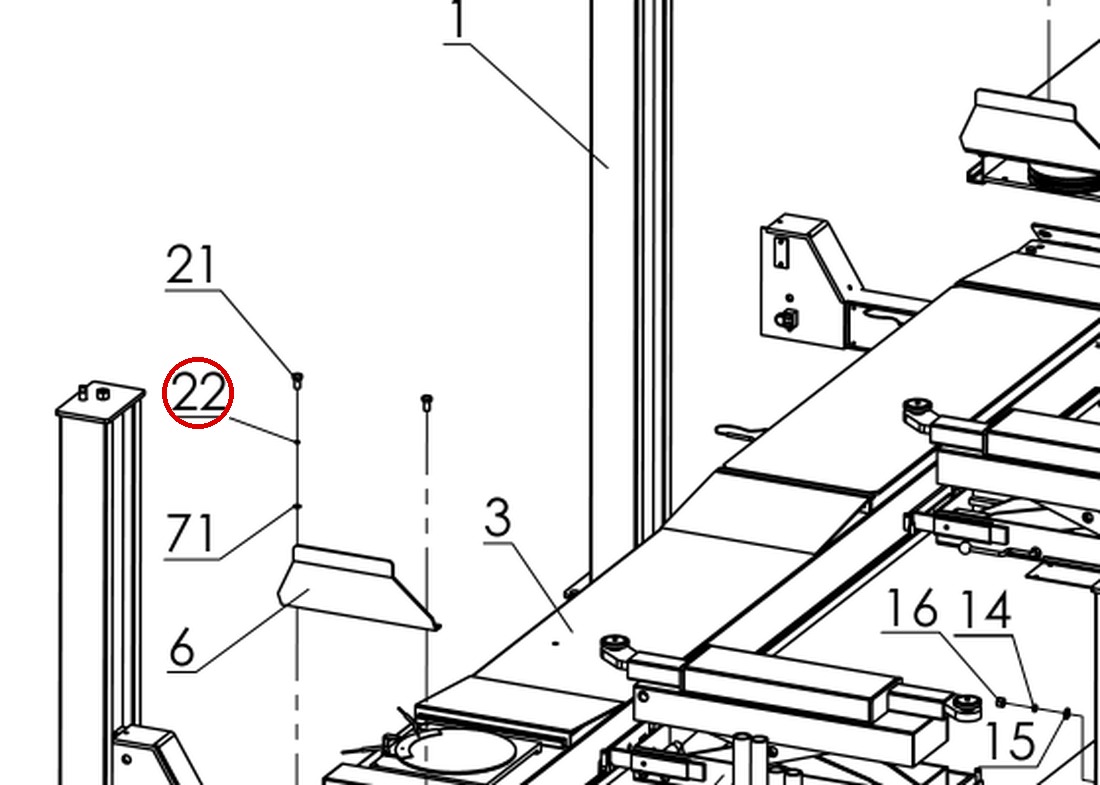

Fits the following lift models — part number B40-12 appears in the parts breakdown of each of these lifts: Direct Lift I12, 10K Two-Column, 8K Two-Column Automotive, 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), BP9 Floor Plate, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-9D 9K Two-Column, PRO-9F 9K Floor Plate, PRO-10 / PROV10 / PV10 (new style), PRO-14F (newer, 3-bolt lock), PROV12 / PRO-12, PV12, HR-8000, PRO-14F 14K, PRO-9F, PROV10 (early); PRO-9D.

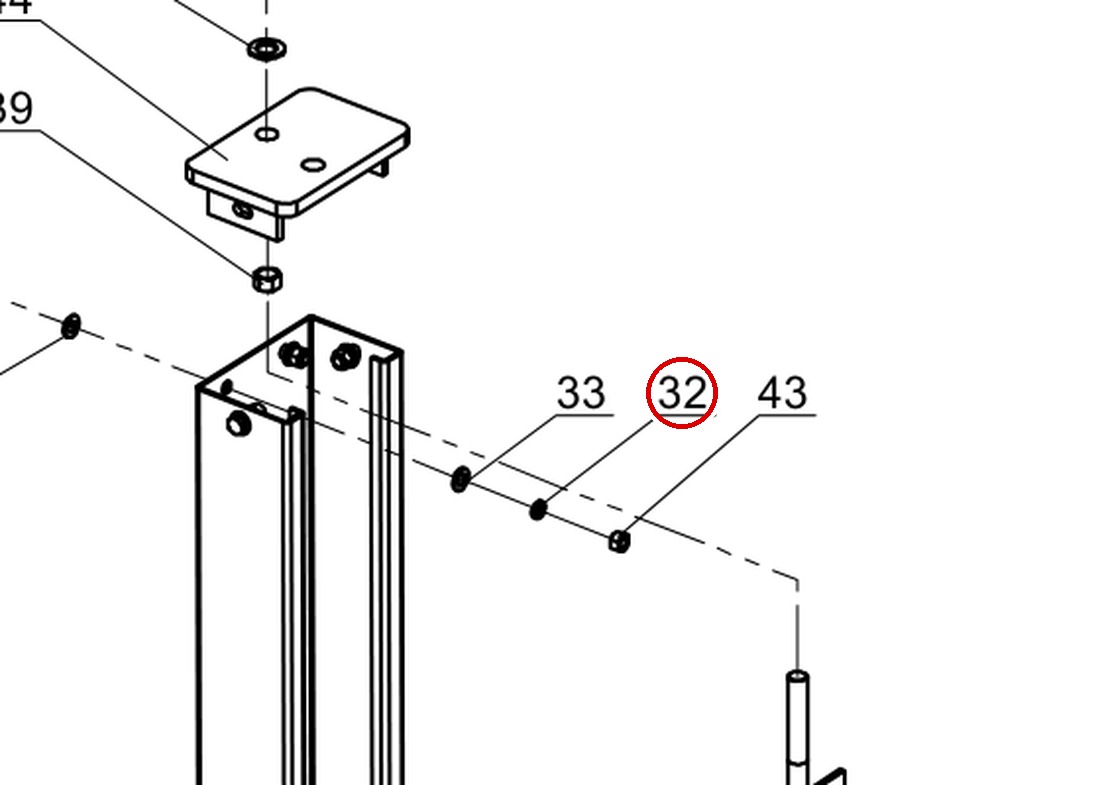

This 12mm spring lock washer appears in the Column & Lock Ladder diagram (Figure #2) and the Drawing 1 column/carriage/cable overview. It backs the bolts that mount the lock ladder and column hardware, holding torque on safety-critical fasteners through repeated lift cycles.

OEM-style replacement for the factory B40-12 washer. Confirm your lift model and figure number before ordering.

Fits these lifts:

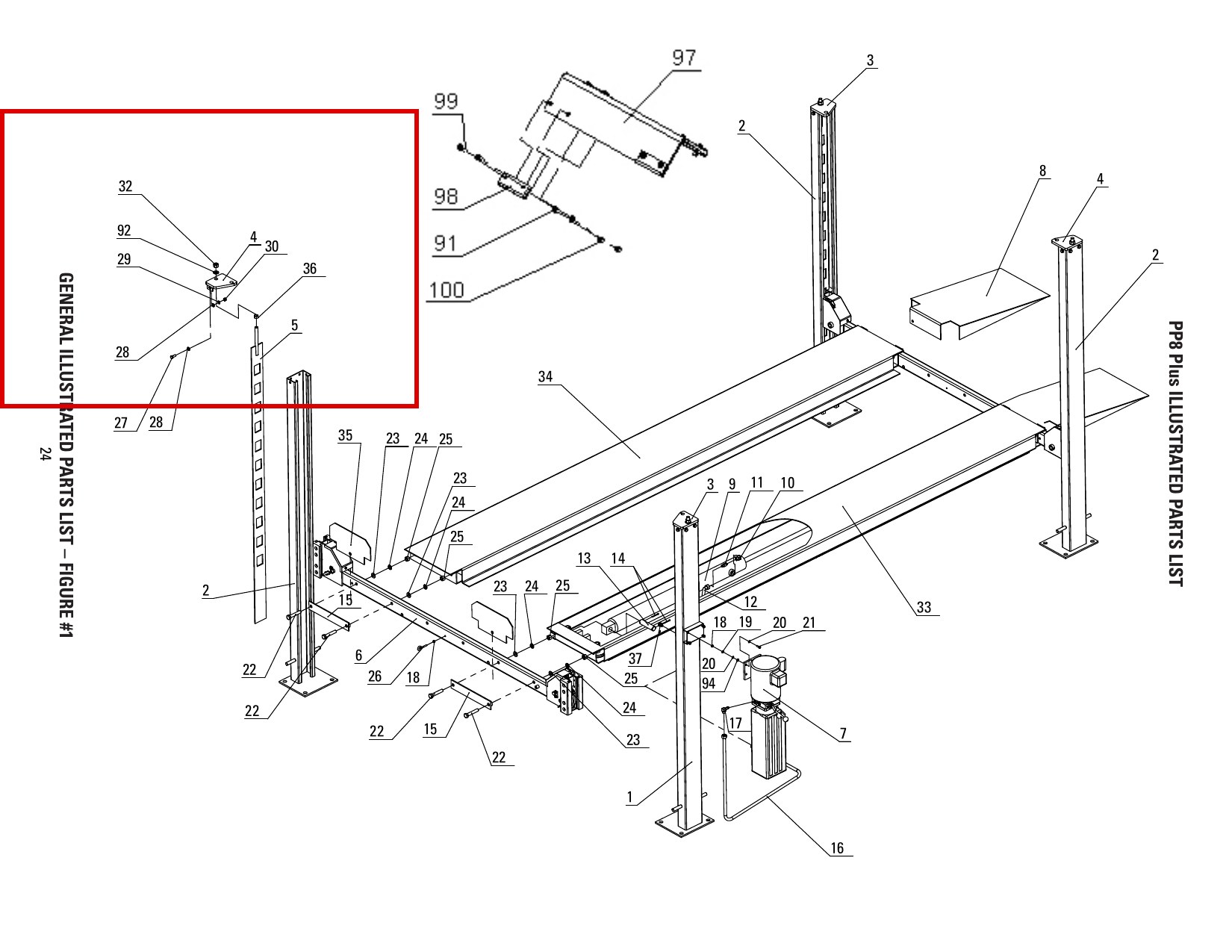

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); HR8000 (8,000 lb floor-plate two-post); I12 (12,000 lb two-post); PP8+ (8,000 lb four-post)
