Direct Lift B40-16 16mm Lock Washer for PP9+ 4-Post, 9K Parking & PRO14F Lifts

Description

Direct Lift B40-16 16mm Lock Washer for PP9+ 4-Post, 9K Parking & PRO14F Lifts

Replace missing, worn, or damaged lift hardware with the B40-16 16mm Lock Washer, listed for use on PP9+ 4-Post, 9K Parking & PRO14F Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B40-16
• Store SKU: DIT4016
• Component: 16mm Lock Washer
• Listed Application: PP9+ 4-Post, 9K Parking & PRO14F Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

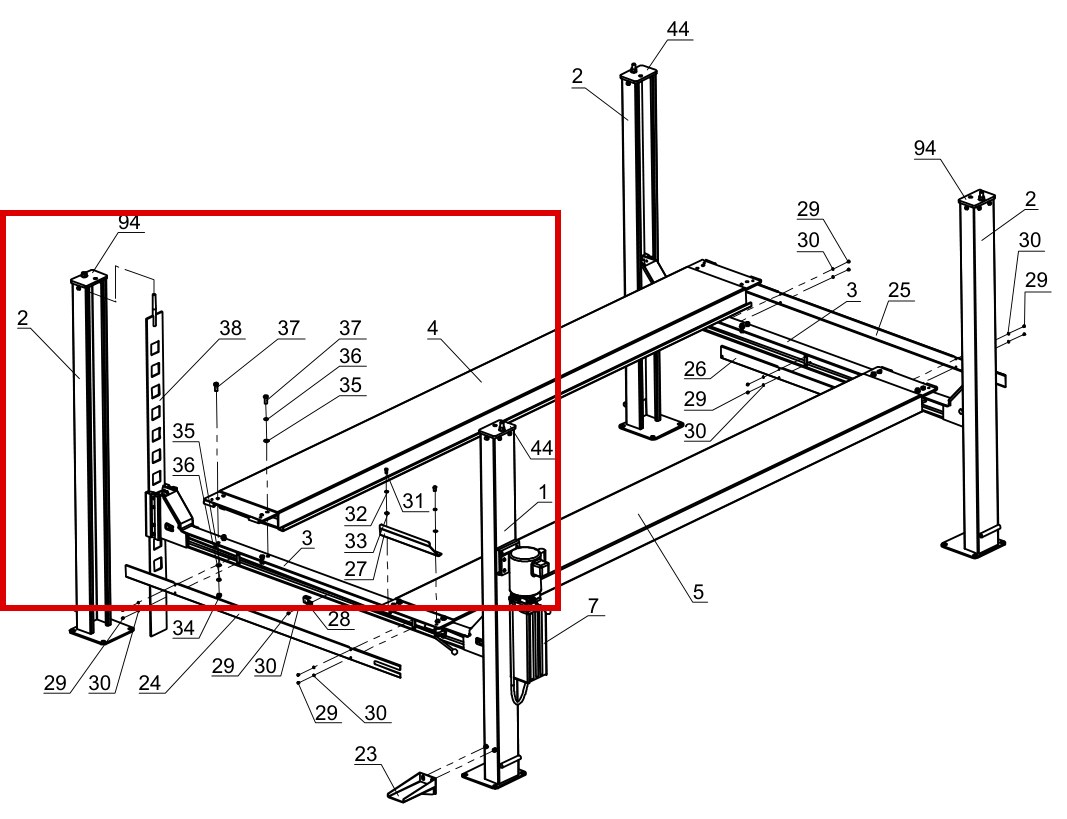

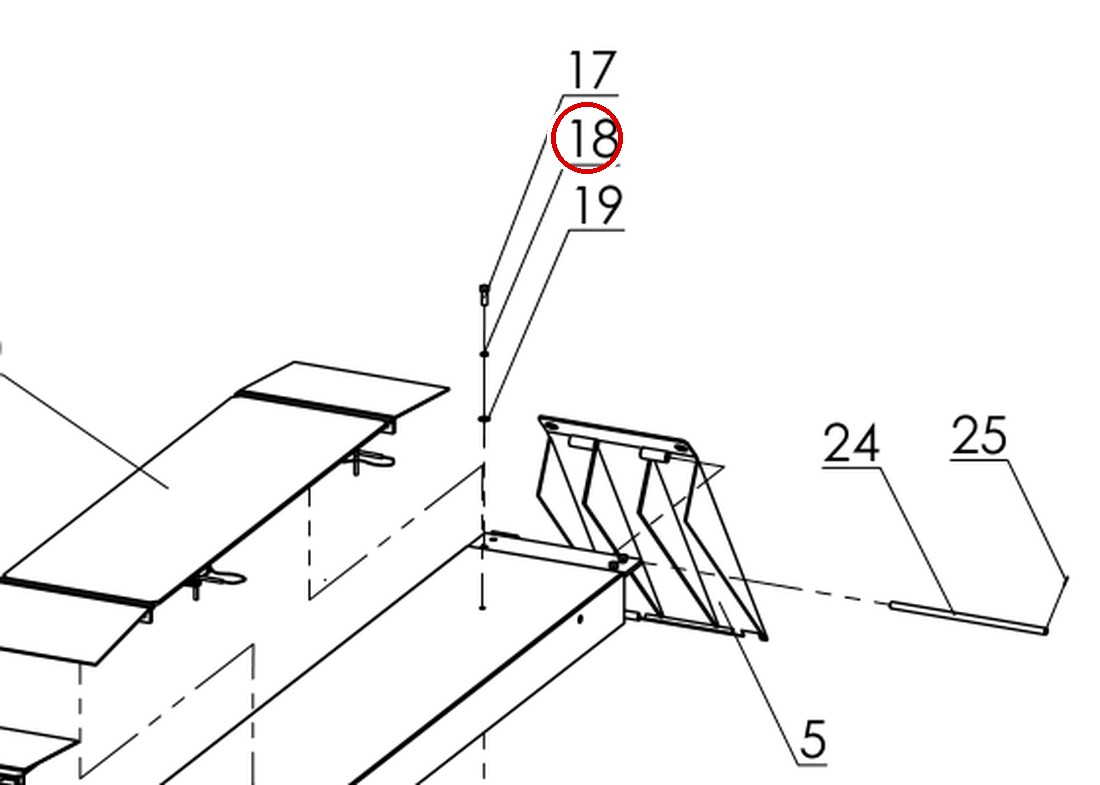

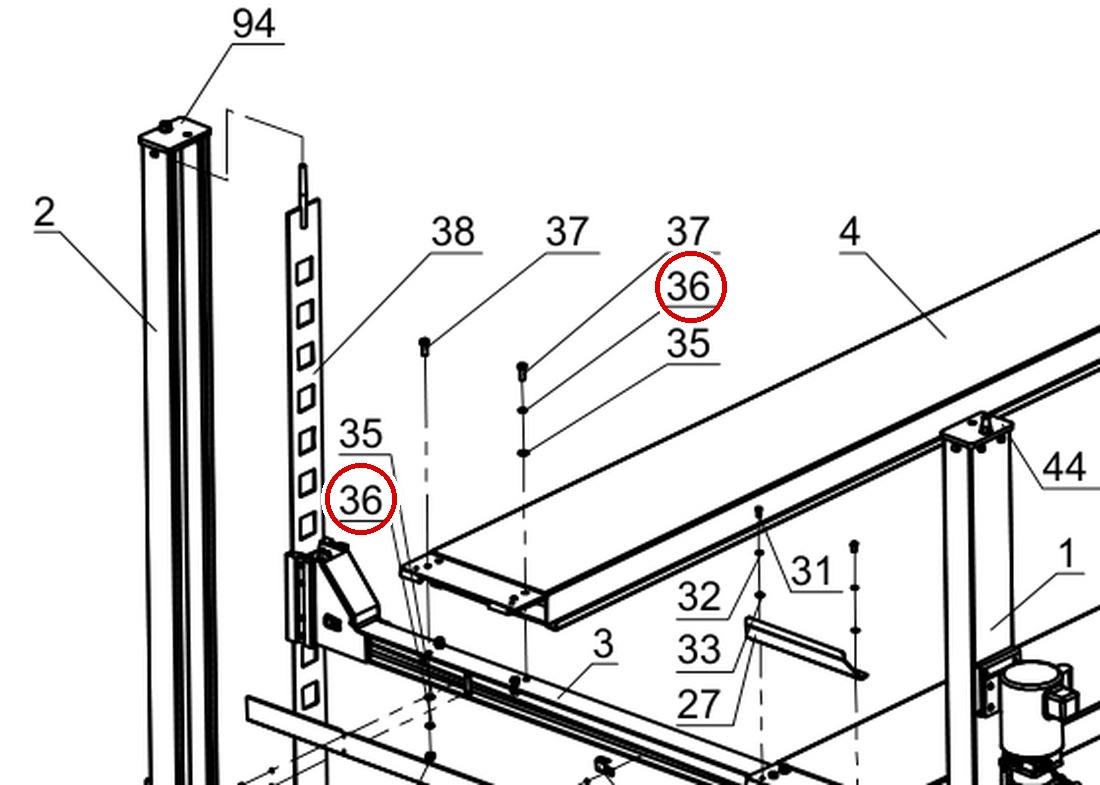

In the drawing images above this is part number 36 in the PARTS BREAKDOWN 9K PARKING WIDER V drawing and part number 36 in the PARTS BREAKDOWN PP9+ 9K 4-POST drawing and part number 18 in the PRO14F – newer with 3 bolt lock la drawing.

Fits the following lift models — part number B40-16 appears in the parts breakdown of each of these lifts: Direct Lift 9K Parking (wide version), PP9+ 9K Four-Post, PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

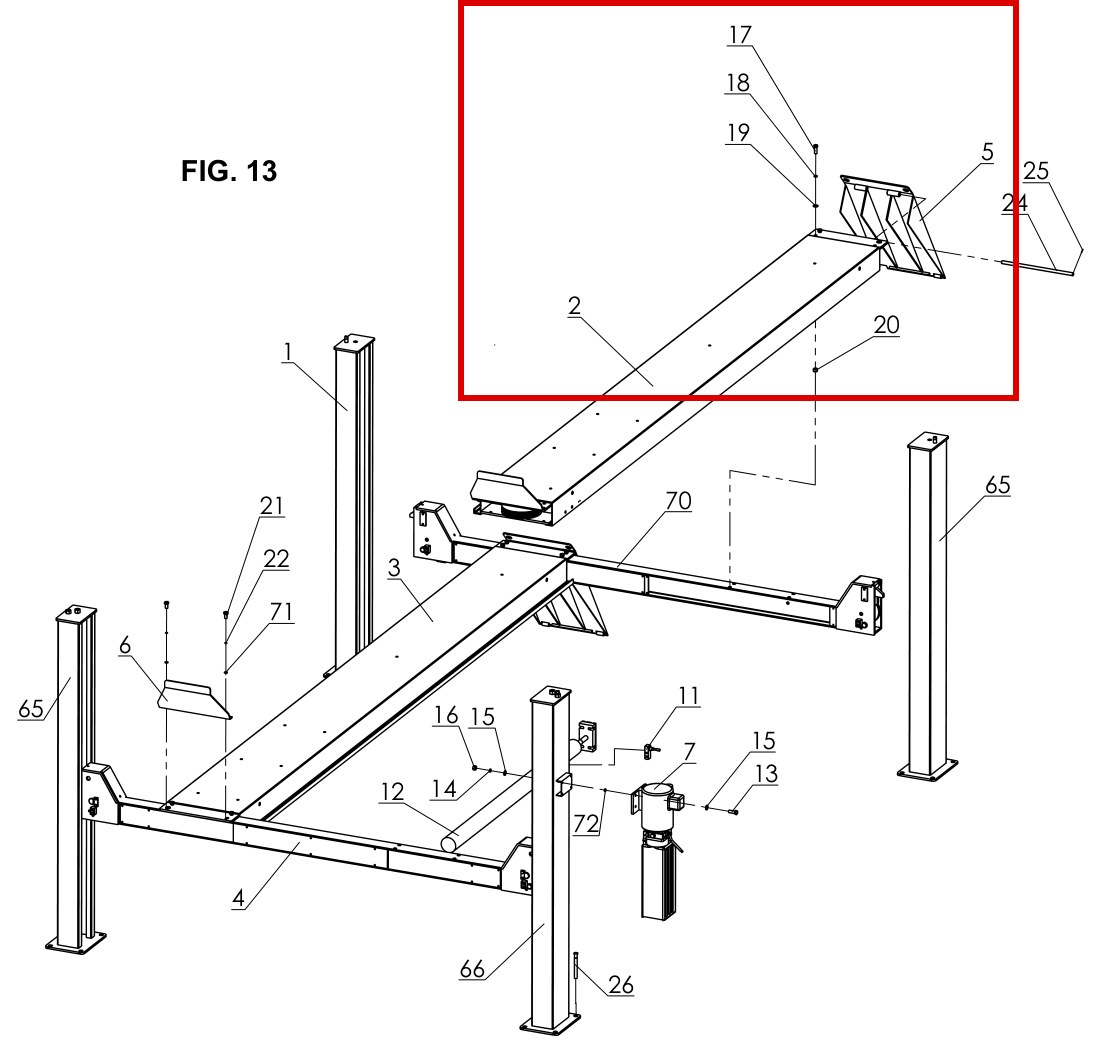

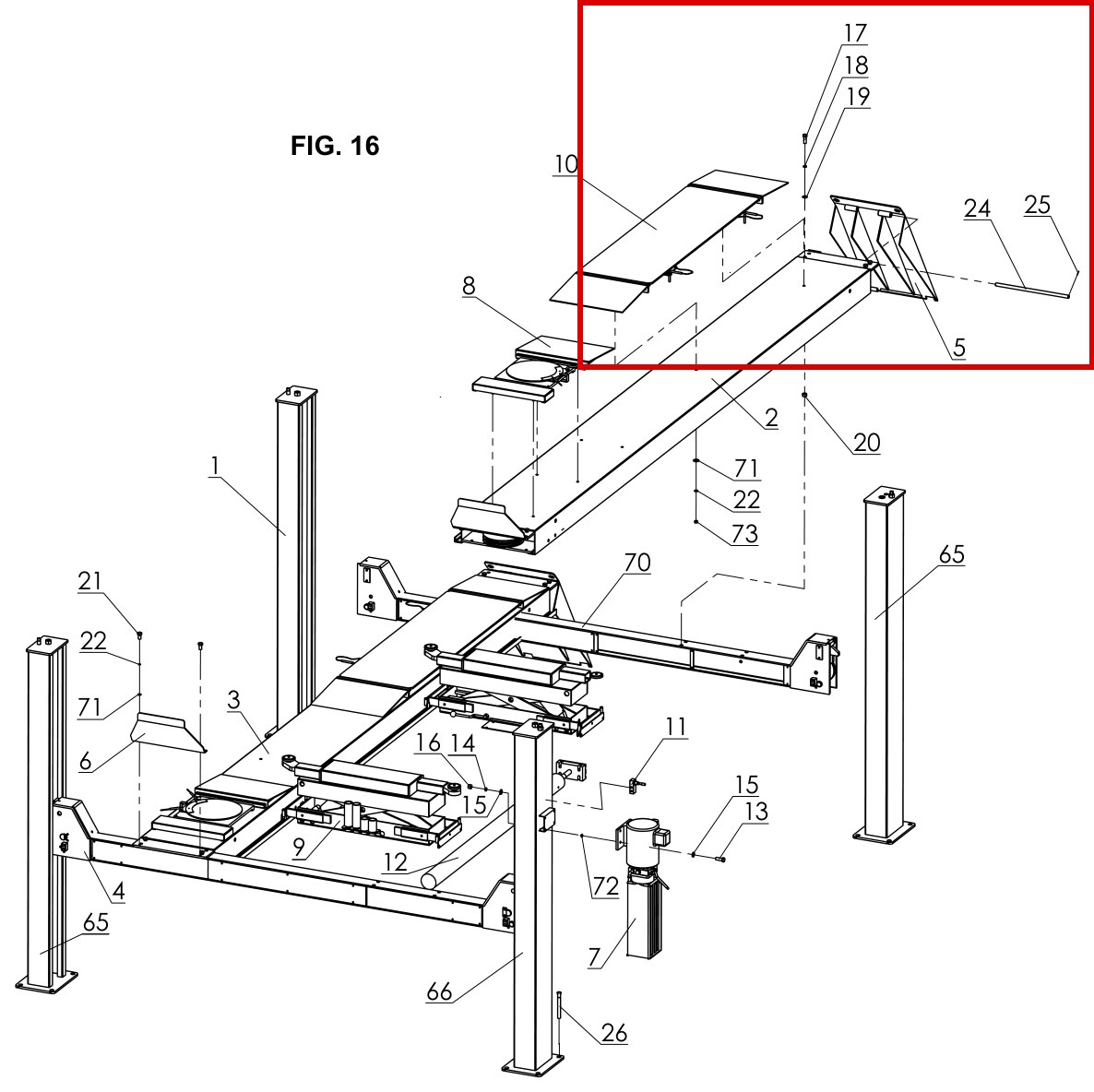

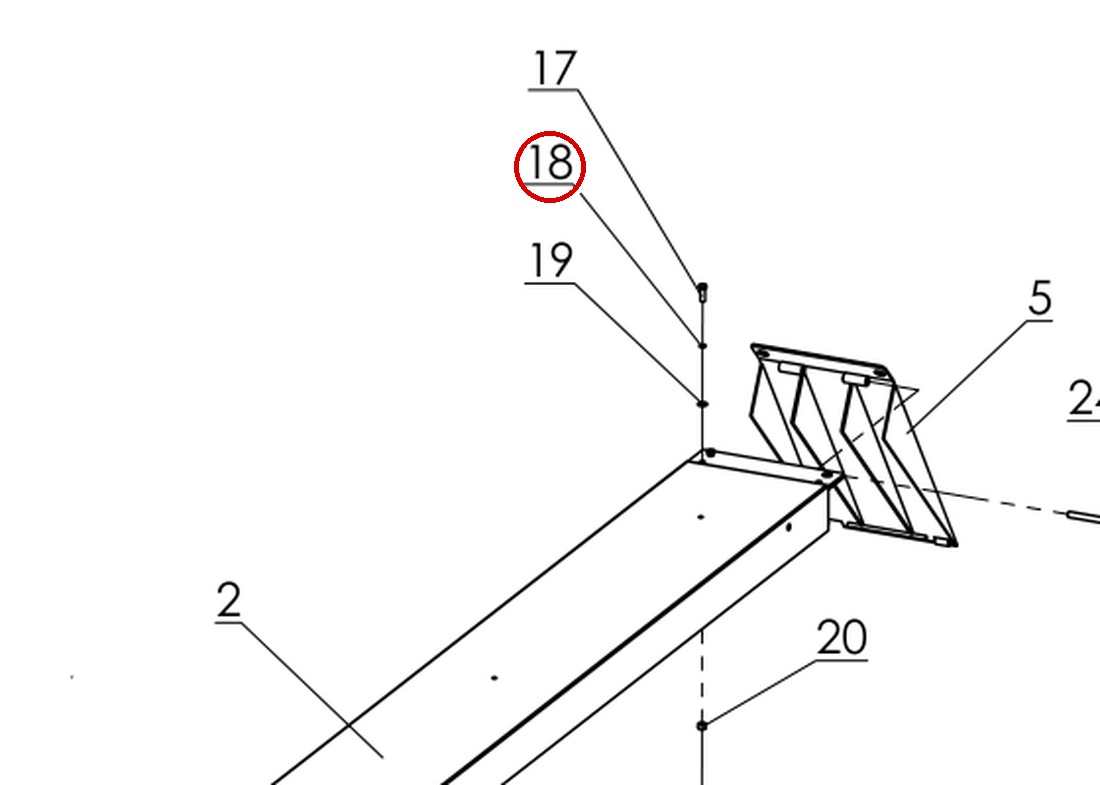

This 16mm spring lock washer is referenced in Figures 13 and 16 of the applicable parts breakdowns. It maintains clamping force on large structural fasteners so bolted joints stay tight under load.

Direct OEM-style replacement for the factory B40-16 washer. Match your model and figure number to confirm fitment before ordering.
