Direct Lift H4D-5005 Master Cylinder Pin for 7K, DP-7 & PP8S 4-Post Parking Lifts

Description

Direct Lift H4D-5005 Master Cylinder Pin for 7K, DP-7 & PP8S 4-Post Parking Lifts

Restore reliable hydraulic lift operation with the H4D-5005 Master Cylinder Pin, listed for use on 7K, DP-7 & PP8S 4-Post Parking Lifts. This component is used when servicing a worn, leaking, or damaged cylinder where this exact part number and application are specified. Compare the part number and listed fitment with your original Direct Lift component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4D-5005
• Store SKU: DITD5005
• Component: Master Cylinder Pin
• Listed Application: 7K, DP-7 & PP8S 4-Post Parking Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

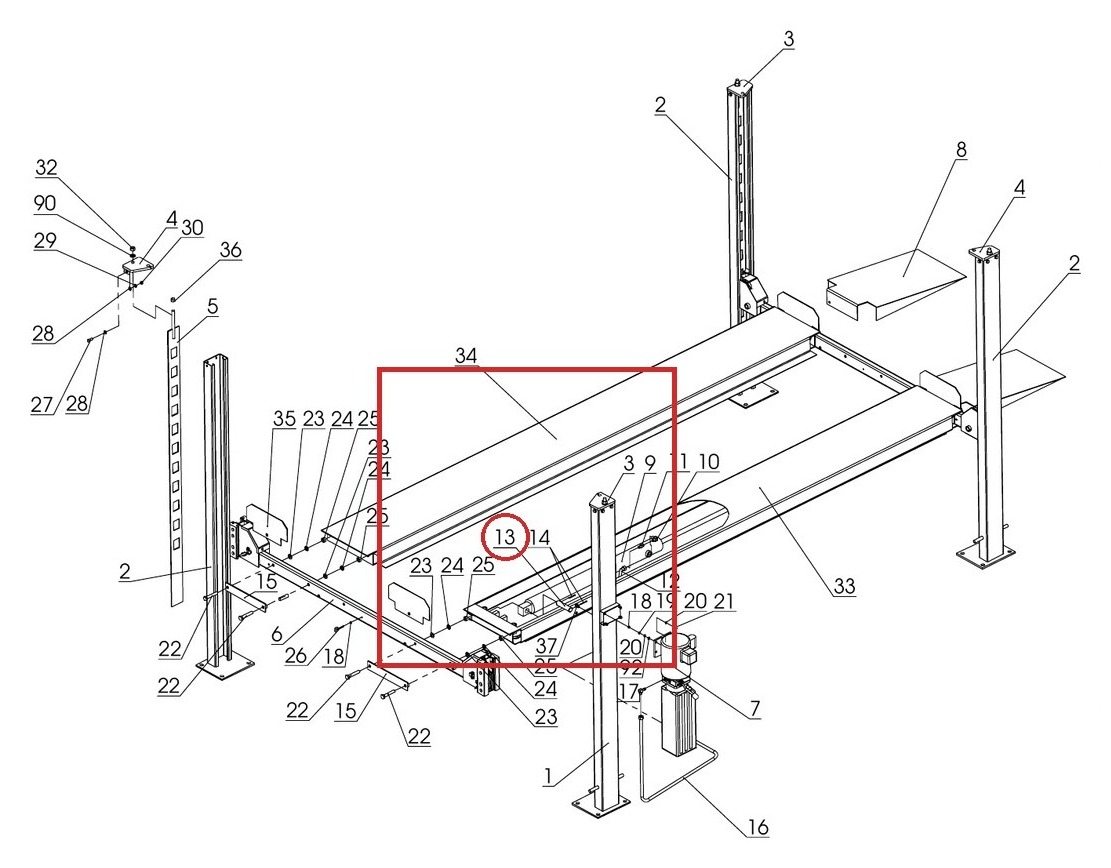

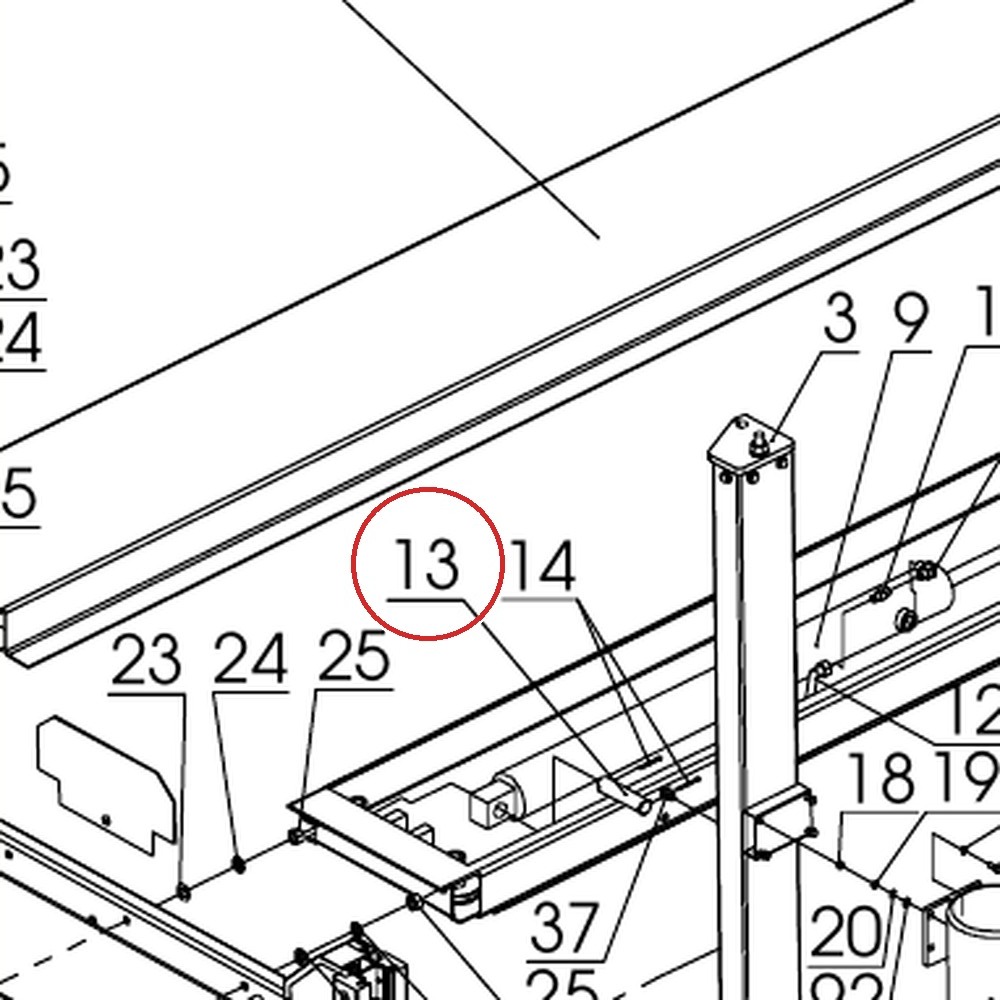

In the drawing images above this is part number 13 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing and part number 3 in the PARTS BREAKDOWN DP-7 4-POST PARKIN drawing and part number 13 in the PARTS BREAKDOWN PP8S 8K 4-POST drawing.

Fits the following lift models — part number H4D-5005 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, DP-7 Four-Post Parking, PP8S 8K Four-Post.

This hydraulic cylinder pin anchors the master (lifting) cylinder in the lift structure, allowing the cylinder to pivot as the lift raises and lowers. It appears in the exploded assembly and hydraulic cylinder/power unit drawings (Drawings 5 and 6, Fig. 3) of the parts breakdowns.

OEM replacement part for Direct Lift light-duty 4-post parking lifts. Inspect the pin and its retaining hardware whenever servicing the cylinder, and verify the part number against your parts breakdown before ordering.
