Direct Lift H4D-7000-03 Threaded Coupling (Lock Release Rod Coupler) for 7K, 8K & DP-7 4-Post Lifts

Description

Direct Lift H4D-7000-03 Threaded Coupling (Lock Release Rod Coupler) for 7K, 8K & DP-7 4-Post Lifts

The H4D-7000-03 Threaded Coupling (Lock Release Rod Coupler) is listed for use on 7K, 8K & DP-7 4-Post Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4D-7000-03
• Store SKU: DIT0003
• Component: Threaded Coupling (Lock Release Rod Coupler)
• Listed Application: 7K, 8K & DP-7 4-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

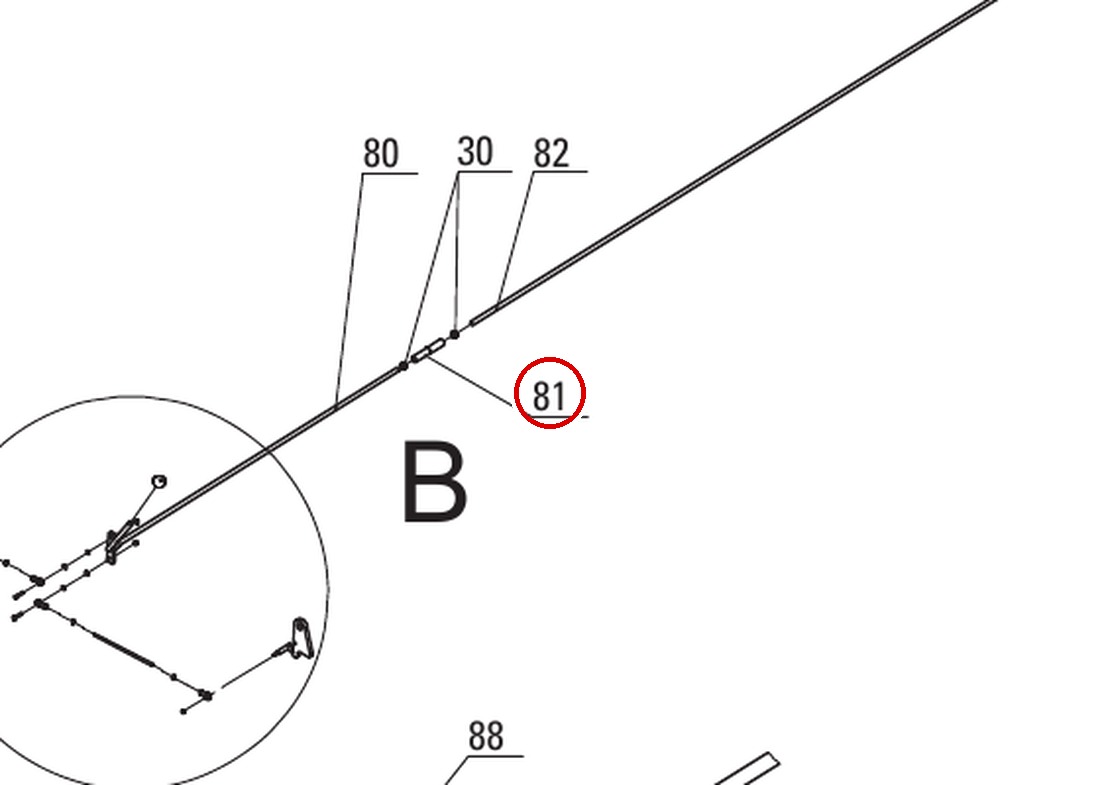

In the drawing images above this is part number 81 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing and part number 81 in the PARTS BREAKDOWN 8K 4-POST PARKING drawing and part number 40 in the PARTS BREAKDOWN DP-7 4-POST PARKIN drawing.

Fits the following lift models — part number H4D-7000-03 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, DP-7 Four-Post Parking, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post.

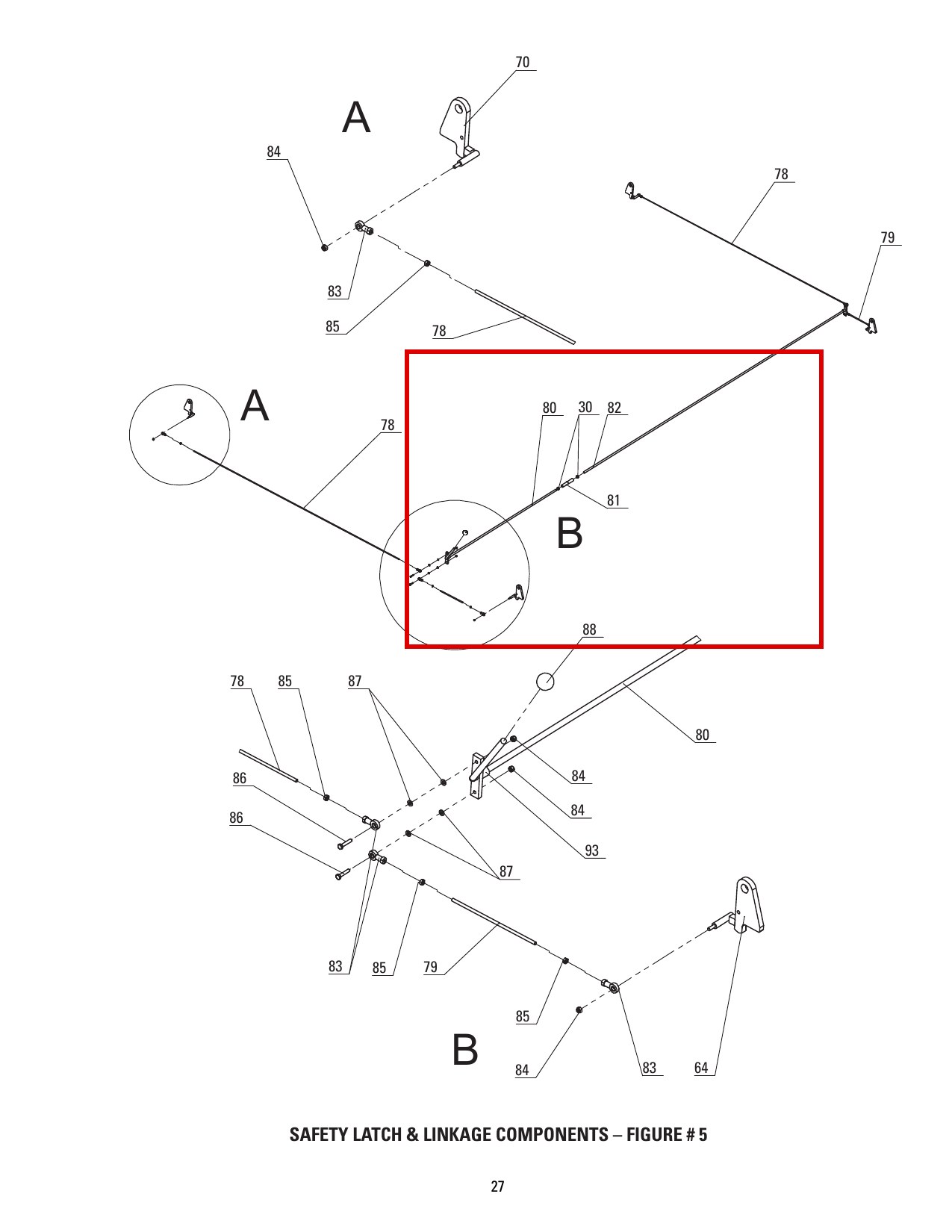

This threaded coupling joins sections of the lock release rod in the safety latch and lock-release linkage system. It appears in the Safety Latch & Linkage Components diagram (Figure #5) and the lock-release linkage drawings (Drawings 5 and 7) of the parts breakdowns.

OEM replacement part for Direct Lift light-duty parking lifts. A worn or missing coupler can prevent the safety locks from releasing evenly, so replace it if the linkage is loose or misadjusted.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
