Duro / Tuxedo TP9-1025 Cable Sheave Pulley for TP9KAC, TP9KAF 2-Post Lifts

Description

Duro / Tuxedo TP9-1025 Cable Sheave Pulley for TP9KAC, TP9KAF 2-Post Lifts

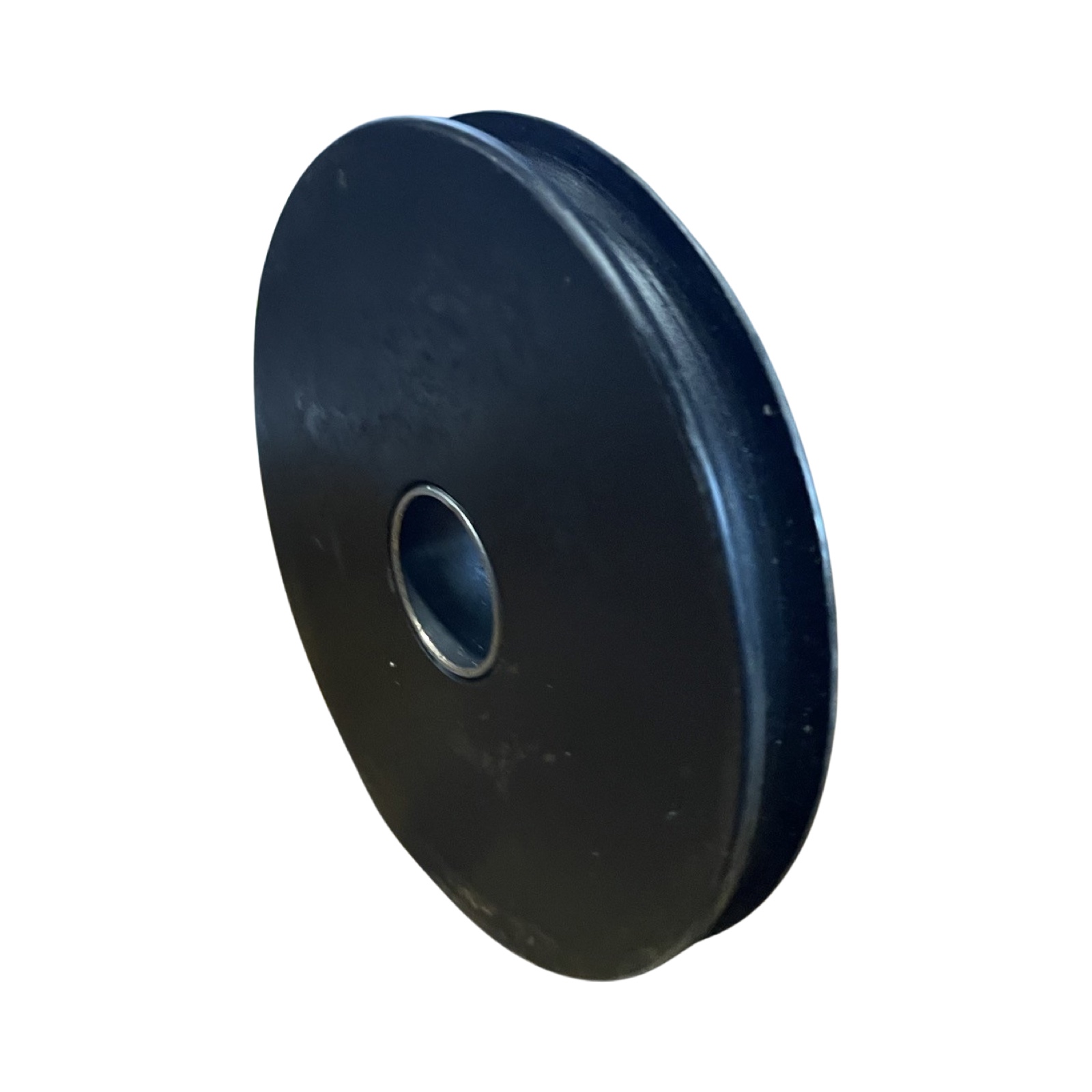

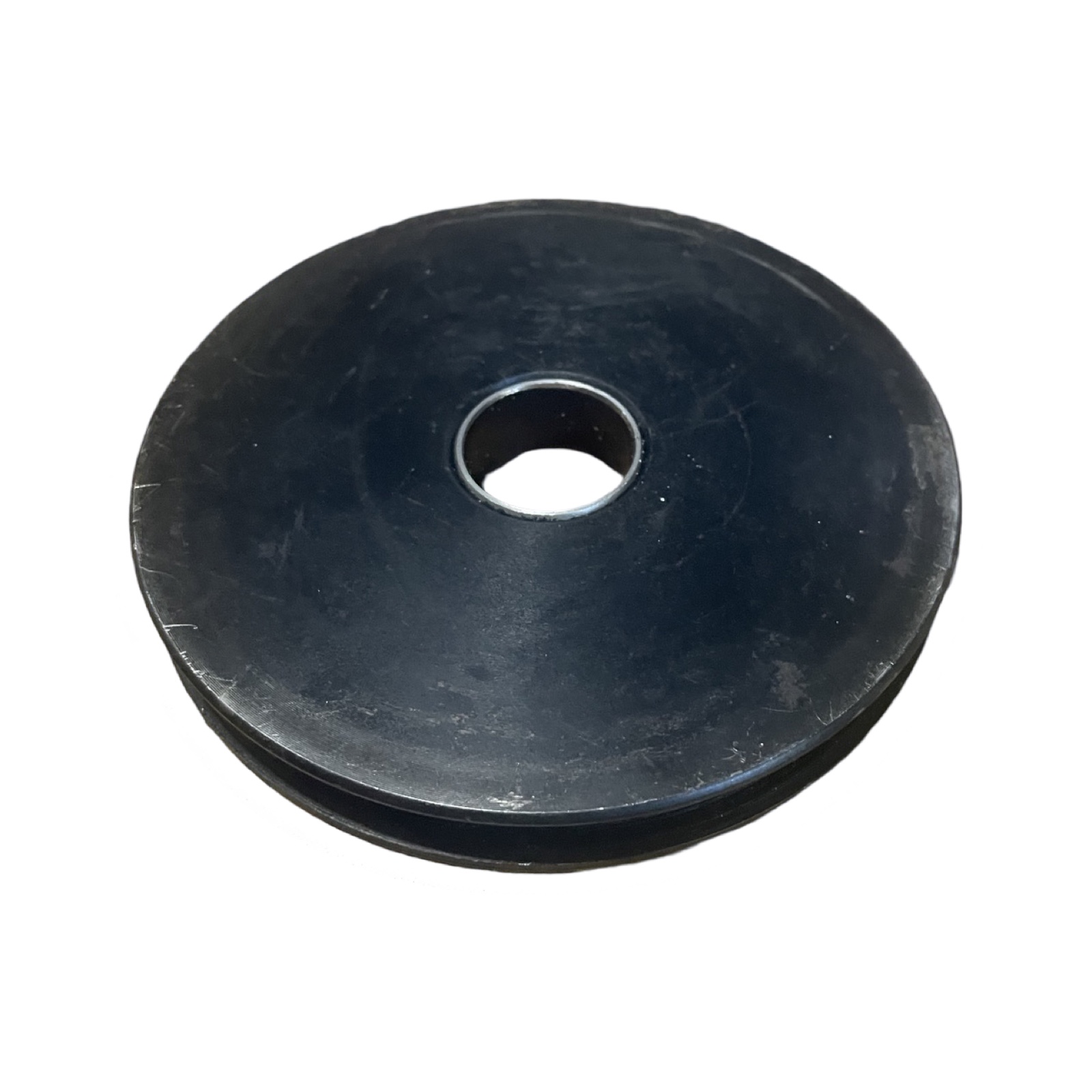

The cable sheave guides and redirects the equalization cable on Tuxedo and Duro 2-post lifts. On the TP9KAC model, this sheave is the lower pulley mounted at the base of the lift column. On the TP9KAF floor plate model, this is the upper sheave. Replace when you see groove wear, cracked bushing, or hear squealing from the pulley during lift operation. Verify your model designation and the sheave location – upper or lower – before ordering.

Product Information

• Brand / Equipment: Tuxedo Lift / Duro Lift
• Manufacturer / Reference Part Number: TP9-1025 (also TP9-1049)
• Store SKU: TUO1025
• Component: Cable Sheave / Pulley
• Listed Application: Tuxedo / Duro TP9KAC (lower position), TP9KAF (upper position), AL2-9K, MTP-9, MTP-9-DURO

Compatible Makes / Verified Fitment Models

• Tuxedo TP9KAC
• Tuxedo TP9KAF

Replacement / Cross-Reference Numbers

• Tuxedo / Duro TP9-1025
• TP9-1049

Fitment & Ordering Notes

Verify your model and confirm the sheave position (upper or lower) before ordering. This sheave was also found in Eagle, Auto Lift, Kernal Lift, Prokar Lift, North American Auto Equipment, and other private-label brands using Duro power units. For help identifying the correct part, call 866-902-6060.
