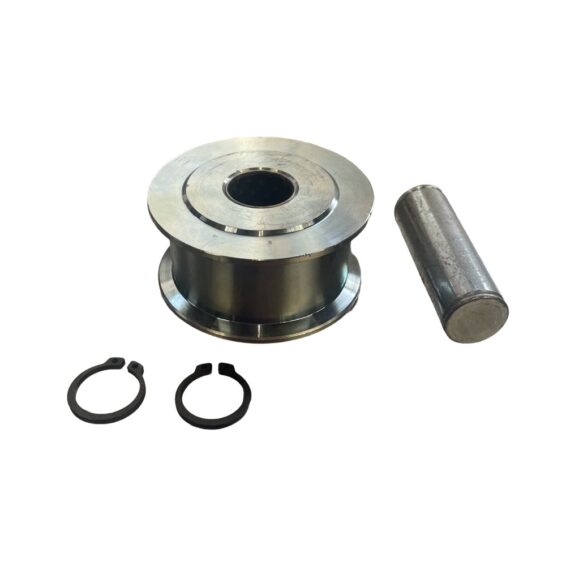

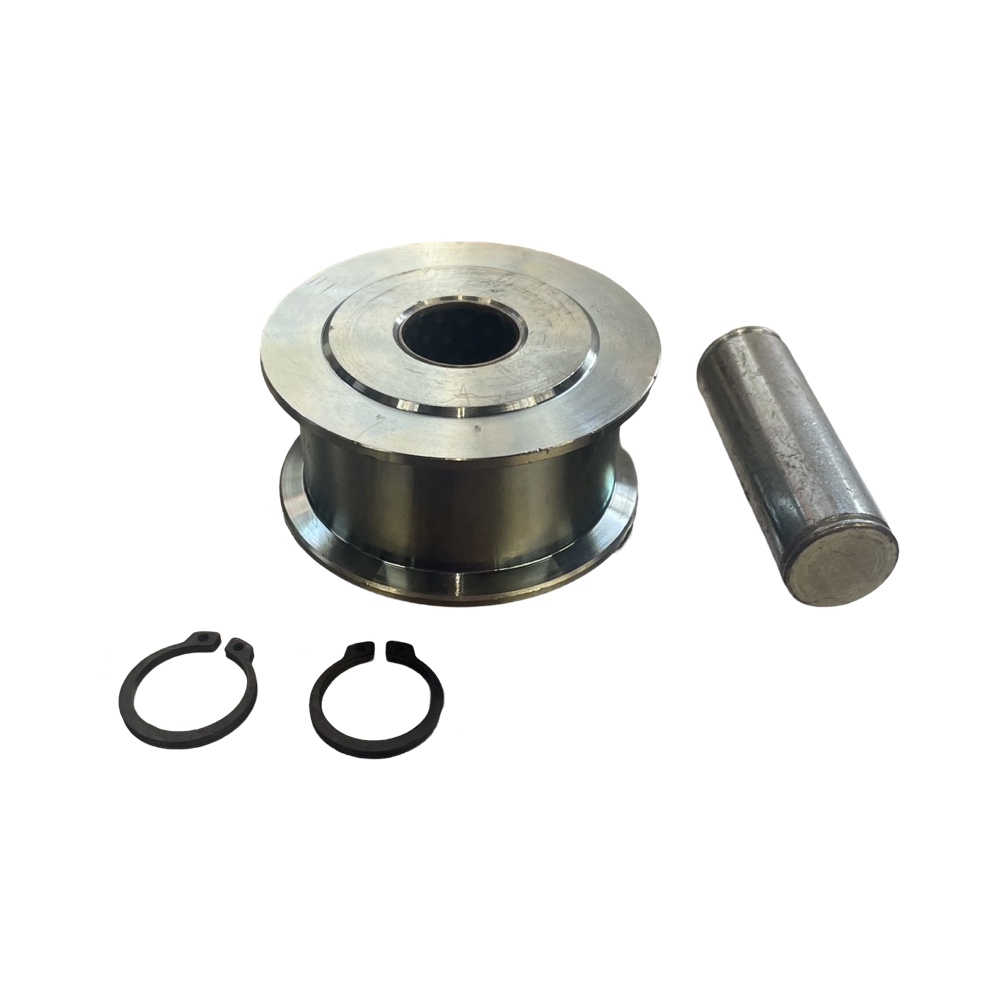

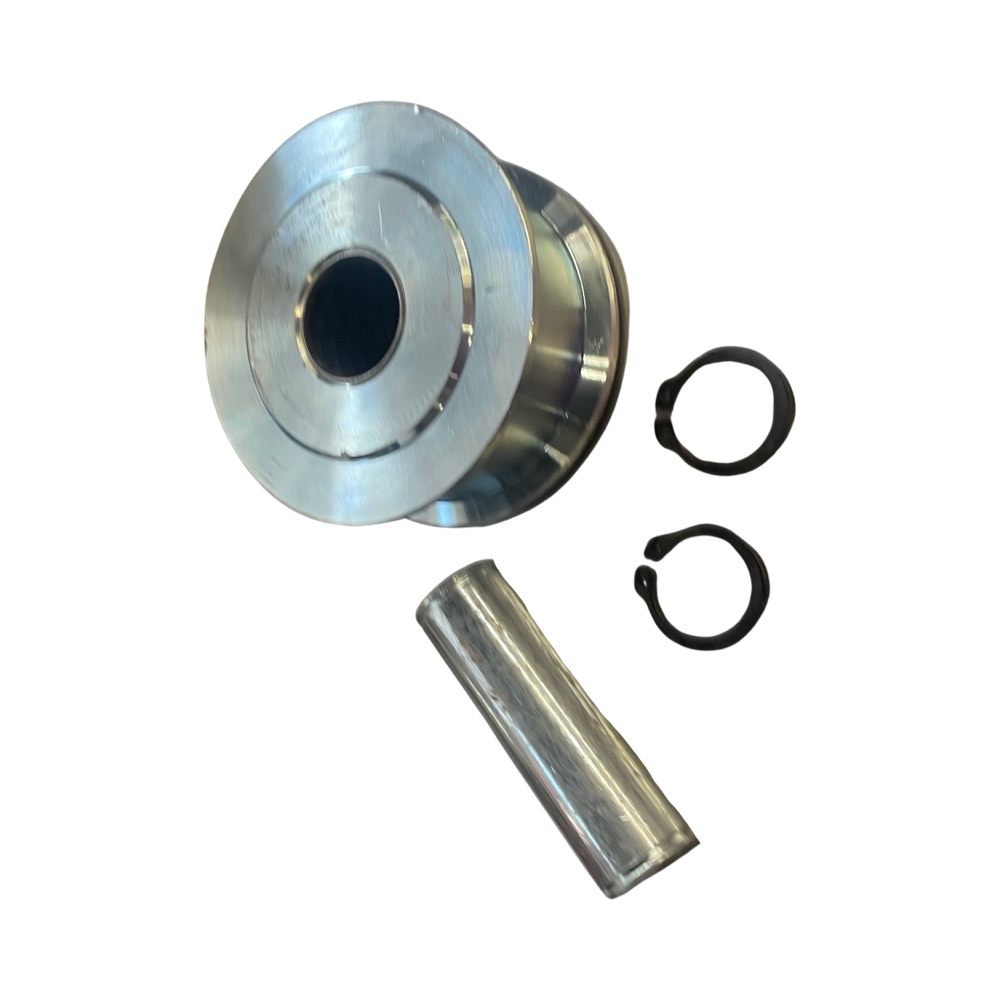

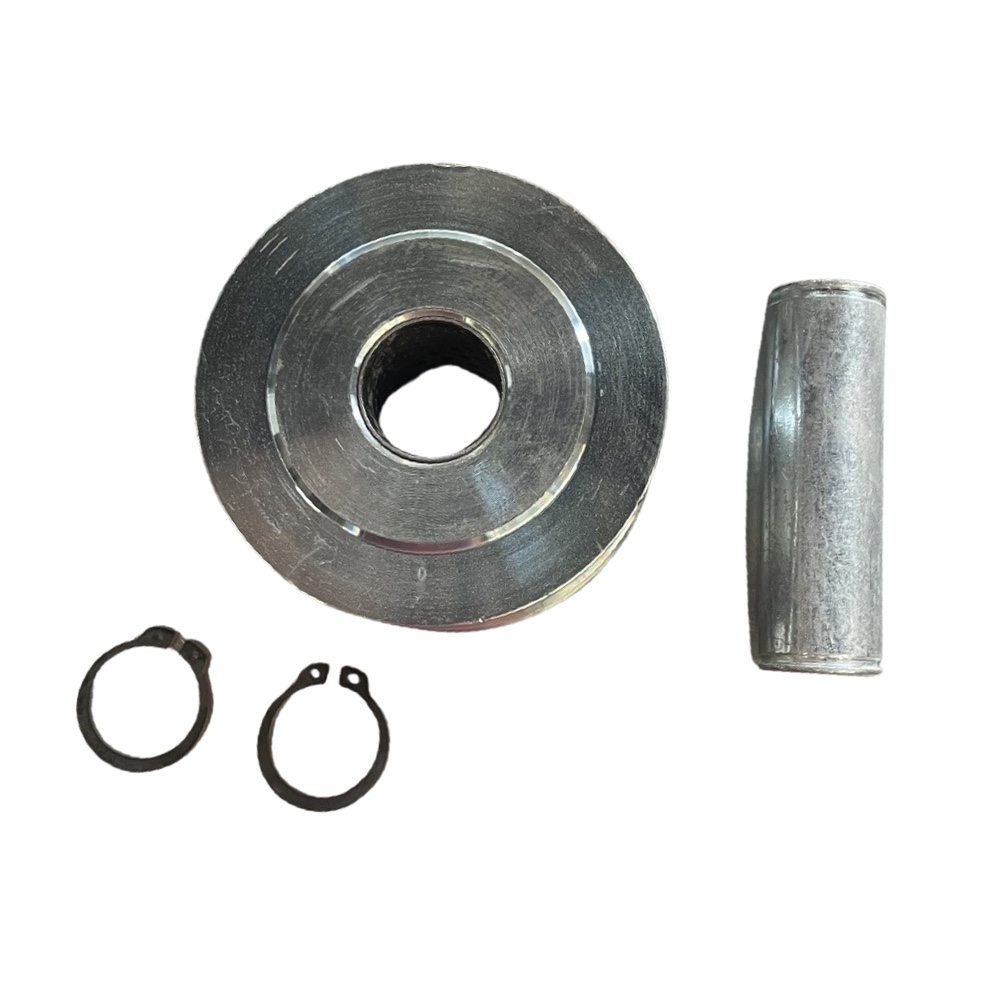

Duro / Tuxedo Replacement Cylinder Chain Roller with Pin – TP9-1022
The chain roller on a chainover-style 2-post lift cylinder rides inside a welded U-shaped yoke at the top of the hydraulic ram and guides the lift chain as the carriage travels up and down. Over time the roller surface wears flat, develops cracks, or the pin works loose, causing the chain to skip, jump track, or bind during operation. When any of these symptoms appear the roller and pin assembly should be replaced before the chain or cylinder yoke sustains secondary damage.
Product Information
- Brand: Duro / Tuxedo
- Manufacturer Part Number: TP9-1022
- Store SKU: TUO1022
- Component: Chain Roller with Pin (for chainover cylinder)
- Capacity Range: 7,000 / 9,000 / 11,000 lb lifts
- Model Compatibility: Base plate and overhead models
- Quantity: 1 piece (2 per lift)
- Listed Application: Chainover-style hydraulic cylinder on 2-post above-ground lifts with Duro power units
Compatible Makes / Verified Fitment Models
- Tuxedo TP9, TP9KACX, TP9KSCX, TP9KFX, TP9KAFBP
- Tuxedo TP9KAC, TP9KAF
- Duro DL9000ACX, AL2-9, MTP-9, MTP-9-DURO
- Also fits Eagle, Auto Lift, Kernal Lift, Prokar, and other brands with Duro power units
Replacement / Cross-Reference Numbers
- TP9-1022 (Duro / Tuxedo OEM)
- TUOX1022
Fitment & Ordering Notes
- Verify your cylinder is the chainover style – the chain runs over a roller at the top of the cylinder.
- Confirm your lift capacity falls within the 7,000, 9,000, or 11,000 lb range.
- This fits both base plate and overhead 2-post lift configurations.
- Each lift typically uses 2 chain rollers (one per cylinder). This listing is for 1 roller with pin.
