Forward 913682 Lock Bolt 3/4"-16 x 2" - DPO7A, DPO9A, 10000A 2-Post Lift

Description

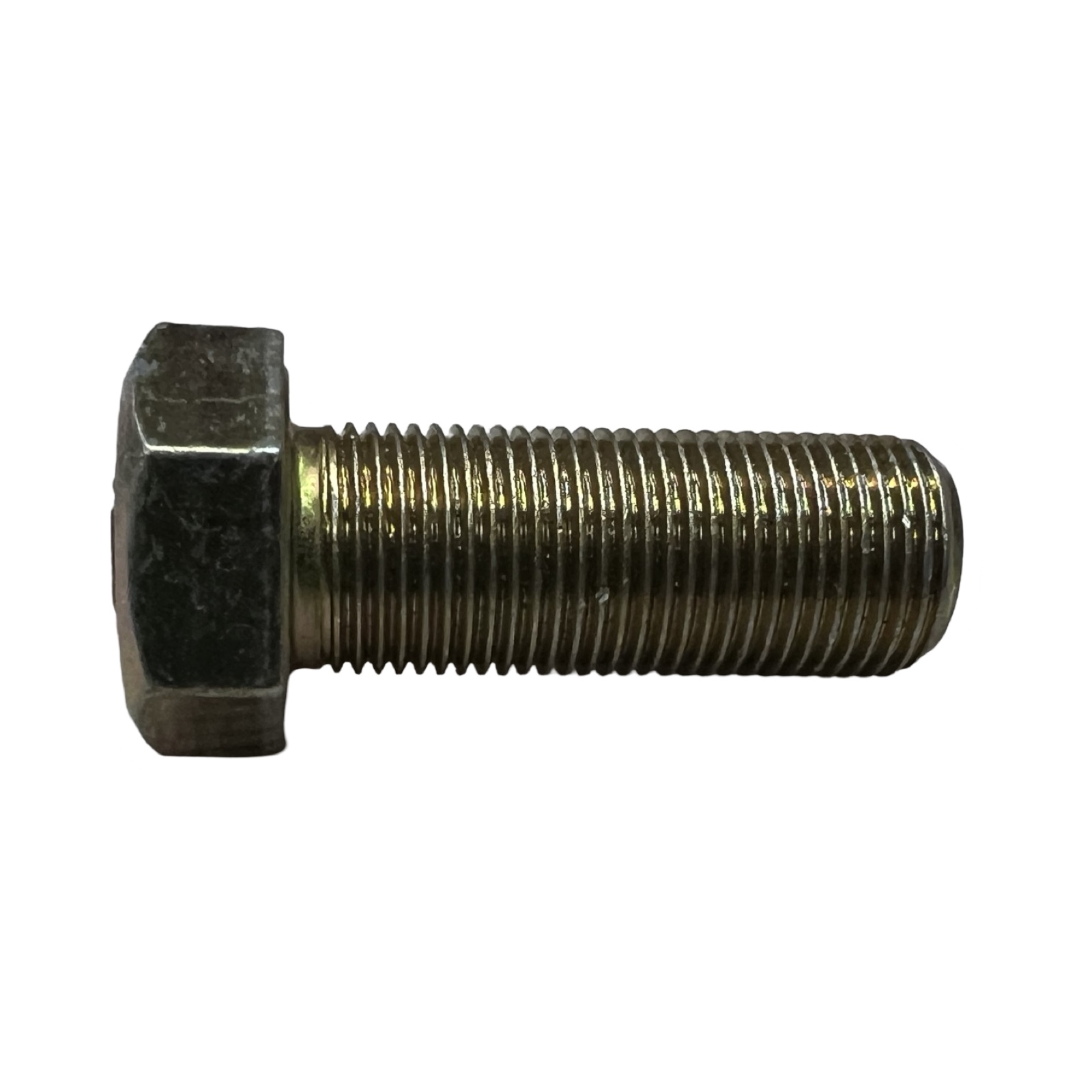

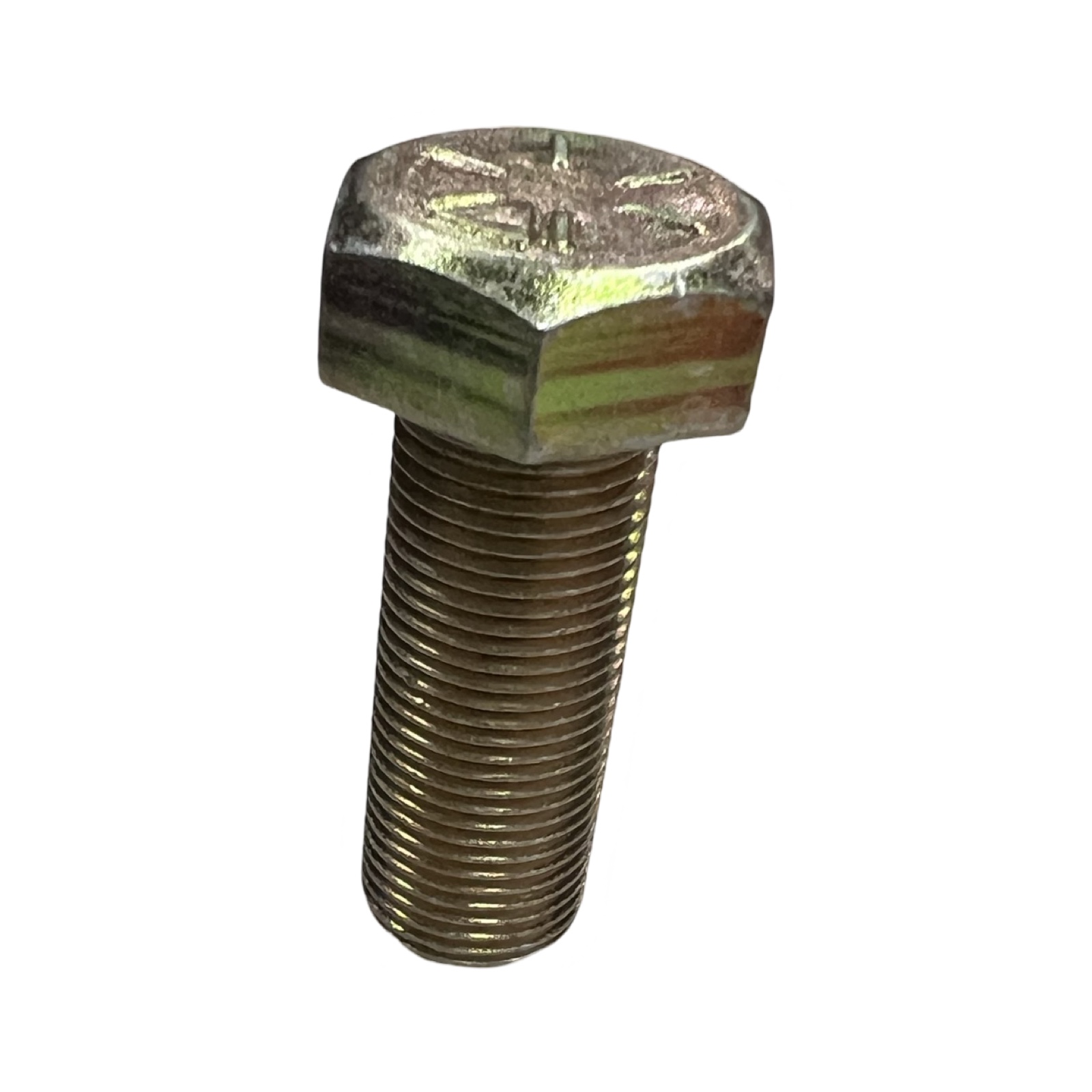

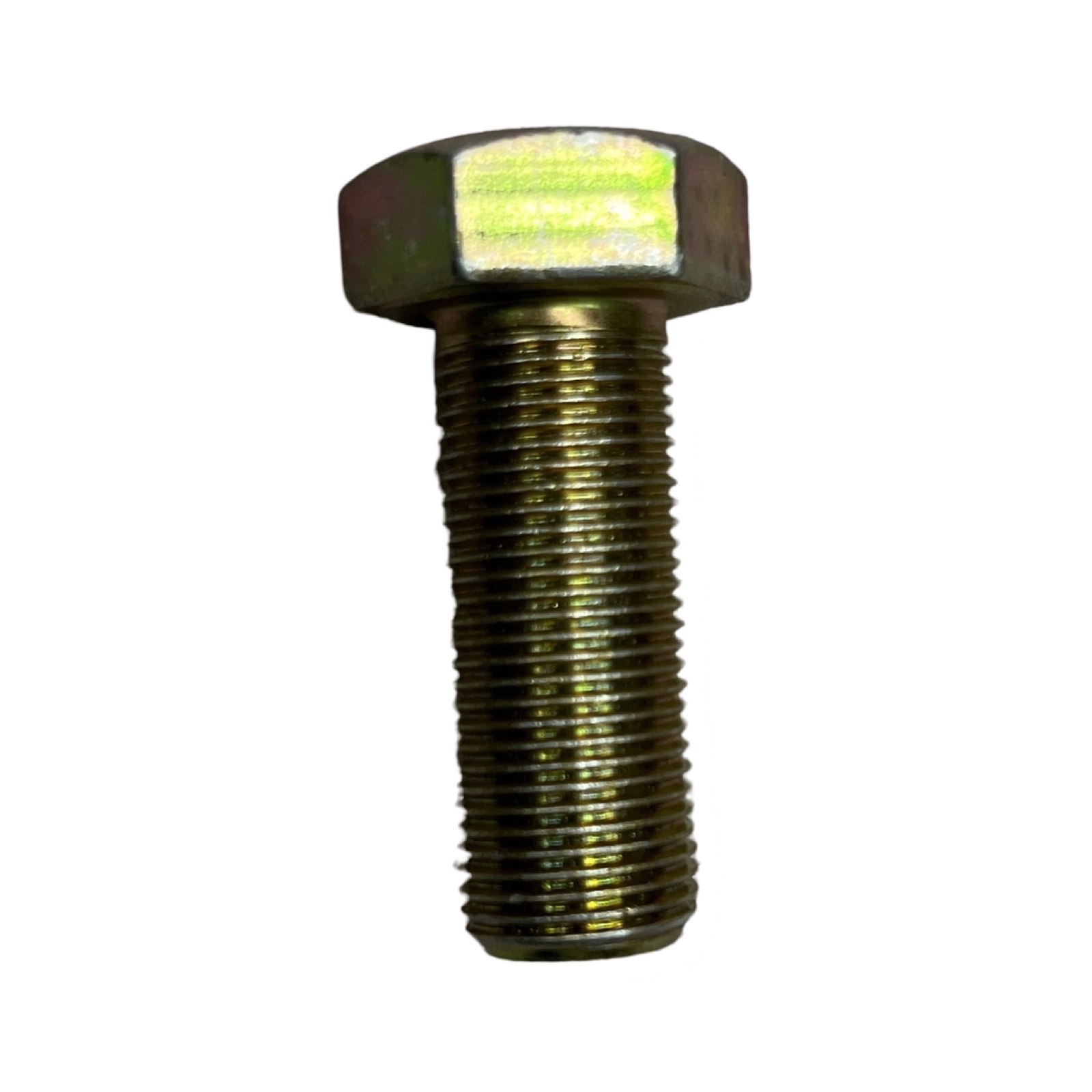

Forward 913682 Lock Bolt 3/4″-16 x 2″ for DP-Style 2-Post Lifts

Replace a stripped, corroded, or missing latch bolt with this OEM-specification Forward lock bolt (PN 913682). The bolt secures the carriage safety latch mechanism on Forward dual-point (DP-style) 2-post lifts. Before ordering, verify the thread specification (3/4″-16 fine thread, 2″ length) and confirm the bolt location within the lock assembly on your specific lift model.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer PN: 913682
• Store SKU: FOD3682DRP
• Component: Lock Bolt (Carriage Safety Latch)
• Size: 3/4″-16 x 2″
• Thread Type: Fine (16NF)
• Grade: Grade 8
• Material: Hardened steel
• Finish: Zinc-plated
• Listed Application: Carriage safety latch – lock mechanism assembly on DP-style 2-post lifts

Compatible Makes / Verified Fitment Models

• DPO7A – Carriage Safety Latch, Drawing 2
• DPO9A
• DPO9A2
• 10000A
• 10000A2
• DP97A – Carriage Safety Latch / Arm Lock Assembly (source: panzittasales.com parts manual)
• DP97A2 – Carriage Safety Latch / Arm Lock Assembly (source: panzittasales.com parts manual)
• DP10A – Carriage Safety Latch / Arm Lock Assembly (source: panzittasales.com parts manual)
• DP10A2 – Carriage Safety Latch / Arm Lock Assembly (source: panzittasales.com parts manual)

Parts Diagram and Manual Reference

This bolt is referenced across multiple Forward Lift parts manuals and drawings. The original product categories include the following diagram and page references – confirm which applies to your lift before ordering:

• Drawing 2 – DP-97S-2 and DPO7A Carriage Safety Latch / Arm Lock Assembly / Swivel Pad with Rubber Insert
• Page 20 / 21 – DP09 P 2-Post Asymmetric Main Lift Assembly
• Page 21 inset – DPO9S-2 Carriage Safety Latch
• Page 18 – DP10AN Carriage Safety Latch
• DP97A-2 / DP10A-2 – Main Lift Parts List (Carriage Safety Latch / Arm Lock Assembly / Swivel Pad with Rubber Insert / full assembly)
• DP97S2 – Main Lift Assembly (Carriage Safety Latch / Arm Lock Assembly / Swivel Pad)

Fitment and Ordering Notes

Verify the thread size and bolt location in the lock assembly before ordering. Multiple drawings and page references are associated with this part number across different Forward Lift model lines – confirm which diagram applies to your specific lift. The models listed reflect fitment stated in the original product record and verified supplier sources. Always confirm bolt size and location before ordering.
