Forward Lift 1400942 3/8" Airline Tubing, 40 ft Roll, for OR14 14K 4-Post Lift

Description

Forward Lift 1400942 3/8" Airline Tubing, 40 ft Roll, for OR14 14K 4-Post Lift

The 1400942 3/8" Airline Tubing, 40 ft Roll, is listed for use on OR14 14K 4-Post Lift and is intended for service or repair of compatible Forward Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 1400942
• Store SKU: FOD0942
• Component: 3/8" Airline Tubing, 40 ft Roll,
• Listed Application: OR14 14K 4-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

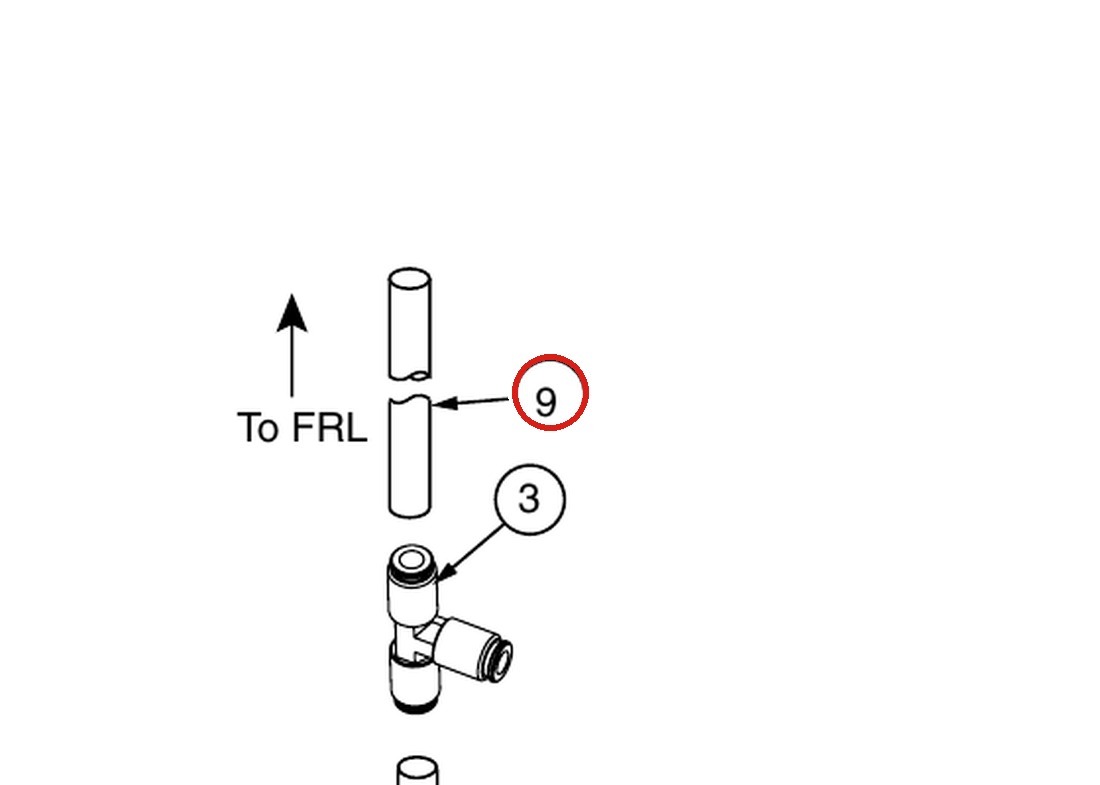

This is part number 9 in the drawing image above.

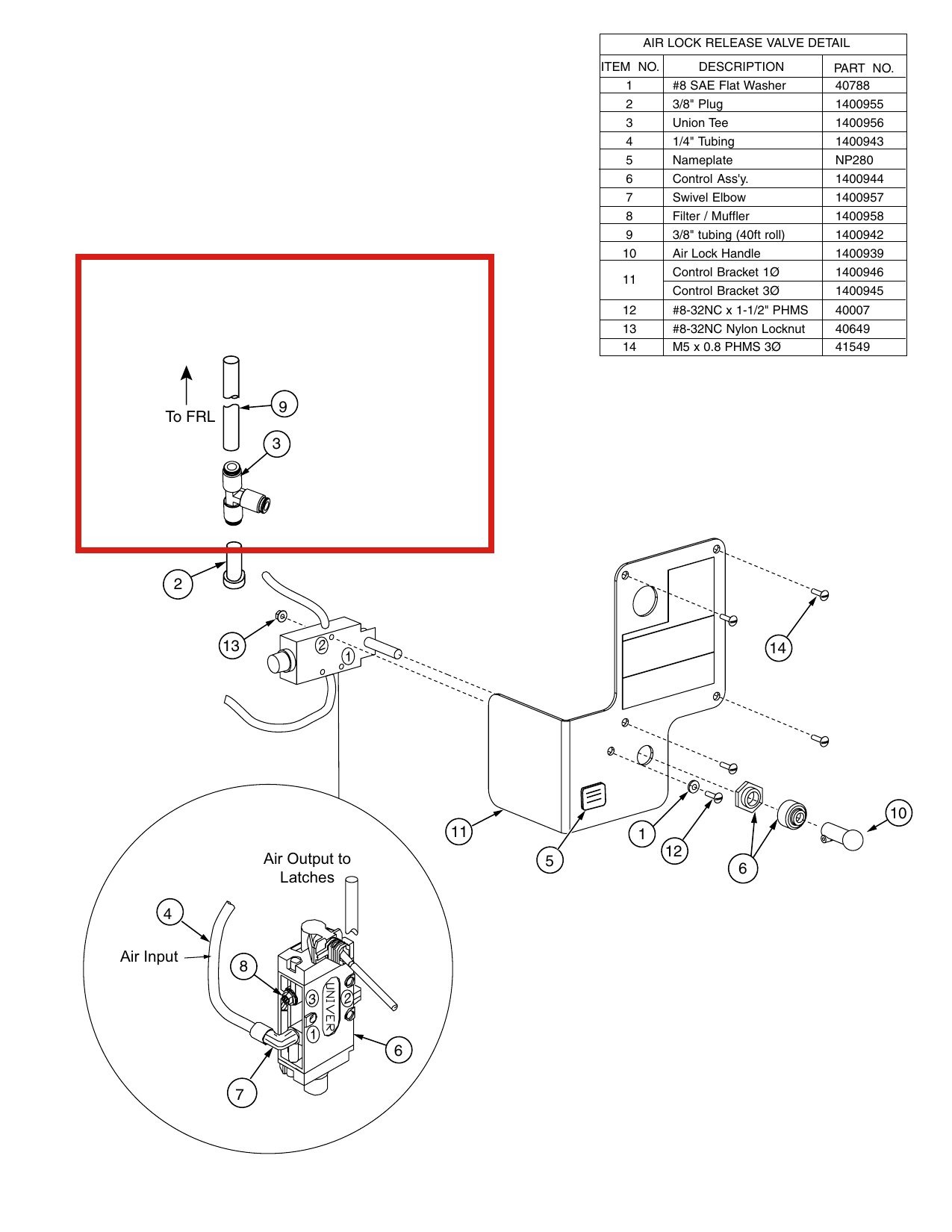

Fits Forward Lift OR14 14K 4-post lift, Air Lock Release Valve Detail.

This 40-foot roll of 3/8 inch tubing is the main airline used in the air lock release valve circuit of the OR14 four-post lift. It routes compressed air from the supply and control valve out to the lock release cylinders at the columns. Replace tubing that has become brittle, kinked or damaged to eliminate air leaks and restore crisp lock release action.

OEM replacement per the OR14 factory parts breakdown (Air Lock Release Valve Detail). Used alongside the 1/4 inch tubing (1400943) and the push-to-connect fittings shown in the same diagram section.
