Forward Lift 41410 Truarc #5304-37 Klipring Snap Ring for 3/8" Shaft - CR18, DL9 & DP10

Description

Forward Lift 41410 Truarc #5304-37 Klipring Snap Ring for 3/8" Shaft – CR18, DL9 & DP10

Replace missing, worn, or damaged lift hardware with the 41410 Truarc #5304-37 Klipring Snap Ring, listed for use on 3/8" Shaft – CR18, DL9 & DP10. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 41410
• Store SKU: FOD1410
• Component: Truarc #5304-37 Klipring Snap Ring
• Listed Application: 3/8" Shaft – CR18, DL9 & DP10

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

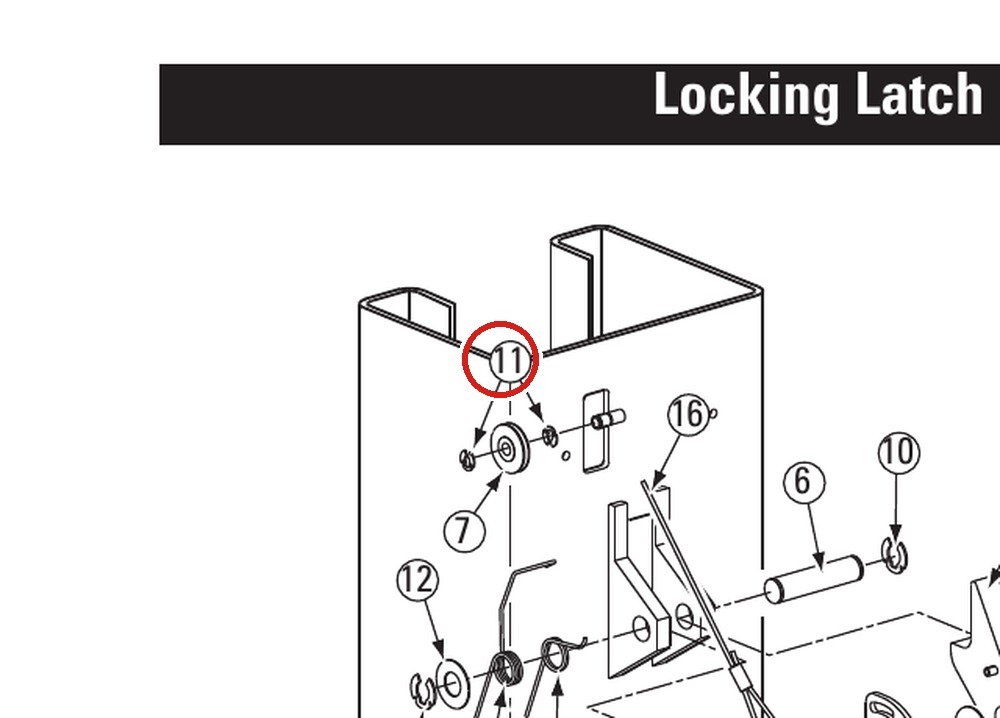

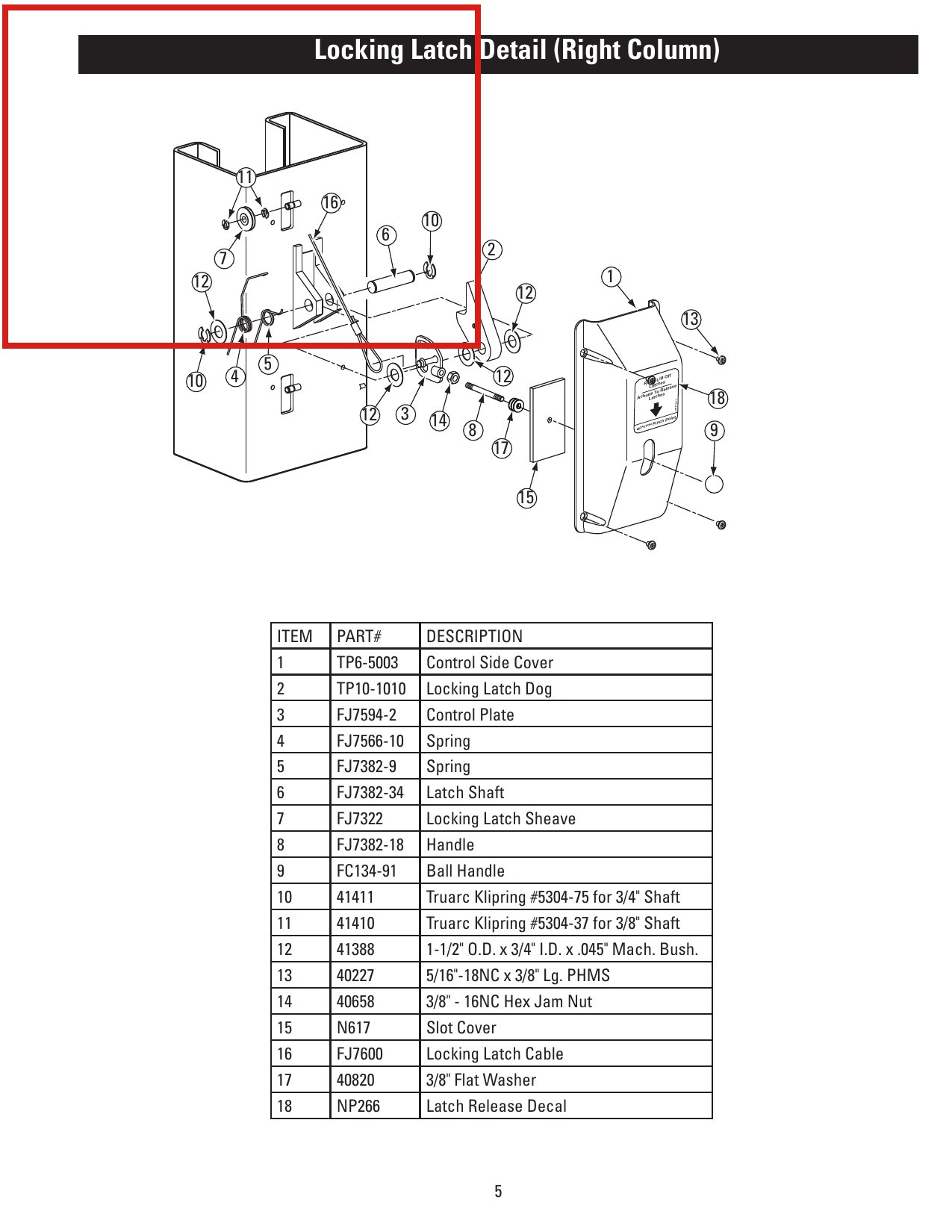

In the drawing images above this is part number 16 in the CR18-Parts drawing and part number 11 and 10 in the DL9 parts drawing and part number 11 and 10 in the DP10-Parts new style w lock covers drawing.

Fits the following lift models — part number 41410 appears in the parts breakdown of each of these lifts: Rotary Lift CR18, DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, 12K Four-Post Open-Front, OR14 14K Four-Post, TL07.

Rotary light-duty two-post replacement retaining ring fitting the CR18 (front yoke end detail) and the DL9 and DP10 new-style lifts (locking latch detail, left column).

This Truarc klipring clips onto a 3/8″ shaft to axially retain latch and yoke pins, holding the assembly together while still allowing the shaft to rotate. A worn or sprung klipring should be replaced rather than reused.

OEM-compatible replacement for part number 41410 (Truarc #5304-37), alternate-sourced to OEM spec.

Cross-check part number: Forward Lift 41410. This is a Forward Lift replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — CR18 (four-post); DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); TLO7 (300 series two-post)
