Forward Lift TP10-1010 Latch Assembly (Locking Latch Dog) for DL9, DP10 & I10N000M

Description

Forward Lift TP10-1010 Latch Assembly (Locking Latch Dog) for DL9, DP10 & I10N000M

The TP10-1010 Latch Assembly (Locking Latch Dog) is listed for use on DL9, DP10 & I10N000M and is intended for service or repair of compatible Forward Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: TP10-1010
• Store SKU: FOD01010
• Component: Latch Assembly (Locking Latch Dog)
• Listed Application: DL9, DP10 & I10N000M

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

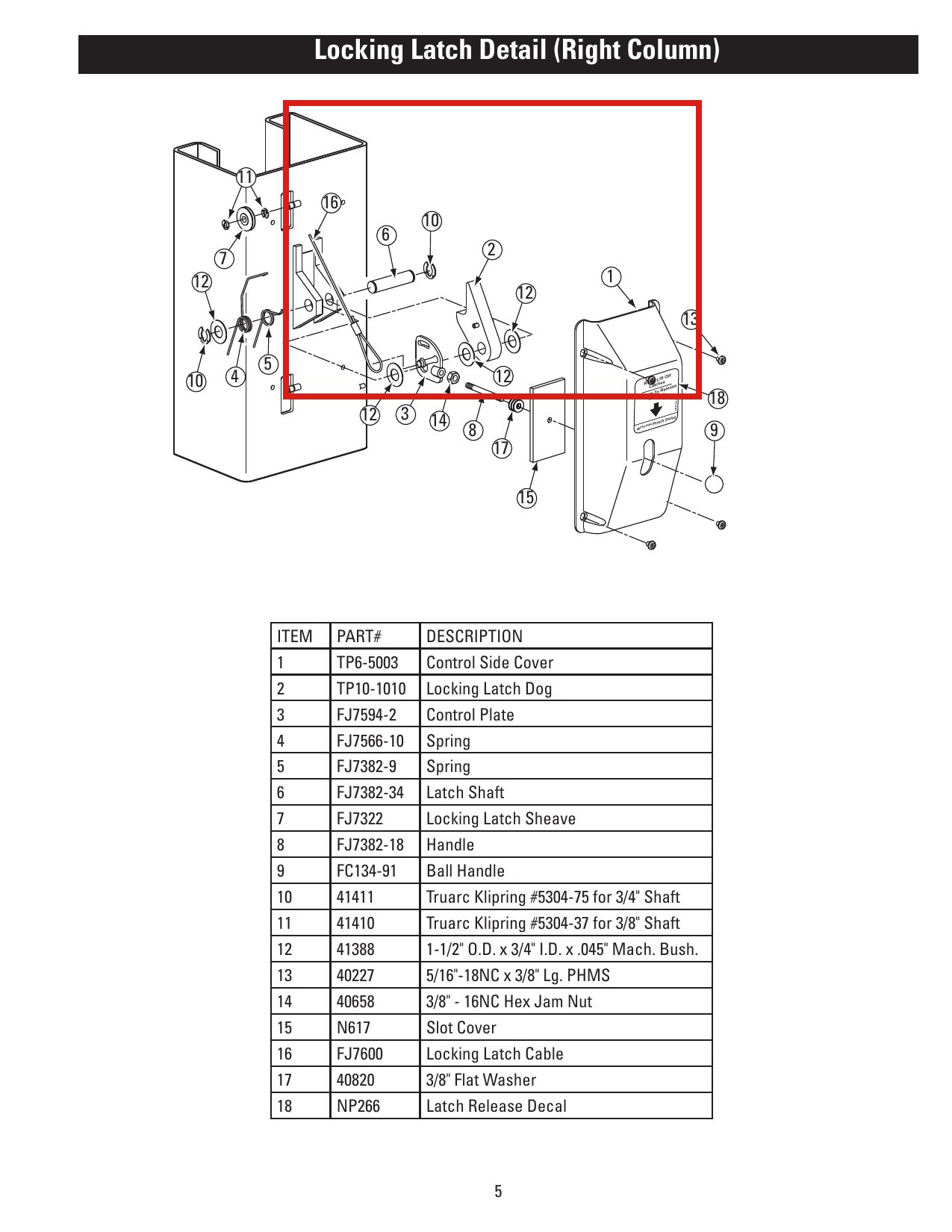

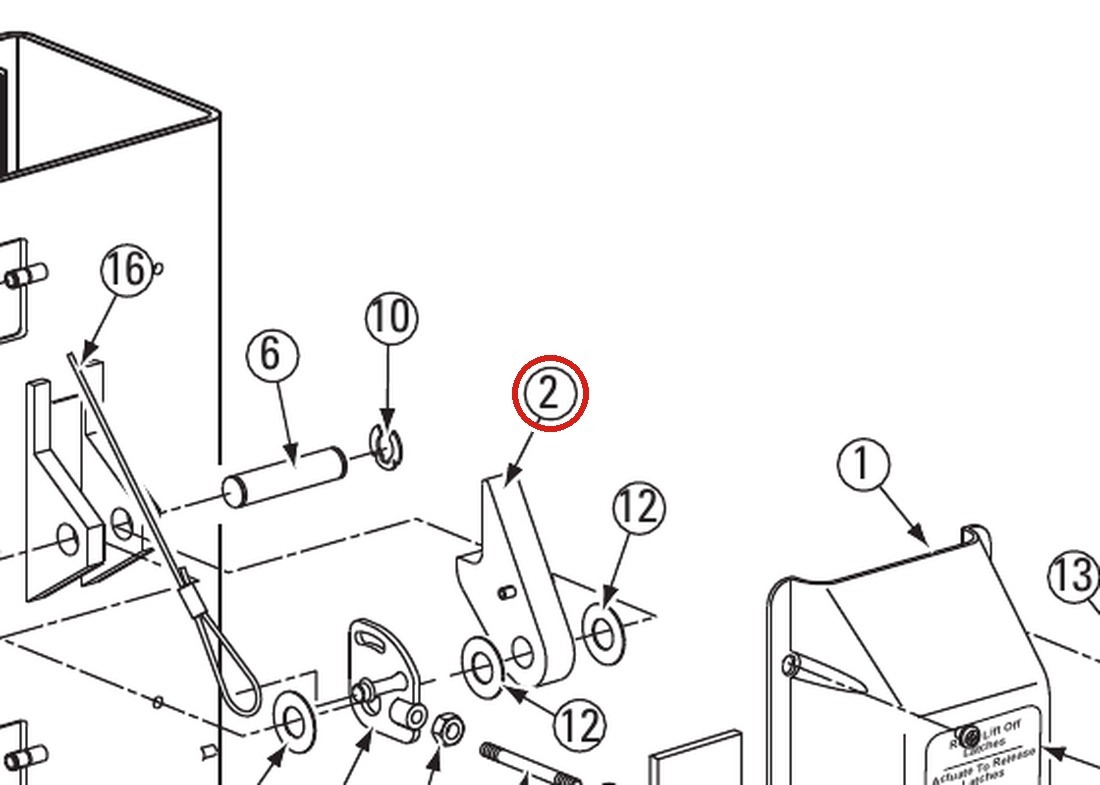

In the drawing images above this is part number 2 in the DL9 parts drawing and part number 2 in the DP10-Parts new style w lock covers drawing and part number 2 in the I10N000M drawing.

Fits the following lift models — part number TP10-1010 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro; Direct Lift I12.

The locking latch dog is the load-holding safety component that engages the column lock ladder as the lift rises, mechanically holding the carriage if hydraulic pressure is lost. Because it is a primary safety device, a worn, chipped, or sticking latch dog must be replaced immediately and never operated around.

OEM Forward Lift replacement part per the factory parts catalog. Verify against the locking latch detail for your model and column side before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); I12 (12,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post)
