Forward Lift TSV86522S Latch Air Valve with Spring Return for CR14 & Pro14F 14,000 lb Four-Post Lifts

Description

Forward Lift TSV86522S Latch Air Valve with Spring Return for CR14 & Pro14F 14,000 lb Four-Post Lifts

Replace a worn, leaking, or malfunctioning pneumatic component with the TSV86522S Latch Air Valve with Spring Return, listed for use on CR14 & Pro14F 14,000 lb Four-Post Lifts. Match the reference part number and application to the original Forward Lift component before ordering to help ensure correct fitment.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: TSV86522S
• Store SKU: FOD522S
• Component: Latch Air Valve with Spring Return
• Listed Application: CR14 & Pro14F 14,000 lb Four-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

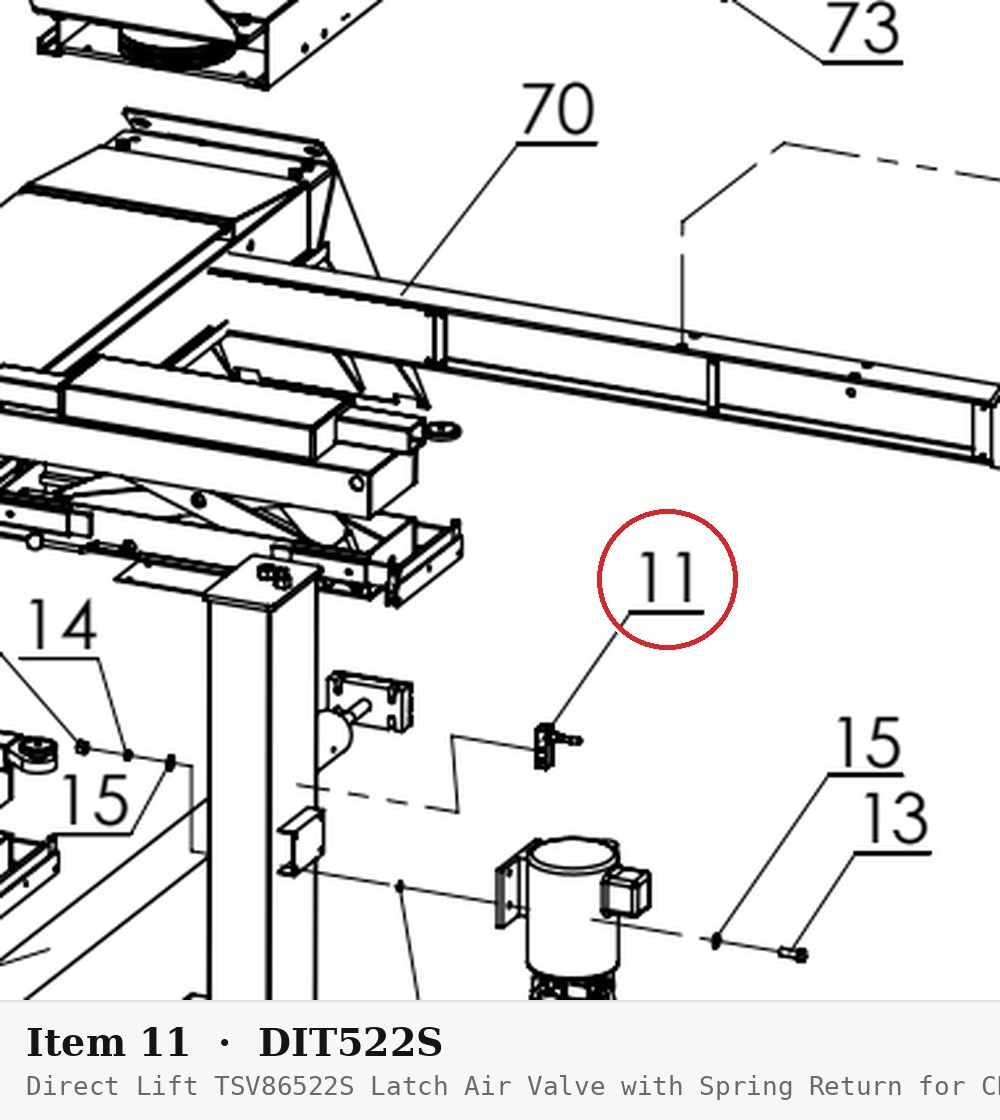

In the drawing images above this is part number 11 in the CR14 (14000EWT) 994359 -9-20071 drawing and part number 11 in the CR14114000 SER# 00N drawing and part number 11 and 1 in the PRO14F – newer with 3 bolt lock la drawing.

Fits the following lift models — part number TSV86522S appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), CR14 14000 (serial 00N), PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

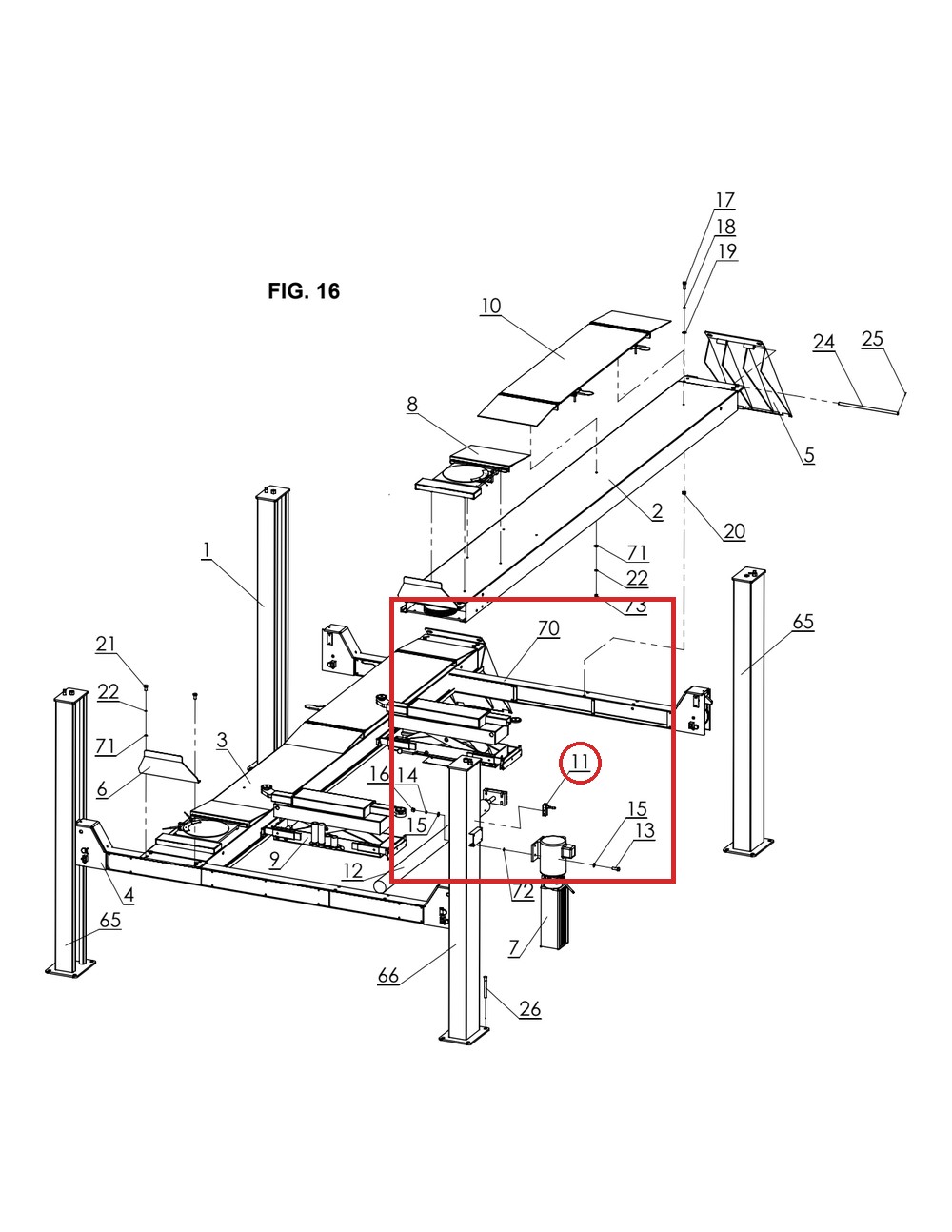

The Direct Lift TSV86522S is the latch air valve with spring return for 14,000 lb four-post lifts, fitting the CR14 (14000EWT, serial 994359-9-20071), CR14114000 serial 00N, and the newer Pro14F with the 3-bolt lock latch. It appears in FIG. 13, FIG. 16, and Drawing 3 (Frame with Power Unit & Cylinder Assembly) of the respective parts breakdowns.

The valve directs shop air to disengage the mechanical safety latches during lowering; the spring return ensures the latches re-engage automatically. Replace the valve if the locks fail to release or re-seat, or if it leaks air. This is the OEM replacement for the listed 14K models. Check your serial number and lock latch style, the earlier Pro 14F valve is TSV86522M.

Cross-check part number: Forward Lift TSV86522S. This is a Forward Lift replacement part.
