Hanmecson B84-35 Plastic Lock Handle Knob for Pro-V10 2-Post Lifts

Description

Hanmecson B84-35 Plastic Lock Handle Knob for Pro-V10 2-Post Lifts

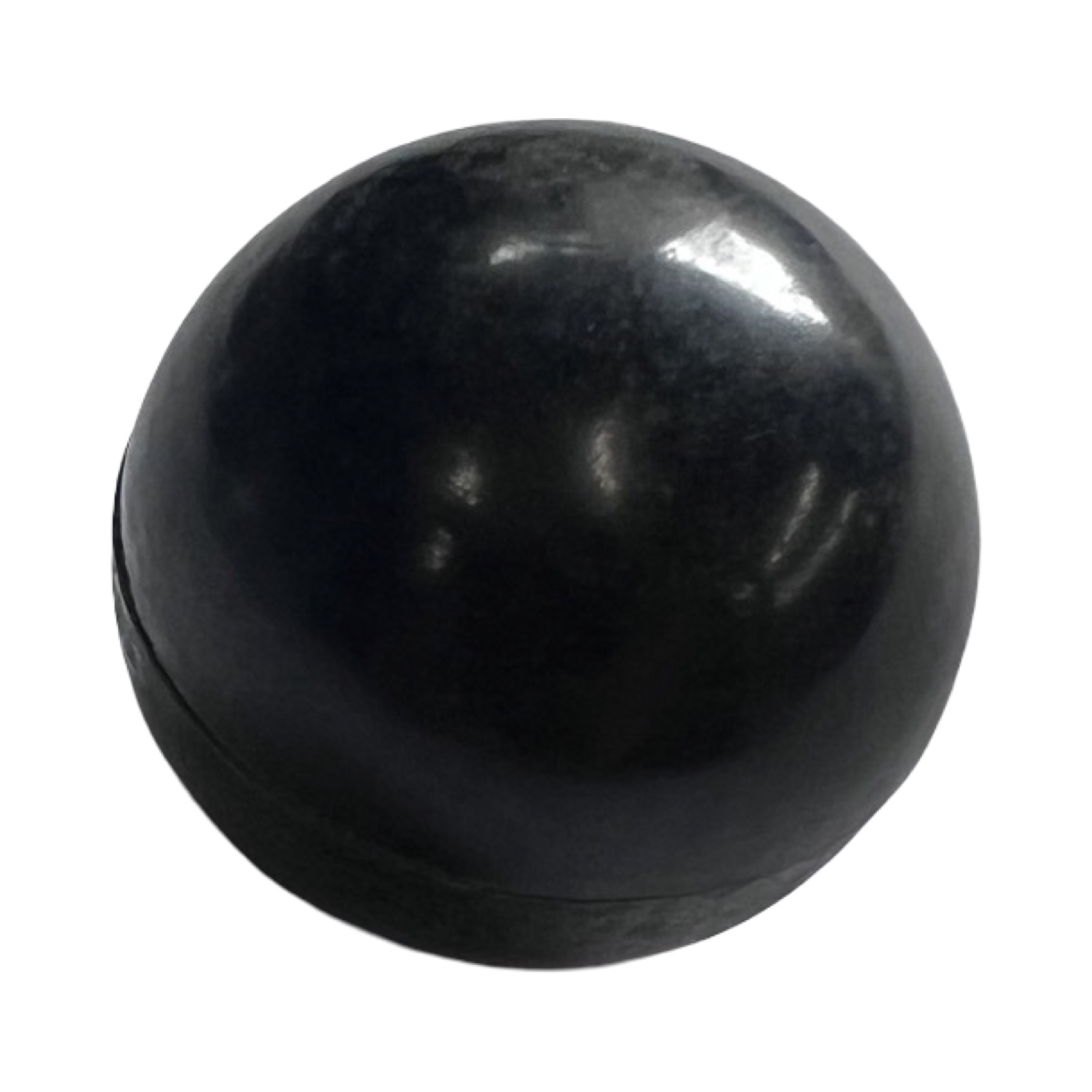

Replace a damaged or missing lock handle knob with this Hanmecson B84-35 Plastic Knob, designed for the Pro-V10 2-post lift and compatible models. This durable, impact-resistant knob threads directly onto the lock release handle (M10 thread), providing a secure grip for engaging or releasing the safety lock system. Before ordering, verify the handle thread size and knob diameter against your existing handle.

Product Information

• Brand / Equipment: Hanmecson 2-Post Lifts
• Manufacturer / Reference Part Number: B84-35
• Store SKU: HAN8435
• Component: Lock Handle Knob
• Diameter: 35mm
• Thread: M10
• Material: Heavy-duty plastic
• Color: Black
• Mounting Style: Thread-on design
• Listed Application: 2-Post Lift Lock Release Handle

Compatible Makes / Verified Fitment Models

• Hanmecson 2-Post Lifts: Pro-V10, PROV10
• Direct Lift: DL9 (9,000 lb two-post), PP8+ Long (8,000 lb four-post), 7K four-post parking lift, DP8 (8,000 lb four-post parking), HR8000 (8,000 lb floor-plate two-post), I12 (12,000 lb two-post), PP8+ (8,000 lb four-post)
• Hanmecson (VSG): DL9

Parts Diagram and Manual Reference

This part appears in the following diagrams and figures:

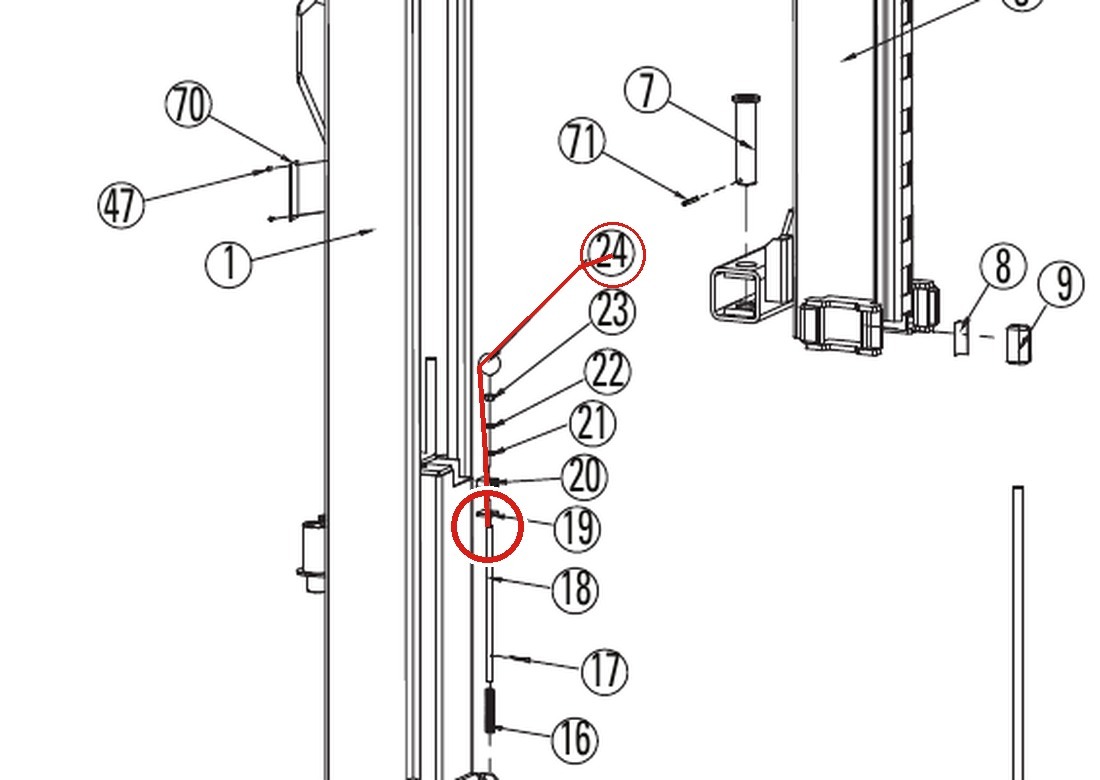

• 2-COLUMN 10K – Main side Latch Assembly (Figure 4)
• 2-COLUMN 8K AUTOMO – Overhead Beam / Floor Plate – Column and Carriage Components (Figure 9)
• 7K 4-POST PARKING – Safety Latch and Linkage Components (Figure 5)
• 8K 4-POST PARKING – Safety Latch and Linkage Components (Figure 5)
• 9K PARKING WIDER V – Safety Latch and Linkage Components (Figure 5)

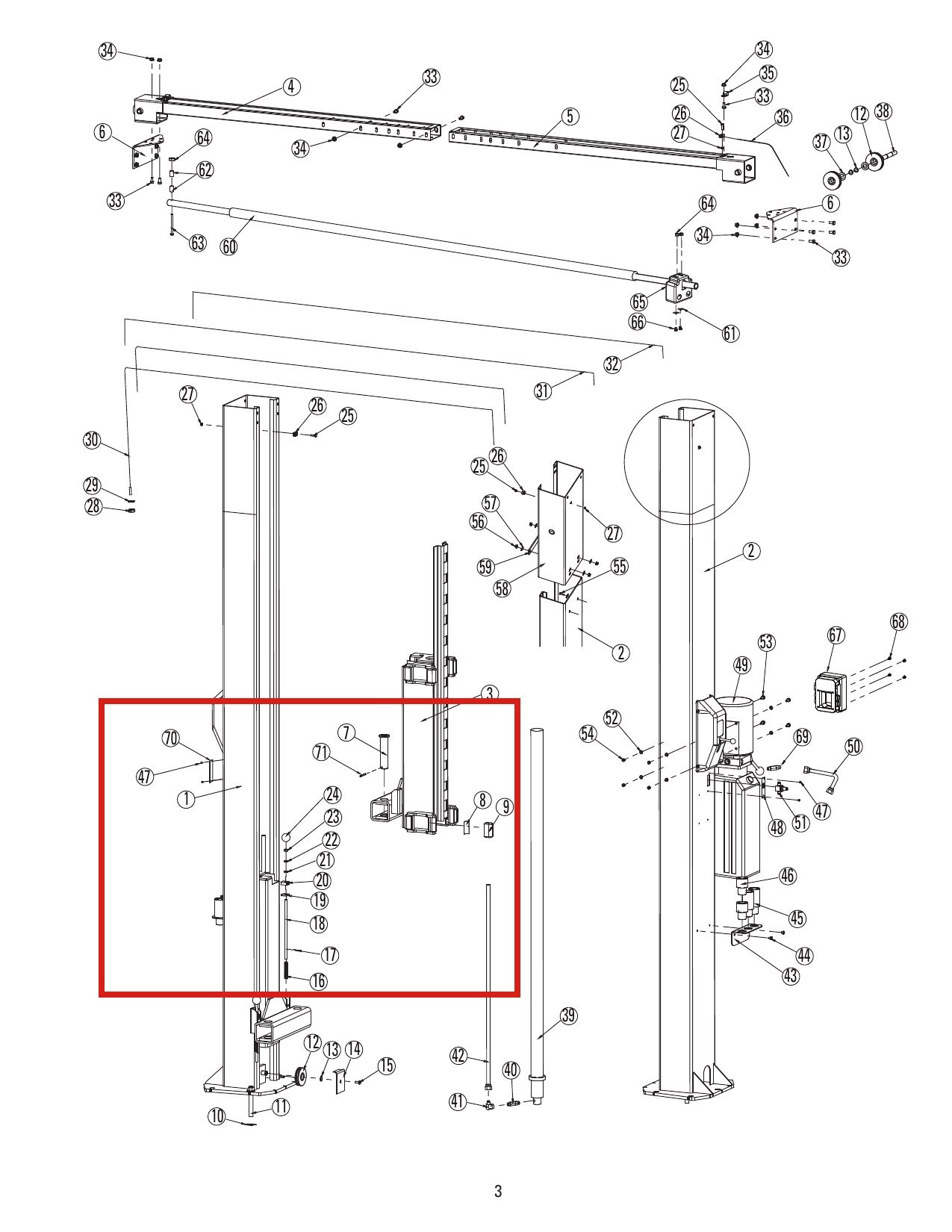

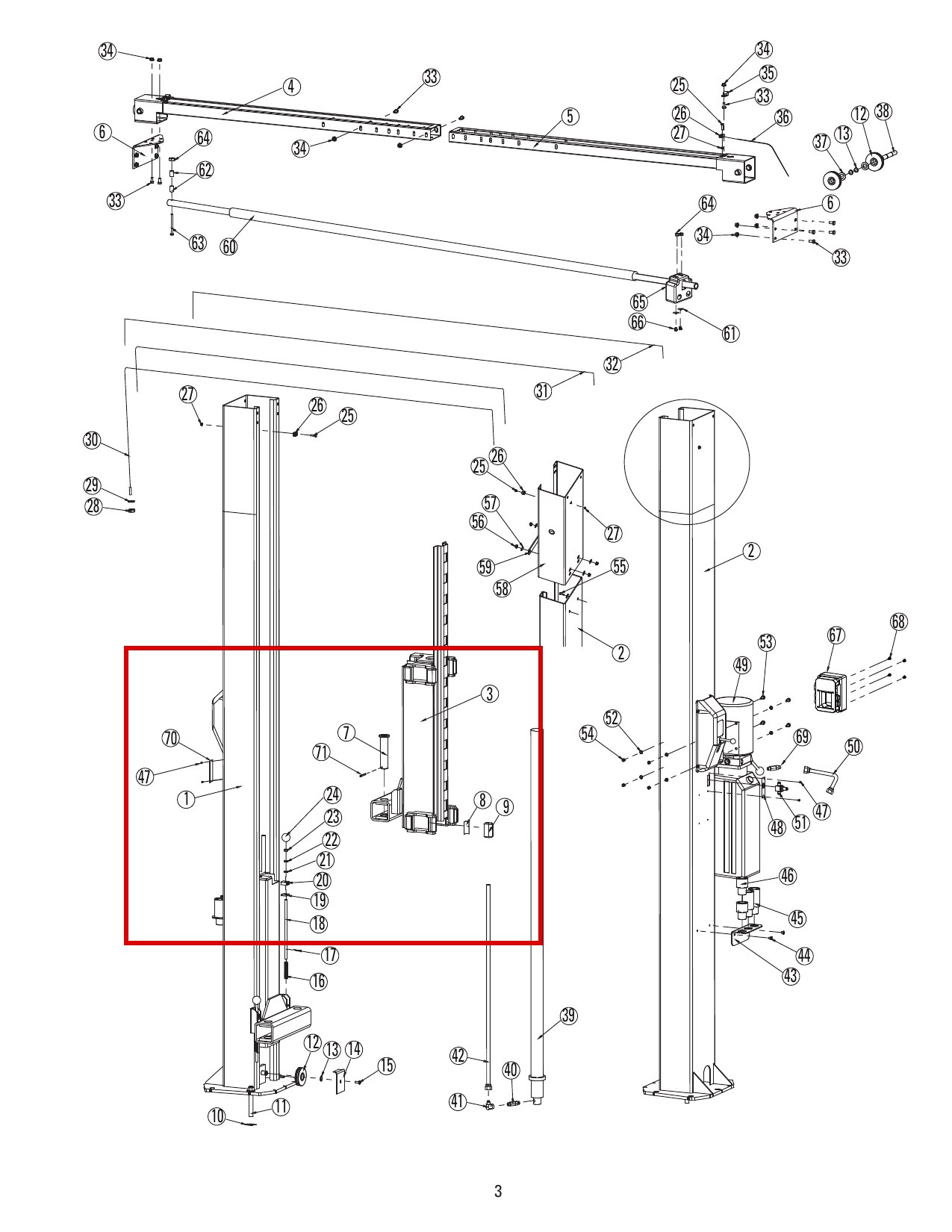

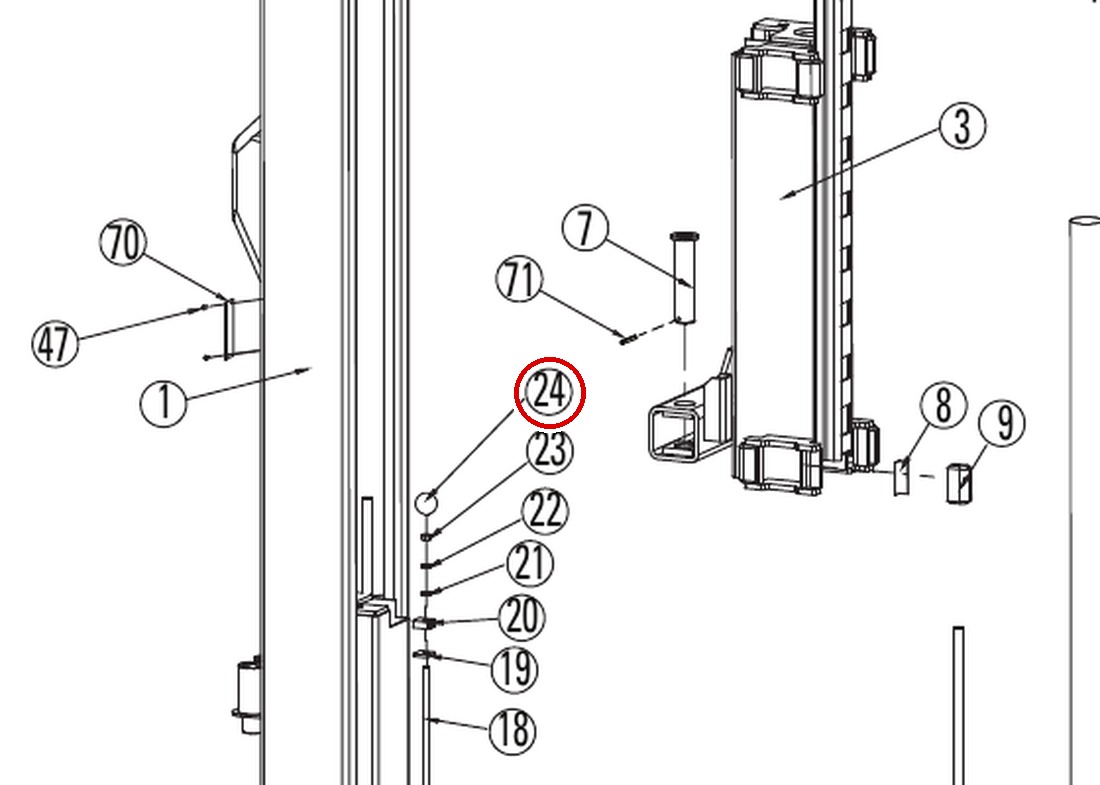

• DL9 parts – Drawing 1 (Main Lift Assembly, page 3)

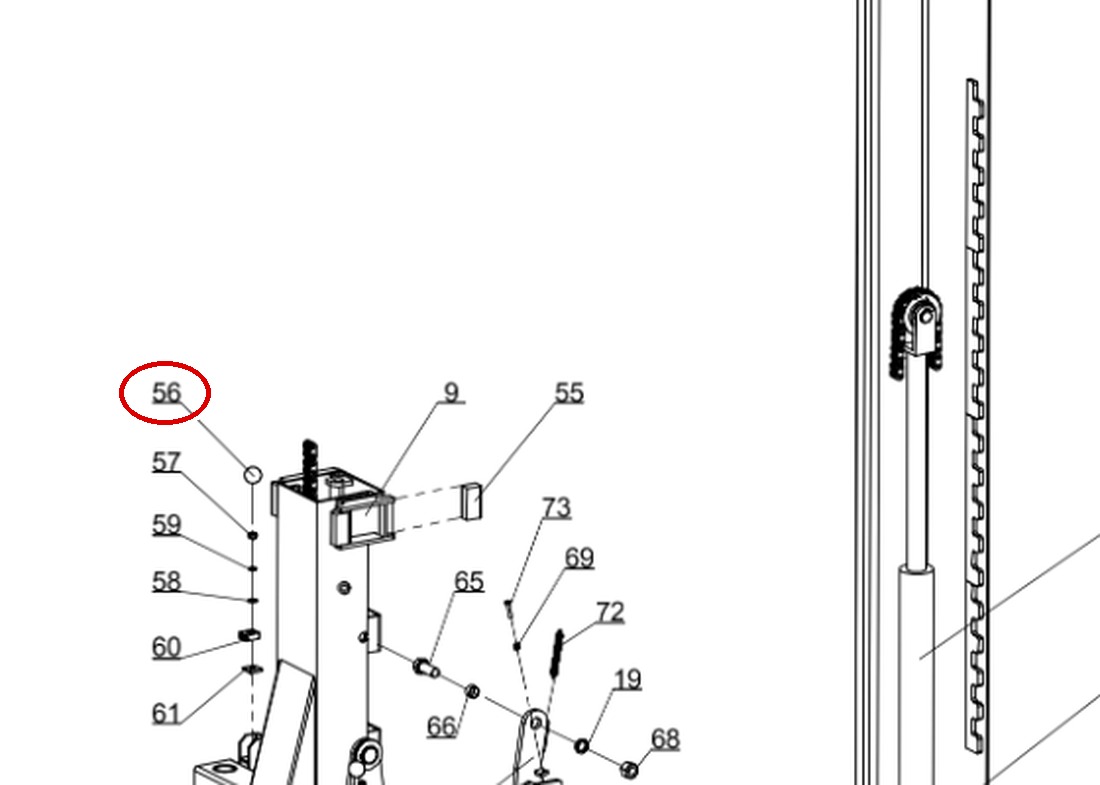

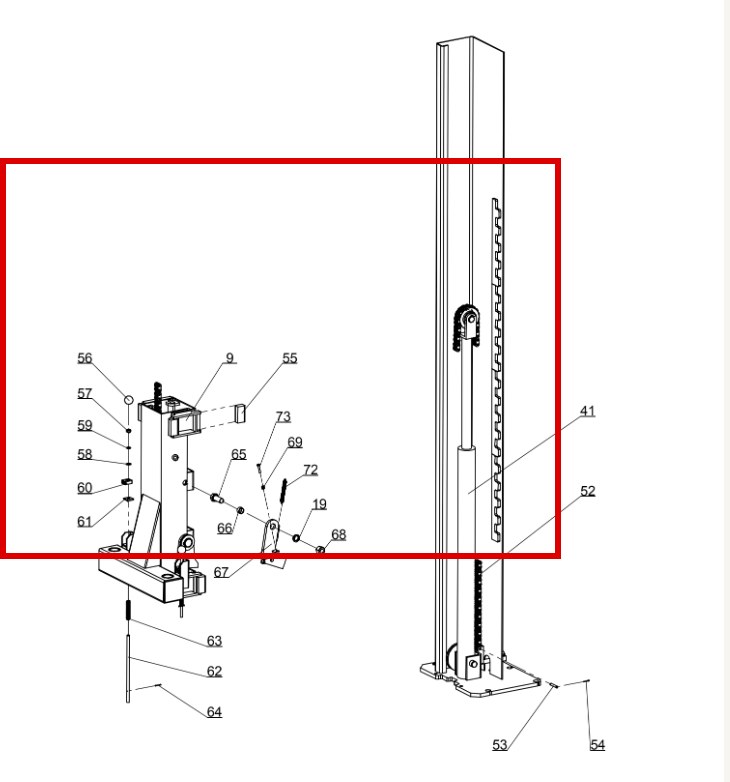

• HR8000 8K FLOOR PL – Drawing 3 (Carriage, Safety Block and Chain Column Assembly, page 26)
• I12-Parts – Drawing 1 (page 4 – Arm-lock release / operating handle and cover, exploded)
• OH8000 8K OVERHEAD – Drawing 1 (Carriage / Safety Block detail and Column with cylinder, page 26)

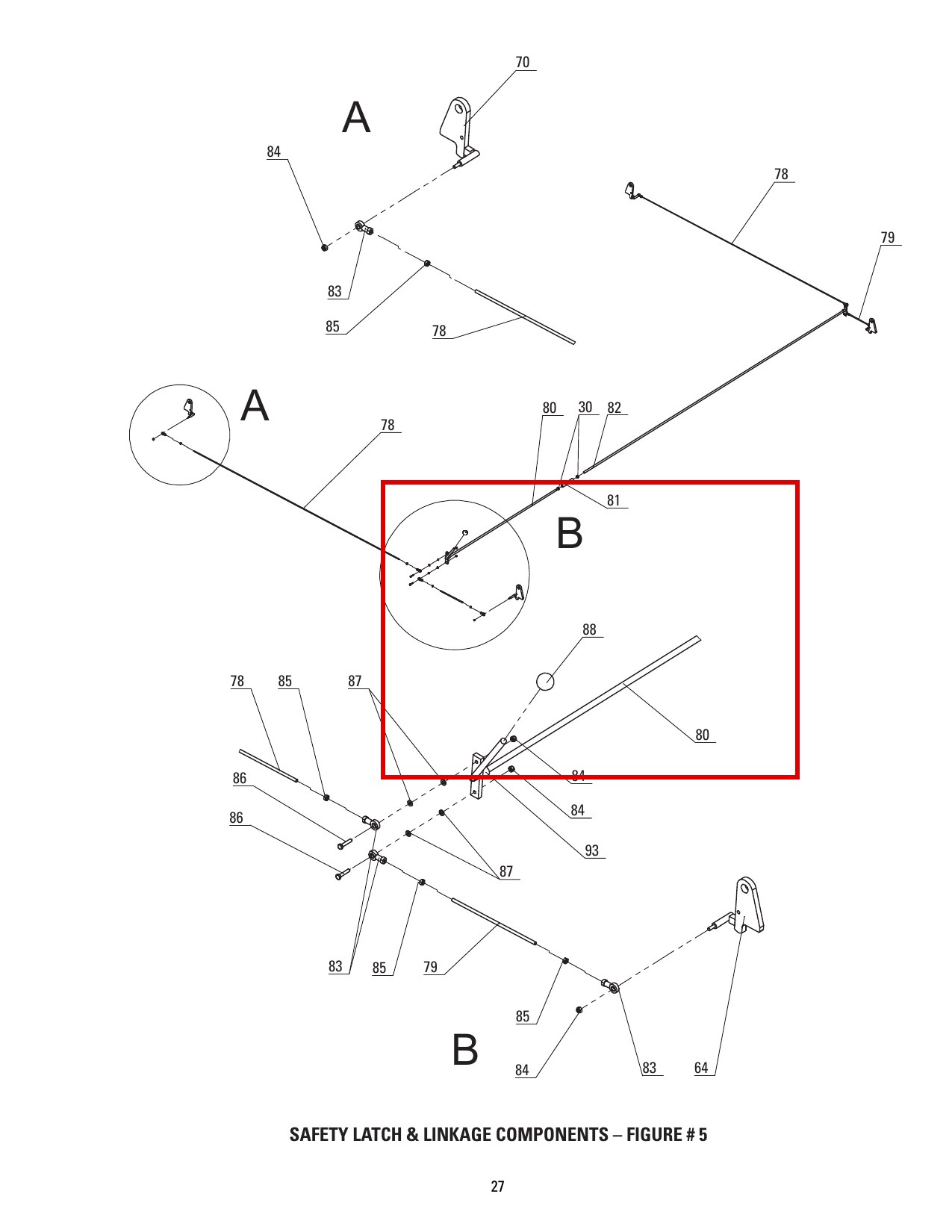

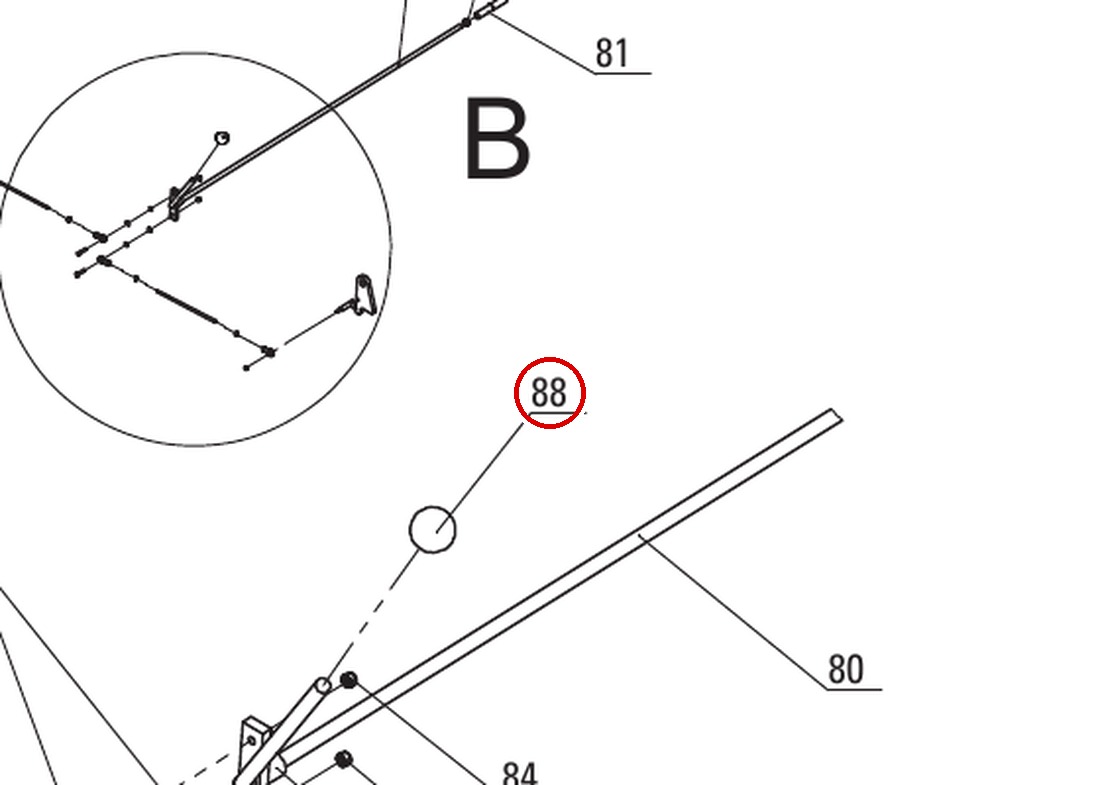

• PP8+ 8K 4-POST – Safety Latch and Linkage Components (Figure 5)
• PRO10 – PROv10 – PV10 new style, r – Main side Latch Assembly (Figure 4)
• PROV12 – PRO12 TP – Drawing 3 (Master-side latch / operating-handle exploded view)

Fitment and Ordering Notes

This knob fits handles with M10 thread. Always verify your handle thread size and knob diameter before ordering. May also fit select Forward, Direct Lift, and Atlas models using identical handle threads – compare thread size and diameter before purchasing.
