SPX Stone AC-10AH Hydraulic Power Unit for 2 Post Car Lift – 230V 2 HP

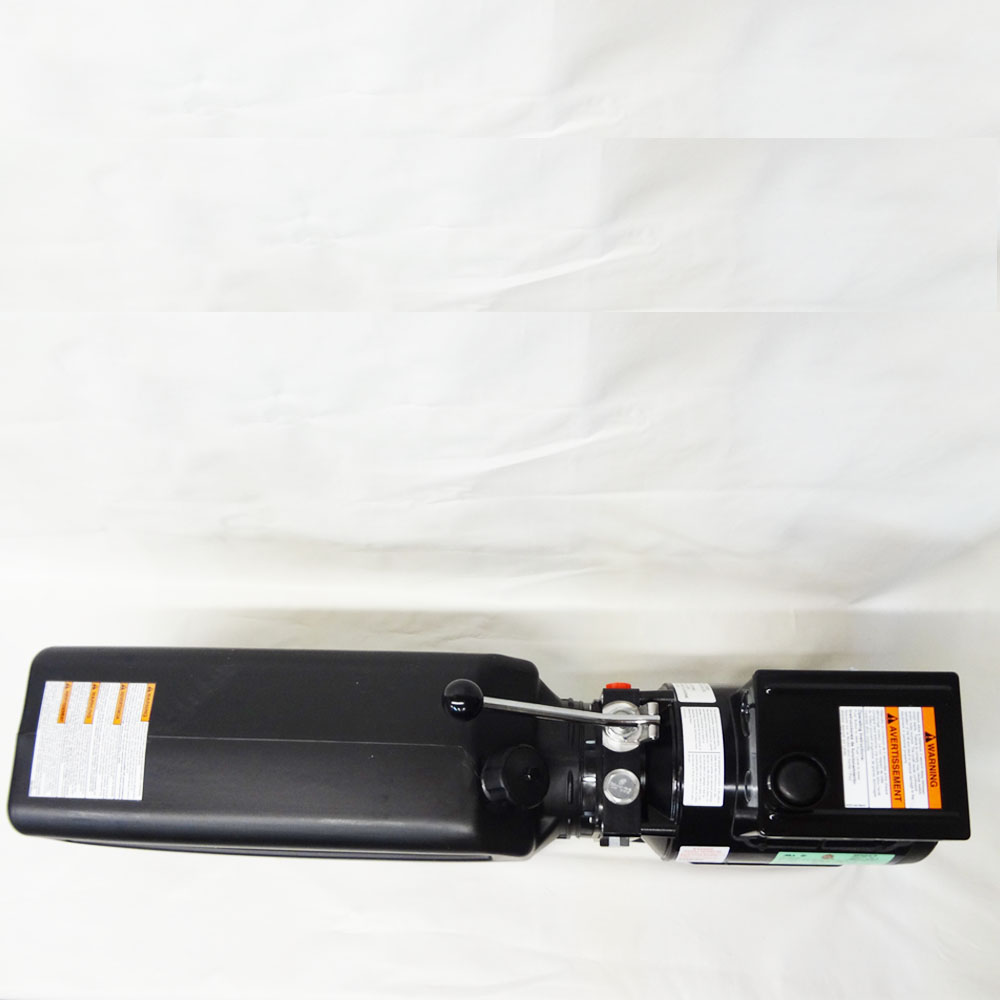

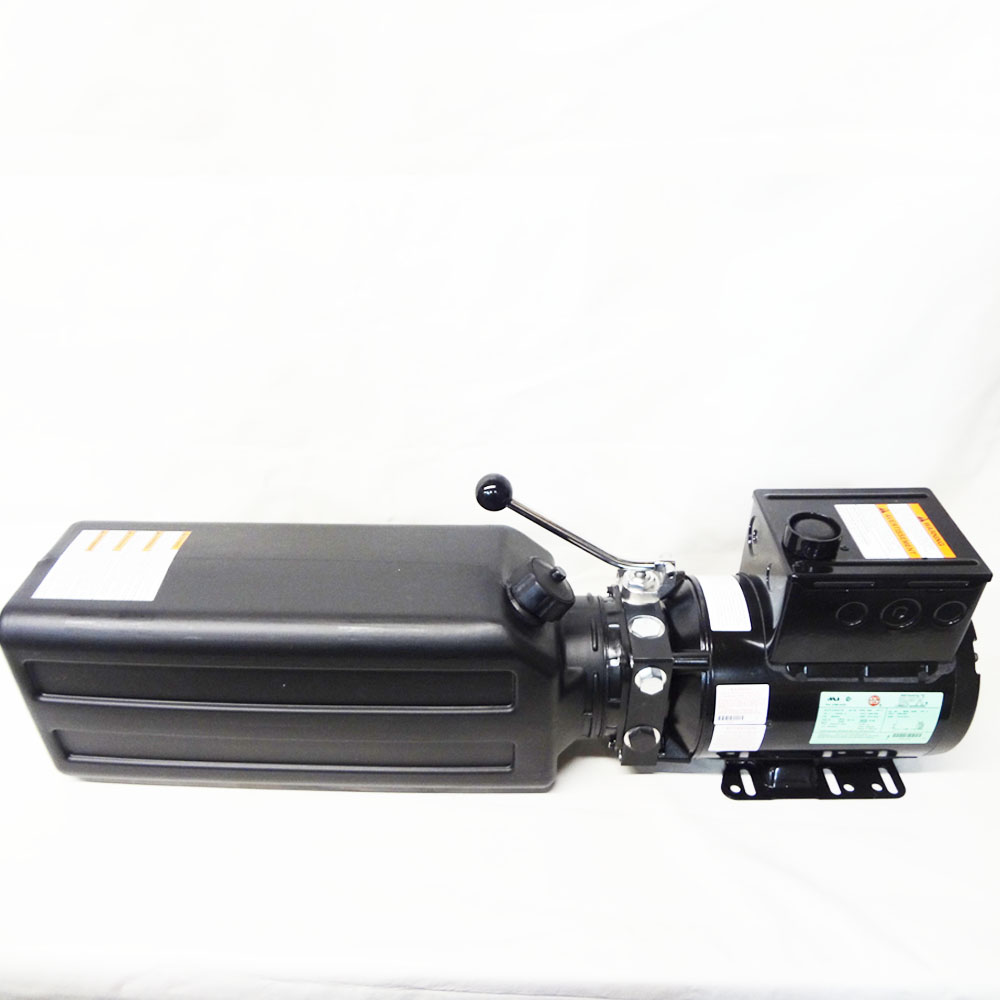

The AC-10AH is a complete replacement hydraulic power unit made by SPX Stone (Fenner) for 2-post automotive lifts. The unit includes the hydraulic tank, pump, motor, and switch as a ready-to-install assembly. SPX Stone (Fenner) power units are ETL certified and built in the USA. Before replacing the power unit, verify that no other component (cylinder seals, valves, or hoses) is causing the problem – the power unit does not increase the rated capacity of the lift.
Product Information
- Brand / Equipment: SPX Stone (Fenner) Hydraulic Power Unit
- Manufacturer / Reference Part Number: AC-10AH
- Store SKU: SP10AH
- Component: Complete Hydraulic Power Unit (tank, pump, motor, switch)
- Voltage / Phase: 208-230V, single phase, 60 Hz

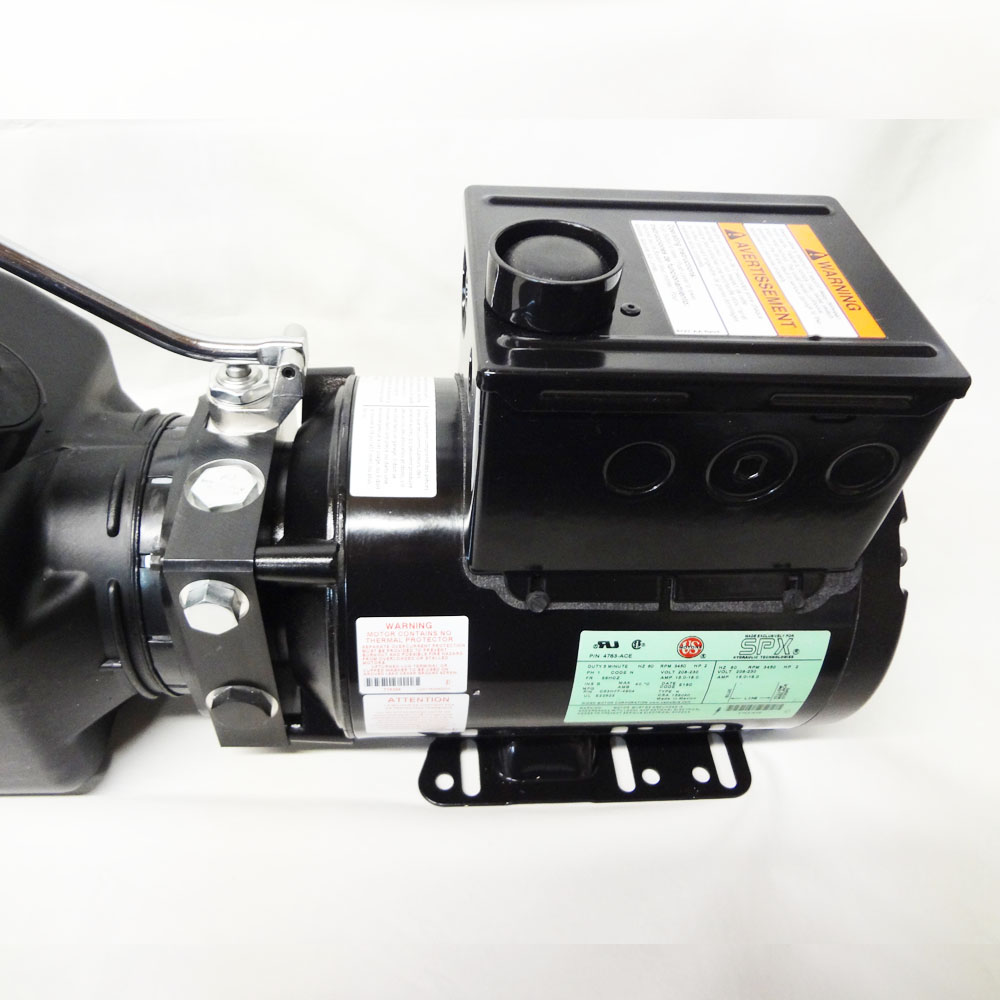

- Motor: 2 HP, 3450 RPM (3.5 HP motor torque equivalent)
- Flow Rate: 2.1 GPM
- Tank Capacity: 4 gallons
- Relief Valve: Cartridge type, 2755 PSI
- Fluid Compatibility: Standard hydraulic oil or Dexron II transmission fluid

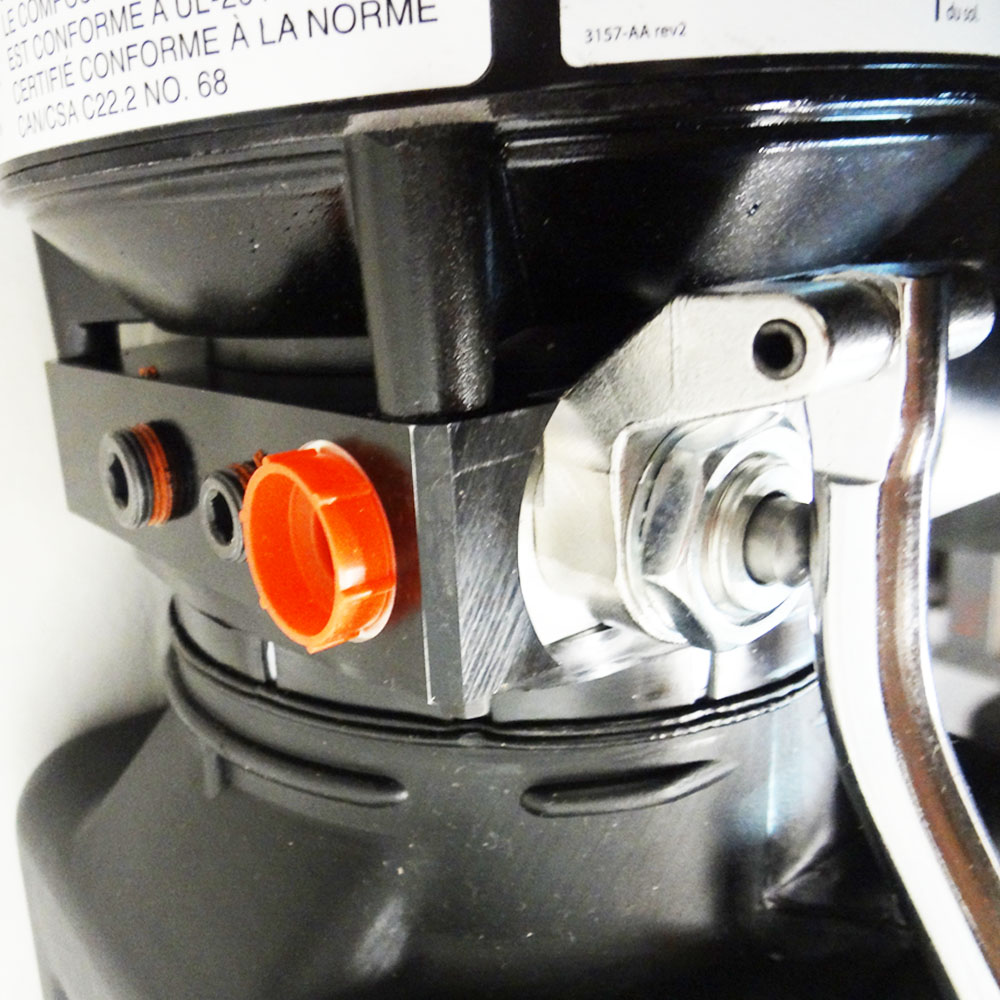

- Port: 3/8 in. pipe thread port for cylinder vent return to tank
- Certification: ETL certified
- Origin: Made in the USA
- Warranty: 1 year
- Listed Capacity (2-post): Up to 11,000 lb (many 12K 2-post also compatible)
- Listed Capacity (4-post): Up to 14,000 lb
- Listed Application: Most 2-post and 4-post lifts; also in-ground high-pressure lifts by Wheeltronic, Western, Rotary, and Challenger
Replacement / Cross-Reference Numbers
This unit is listed as a replacement for the following OEM and aftermarket references:
- FA781, P461, P502, P602, P650, P702, P709, P750, P1002, P1350, P1352, P1302, P3302, AB-1468, AB1270, 17300001, 992028, 5585285, 31368-19
Compatible with power units originally made by: Fenner, SPX, Stone, MTE, Barnes, Global Hydraulics, Monarch, Haldex, Duro, and others.
Additional Product Information

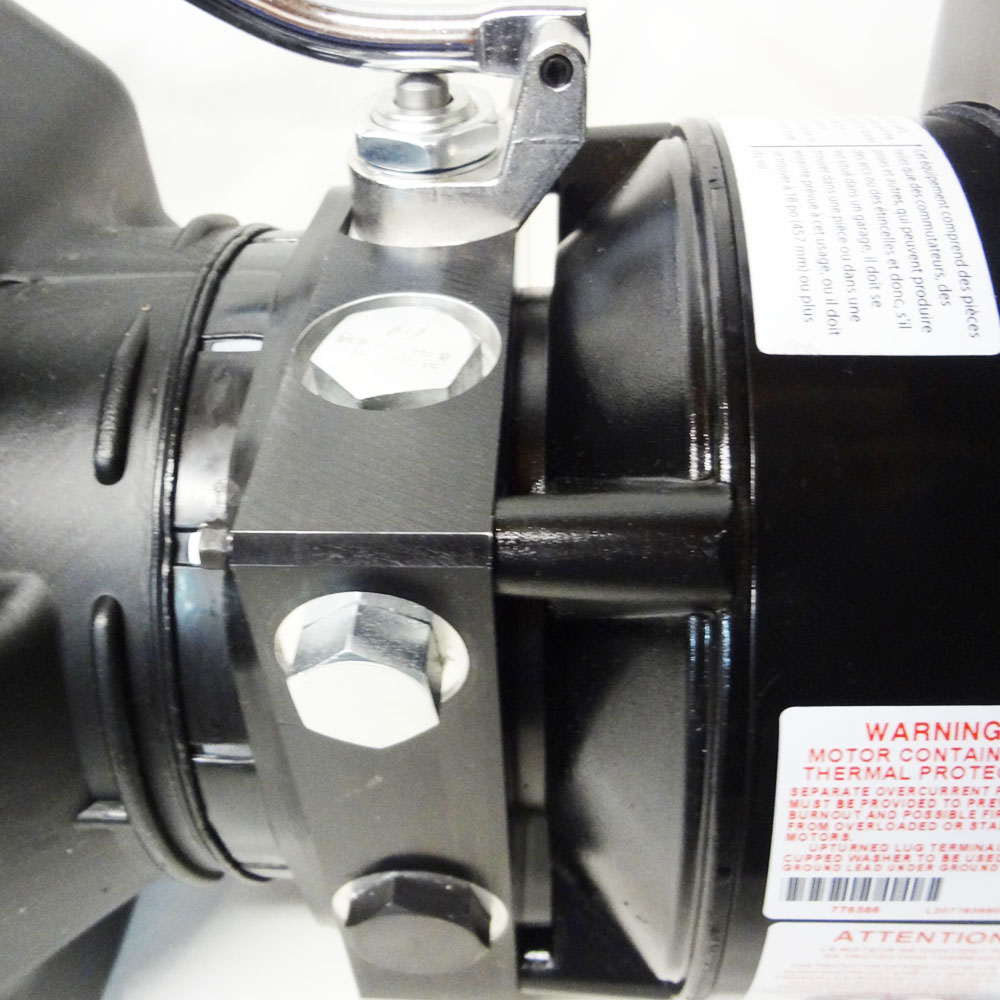

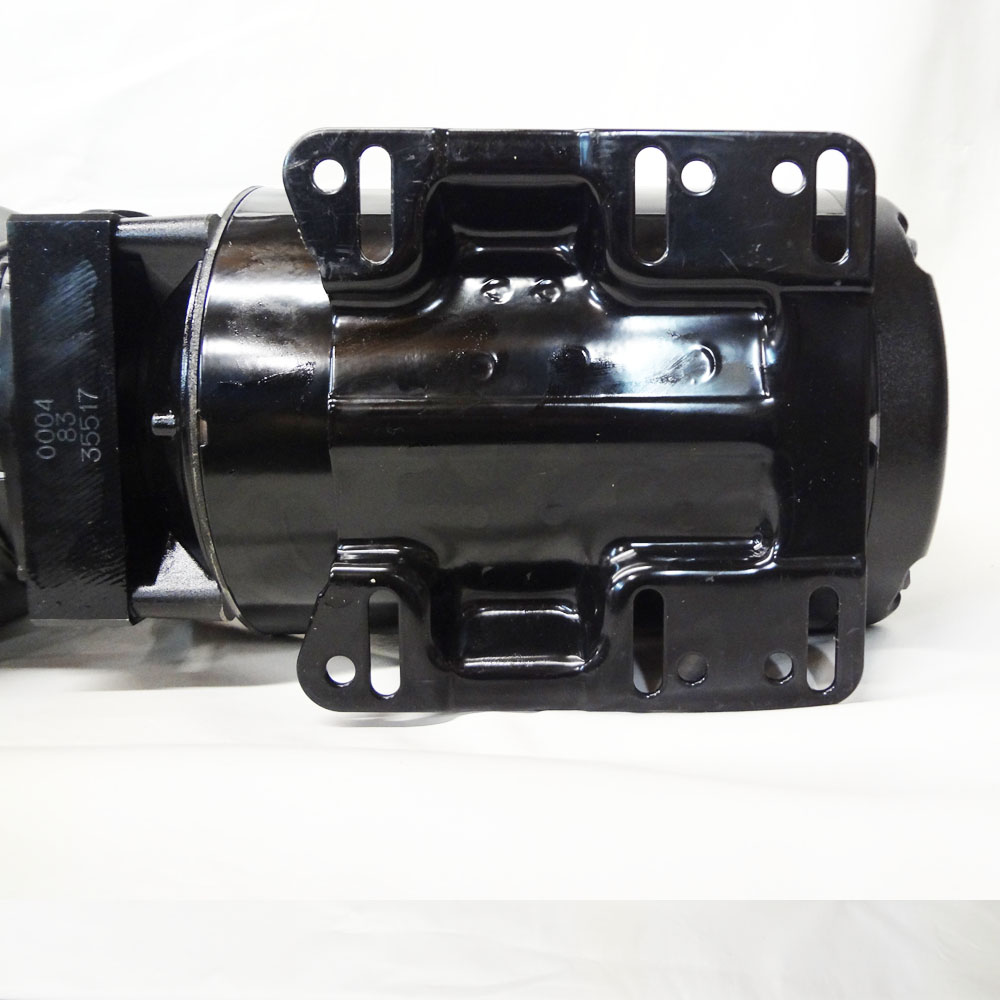

The pump outlet can be positioned on either side of the unit to match the pressure line routing of the existing power unit. A universal mounting bracket is included. Note: if your lift has a cable-pull overhead high-limit switch inside the switch box, transfer it from your old power unit – the AC-10AH does not include this switch. Replacing the hydraulic power unit does not increase the rated capacity of the lift.
Fitment & Ordering Notes
Verify voltage and phase requirements (208-230V, single phase) before ordering. Confirm that your existing power unit is the source of the problem before replacement. Call 866-902-6060 for assistance confirming fitment for your specific lift model.
