Description

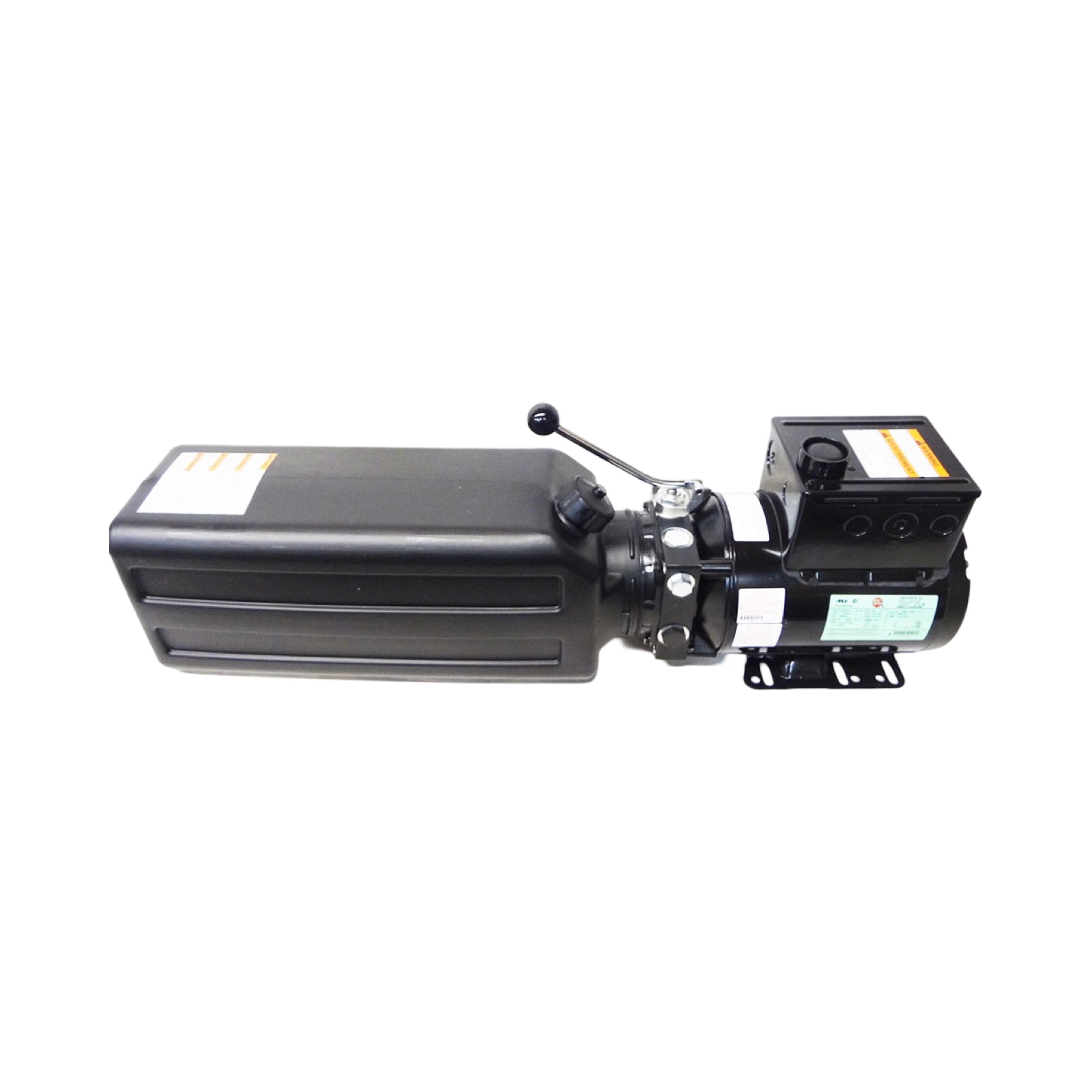

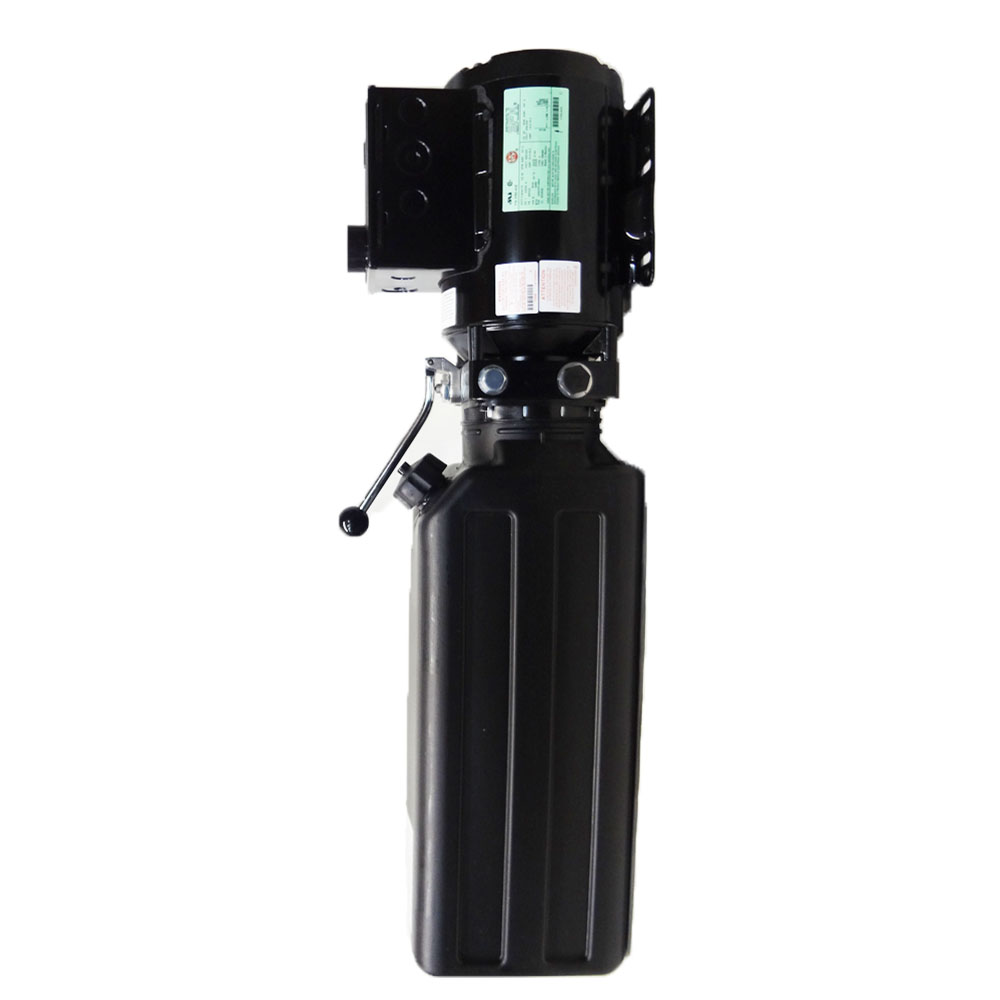

Replacement Power Unit Motor and Hydraulic Pump for Challenger Lift E10 / LE10 – AB-9367
A failing power unit is one of the most common reasons a 2-post car lift stops working. Replace the complete power unit when you experience motor burnout or failure to start, a pump that runs but cannot build pressure, or oil leaks originating from the pump body or reservoir. Before ordering, verify your lift operates on 208-230V single-phase power, that the HP rating matches your existing unit, and that your pressure line port configuration is compatible (the outlet on this unit can be positioned on either side).
Product Information
- Brand / Equipment: Challenger Lifts
- Manufacturer / Reference Part Number: AB-9367
- Store SKU: SP10AH-29
- Component: Complete Power Unit (Motor and Hydraulic Pump with Reservoir)
- Voltage: 208-230V, Single Phase, 60 Hz
- Motor: 2 HP at 3,450 RPM (3.5 HP torque equivalent)
- Pump Flow Rate: 2.1 gallons per minute
- Reservoir Capacity: 4-gallon vertical poly tank
- Fluid Compatibility: Standard hydraulic oil (AW32) or Dexron II ATF transmission fluid
- Certification: ETL Certified
- Origin: Made in USA by SPX Stone (Fenner)
- Warranty: 1 year
- Mounting: Universal mounting bracket; pump outlet reversible to match existing pressure line routing
- Listed Application: Challenger E10 and LE10 2-post 10,000 lb car hoist; also fits Snap-on EELR532A / EELR731A and Quality Lift Q10
Compatible Makes / Verified Fitment Models
- Challenger Lift: E10, LE10
- Snap-on Lift: EELR532A, EELR731A
- Quality Lift: Q10
Note: If your Challenger is a CL10-QC (Quick Cycle) model, this power unit is not compatible as the flow rate will be too slow for that application. Call 866-902-6060 to confirm fitment before ordering.
Replacement / Cross-Reference Numbers
- AB-9367 (Challenger OEM reference)
- 31368-21 (Challenger alternate)
- AB-9367-DLH (Challenger alternate)
- EELR532A (Snap-on cross-reference)
Fitment and Ordering Notes
- This is a complete power unit assembly including motor, hydraulic pump, and reservoir tank. No additional pump or motor purchase is required.
- Verify voltage before installation: this unit requires 208-230V single-phase supply. It will not operate on 3-phase power.
- When replacing the power unit, drain and dispose of old hydraulic fluid, clean the reservoir, and flush the system before installing the new unit to protect the pump and avoid voiding warranty.
- Replacing this power unit does NOT increase the rated lift capacity. Never exceed the rated capacity of your lift.
- Need help confirming fitment? Call us at 866-902-6060.
