Rotary Lift 40658 3/8"-16NC Hex Jam Nut Cad Plated for DL9, DP10 & I10 Two-Post Lifts

Description

Rotary Lift 40658 3/8"-16NC Hex Jam Nut Cad Plated for DL9, DP10 & I10 Two-Post Lifts

Replace missing, worn, or damaged lift hardware with the 40658 3/8"-16NC Hex Jam Nut Cad Plated, listed for use on DL9, DP10 & I10 Two-Post Lifts. This hardware is used when servicing the specified Rotary Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: 40658
• Store SKU: ROY0658
• Component: 3/8"-16NC Hex Jam Nut Cad Plated
• Listed Application: DL9, DP10 & I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

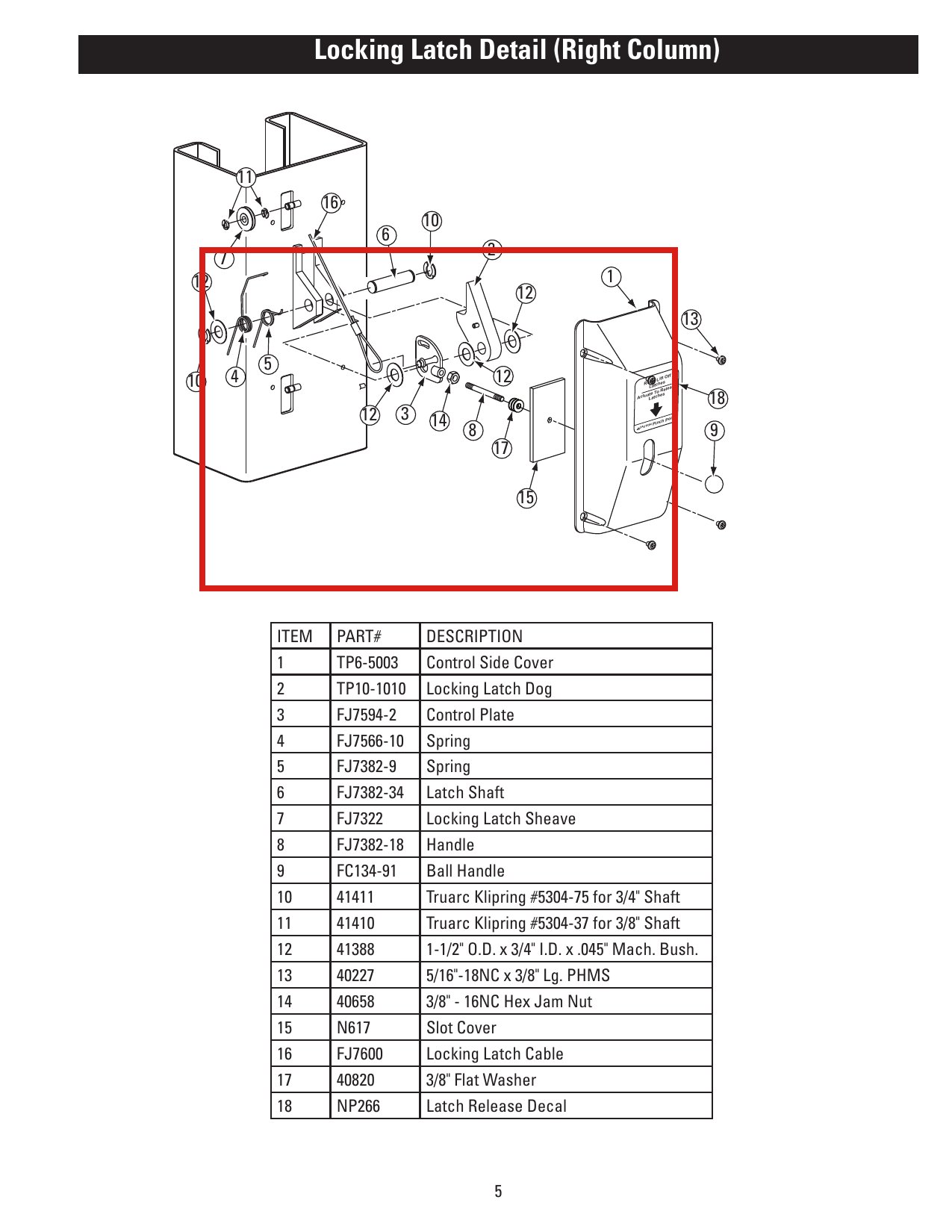

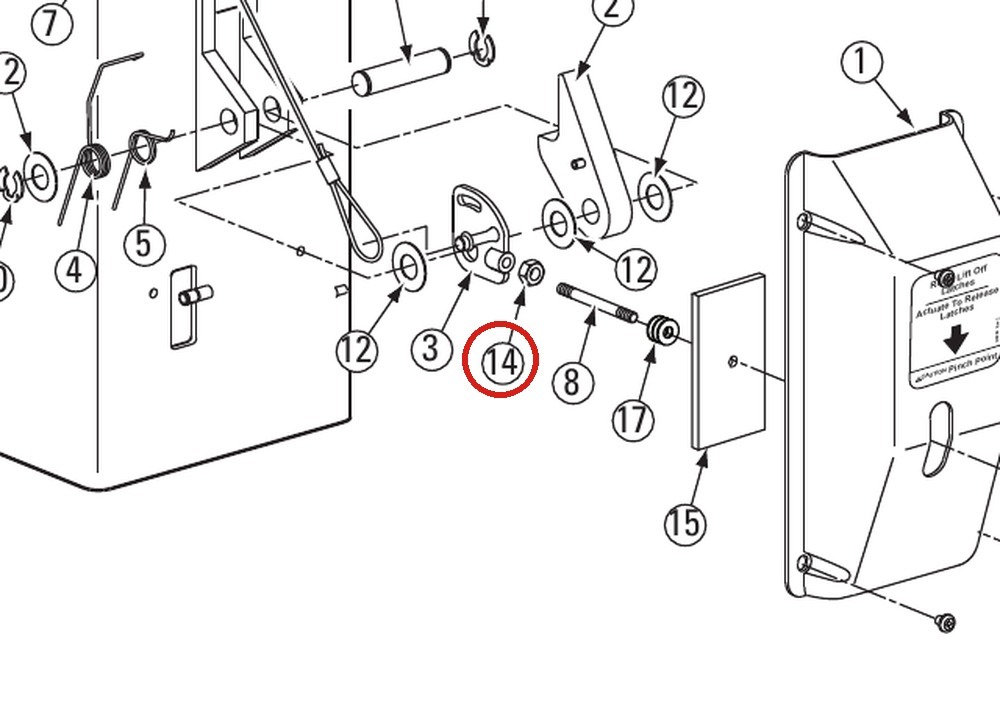

In the drawing images above this is part number 14 in the DL9 parts drawing and part number 14 in the DP10-Parts new style w lock covers drawing and part number 14 in the I10N000M drawing.

Fits the following lift models — part number 40658 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, Alignment Rack (older), 12K Four-Post Open-Front, TL07.

Rotary Light Duty parts line. Cad-plated 3/8″-16NC jam nut called out on the DL9, DP10 (new style with lock covers) and I10N000M parts breakdowns, in sections including the Locking Latch Detail (right column), 4-wheel slip plate parts and Fig 5 (OR12 / CR18AK00).

As a jam nut it locks adjustment hardware in place, notably in the locking latch mechanism, one of the primary safety systems on a two-post lift, so it should be replaced with the OEM-specified part rather than a generic full-height nut.

Direct OEM replacement for Rotary part number 40658 (SKU ROY40658). Confirm the callout on your lift’s parts diagram.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); TLO7 (300 series two-post)
• Rotary Lift — interchange P/N 40658
