Rotary FC5708-2 D-Shaped 2-Port Air Lock Cylinder for 4 Post Lifts

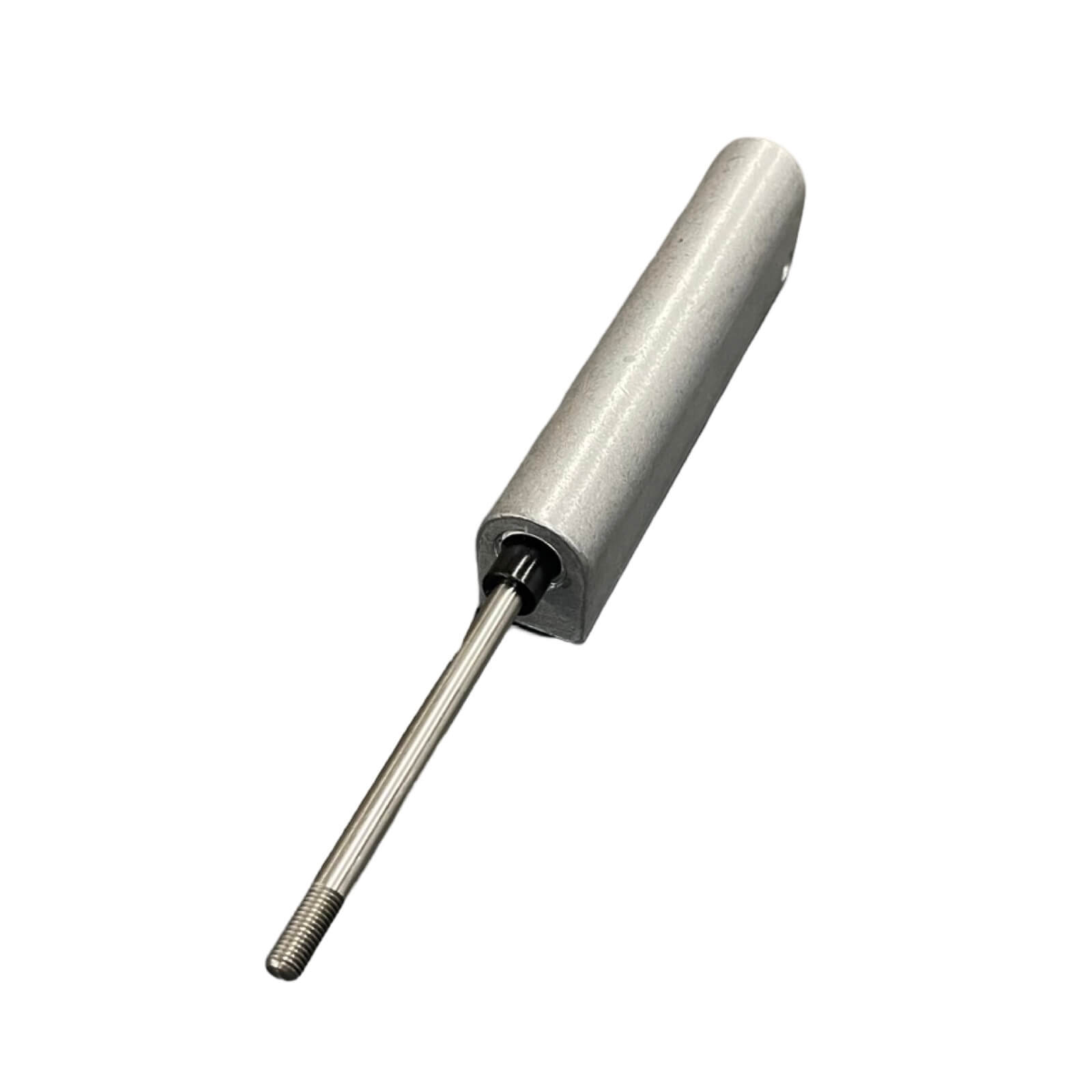

This D-shaped air cylinder mounts on the inside of the cross rail on Rotary 4-post lifts and pulls the safety locks open when air pressure is applied. It has two threaded ports on the flat side of the cylinder housing. Rotary produced both older and newer style D-shaped cylinders – verify your model is listed below and that your cylinder has two air ports before ordering. This cylinder can also replace a single-port FC5706-17 if one port is plugged.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Number: FC5708-2
- Store SKU: ROY7082-1
- Component: D-shaped air lock cylinder (2-port, lock pull actuator)
- Body Shape: D-shaped
- Ports: 2 threaded ports on the flat side of housing
- Mounting Location: Inside of the cross rail
- Listed Application: Rotary 4-post lifts – AR series: ARO122, AR18E010, AR18E011, AR18L010, AR18L011, AR18N010, AR18N011, AR18N016, AR18N017; SM series: SMO122, SM122-100S, SM122-110L, SM122-120EL2, SM18E/F/L/N series (all sub-variants), SM88, SM180, SM181; QL4P and QLHV up to series 100 (e.g. QLHV-131); also Forward CR18
Replacement / Cross-Reference Numbers
- Replaces Rotary FC5708-2; can be used in place of single-port FC5706-17 (plug one port)
- Internal designation: Venic Interloc Air Cylinder V-89
Fitment and Ordering Notes
Confirm your lift model is listed above and that the cylinder you are replacing has two air ports. Rotary produced newer and older style D-shaped cylinders – verify before ordering. This part can replace all four corner cylinders on the lift. For questions call 866-902-6060.
