Rotary Lift FJ7566-10 Locking Latch Spring for DL9, DP10, I10 Two-Post Lifts

Description

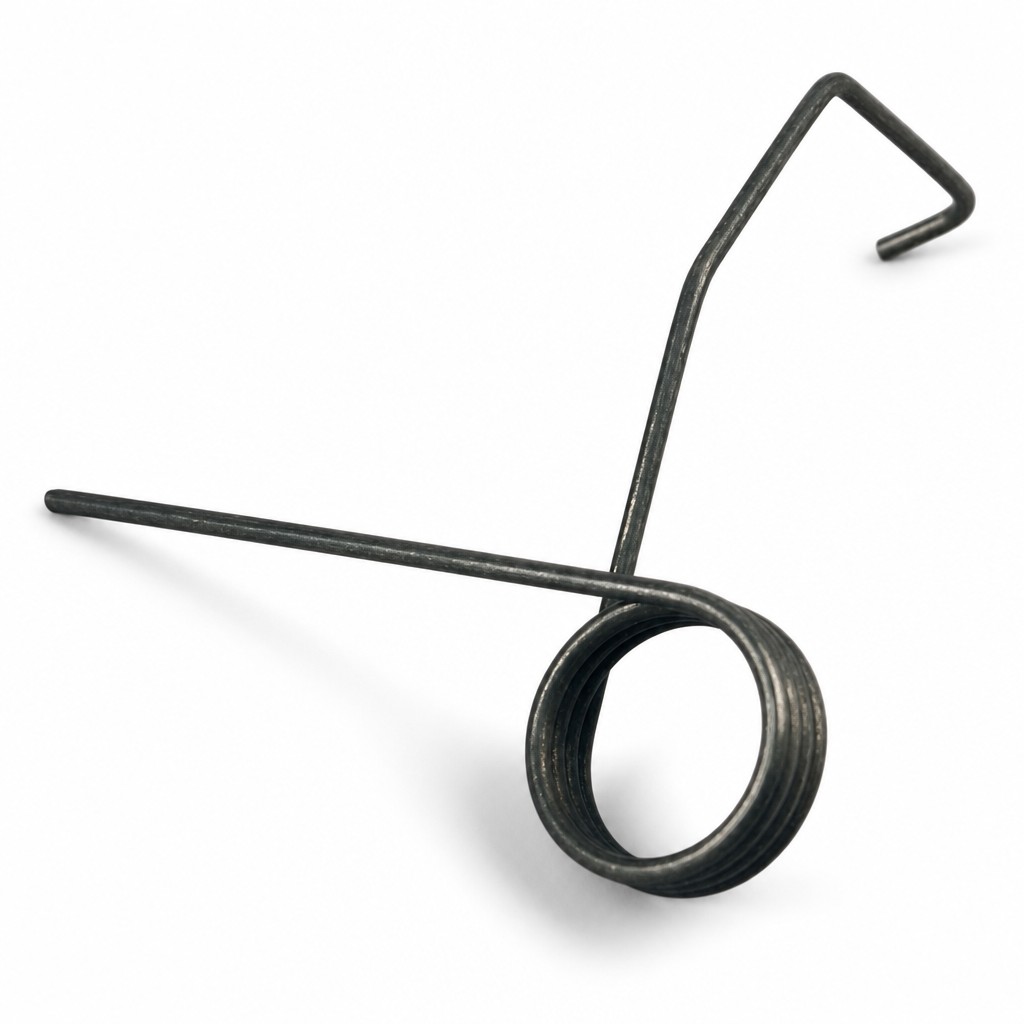

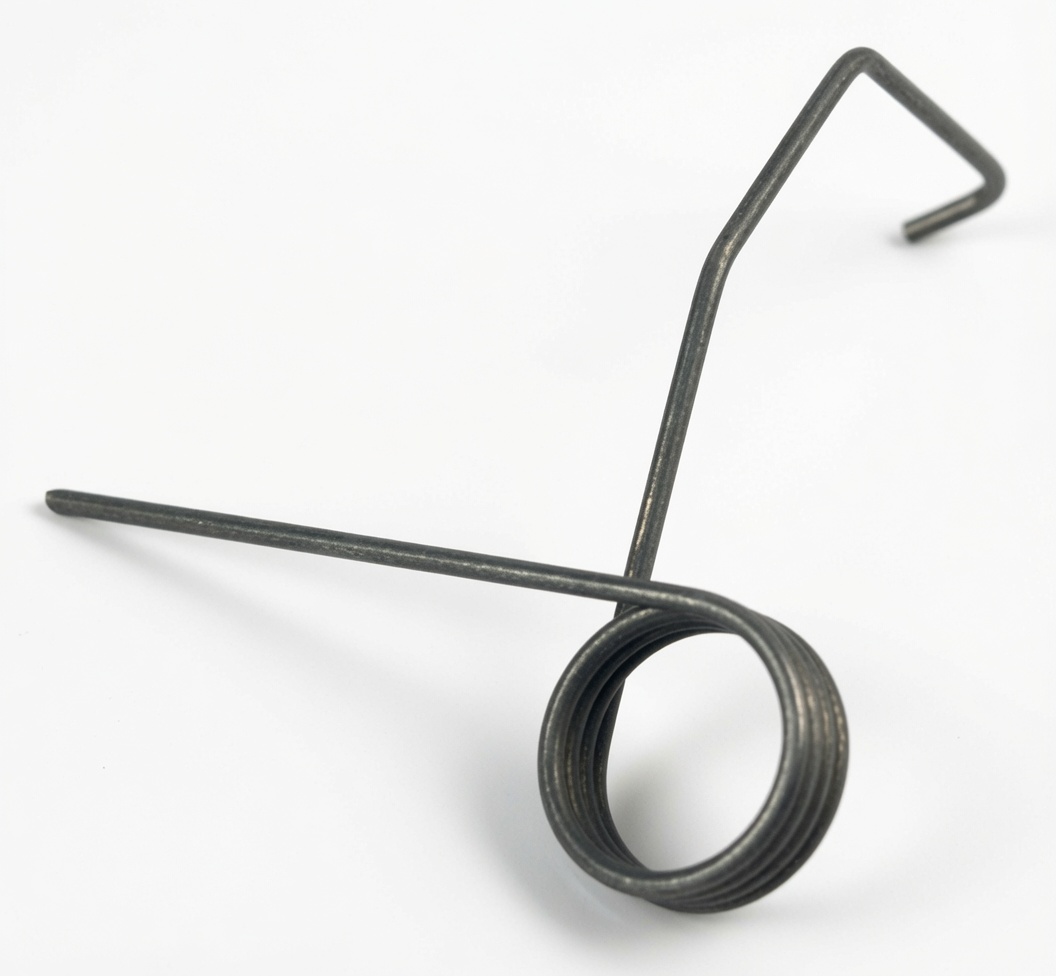

Rotary Lift FJ7566-10 Locking Latch Spring for DL9, DP10, I10 Two-Post Lifts

Replace missing, worn, or damaged lift hardware with the FJ7566-10 Locking Latch Spring, listed for use on DL9, DP10, I10 Two-Post Lifts. This hardware is used when servicing the specified Rotary Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: FJ7566-10
• Store SKU: ROY6610
• Component: Locking Latch Spring
• Listed Application: DL9, DP10, I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

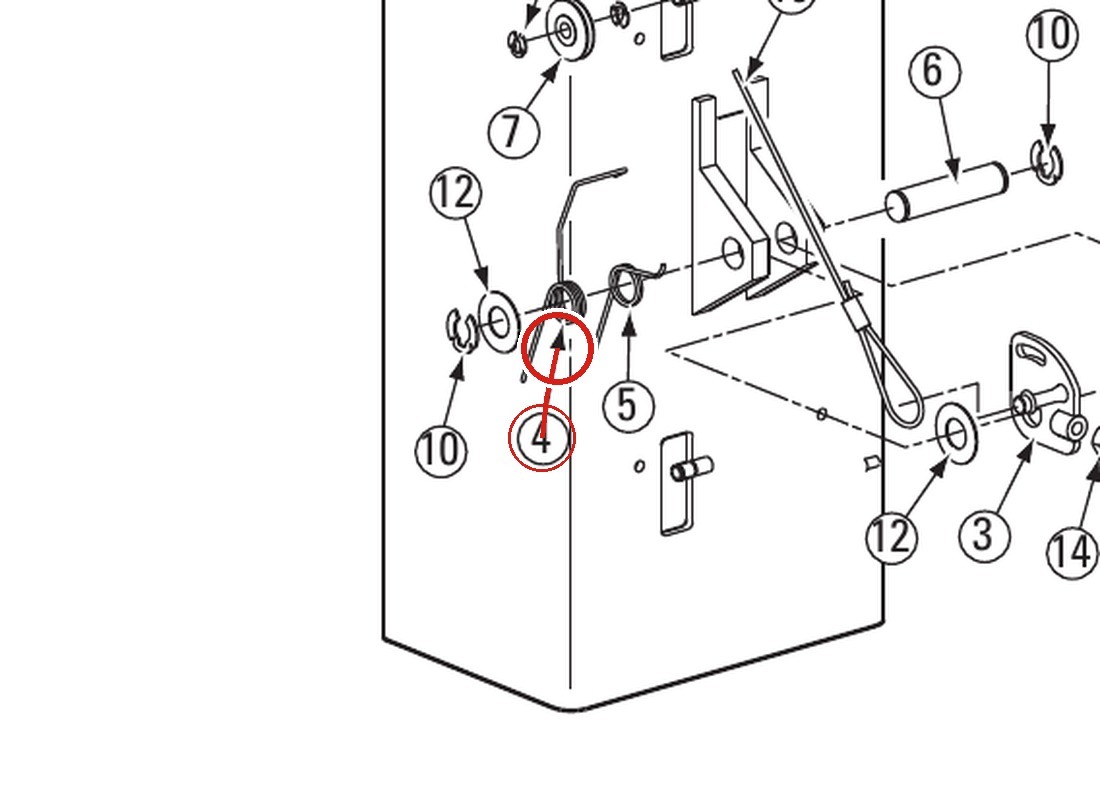

This is part number 4 in the drawing image above.

Fits the following lift models — part number FJ7566-10 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, TL07.

The FJ7566-10 is a replacement spring for the locking latch assemblies of the DL9, DP10 (new style with lock covers), and I10 (I10N000M) two-post automotive lifts, shown in the Locking Latch Detail diagrams for the left column.

The latch spring returns the safety lock to its engaged position after the release handle or cable is let go. A stretched, broken, or fatigued spring can leave the latch slow to re-engage, which compromises the mechanical safety system, so springs should be replaced whenever the latch is serviced.

Supplied as a compatible replacement matched to the locking latch parts breakdown. Verify the item callout in your latch detail before ordering.

Cross-check part number: Rotary FJ7566-10. This is a Rotary replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); TLO7 (300 series two-post)
• Rotary Lift — interchange P/N FJ7566-10
