Description

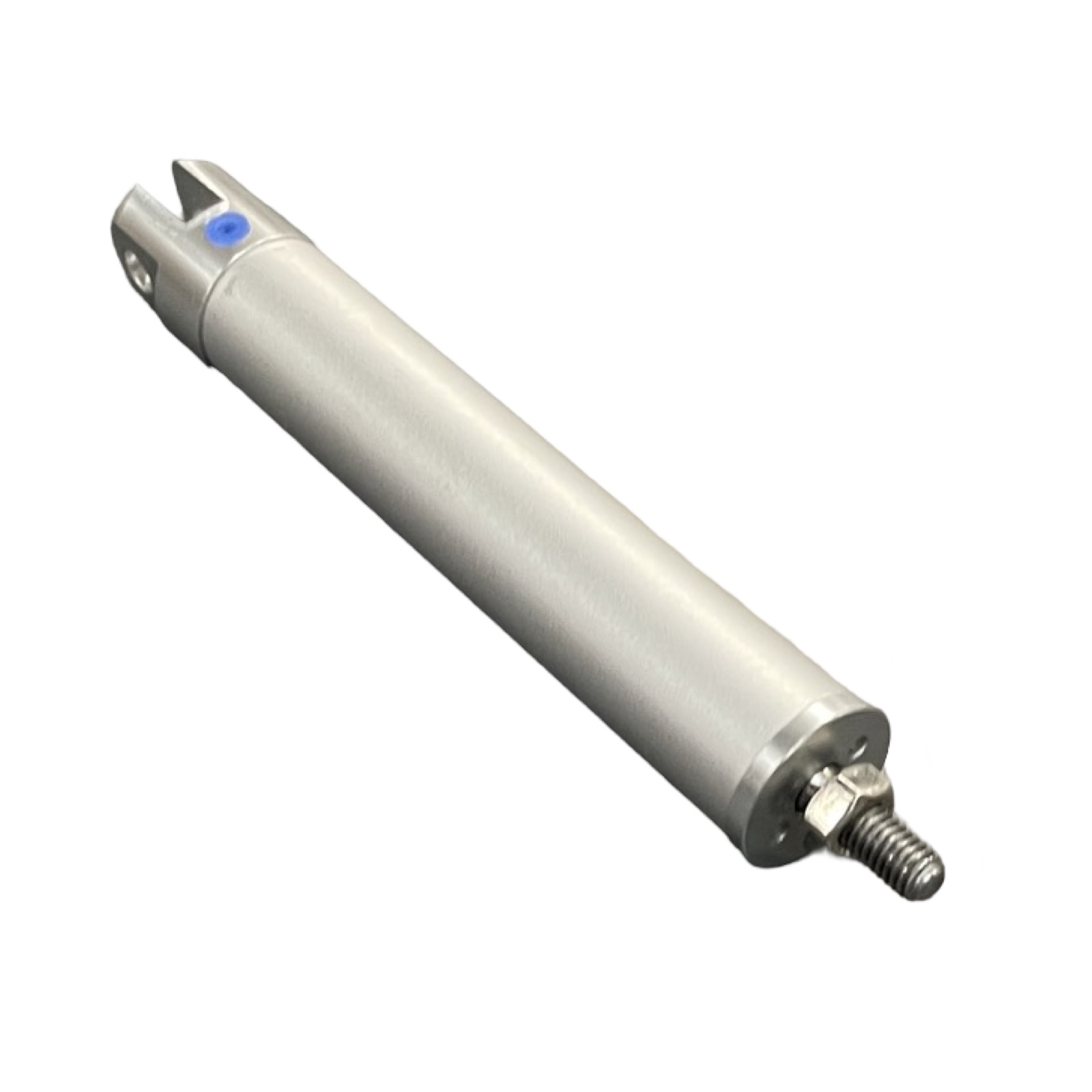

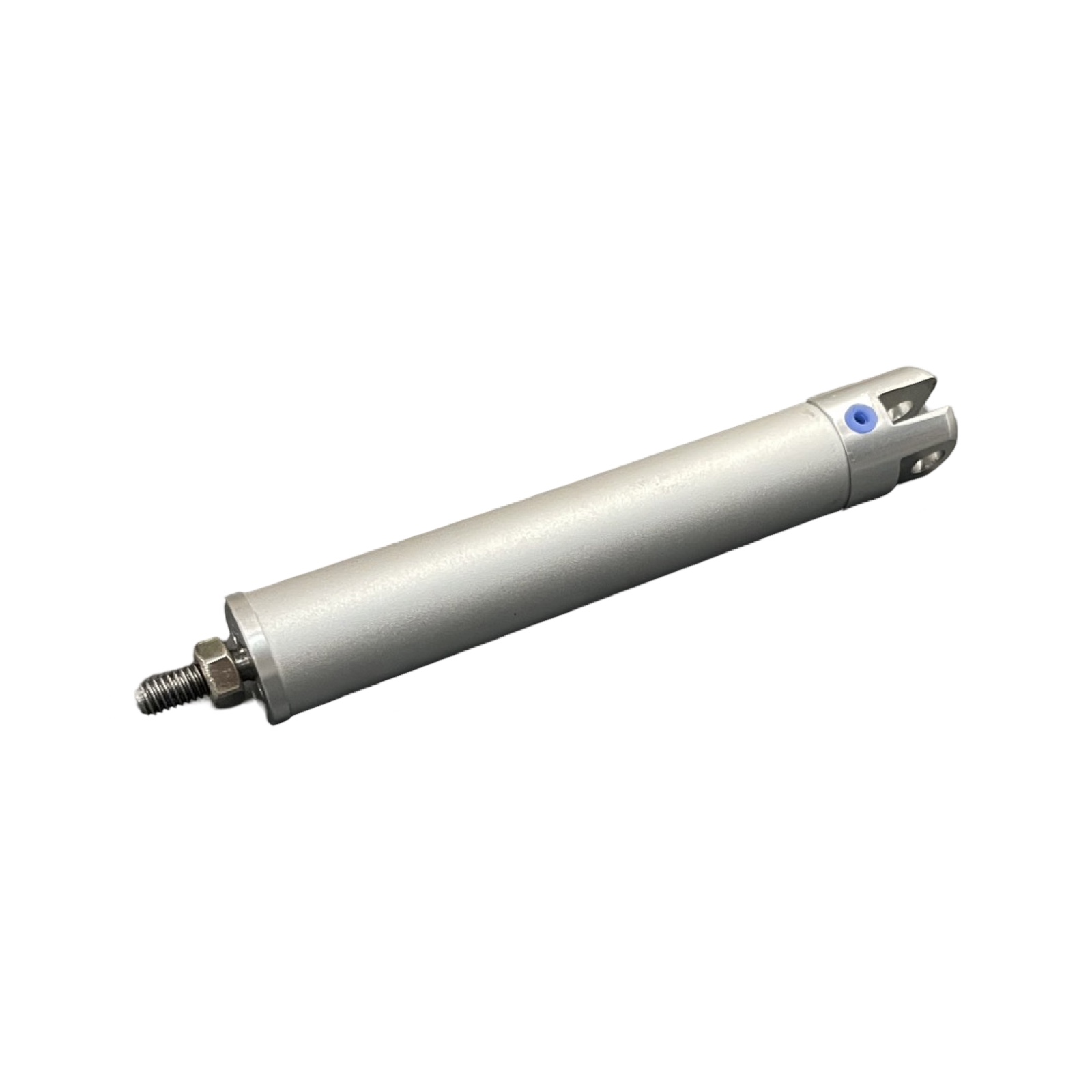

Rotary Revolution QG01-9100 Round-Body Air Lock Cylinder for RFP14 4 Post Cable Lifts
This round-body air cylinder mounts on the inside of the cross rail on Rotary Revolution RFP14 4-post cable lifts. It has one small threaded port on the mounting side and a spring-loaded shaft that is fully retracted (collapsed) when not activated. Verify your lift has a round-profile cylinder (not D-shaped) and that the shaft is fully retracted when no air is present before ordering.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Number: QG01-9100
- Store SKU: FOD9100-1
- Component: Round-body air lock cylinder (single-port, lock pull actuator)
- Body Shape: Round
- Port: 1 small threaded port on mounting side of housing
- Action: Spring-loaded; shaft fully retracted when not activated
- Mounting Location: Inside of the cross rail
- Listed Application: Rotary Revolution 4-post cable lifts – RFP14
Fitment and Ordering Notes
Confirm your Rotary Revolution model is RFP14. Verify your cylinder is round-profile (not D-shaped) and that the shaft is fully retracted when no air is applied. For questions call 866-902-6060.
