Tuxedo / Duro TP9KACX-032 Arm Lock Restraint Plunger Spring - TP9KACX, TP9KAC, TP9KAF, AL2-9, MTP-9

Description

Tuxedo / Duro TP9KACX-032 Arm Lock Restraint Plunger Spring for TP9-Series 2-Post Lifts

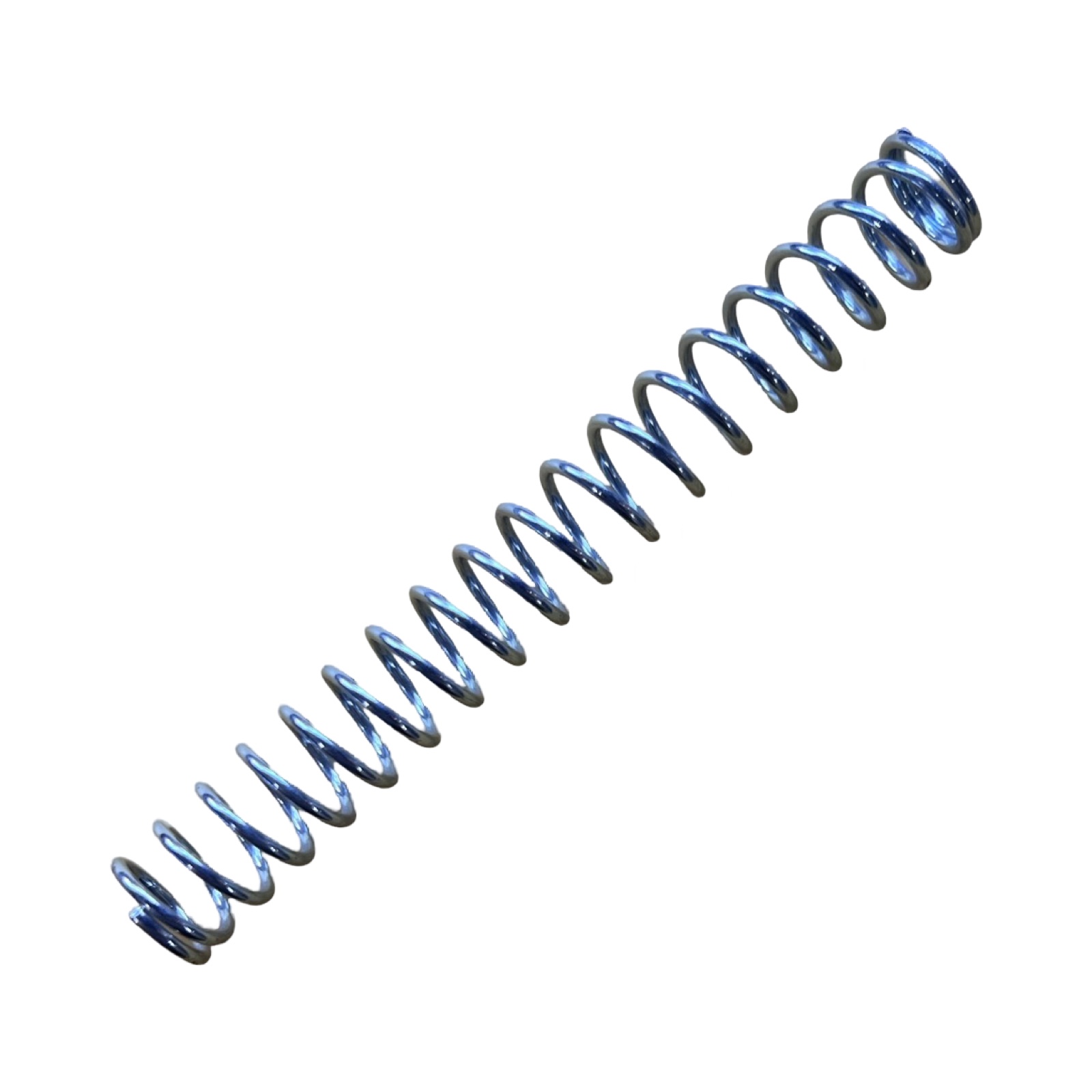

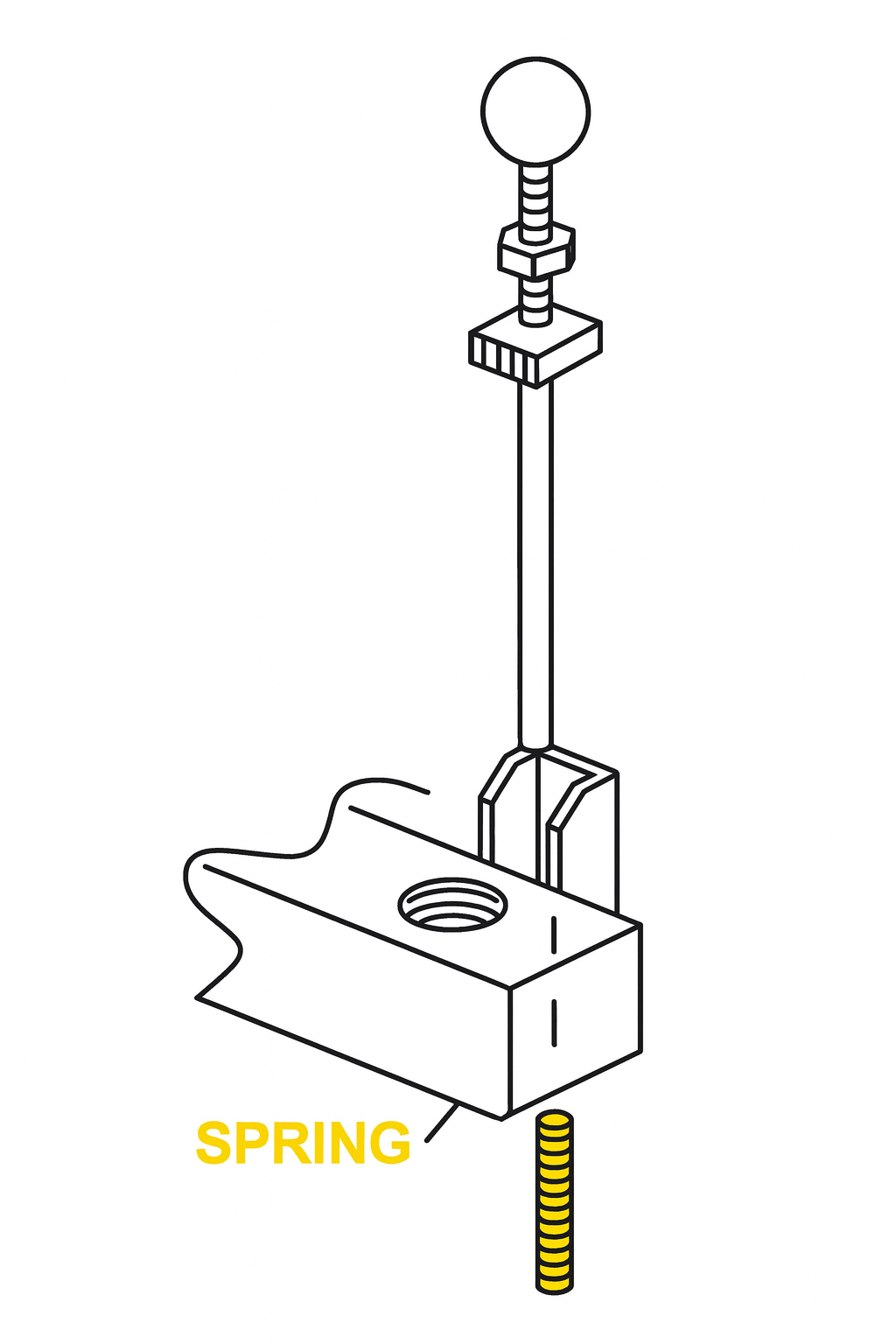

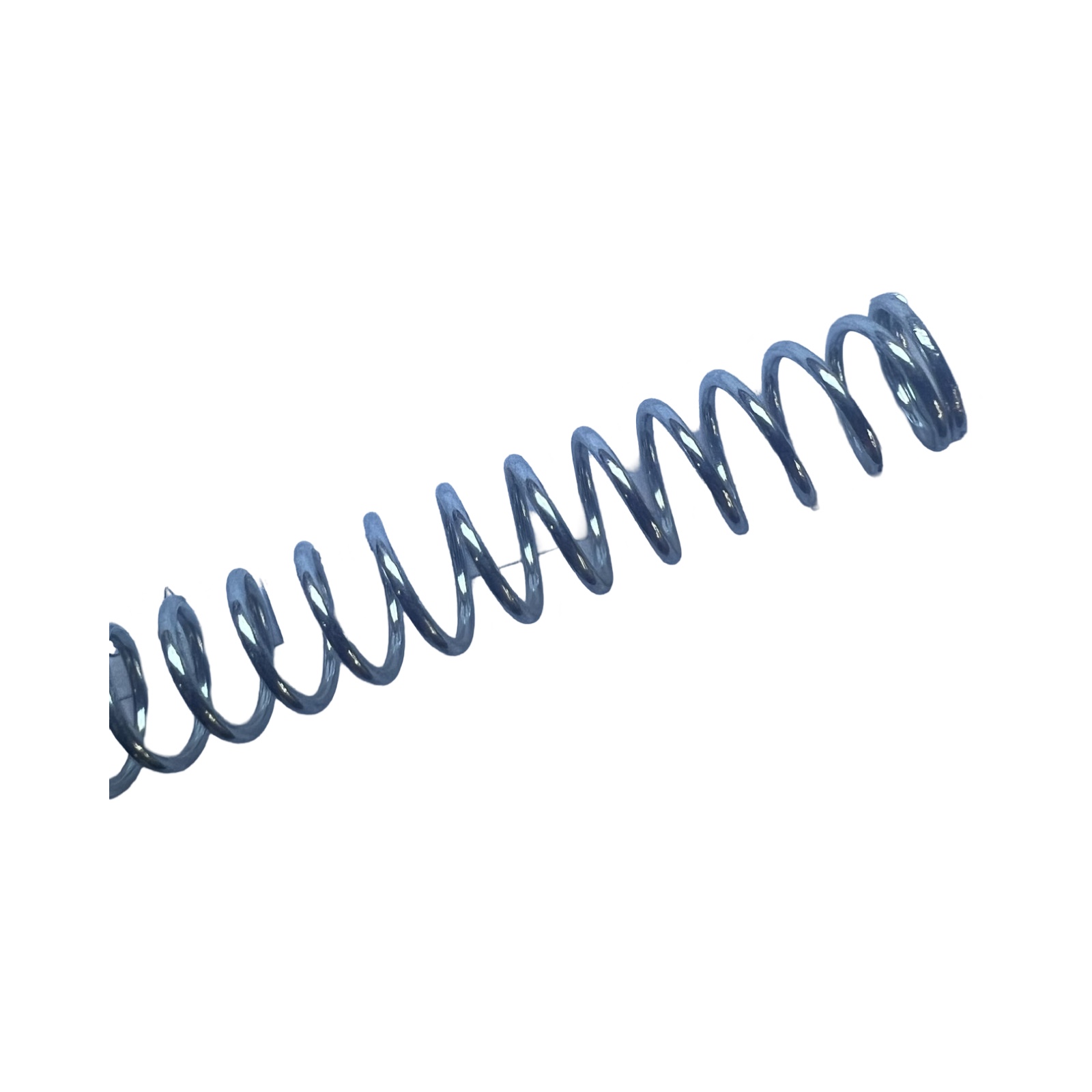

The TP9KACX-032 is the arm lock restraint plunger spring used on Tuxedo and Duro TP9-series 2-post above-ground car lifts. This small coil spring provides the tension that keeps the arm locking mechanism and restraint plunger positively engaged when lift arms are positioned under the vehicle. When the spring fatigues or fails, the arm lock may no longer hold securely, creating a safety hazard. Replace this spring at the first sign that the restraint plunger is not snapping firmly into position or if the arm lock feels loose.

Product Information

• Brand / Equipment Line: Tuxedo Lift / Duro
• Manufacturer / Reference Part Number: TP9KACX-032
• Store SKU: TUOX032
• Component: Arm Lock / Restraint Plunger Spring
• Listed Application: TP9KACX, TP9KAC, TP9KAF, AL2-9, MTP-9, MTP-9-DURO

Replacement / Cross-Reference Numbers

• Replaces: Tuxedo Lift TP9KACX-032

Fitment and Ordering Notes

Verify your lift model and current part number against your parts diagram or manual before ordering. This spring is used across a range of private-label lift brands that share the Duro TP9-series power unit and arm assembly, including Kernal Lift, Tuxedo Lift, Duro Lift, Eagle Lift, Auto Lift, Prokar Lift, and North American Auto Equipment. If your lift carries one of these brand names and uses the same TP9-series arm lock assembly, this spring is likely the correct replacement – but always confirm with your parts diagram.
