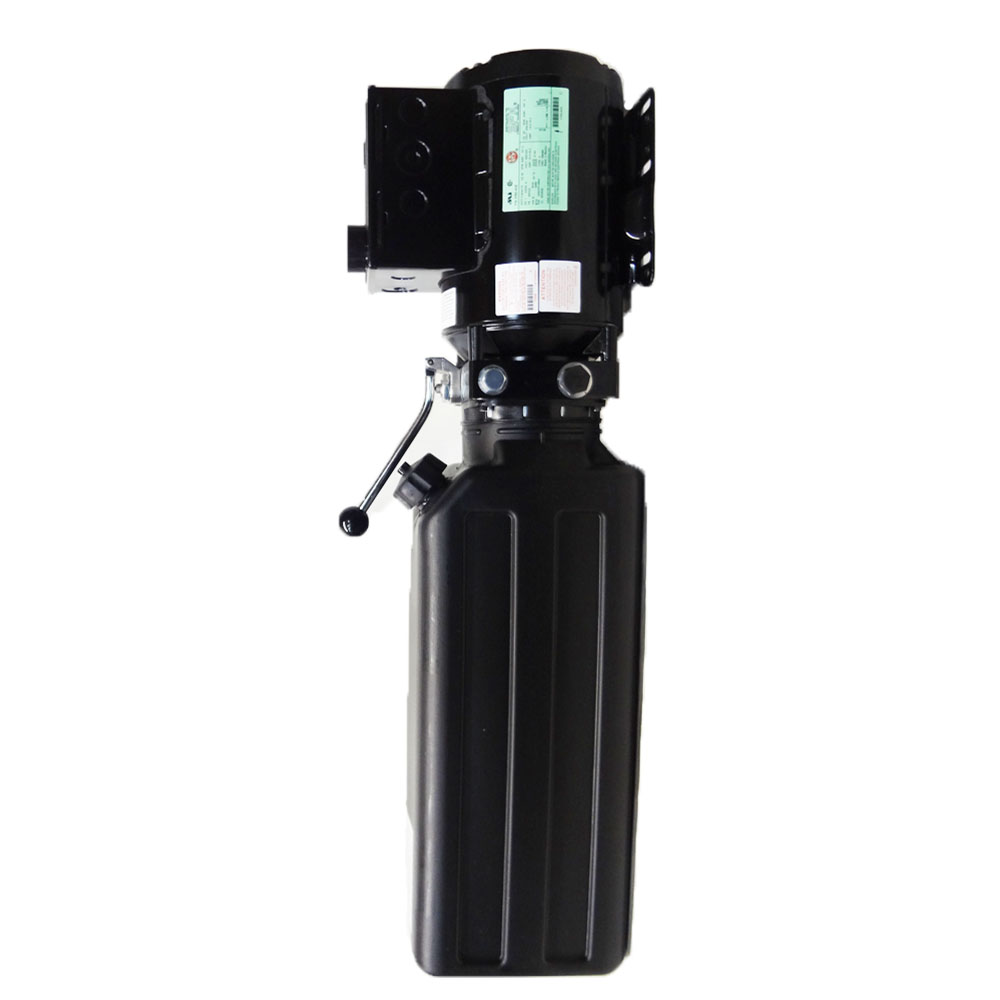

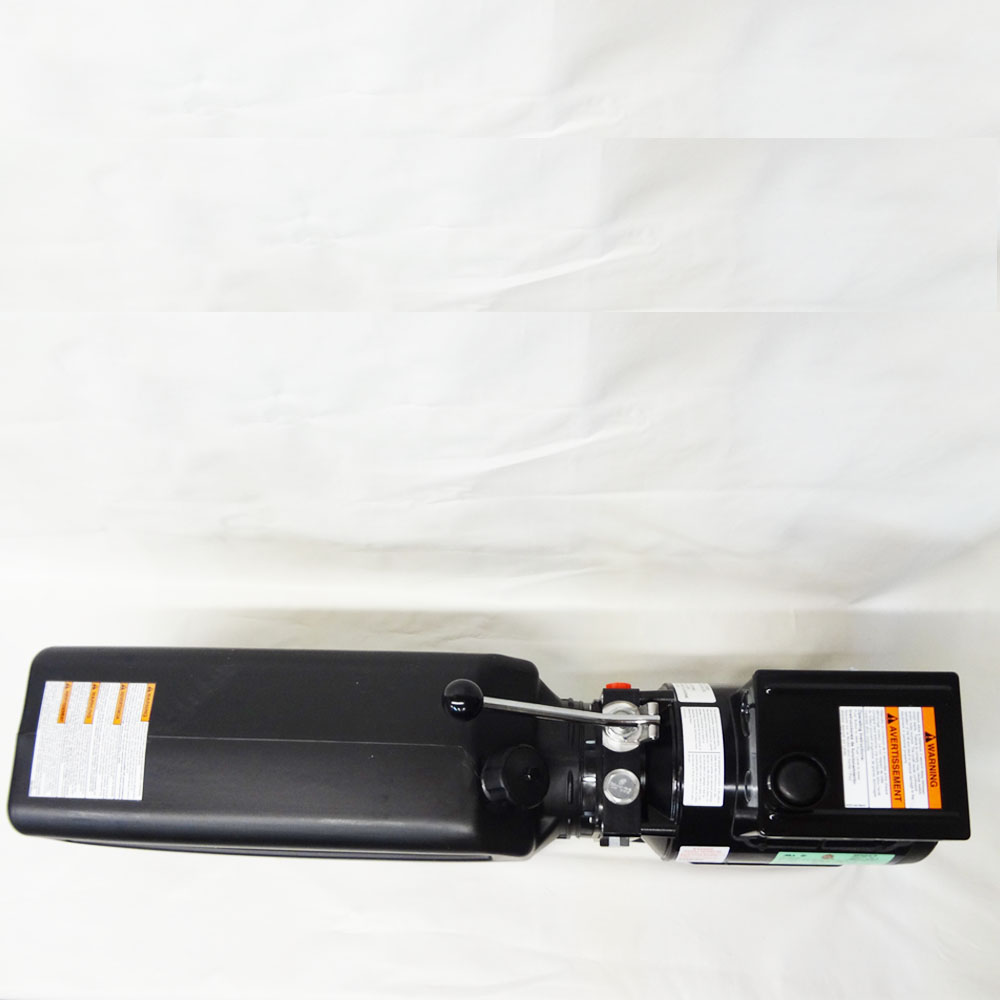

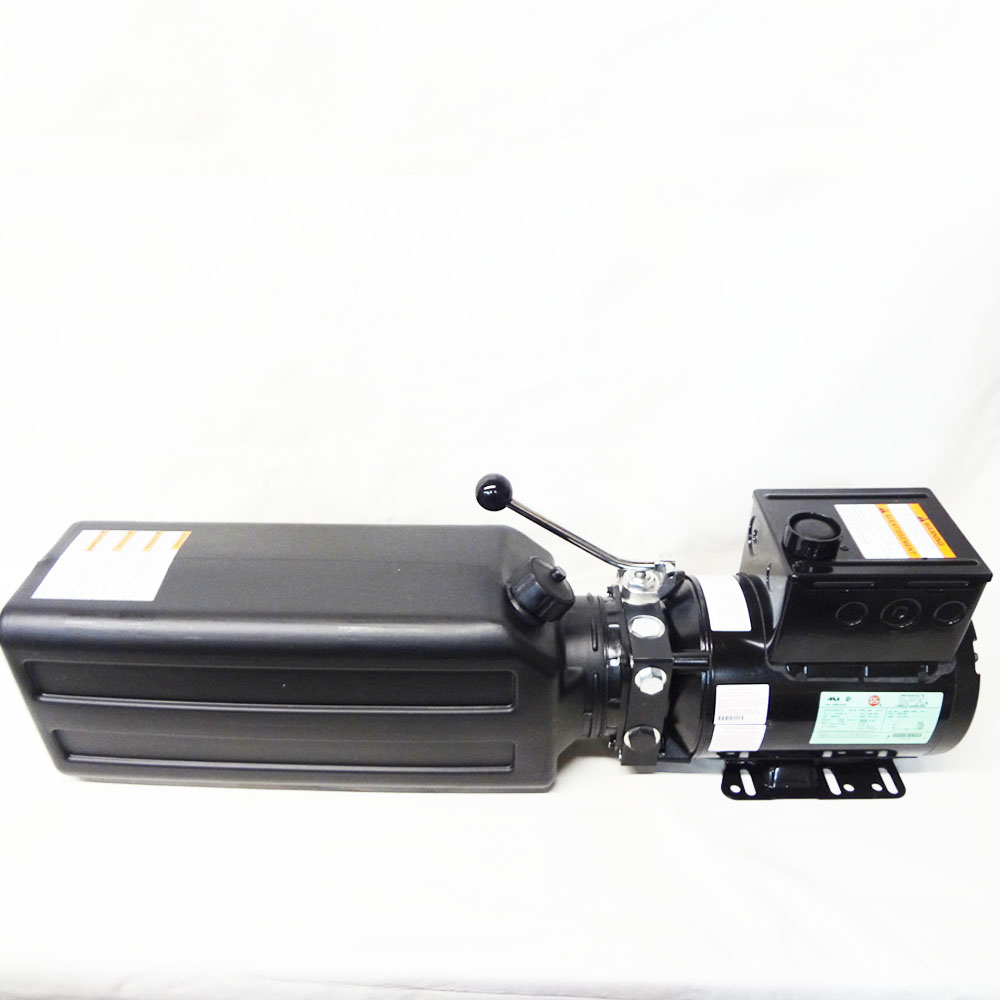

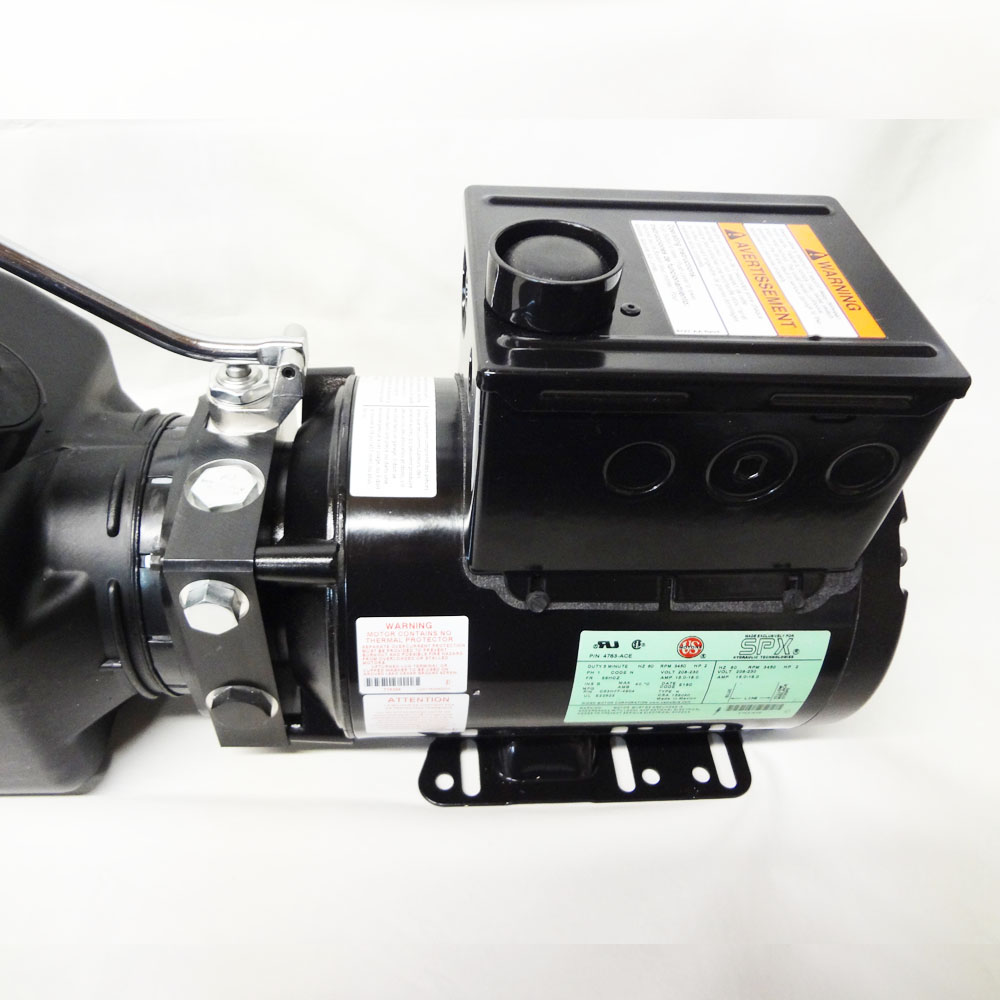

SPX Stone Hydraulic Power Unit for Tuxedo TP9 TP9KAC Duro 9K-10K 2-Post Car Lift
When the Duro or Tuxedo Lift import power unit on your 2-post lift fails, this USA-made SPX Stone unit is a proven replacement that corrects many common reliability issues associated with the original import unit. Includes hydraulic tank, pump, motor, and switch as a complete assembly. Before ordering, confirm your lift runs on 208-230V single-phase power.
Product Information
- Brand / Manufacturer: SPX Stone (Fenner)
- Manufacturer / Reference Part Number: Replaces Tuxedo/Kernal PU-220V-L-H, PU-Duro-220v
- Store SKU: SP10AH
- Component: Complete Hydraulic Power Unit (tank, pump, motor, switch)
- Voltage: 208-230V single phase, 60 Hz
- Motor: 2 HP, 3450 RPM (3.5 HP torque equivalent)
- Flow Rate: 2.1 GPM
- Tank Capacity: 4 gallons
- Certification: ETL Certified, Made in USA
- Fluid Compatibility: Standard hydraulic oil or Dexron II transmission fluid
- Listed Application: Tuxedo Lift TP9, TP9KACX, TP9KAC; Duro, Hernal, Redline, Eagle, Auto Lift, Bison 9K-10K TP9-style 2-post lifts
Replacement / Cross-Reference Numbers
- Replaces Tuxedo/Kernal PU-220V-L-H, PU-Duro-220v
Fitment & Ordering Notes

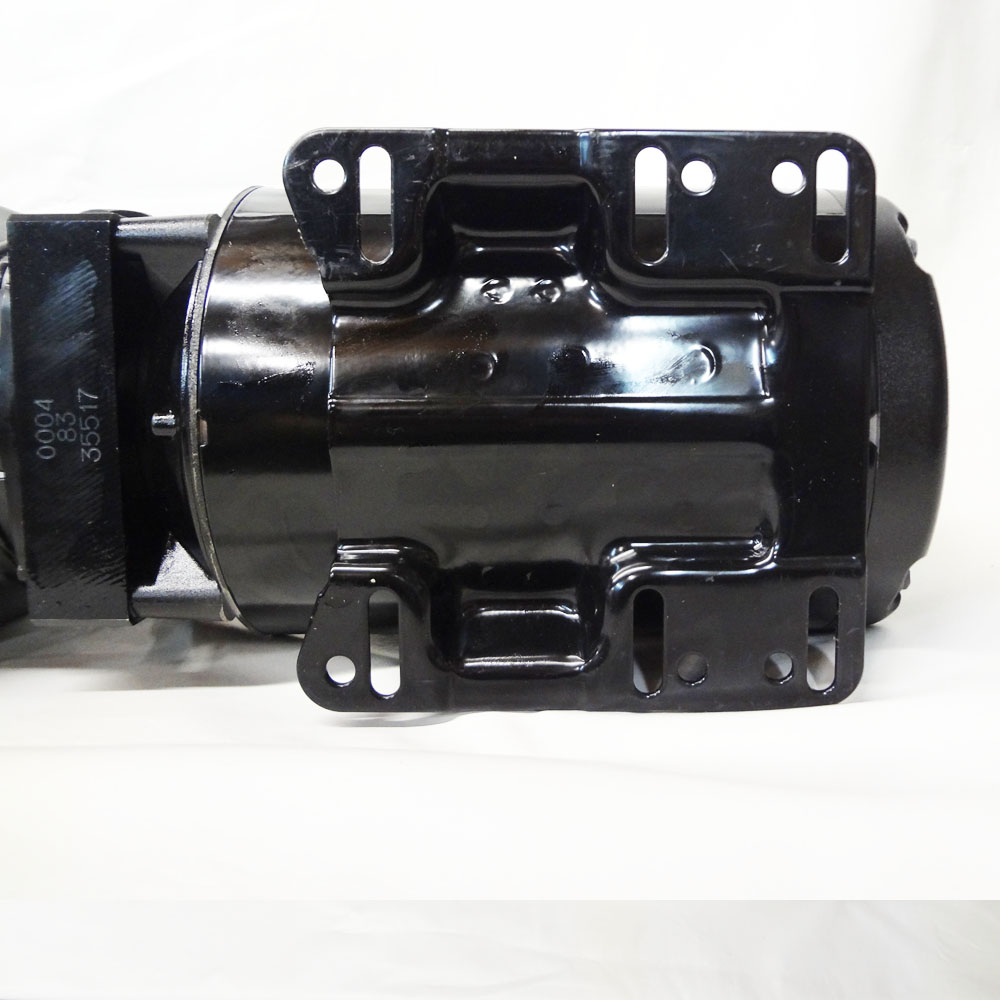

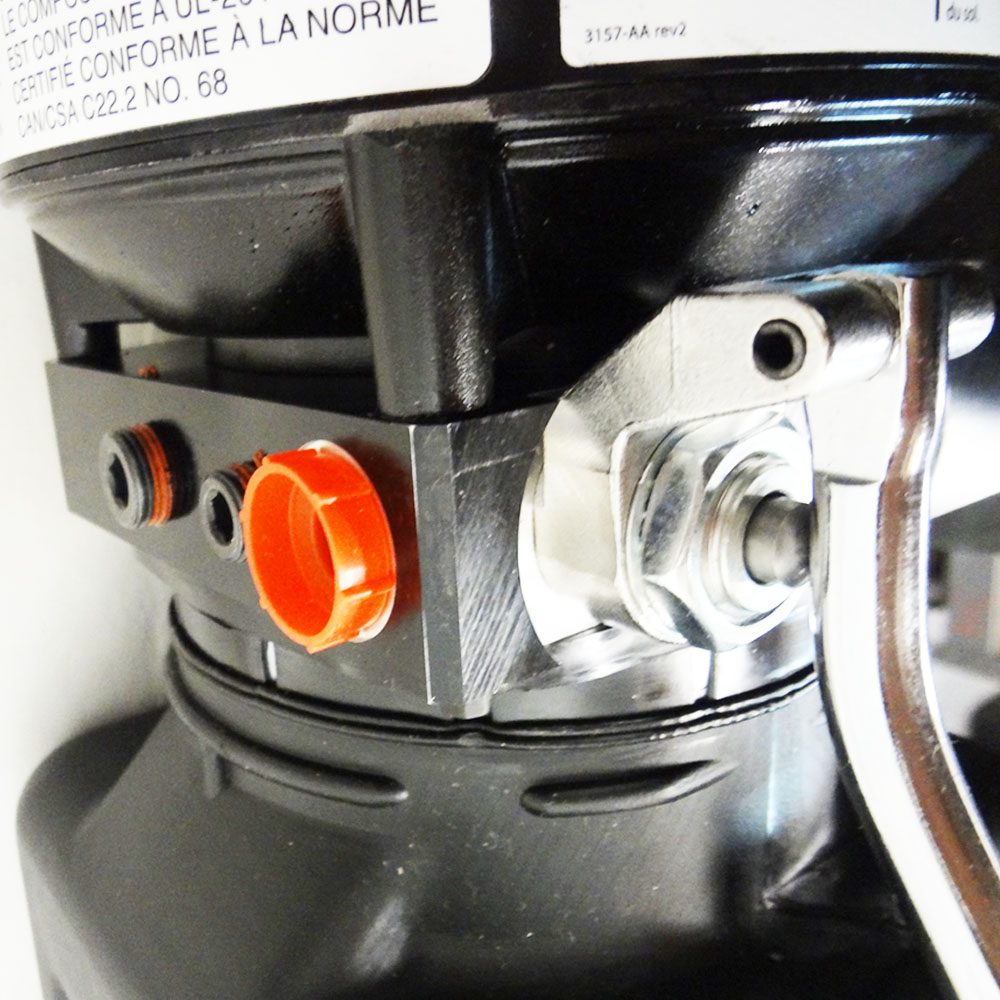

This unit can replace Duro, Tuxedo, Bison, Auto Lift, and Eagle brand power units on TP9-style lifts. The pump outlet can be positioned on either side. A universal mounting bracket is included. If your original unit has a limit switch and actuator inside the switch box, those components must be transferred to the new unit. Always verify fitment before ordering.
Additional Product Information
WARNING: Replacing the hydraulic power unit does not increase the rated capacity of the lift. Never exceed the rated capacity – structural failure will occur.
