Home > Parts Breakdowns > Direct Lift Parts > Direct Lift HR8000 Parts > HR8000 Carriage

HR8000 Carriage

Drawing Number

HR8000 Carriage

Parts Description

8 Available Parts

9

Carriage

Carriage

17

Flat Washer

Flat Washer

$15.57

37

4.75" Cable Sheave

4.75" Cable Sheave

$68.00

38

Ø20 Flat Washer

Ø20 Flat Washer

$14.53

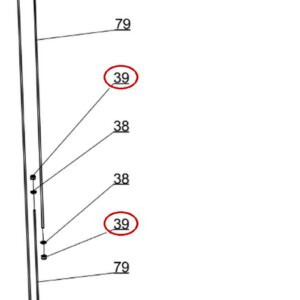

39

3/4"-16unf Lock Nut

3/4"-16unf Lock Nut

$17.65

44

Ø25 Snap Ring

Ø25 Snap Ring

$14.53

77

4.75" Wheel

4.75" Wheel

$75.00

79

Cross Cable

Cross Cable

$92.00

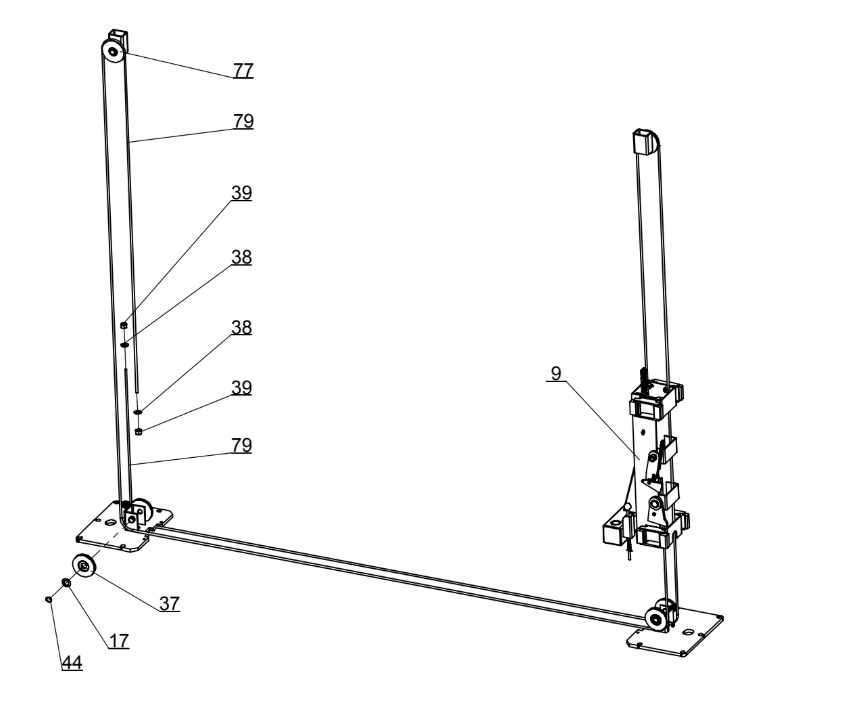

Factory parts breakdown for the Direct Lift HR8000 / OH8000 8,000 lb two post lift: .

Match the numbered callouts in the drawing to the parts list below to find the exact replacement part.
