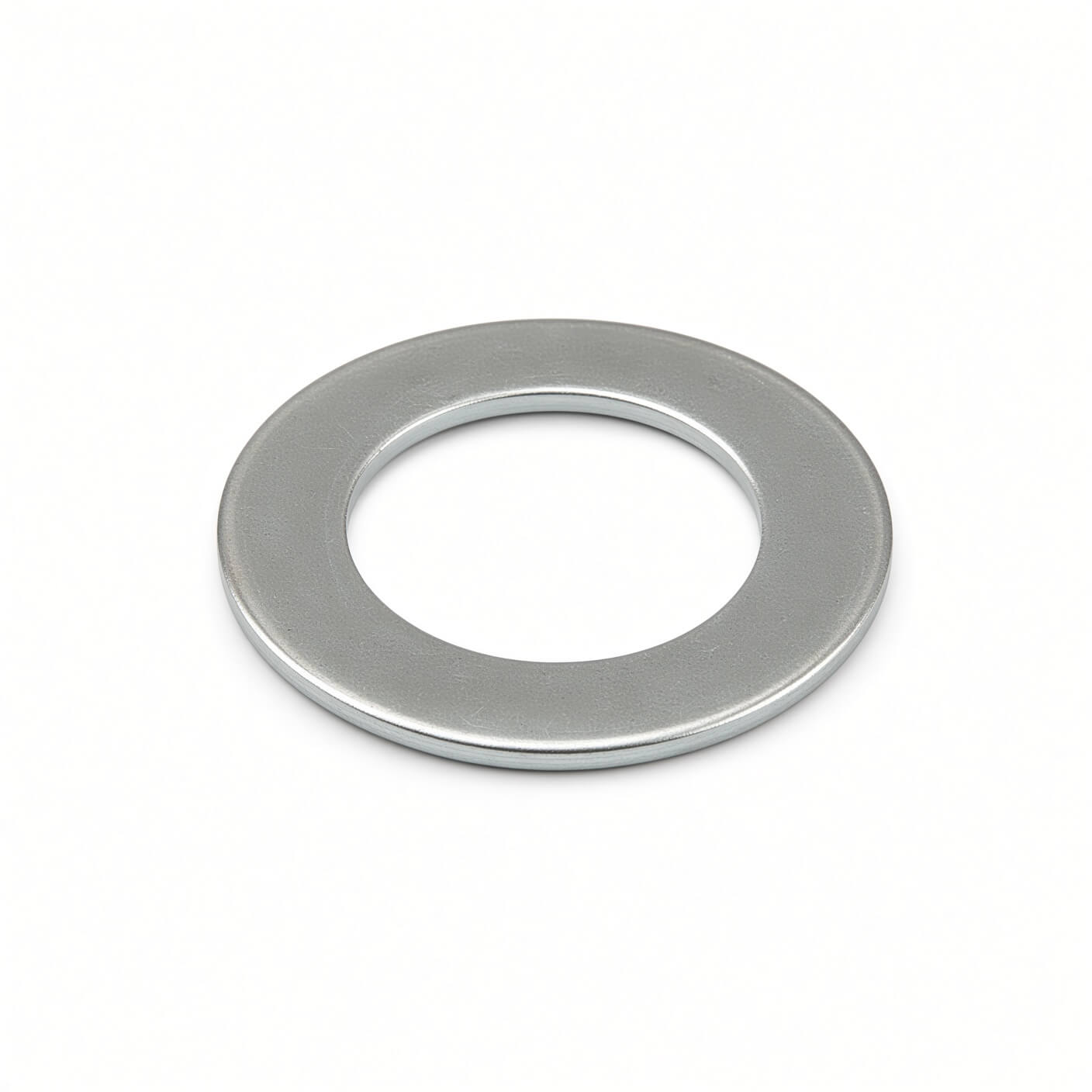

Direct Lift 30400-1005C Flat Washer for HR8000 / BP9 / 2-Column 8K Lifts
Replace missing, worn, or damaged lift hardware with the 30400-1005C Flat Washer, listed for use on HR8000 / BP9 / 2-Column 8K Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.
Product Information
- Brand / Equipment: Direct Lift
- Manufacturer / Reference Part Number: 30400-1005C
- Store SKU: DIT1005C
- Component: Flat Washer
- Listed Application: HR8000 / BP9 / 2-Column 8K Lifts
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

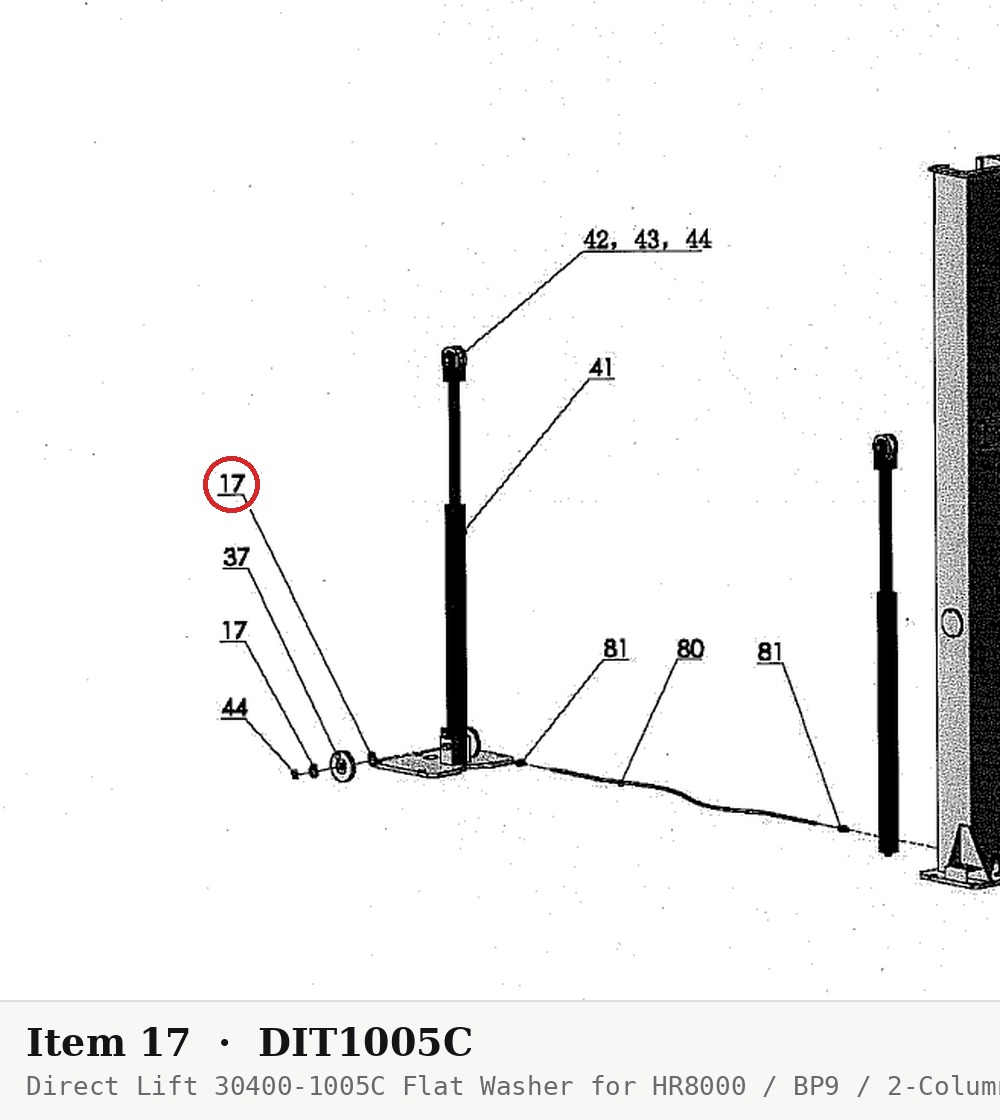

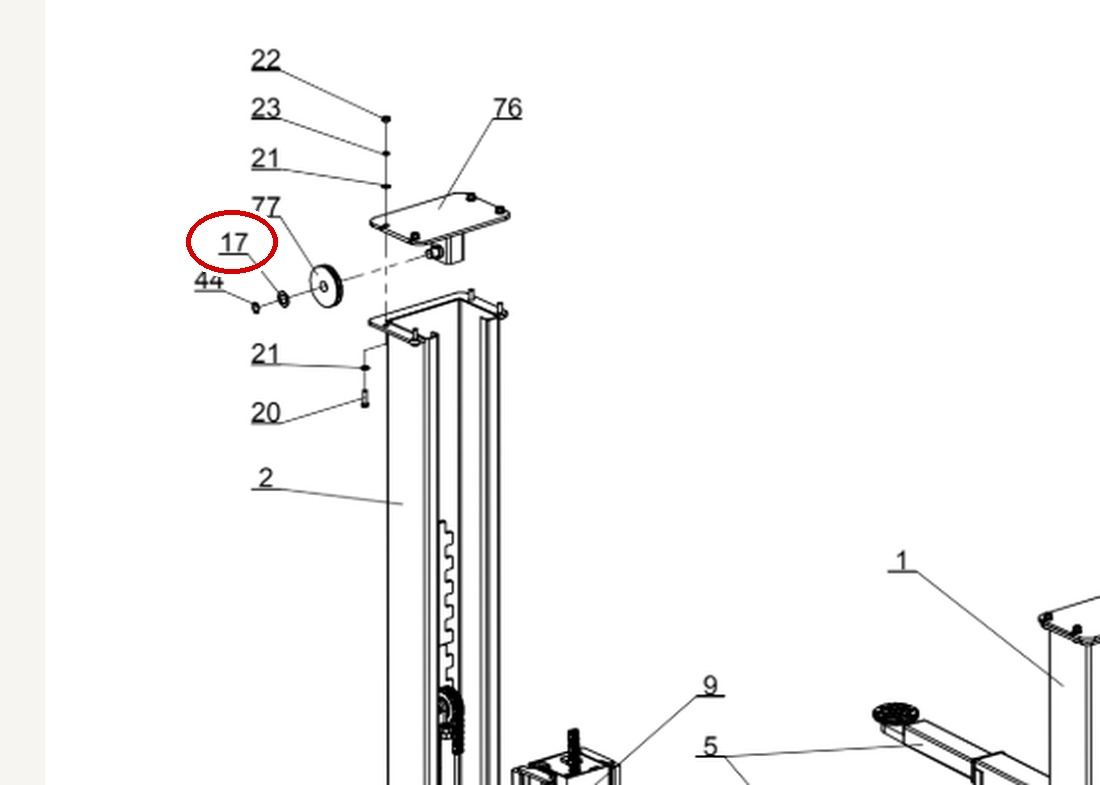

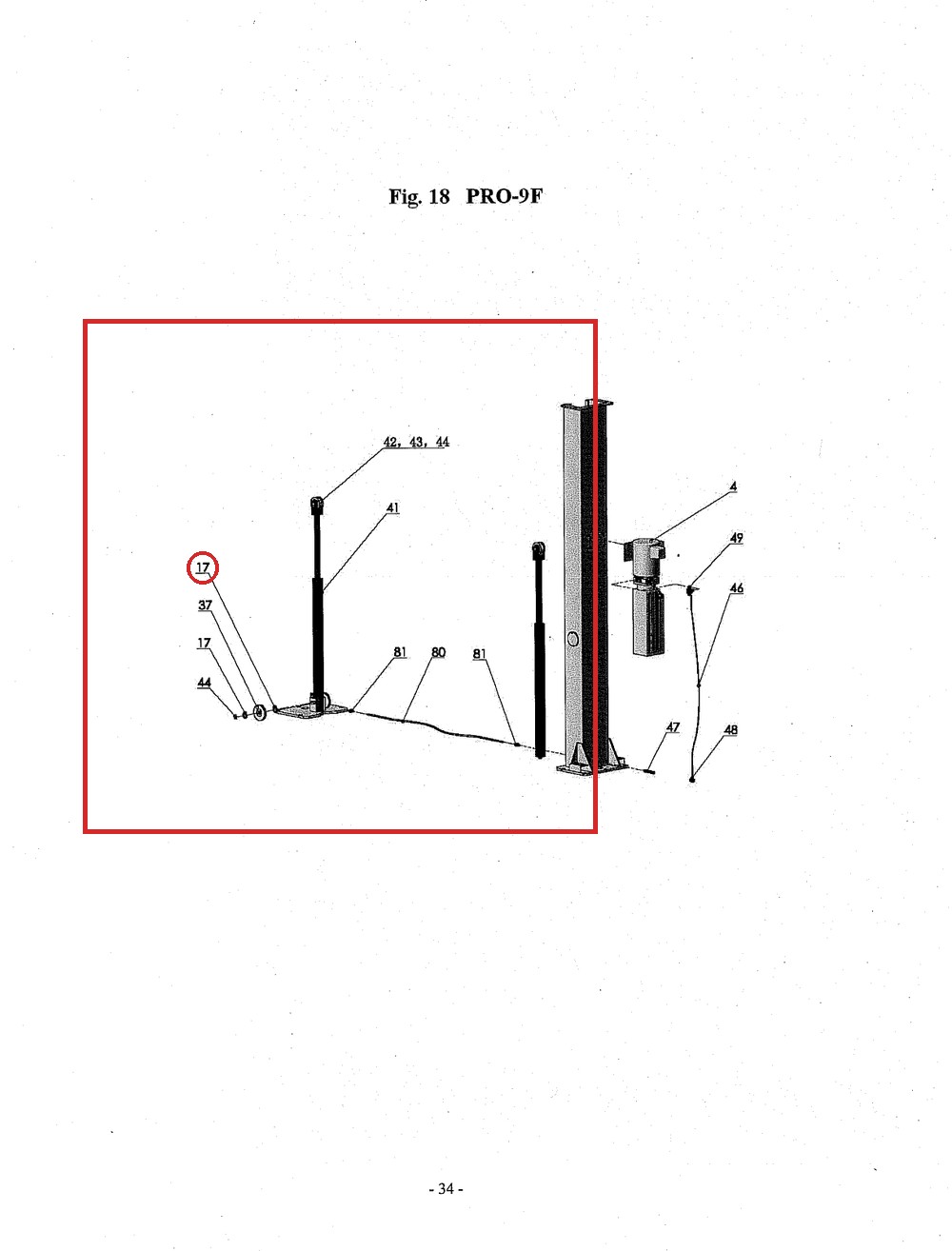

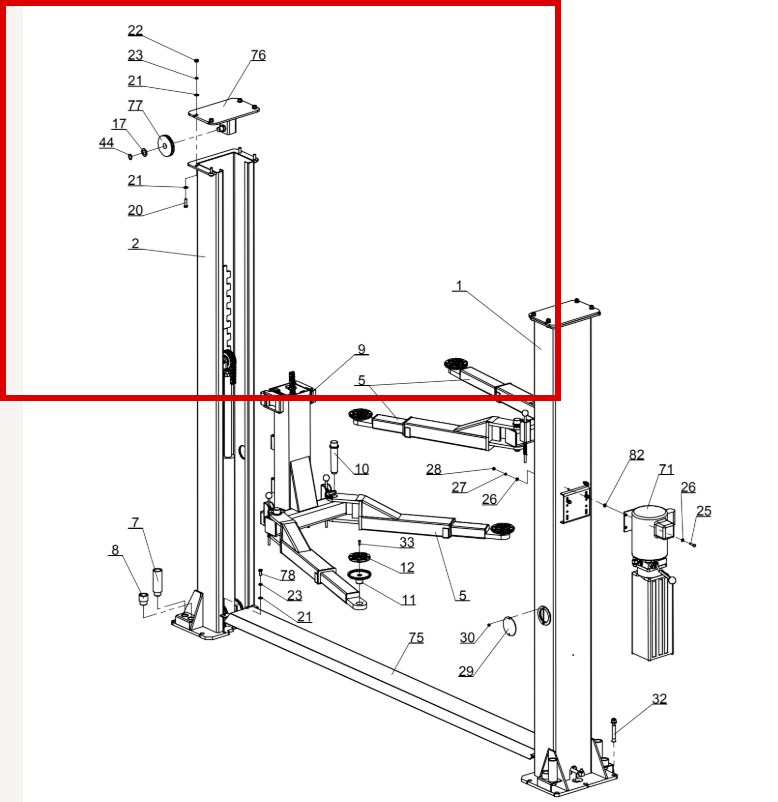

In the drawing images above this is part number 17 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing and part number 18 in the PARTS BREAKDOWN BP9 FLOOR PLATE AU drawing and part number 17 in the PARTS BREAKDOWN HR8000 8K FLOOR PL drawing.
Fits the following lift models — part number 30400-1005C appears in the parts breakdown of each of these lifts: Direct Lift 8K Two-Column Automotive, BP9 Floor Plate, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PRO-9 / PRO-9F 9K Two-Column, PRO-9F 9K Floor Plate, HR-8000, PRO-9F, PROV10 (early).
This flat washer is used with fastening hardware in the column/carriage and cable sheave assemblies, distributing clamping load and protecting the mating surfaces. Replace washers that are deformed, worn, or missing when servicing these assemblies.
OEM-style replacement hardware for Direct Lift 8K series lifts. Verify the position number against Figure #8 or Drawing 1 of your parts breakdown before ordering.
