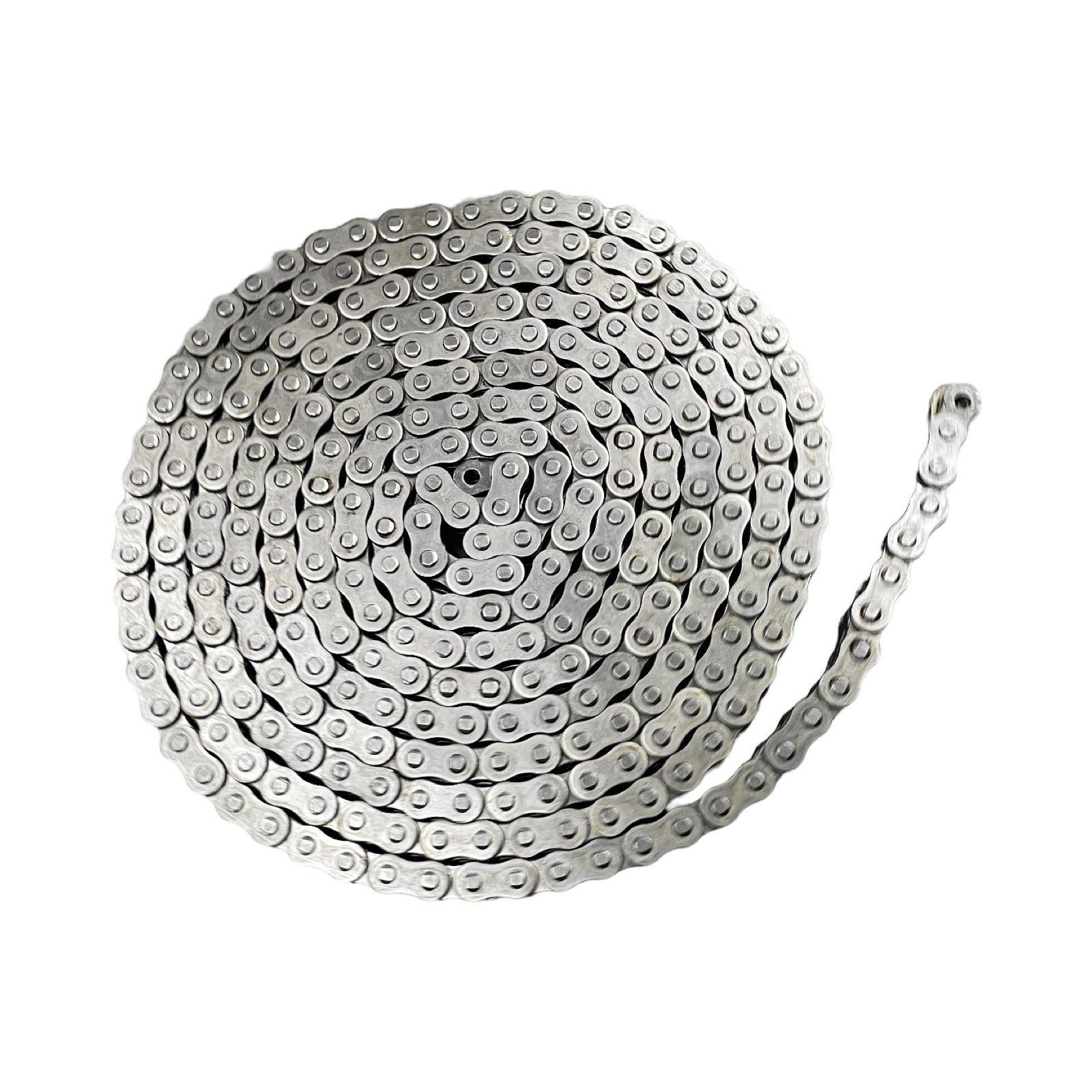

Cross Rail Chain for Forward Lift 12K 4 Post, 12000LR, Rural 98 Built 2007 to Current 992691

$203.00

Forward Car Hoist Lifting Chain Cross Rail Chain for 4 Post Car Lift

Cross rail beam chain for forward Lift

Fits Forward lift models 12000LR, Rural 98 Built 2007 to Current 992691

Replaces Part Number forward Lift 992691

Alternate Part # FOD2691

See below for Product details and fitment  ” PLEASE MEASURE LIFT BEFORE ORDERING PART”

Product Description

This is a Cross Rail lifting chain for most Forward 12000lb 4 post truck lifts, built from 2007 to Current, with cross rail chains attached to the Bottom of power side column and to the Top of the offside column.  This chain runs from stud on top of Off Side column makes a 90degree turn through X Rail to the Cylinder Side column makes another 90degree turn down and anchors in the bottom of that column.  These chains can wear out. The pins that hold each link together can spin and links can break, also when a roller fails it can break or wear out the chain’s links.

When replacing your chain always replace the entire chain from end to end and always inspect your rollers that the chain rides on to ensure they are rolling freely and are not warn out in the center.

This chain is found on Forward hoist models 12K 4 Post 12000LR, Rural 98 Built 2007 to Current   – (Measuring 11′ 3 1/2″ Side to Side – from outside column baseplate to outside column baseplate)

(NOTE: the chain is 12 links thick and measure 1/2″ from pin to pin – PLEASE VERIFY BEFORE ORDERING.

Replaces Forward Part # 992691

Alternate Part #FOD2691

Note: Forward chain lifts have chains running front to back and side to side. This is the chain running from side to side. See our other listings for the overhead chains. This chain may need to be cut down depending on how level your floor is.

Need more parts for a forward 4 post chain lift or have question about this part? Call us at 866-902-6060.

Additional information

Weight 508 oz
Dimensions 12 × 12 × 6 in
