Product Description

This is a cross rail chain roller kit for Ben Pearson 4 Post lifts with lifting chains & 12-25k lb lifting capacity . This roller goes in the crossbeam of the lift (metal beam at front and rear that the runways sit on and chains run through) and can also be used on overhead beam on some models. It measures 2.75″ outside diameter (including edges) and 3/4″ inside diameter / pin hole. It replaces and is an upgrade for rollers with bronze center bearing as it has sealed roller bearings and is maintenance free.This is a heavy-duty roller that we use in all our customers lifts. On 12k & 15K lb capacity lifts there are 4 of these rollers in each corner of the lift cross rail and possibly 2 more on overhead beam. On 18-25k capacity lifts there can be as many as 10 of these rollers.

Typically when these go bad it cause the lift to hop when raising and lowering and the bushing get wore out and cause other problems such as pin damage and chains snapping. Make sure you check all rollers if one has failed.

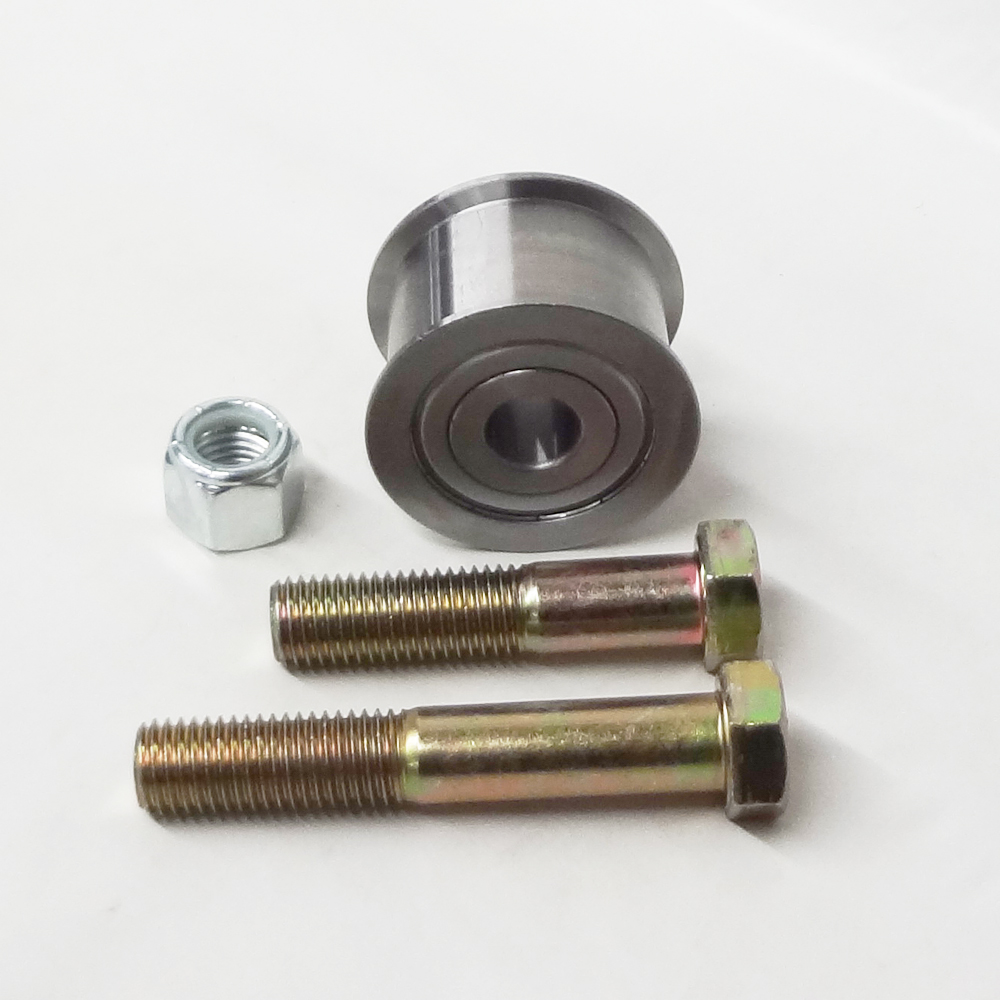

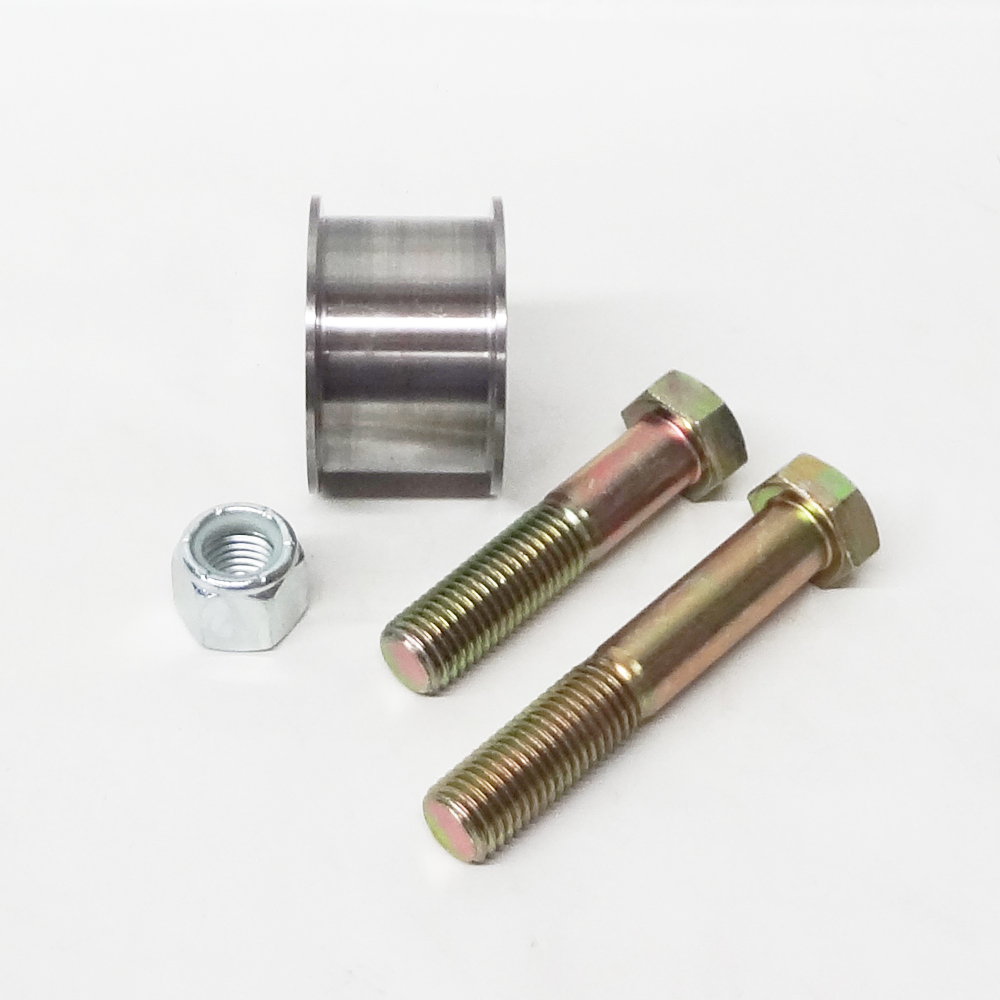

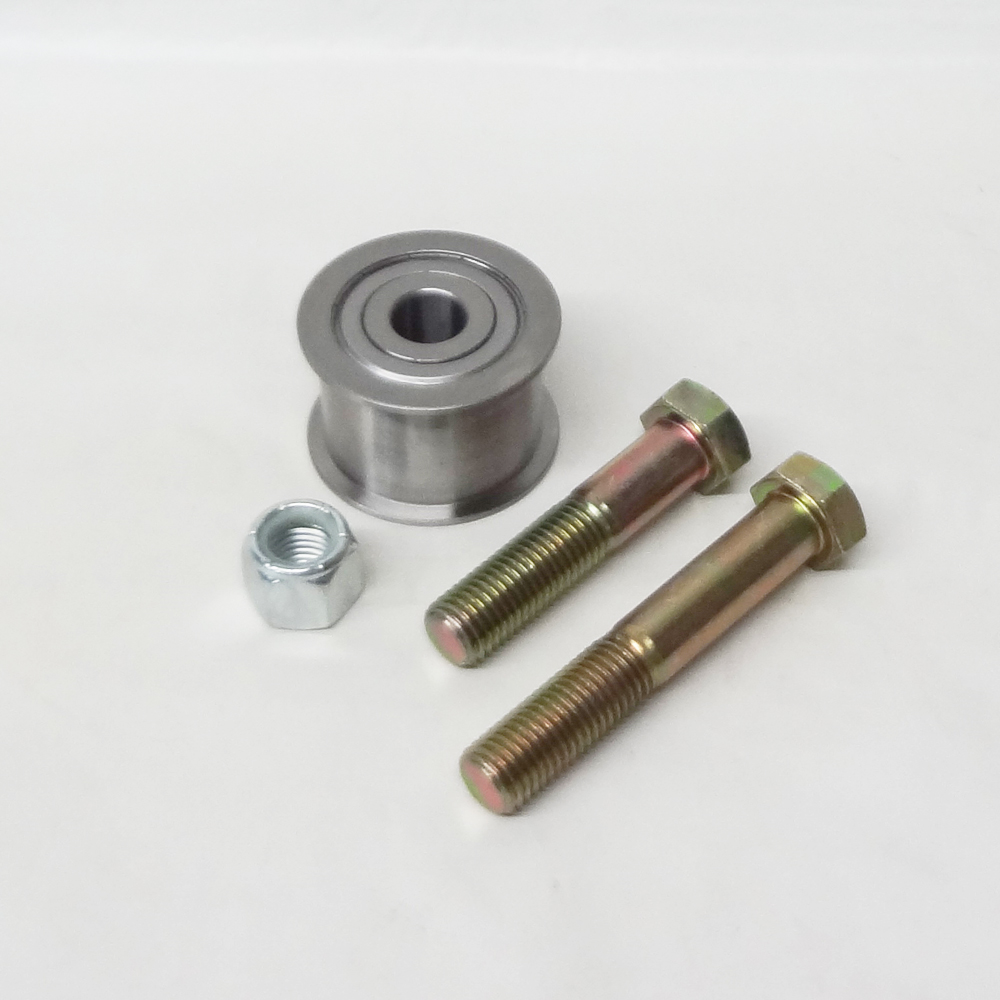

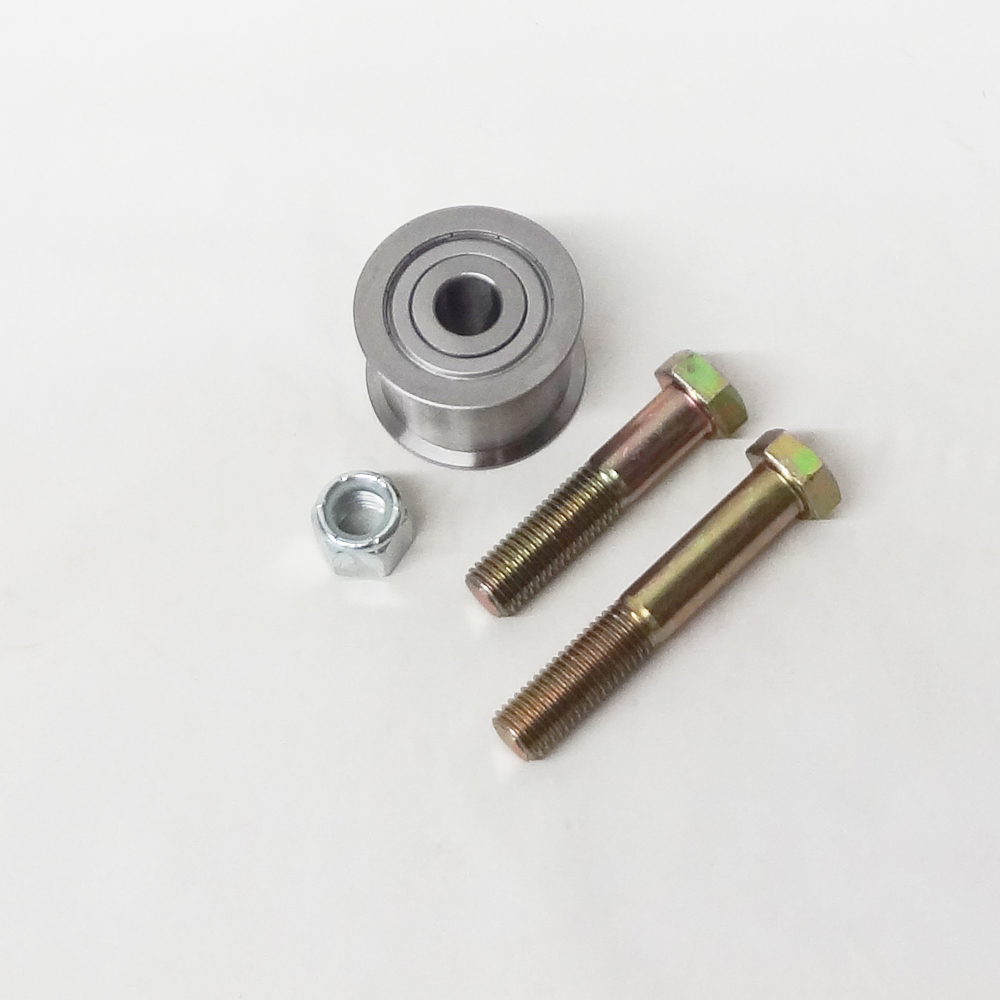

KIT INCLUDES 1 HD cross rail roller and 1 replacement bolt and lock nut

Fits Ben Pearson lift models:

• BAY MASTER 4 POST 12000-4, 12000-4AL, 12000-4AS , Some LMT12 models, LMT22, LMT6, FAR12, LMA12 & others (Measure pin size as ben pearson offered 2 pin sizes)

Ben Pearson 80028, 91130, BH-7102-40

4 Post Ben Pearson Lift Chain Roller Bearing / Pulley for Chain Lift

Brand: Ben Pearson lift parts

MAY FIT MANY OTHER LIFTS AS WELL. PLEASE MEASURE YOUR ROLLER OR CALL US IF YOU ARE UNSURE OF FITMENT

Call us at 866-902-6060 if you have any questions about this product or any other auto equipment questions.
