Tuxedo / Duro FP14K-5035 Crossrail Chain Roller Kit - 3-3/8" OD, 20mm Pin - 14K 4 Post Lift

Description

Tuxedo / Duro FP14K-5035 Crossrail Chain Roller Kit – 3-3/8″ OD, 20mm Pin – 14K 4 Post Lift

Replace worn crossrail chain rollers on your 14,000 lb 4 post chain-driven lift. When chain rollers fail or the bushings wear out, the lift can hop during raising and lowering, and worn bushings accelerate pin damage and chain wear. Check all rollers when one has failed. Confirm your roller measures approximately 3-3/8″ outside diameter and rides on a 20mm pin before ordering.

Product Information

• Brand / Equipment: Tuxedo Lift / Duro Lift
• Manufacturer / Reference Part Numbers: FP14K-5035, FP14K-5051, FPK5013
• Store SKU: TUO5013

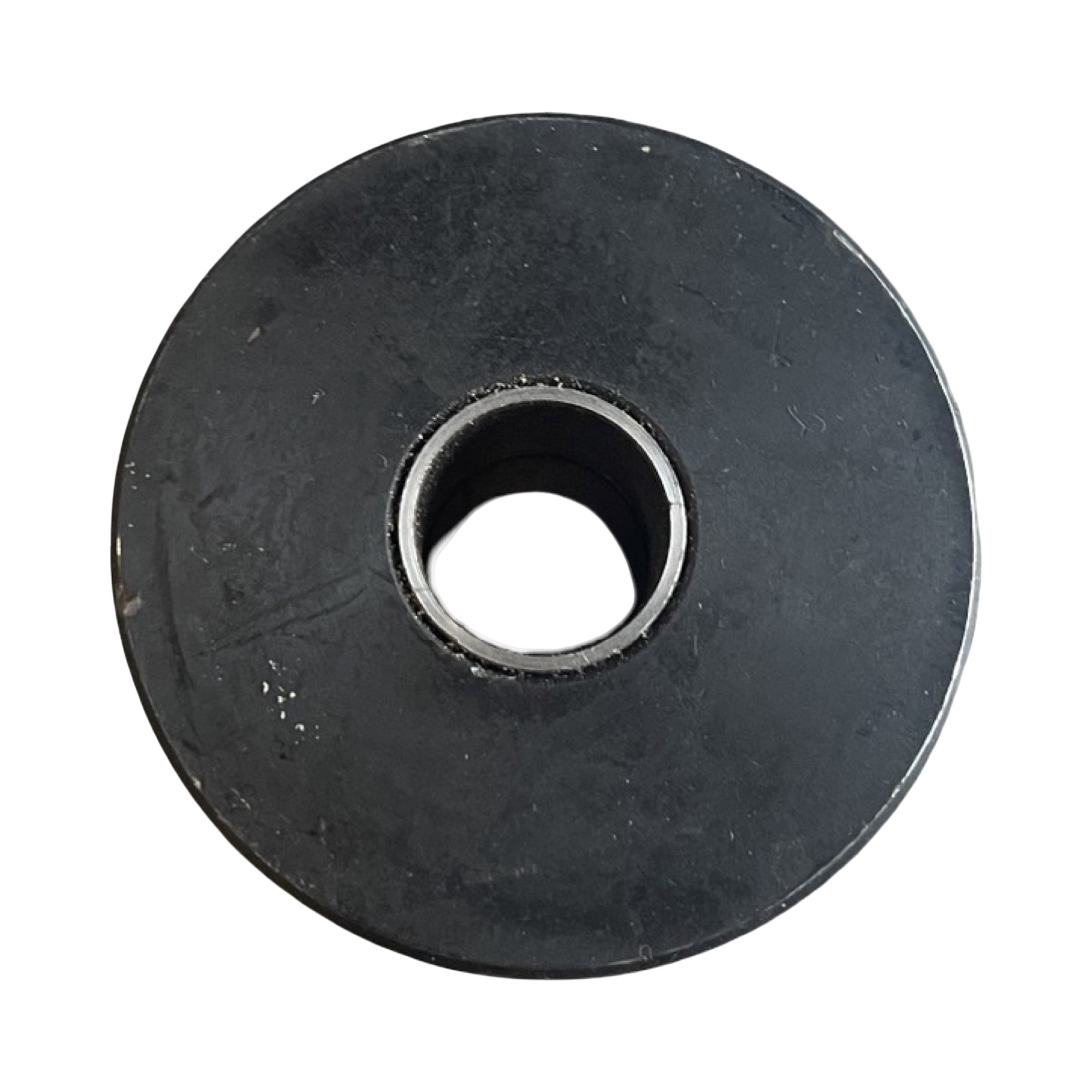

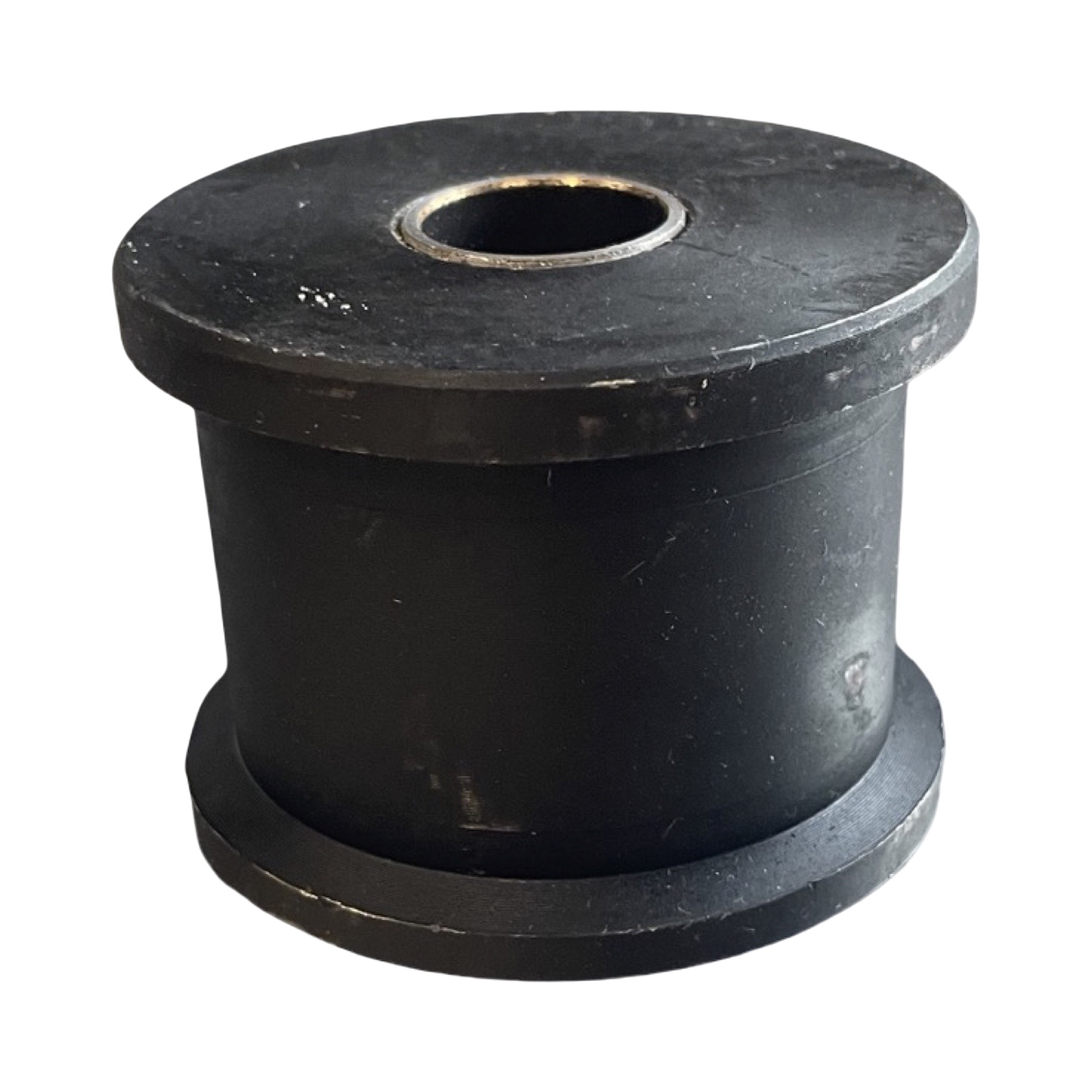

• Component: Crossrail Chain Roller with Bushing (crossbeam and overhead beam)
• Roller Outside Diameter: Approximately 3-3/8″
• Pin Diameter: 20mm
• Lift Capacity: 14,000 lb chain-driven 4 post lifts
• Kit Includes: (1) crossrail chain roller, (1) replacement bushing
• Location: Cross rail corners and overhead beam (7 rollers per typical 14K lift)
• Listed Application: Tuxedo Lift FP14000; Kernal Lift, Tuxedo Lift, Duro Lift, Eagle Lift, Auto Lift, Prokar Lift, North American Auto Equipment, and other private-label 14K lb 4 post chain-driven lifts

Fitment & Ordering Notes

Before ordering, confirm your roller measures approximately 3-3/8″ outside diameter and that the pin it rides on measures 20mm. Typical 14K lb 4 post lifts use 7 rollers per lift: 1 in each of the 4 cross rail corners plus up to 3 on the overhead beam. May also fit other private-label lifts with the same roller specifications. Call 1-866-902-6060 if you are unsure of fitment.
