Forward Lift 995390 Chain Anchor Stud - 1-1/8" Thread - CR50, 60000HDL, 40000HDL 4 Post

Description

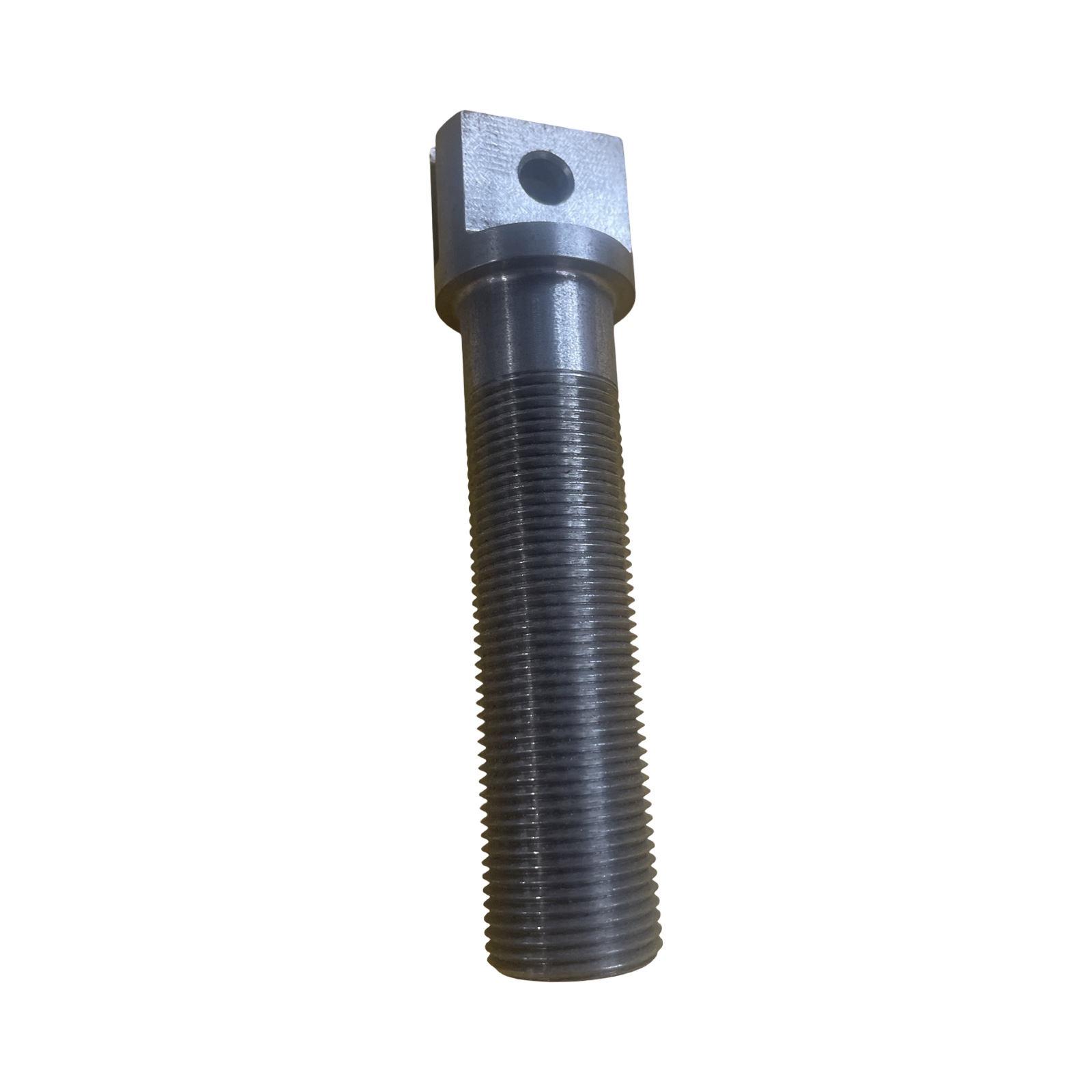

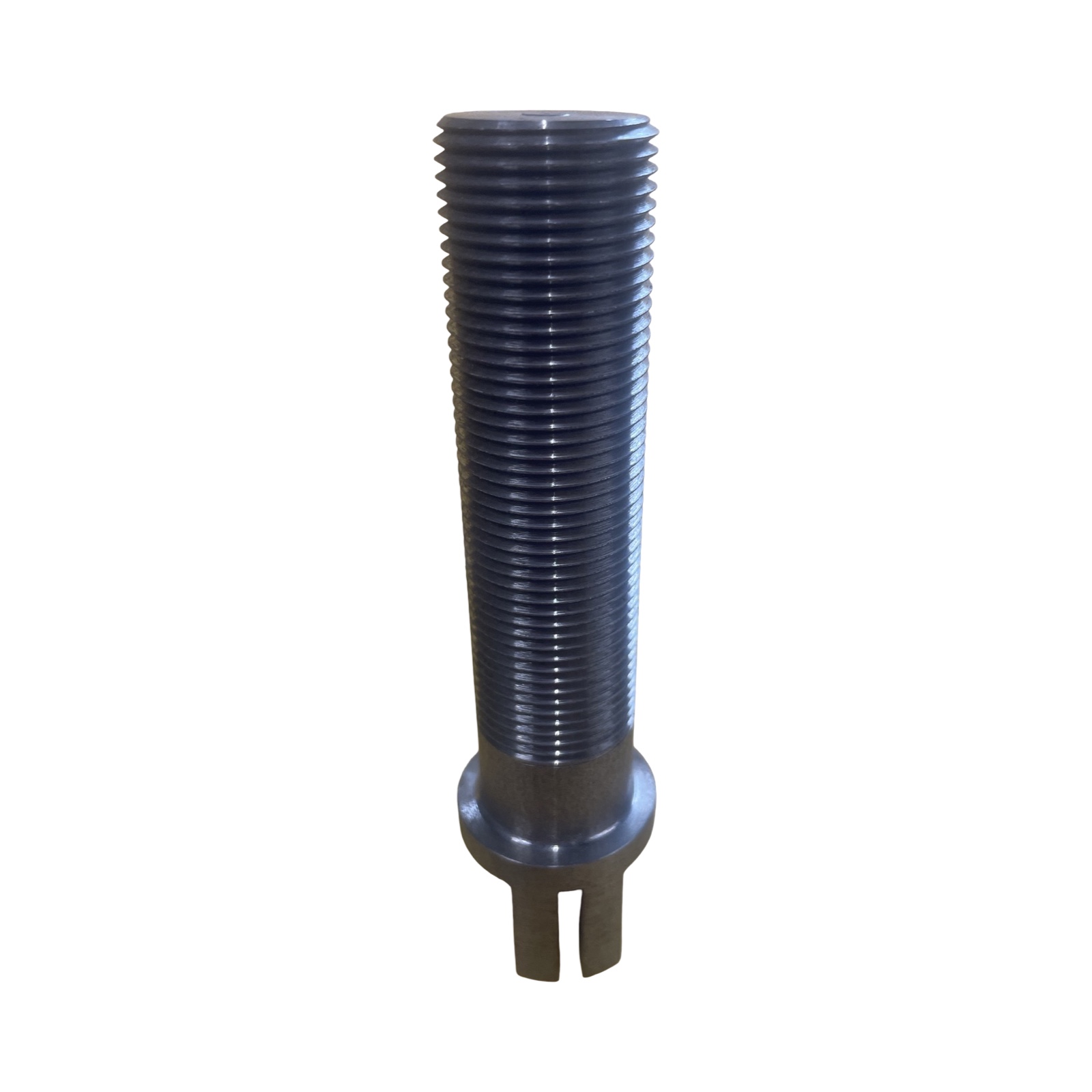

Forward Lift 995390 Chain Anchor Stud – 1-1/8″ Thread, 27K-60K 4 Post Lifts

Replace the crossrail chain anchor stud on your large-capacity 4 post Forward or Rotary lift. This 1-1/8″ diameter threaded stud anchors the chain to the crossrail assembly on heavy-duty chain-driven 4 post truck and bus hoists. Verify the thread diameter and length match your original part before ordering.

Product Information

• Brand / Equipment: Forward Lift / Rotary Lift
• Manufacturer / Reference Part Number: 995390
• Store SKU: FOD5390
• Component: Crossrail Chain Anchor Stud (Adjusting Stud)
• Thread Diameter: 1-1/8″
• Lift Capacity Range: 27,000 – 60,000 lb 4 post chain-driven hoists
• Listed Application: Forward Lift and Rotary Lift 4 post models: CR50, 60000HDL, 40000HDL, and other large-capacity chain-driven 4 post lifts

Fitment & Ordering Notes

Verify the thread diameter of 1-1/8″ and overall stud length match your existing part before ordering. Found on large-capacity Forward Lift and Rotary Lift 4 post chain-driven models with 27K to 60K lb capacity, including CR50, 60000HDL, and 40000HDL. May also fit other large-capacity 4 post chain lifts using this stud configuration. Call 1-866-902-6060 with any questions.
