Bendpak 5701110 Air Cylinder Anchor Bracket for 4 Post Lift, BP-12 BP-27 Magnum Chain Drive

Description

Bendpak 5701110 Air Lock Cylinder Anchor Bracket for 4 Post Lifts

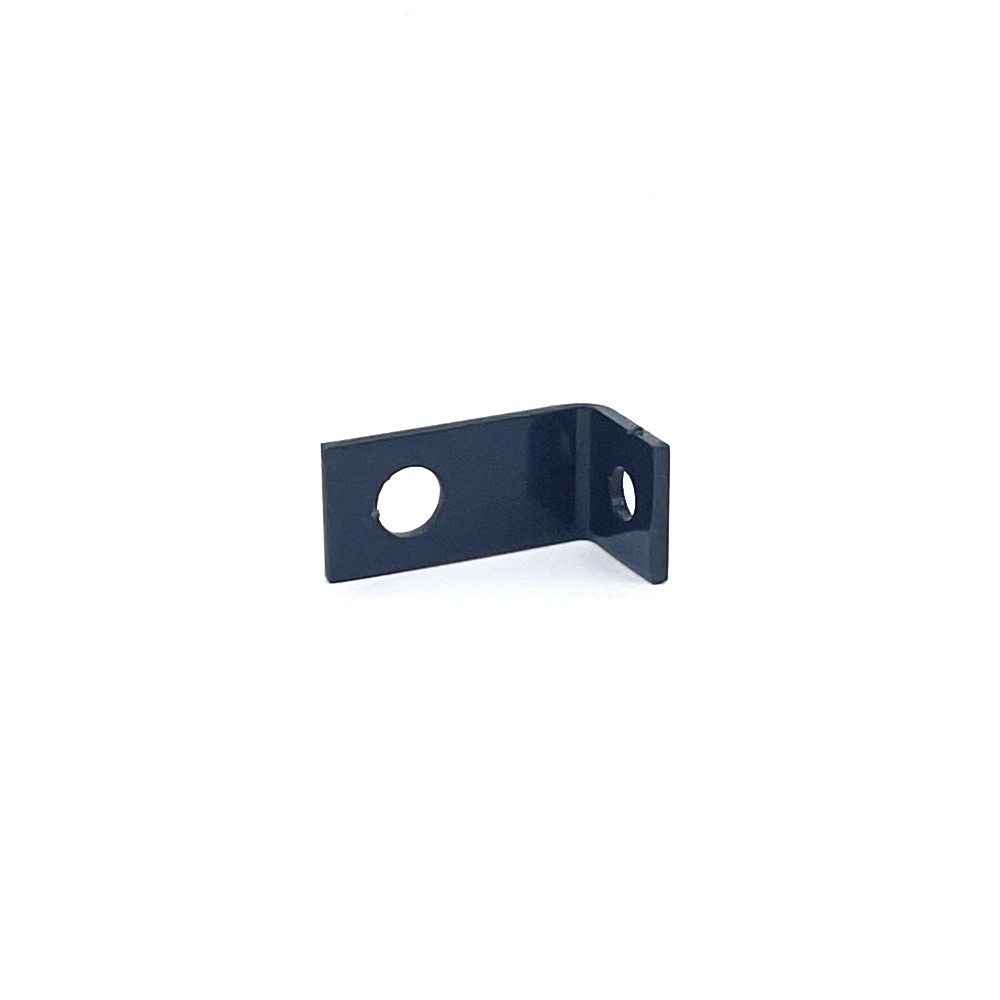

This 90-degree angle bracket mounts to the shaft end of the air lock cylinder on chain-driven Bendpak and Magnum 4-post lifts. It is needed when retrofitting older-style lifts that have a fixed square (clevis-style) block on the cylinder shaft to work with the newer replacement cylinder (5502335). If your existing cylinder already has a removable metal angle bracket, you only need the replacement cylinder, not this bracket.

Product Information

• Brand / Equipment: Bendpak / Magnum
• Manufacturer / Reference Part Number: 5701110
• Store SKU: bek1110
• Component: Air lock cylinder anchor bracket (90-degree angle bracket)
• Mounting: Attaches to shaft end of the air lock cylinder
• Listed Application: Bendpak and Magnum chain-driven 4-post lifts – BP-12, BP-25, BP-27

Replacement / Cross-Reference Numbers

• Replaces Bendpak 5701110

Fitment and Ordering Notes

Required only when older cylinder has a fixed (non-removable) square block on the shaft end. If your cylinder already has a removable angle bracket, order only the replacement cylinder (5502335). Confirm your lift model is listed above. For questions call 866-902-6060.
