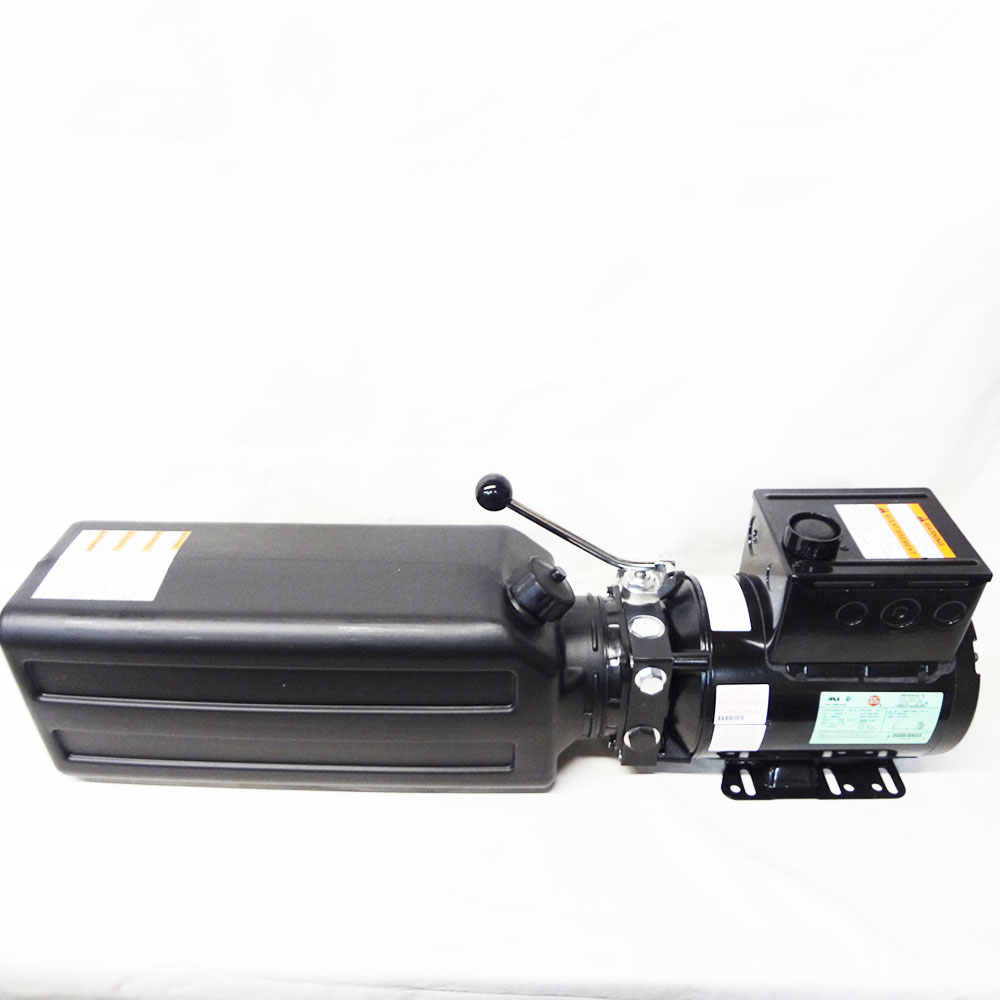

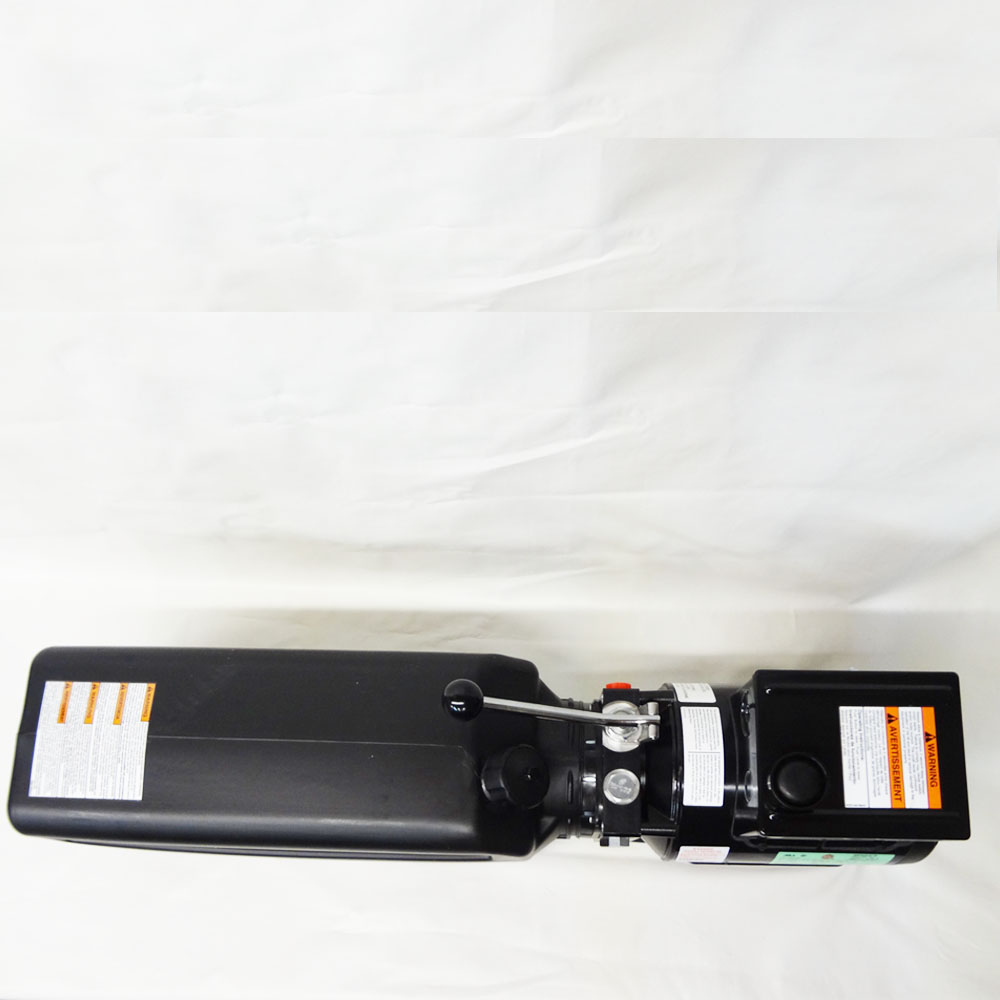

SPX Stone AB-1524 Hydraulic Power Unit for BendPak MX10 MX10AC MX10CX Car Lift
When the hydraulic power unit on your BendPak MX10 series 2-post lift shows oil leaks, reduced flow, or motor failure, a complete SPX Stone replacement restores full operation. Before ordering, confirm your existing unit runs on 208-230V single-phase power and verify the pump outlet orientation required for your installation.
Product Information
- Brand / Manufacturer: SPX Stone (Fenner)
- Manufacturer / Reference Part Number: AB-1524
- Store SKU: SP10AH
- Component: Complete Hydraulic Power Unit (tank, pump, motor, switch)
- Voltage: 208-230V single phase, 60 Hz
- Motor: 2 HP, 3450 RPM (3.5 HP torque equivalent)
- Flow Rate: 2.1 GPM
- Tank Capacity: 4 gallons
- Certification: ETL Certified, Made in USA
- Fluid Compatibility: Standard hydraulic oil or Dexron II transmission fluid
- Listed Application: BendPak MX10, MX10C, MX10AC, MX10CX, MX10ACX
Replacement / Cross-Reference Numbers
- AB-1468, AB1270, 17300001, SPX AB-1524
- Replaces BendPak 5585285, 5585078
Fitment & Ordering Notes

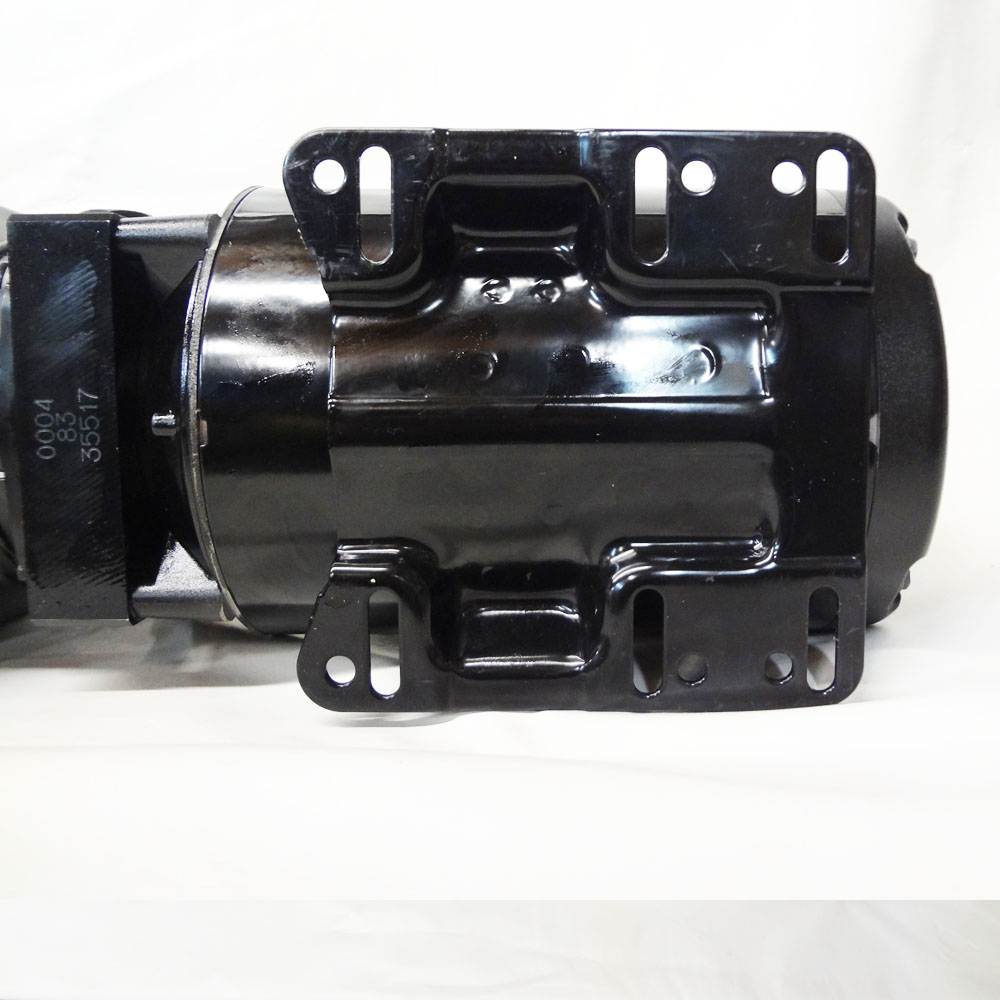

This unit can replace Fenner, SPX, Stone, MTE, WEG, and Monarch brand power units. The pump outlet can be positioned on either side to match your existing pressure-line routing. A universal mounting bracket is included. If your original unit has a limit switch and actuator inside the switch box, those components must be transferred to the new unit. Always verify fitment before ordering.
Additional Product Information
WARNING: Replacing the hydraulic power unit does not increase the rated capacity of the lift. Never exceed the rated capacity – structural failure will occur.
