Challenger Lift 12750 Hyd Hose Tab Weldment T, – 2 post and More for CL12

Replace a leaking, cracked, abraded, or damaged line with the 12750 Hyd Hose Tab Weldment T, – 2 post and More. Confirm the hose length, fittings, routing, and model configuration before ordering. Listed applications include CL12, CL12A, CL12A-DPC.

Product Details

• Brand / Equipment: Challenger Lift
• Manufacturer / Reference Part Number: 12750
• Store SKU: CHR2750
• Component: Hyd Hose Tab Weldment T, – 2 post and More

Compatible / Referenced Equipment Models

• CL12: 12,000 lb two-post lift
• CL12A: 12,000 lb adjustable-width two-post lift
• CL12A-DPC: 12,000 lb dual-pendant-control two-post lift

Parts Diagram & Manual Reference

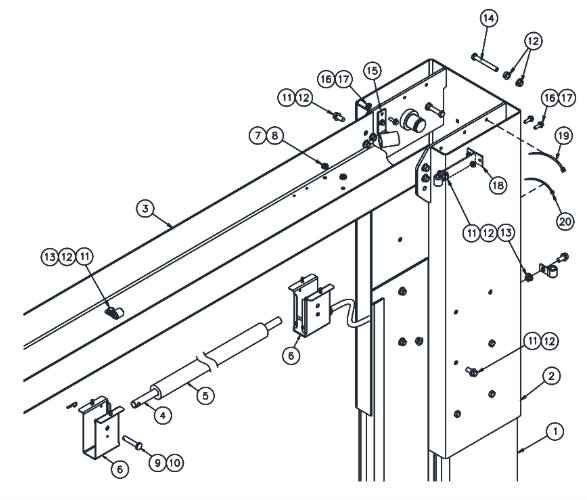

• Challenger Lift -12750 – Hyd Hose Tab Weld T Item# 18 On parts breakdown
• Official Challenger CL12A parts breakdown (Fig A. Column Extension & Overhead) identifies this as Item #18 with the description HOSE SUPPORT BRACKET (T) on page 18.
• Official Challenger CL12A-DPC parts breakdown (Fig A. Column Extension & Overhead) identifies this as Item #18 with the description HOSE SUPPORT BRACKET (T) on page 20.

Original Product & Fitment Information

Challenger Lift 12750 Hydraulic Hose Tab Weld T

Used to hold hydraulic hose at Top of column.

Fits CL12 and other Challenger two post lifts

Note: Product ship times may vary if shipped from Manufacturer.

Challenger Lift -12750 – Hyd Hose Tab Weld T

Item# 18 On parts breakdown

Verified Part-Number Fitment

The exact part number 12750 appears in verified Challenger parts documentation for the applications below:

• CL12A — Item #18, page 18: HOSE SUPPORT BRACKET (T)
• CL12ADPC — Item #18, page 20: HOSE SUPPORT BRACKET (T)
• CL16-0-3S / CL16-2-3S — Item #50, page 20: HOSE SUPPORT BRACKET
• CL20-0 / CL20-2 — Item #50, page 20: HOSE SUPPORT BRACKET

Compatible Makes & Models

Compatible makes / equipment brands:

• Challenger

Verified fitment models include:

• CL12
• CL12A
• CL12A-DPC
• CL12-LC
• CL16-0-3S
• CL16-2-3S
• CL20-0
• CL20-2

Fitment can vary by production date, serial range, lift configuration, and equipment revision. Match the manufacturer/reference part number and your specific model before ordering.

Fitment & Ordering Notes

Challenger Lift components can vary by model, serial-number range, production date, lift height, side or orientation, color, power-unit configuration, and equipment revision. Before ordering, compare the manufacturer part number, specifications, diagram callout, model information, and original component. A similar appearance alone does not confirm interchangeability.
