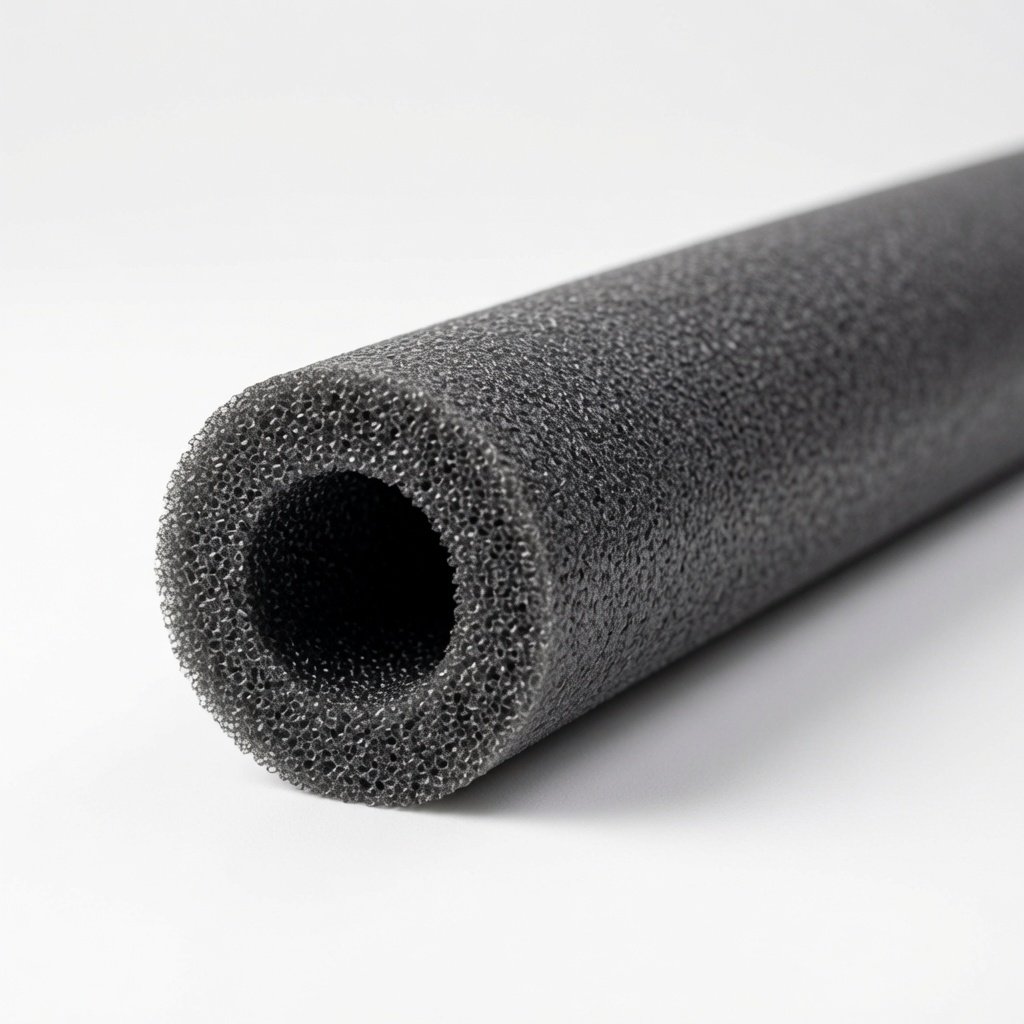

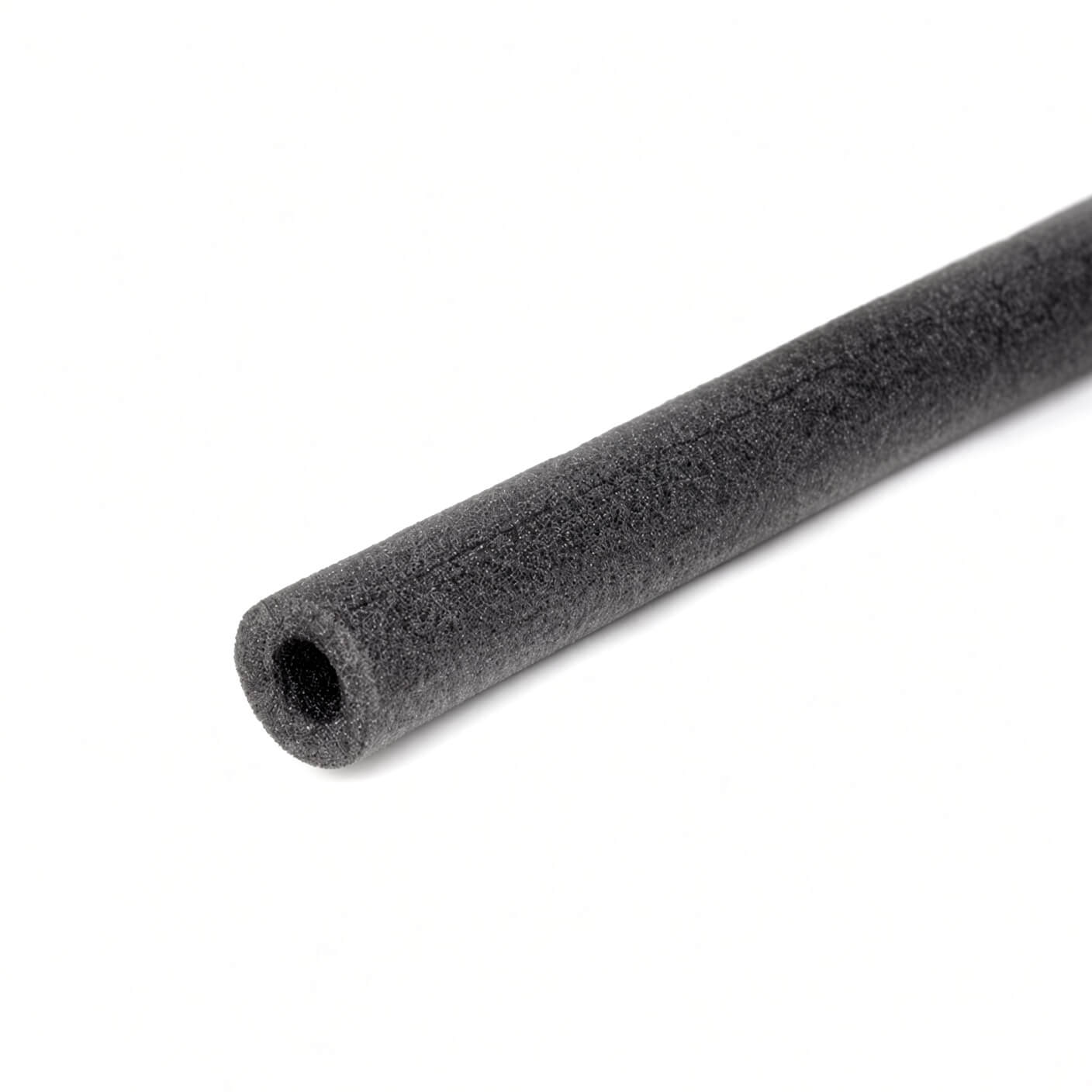

Challenger Lift 31129 Pipe Insulation / Foam Pad for Shutoff Bar – Fits 39000 / CL9 / OE-9

Description

Challenger Lift 31129 Pipe Insulation / Foam Pad for Shutoff Bar – Fits 39000 / CL9 / OE-9

Replace a worn, cracked, torn, missing, or damaged contact component with the 31129 Pipe Insulation / Foam Pad for Shutoff Bar. Confirm dimensions, mounting style, and lift application before ordering. Listed applications include 39000, CL9, OE-9, CL10, 36000, 37000 and additional applications shown below.

Product Details

• Brand / Equipment: Challenger Lift
• Manufacturer / Reference Part Number: 31129
• Store SKU: CHR1129DRP
• Component: Pipe Insulation / Foam Pad for Shutoff Bar

Compatible / Referenced Equipment Models

• 39000: Challenger two-post lift series
• CL9: 9,000 lb two-post lift series
• OE-9: older Challenger 9,000 lb two-post lift series
• CL10: 10,000 lb Versymmetric two-post lift
• 36000: older Challenger two-post lift series
• 37000: older Challenger two-post lift series
• CL10A: 10,000 lb adjustable-width Versymmetric two-post lift
• CL12A: 12,000 lb adjustable-width two-post lift
• CL12A-DPC: 12,000 lb dual-pendant-control two-post lift
• E15: 15,000 lb two-post lift
• SA10: 10,000 lb symmetric/asymmetric two-post lift

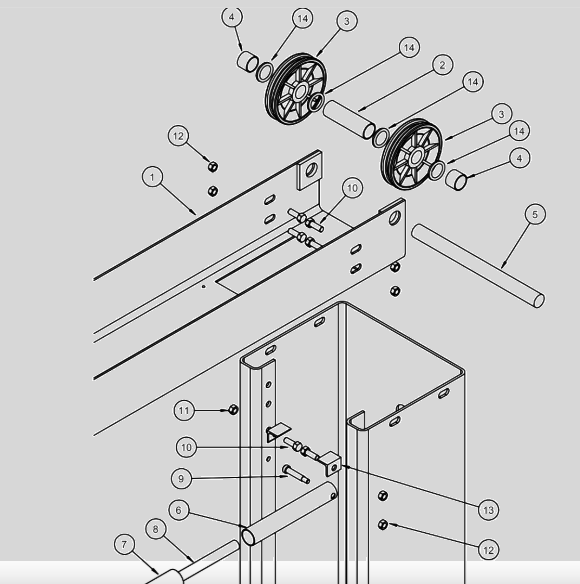

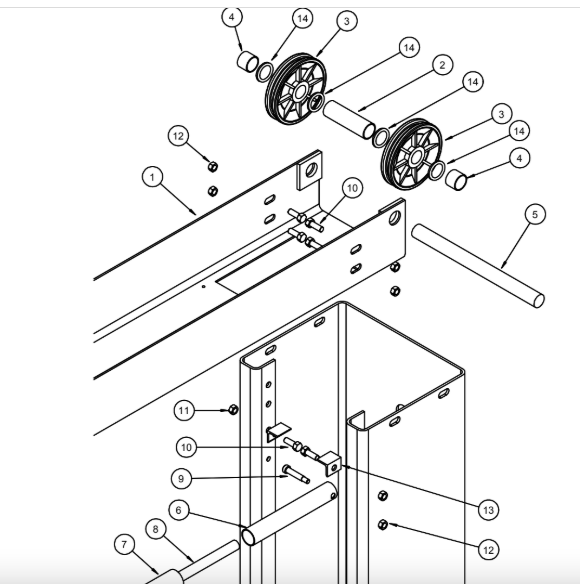

Parts Diagram & Manual Reference

• Challenger Lift 31129 Pipe Insulation Foam Pad for Shutoff Bar Fits Challenger Lift 39000, CL9, OE-9, Cl10, and other models Lead times may vary depending on Vendor Stock Challenger Lift 31129 Pipe Insulation Foam Pad for Shutoff Bar Fits Challenger Lift 39000, CL9, OE-9, CL10 and other models Item# 7 In Diagram Lead times may vary depending on Vendor Stock
• Official Challenger CL10 parts breakdown (Fig A. Column & Overhead) identifies this as Item #5 with the description SHUTOFF BAR CUSHION on page 14.
• Official Challenger CL10A parts breakdown (PARTS BREAKDOWN) identifies this as Item #5 with the description SHUTOFF BAR CUSHION on page 15.
• Official Challenger CL12A parts breakdown (Fig A. Column Extension & Overhead) identifies this as Item #5 with the description SHUTOFF BAR CUSHION on page 18.
• Official Challenger CL12A-DPC parts breakdown (Fig A. Column Extension & Overhead) identifies this as Item #5 with the description SHUTOFF BAR CUSHION on page 20.
• Official Challenger E15 parts breakdown (PARTS BREAKDOWN) identifies this as Item #4 with the description OVERHEAD SHUT OFF BAR CUSHION on page 13.
• Official Challenger SA10 parts breakdown (PARTS BREAKDOWN) identifies this as Item #72 with the description Shutoff Bar Cushion on page 18.

Original Product & Fitment Information

Challenger Lift 31129 Pipe Insulation Foam Pad for Shutoff Bar

Fits Challenger Lift 39000, CL9, OE-9, Cl10, and other models

Lead times may vary depending on Vendor Stock

Challenger Lift 31129 Pipe Insulation Foam Pad for Shutoff Bar

Fits Challenger Lift 39000, CL9, OE-9, CL10 and other models

Item# 7 In Diagram

Lead times may vary depending on Vendor Stock

Verified Part-Number Fitment

The exact part number 31129 appears in verified Challenger parts documentation for the applications below:

• CL10 — Item #5, page 15: SHUTOFF BAR CUSHION
• CL10A — Item #5, page 15: SHUTOFF BAR CUSHION
• CL12A — Item #5, page 18: SHUTOFF BAR CUSHION
• CL12ADPC — Item #5, page 20: SHUTOFF BAR CUSHION
• CL16-0-3S / CL16-2-3S — Item #5, page 17: SHUTOFF BAR CUSHION
• CL20-0 / CL20-2 — Item #5, page 17: SHUTOFF BAR CUSHION
• E15 — Item #4, page 13: OVERHEAD SHUT OFF BAR CUSHION
• SA10 — Item #72, page 18: Shutoff Bar Cushion

Compatible Makes & Models

Compatible makes / equipment brands:

• Challenger

Verified fitment models include:

• 39000
• CL9
• OE-9
• CL10
• 36000
• 37000
• CL10A
• CL12A
• CL12A-DPC
• E15
• SA10
• CL12-LC
• CL16-0-3S
• CL16-2-3S
• CL20-0
• CL20-2

Fitment can vary by production date, serial range, lift configuration, and equipment revision. Match the manufacturer/reference part number and your specific model before ordering.

Fitment & Ordering Notes

Challenger Lift components can vary by model, serial-number range, production date, lift height, side or orientation, color, power-unit configuration, and equipment revision. Before ordering, compare the manufacturer part number, specifications, diagram callout, model information, and original component. A similar appearance alone does not confirm interchangeability.
