Direct Lift 1WB-14 Hydraulic Hose A / Overhead Hose for PRO9D & DL9 2-Post Lifts

Description

Direct Lift 1WB-14 Hydraulic Hose A / Overhead Hose for PRO9D & DL9 2-Post Lifts

The 1WB-14 Hydraulic Hose A / Overhead Hose is listed for use on PRO9D & DL9 2-Post Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 1WB-14
• Store SKU: DITWB14
• Component: Hydraulic Hose A / Overhead Hose
• Listed Application: PRO9D & DL9 2-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

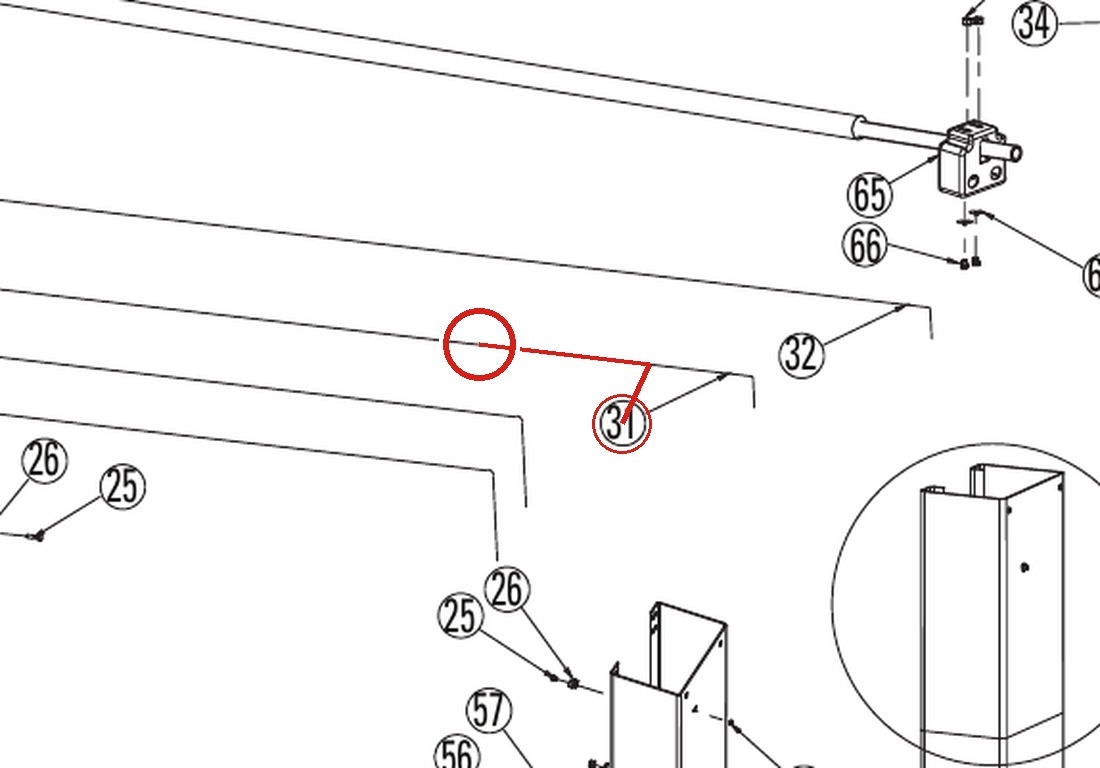

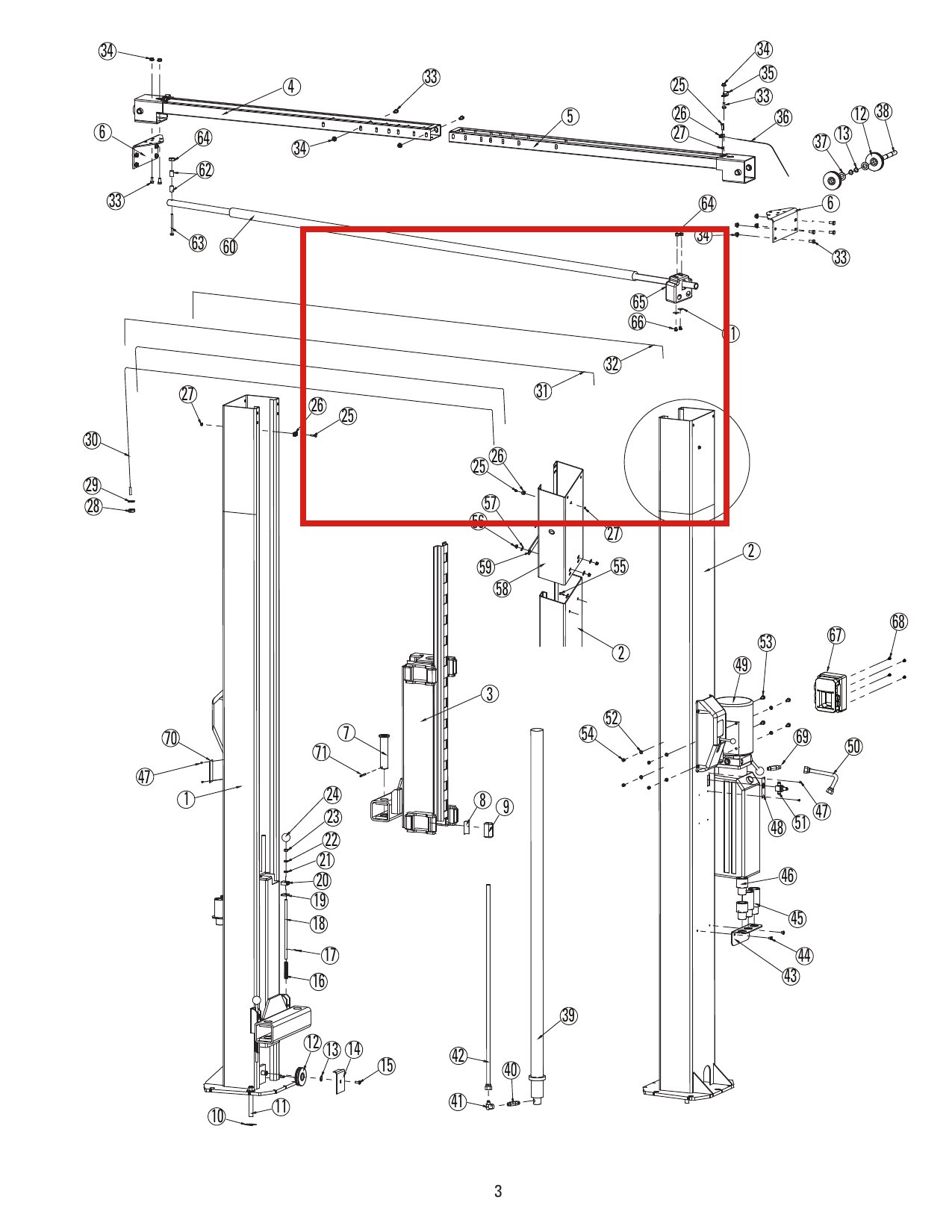

In the drawing images above this is part number 31 in the DL9 parts drawing and part number 46 in the PARTS BREAKDOWN PRO9D 9K 2-COLUMN drawing and part number 46 in the pro9d drawing.

Fits the following lift models — part number 1WB-14 appears in the parts breakdown of each of these lifts: Rotary Lift DL9; Direct Lift PRO-9D 9K Two-Column; PRO-9D.

This is the overhead hydraulic hose that routes fluid across the top of the lift between the two columns, supplying the offside cylinder circuit. Replace if the hose shows abrasion where it crosses the overhead beam, cracking at the fittings, or fluid seepage.

OEM-style replacement matching the hose position shown in the PRO9D and DL9 parts breakdowns. Confirm your model and routing diagram before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
