Direct Lift B30-5 M5 Nut for CR14 & PP8+ 4-Post Lifts

Description

Direct Lift B30-5 M5 Nut for CR14 & PP8+ 4-Post Lifts

Replace missing, worn, or damaged lift hardware with the B30-5 M5 Nut, listed for use on CR14 & PP8+ 4-Post Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B30-5
• Store SKU: DITB305
• Component: M5 Nut
• Listed Application: CR14 & PP8+ 4-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

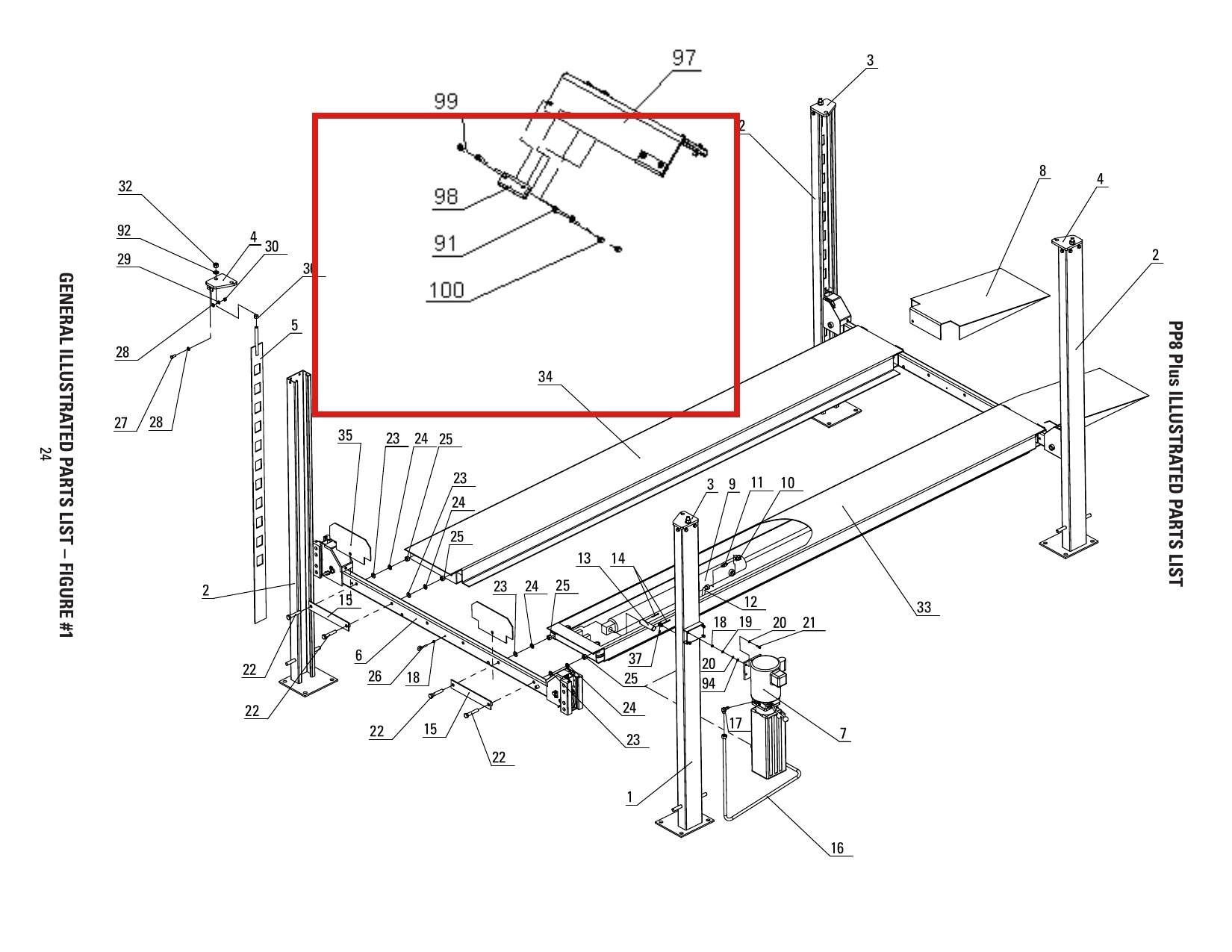

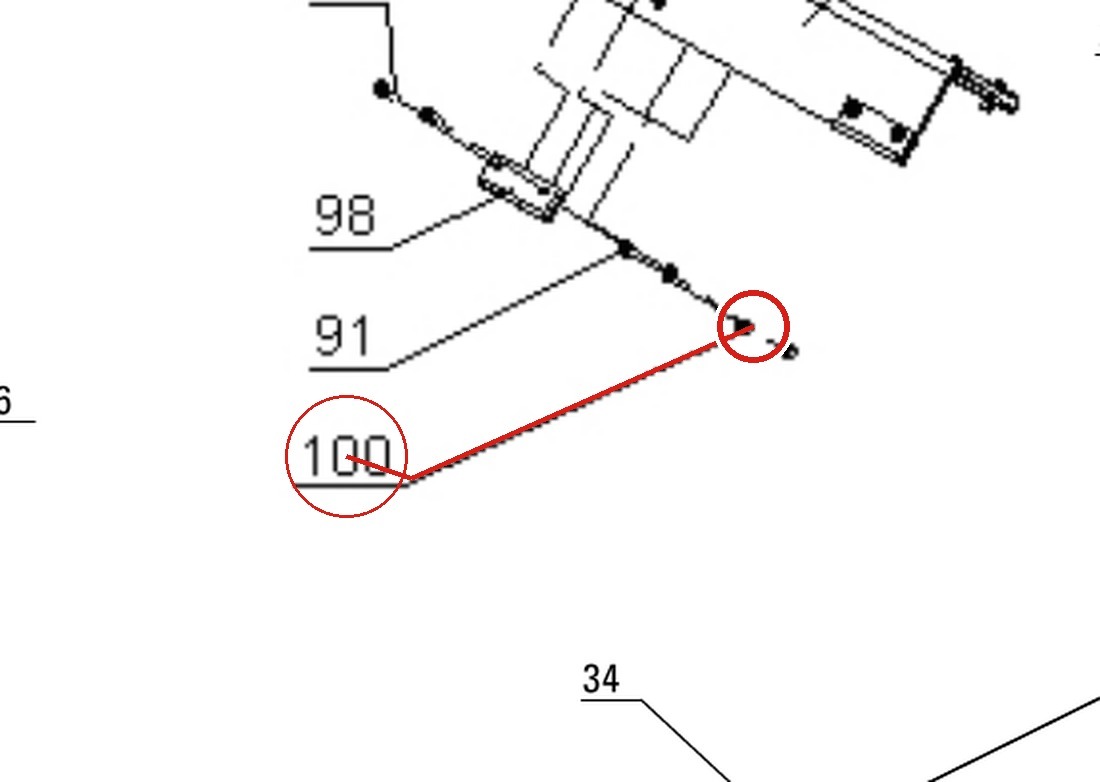

In the drawing images above this is part number 79 in the CR14114000 SER# 00N drawing and part number 100 in the PARTS BREAKDOWN PP8+ 8K 4-POST drawing and part number 100 in the PARTS BREAKDOWN PP8+ LONG 8K 4-POS drawing.

Fits the following lift models — part number B30-5 appears in the parts breakdown of each of these lifts: Direct Lift CR14 14000 (serial 00N), PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP9+ 9K Four-Post, PRO-14F (newer, 3-bolt lock).

This M5 nut appears in Drawing 2 (p.39, Frame Assembly with Ramp/Stopper Detail A 1:10), FIG.9, and the General Illustrated Parts List (A) Figure #6 of the respective breakdowns. It secures small hardware in the frame and ramp areas of these lifts.

OEM-style replacement from the Direct Lift HI Parts family. Match your model’s figure reference before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); PP8+ (8,000 lb four-post)
• Forward Lift — CR14 (CR14114000, serial 00N)
