Direct Lift B33-6 M6 Nylon Lock Nut for 2-Post 10K, I12 & 7K 4-Post Parking Lifts

Description

Direct Lift B33-6 M6 Nylon Lock Nut for 2-Post 10K, I12 & 7K 4-Post Parking Lifts

Replace missing, worn, or damaged lift hardware with the B33-6 M6 Nylon Lock Nut, listed for use on 2-Post 10K, I12 & 7K 4-Post Parking Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B33-6
• Store SKU: DITB336
• Component: M6 Nylon Lock Nut
• Listed Application: 2-Post 10K, I12 & 7K 4-Post Parking Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

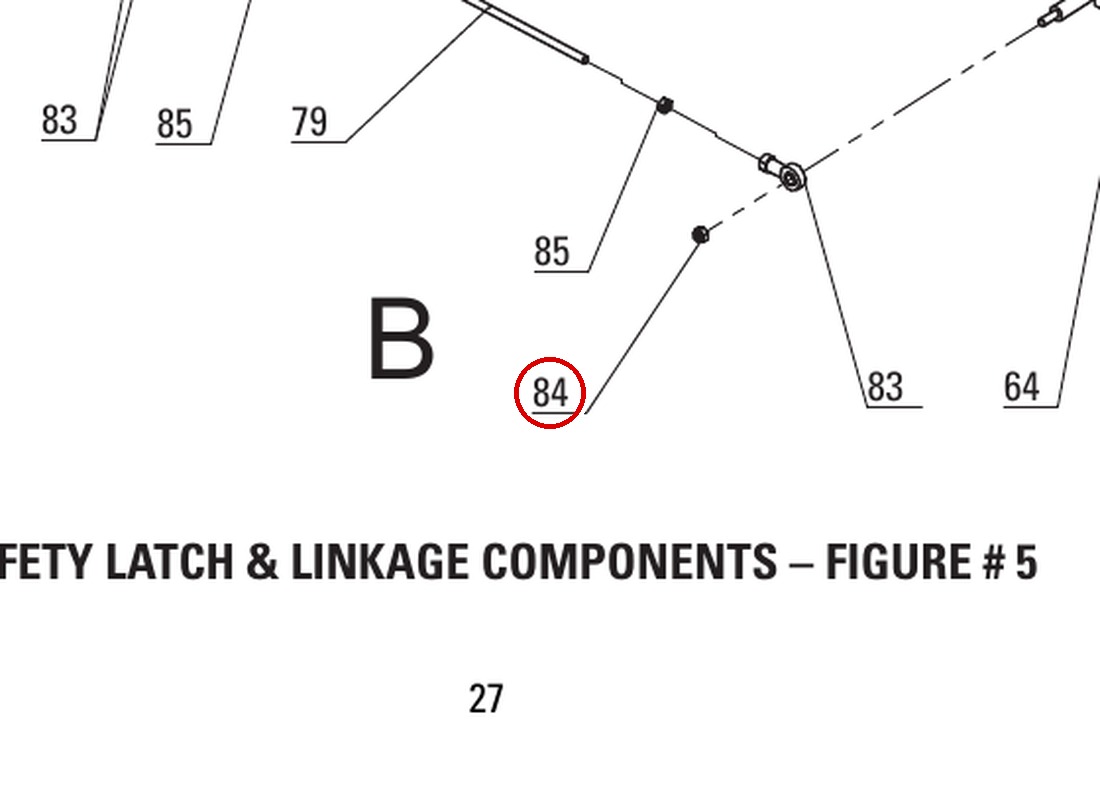

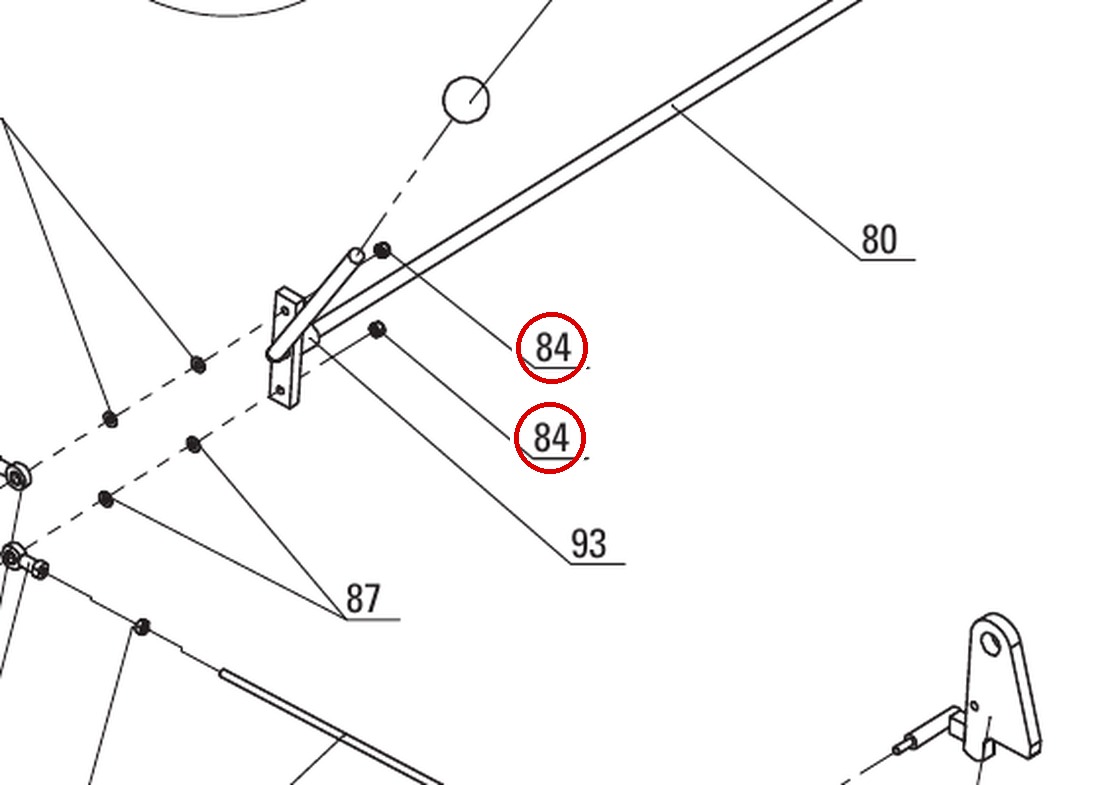

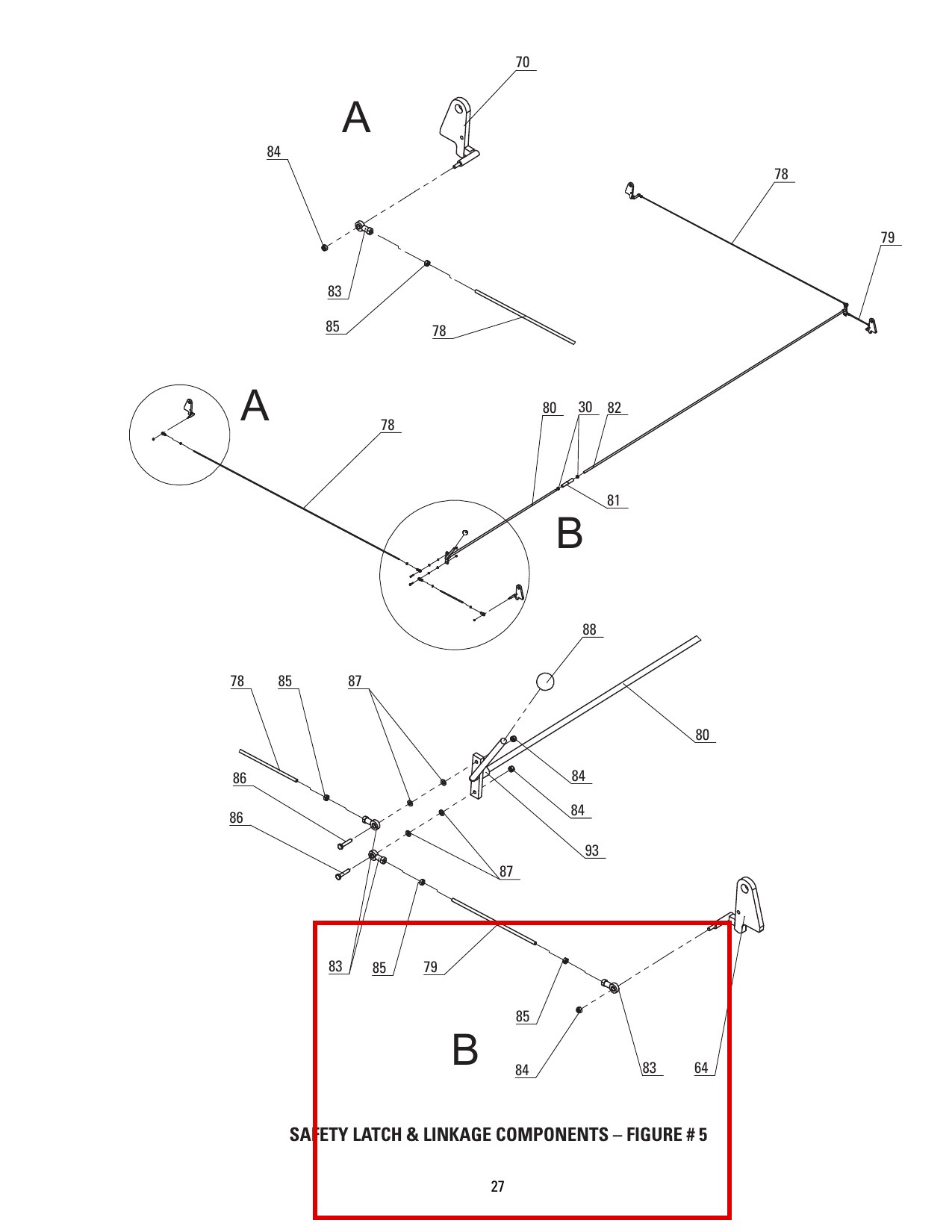

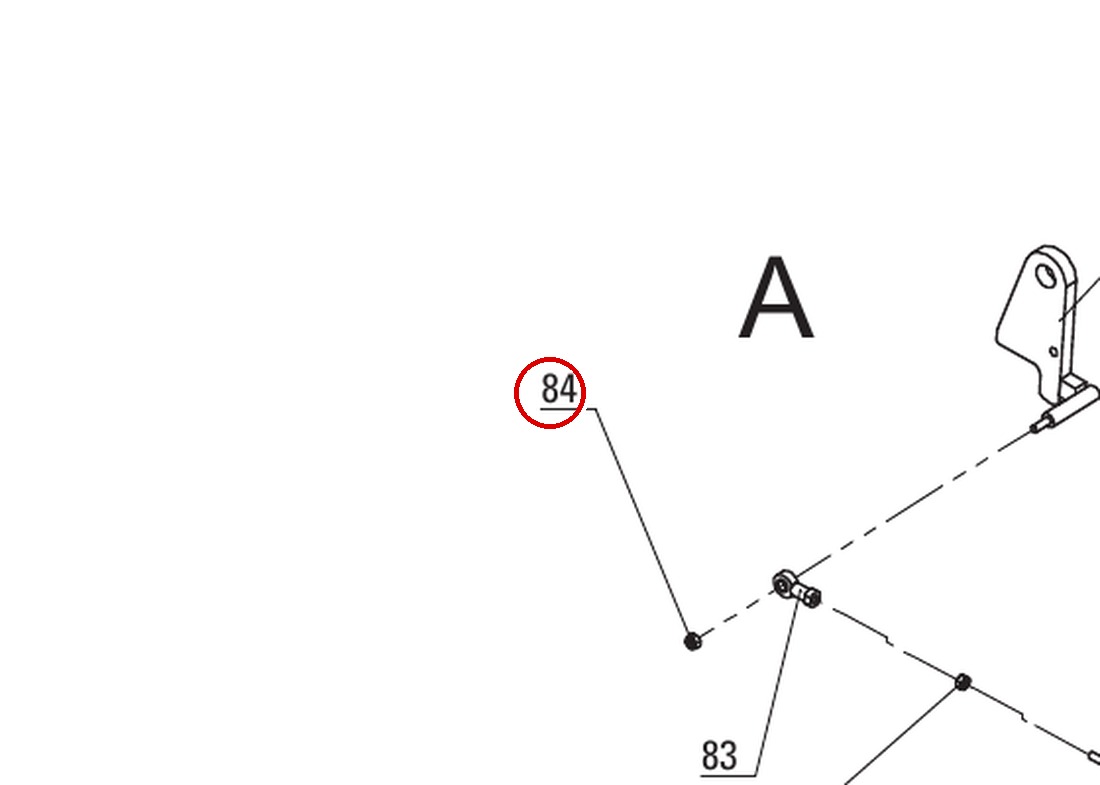

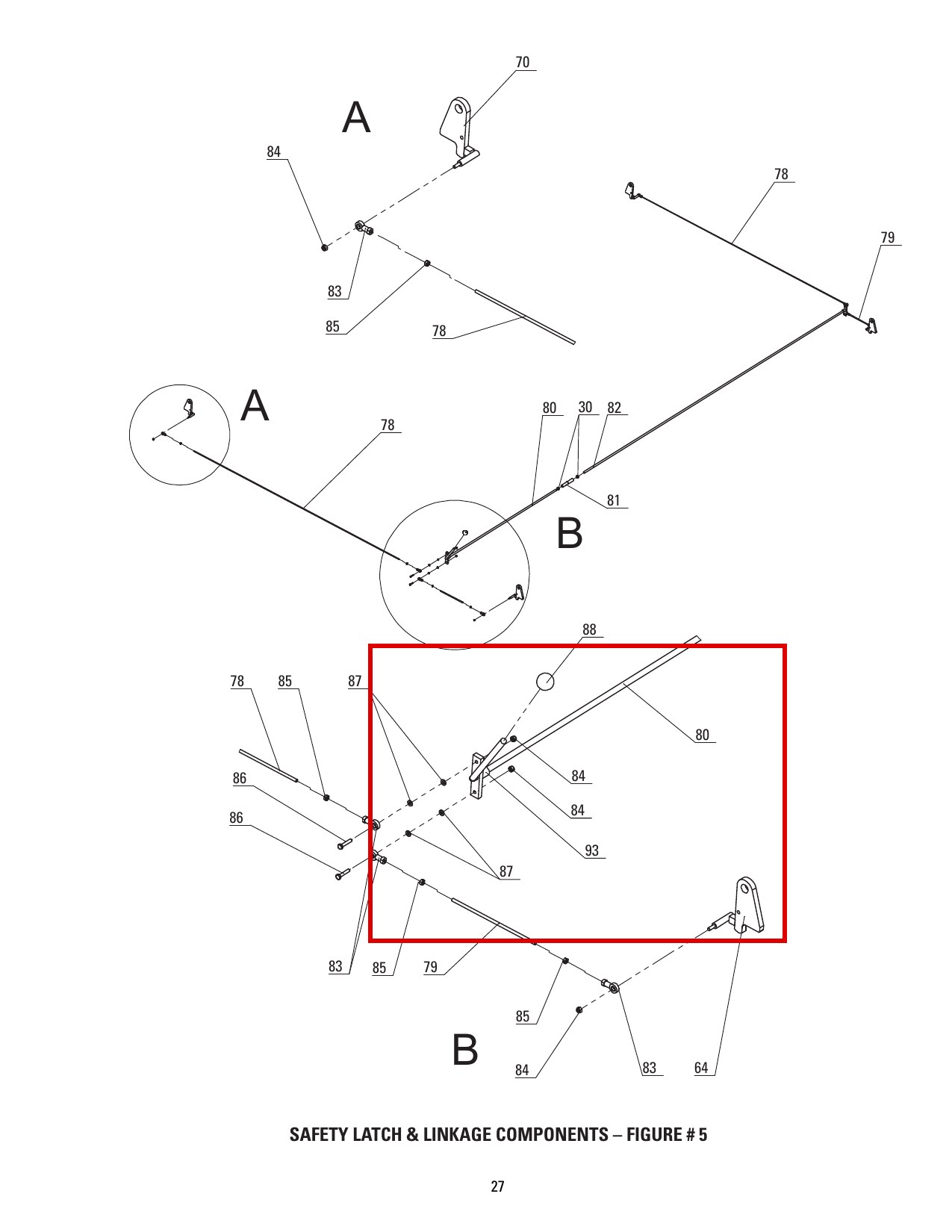

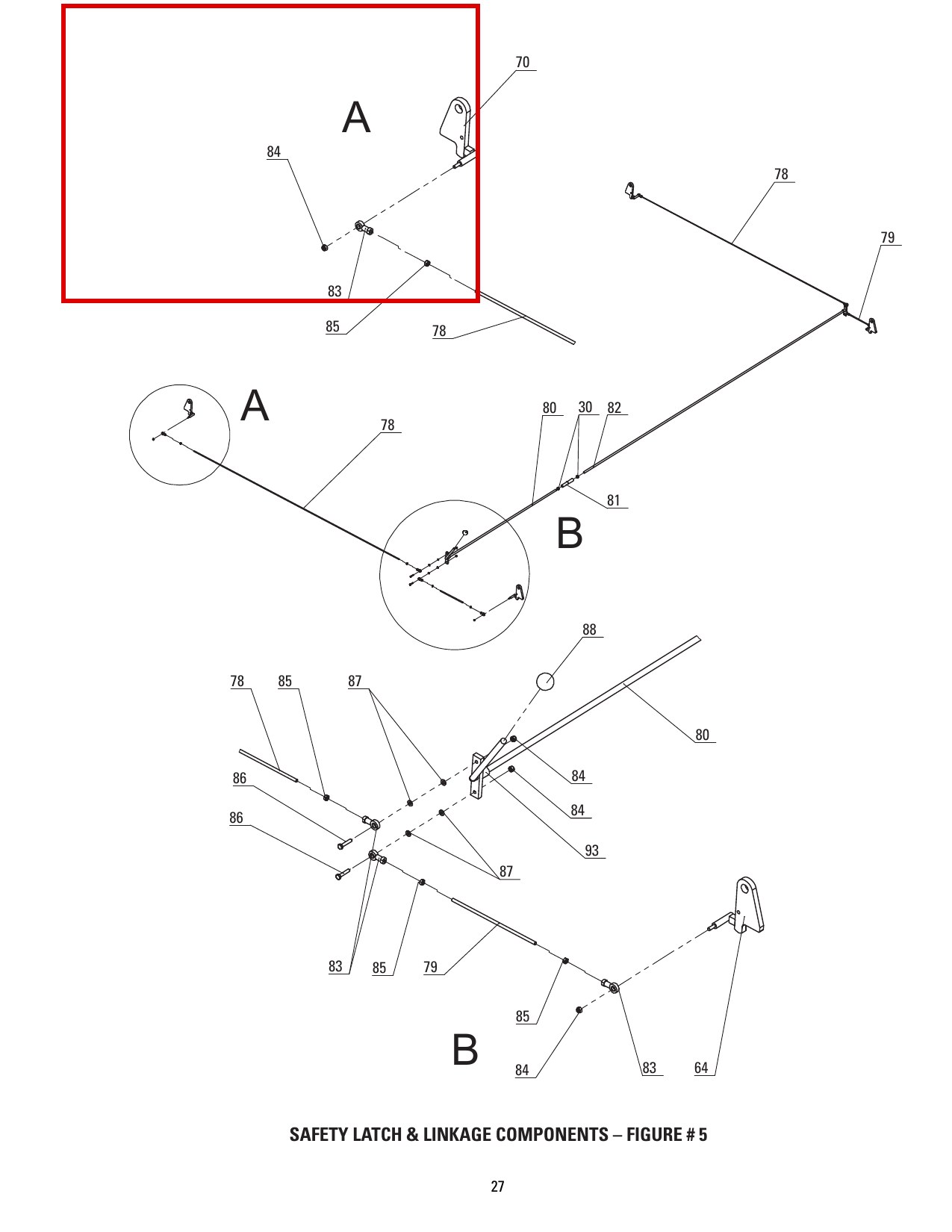

In the drawing images above this is part number 82 in the I12-Parts drawing and part number 70 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 84 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing.

Fits the following lift models — part number B33-6 appears in the parts breakdown of each of these lifts: Direct Lift I12, 10K Two-Column, 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-9D 9K Two-Column, PRO-10 / PROV10 / PV10 (new style), PROV12 / PRO-12, PV12, PROV10 (early); PRO-9D.

This M6 nylon insert lock nut appears in the slave-side carriage lock/latch exploded views (Drawing 1) and the overall lift assembly drawing covering columns, cross beams, arms, and power unit (Drawing 2). It secures latch and lock linkage hardware, where the nylon insert prevents loosening as the safety locks engage and release through daily lift cycles.

OEM-style replacement for the factory B33-6 nut. Confirm your model and drawing reference in the parts breakdown before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); I12 (12,000 lb two-post); PP8+ (8,000 lb four-post)
